Zebra 110Xi4
| Brand | Zebra 2014 |
| Model | 113-801-00200 |
| Released Year | 2014 |
| Type | Printers |
| Series | Xi |
| Status | Discontinued |
Quick view
Overview
The Zebra 110Xi4 printer is a durable industrial printer engineered for high-volume label and tag printing. It features a metal frame construction for maximum durability in harsh environments. The printer supports both thermal transfer and direct thermal printing methods, offering versatile application options. The 110Xi4 includes a modular design that allows easy upgrades to meet future needs. It is equipped with an advanced processor and memory to handle complex label formats efficiently. Connectivity options include USB, Ethernet, and serial interfaces, facilitating integration into existing systems.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| MPN | 113-801-00200 |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal Transfer/Direct Thermal |
| Maximum Resolution | 300dpi |
| Model | 110Xi4 |
| Connectivity | USB 2.0, Serial RS-232, Ethernet 10/100 |
| Features | Networkable |
| Black Print Speed | 14 ips |
| Country/Region of Manufacture | United States |
| Product Line | Zebra Xi |
| UPC | Does not apply |
| Printer Model | Zebra 110Xi4 |
| Print Width | Up to 4.09 inches (104 mm) |
| Print Speed | Up to 14 inches per second (356 mm/s) |
| Print Method | Thermal transfer and direct thermal |
| Resolution | 203 dpi (8 dots/mm), optional 300 dpi, 600 dpi available |
| Processor | 32-bit RISC processor |
| Memory | 64 MB DRAM, 128 MB Flash |
| Media Types | Continuous, die-cut, black mark, tag stock |
| Media Width | 3.5 inches to 4.5 inches (89 to 114 mm) |
| Media Thickness | Up to 10.4 mil (0.26 mm) |
| Ribbon Core Size | 1 inch (25.4 mm) |
| Dimensions | 10.9" H x 15.6" W x 19.1" D (277 mm x 397 mm x 485 mm) |
| Weight | Approximately 48 lbs (21.8 kg) |
| Operating Temperature | 40°F to 104°F (5°C to 40°C) |
| Power Supply | External power supply, 100-240 VAC, 4.5A |
| Case Materials | Steel frame with metal covers |
| Optional Features | RFID encoding, peeler and cutter modules |

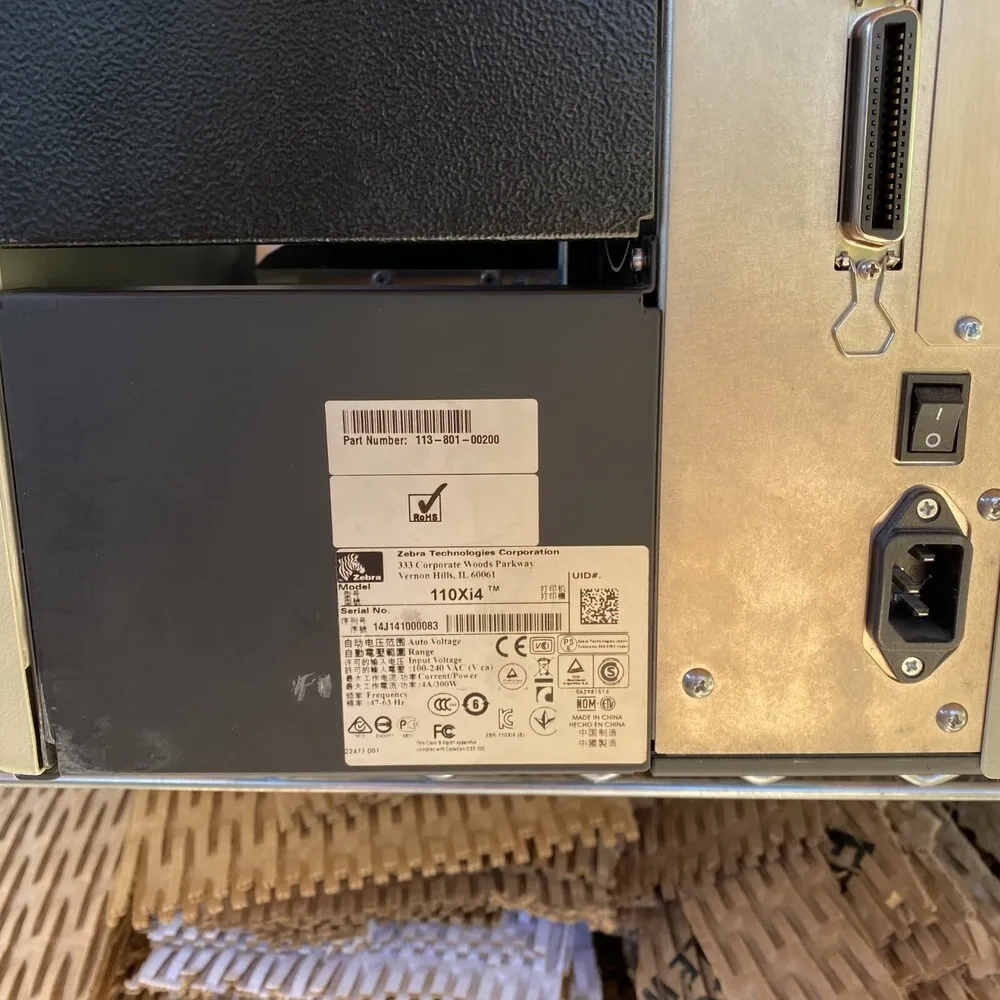

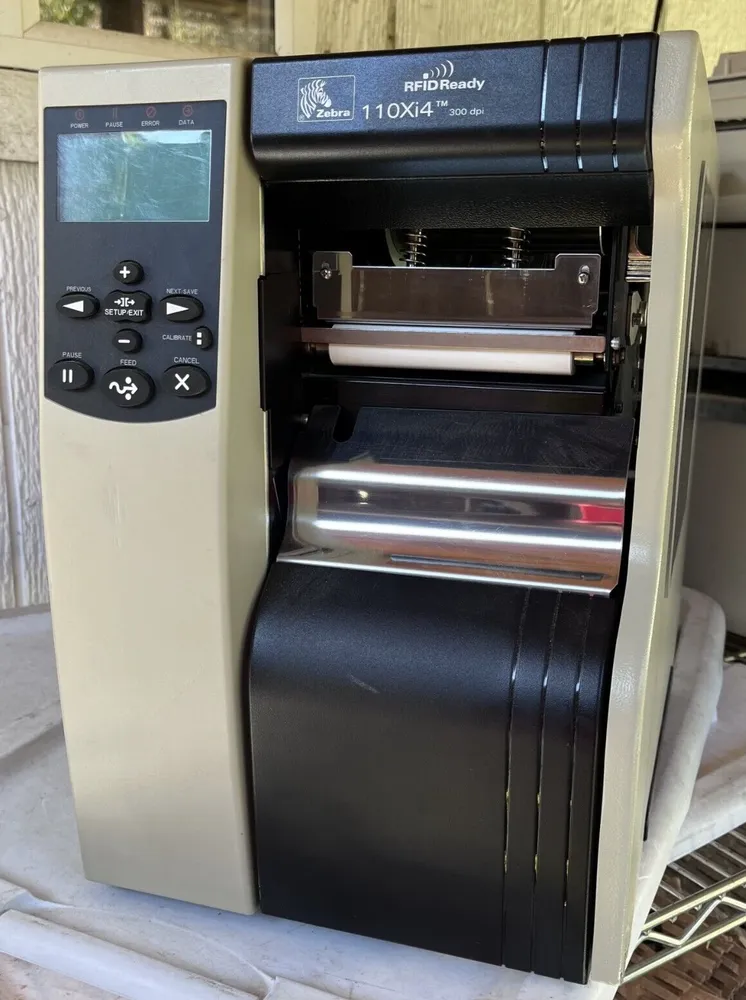

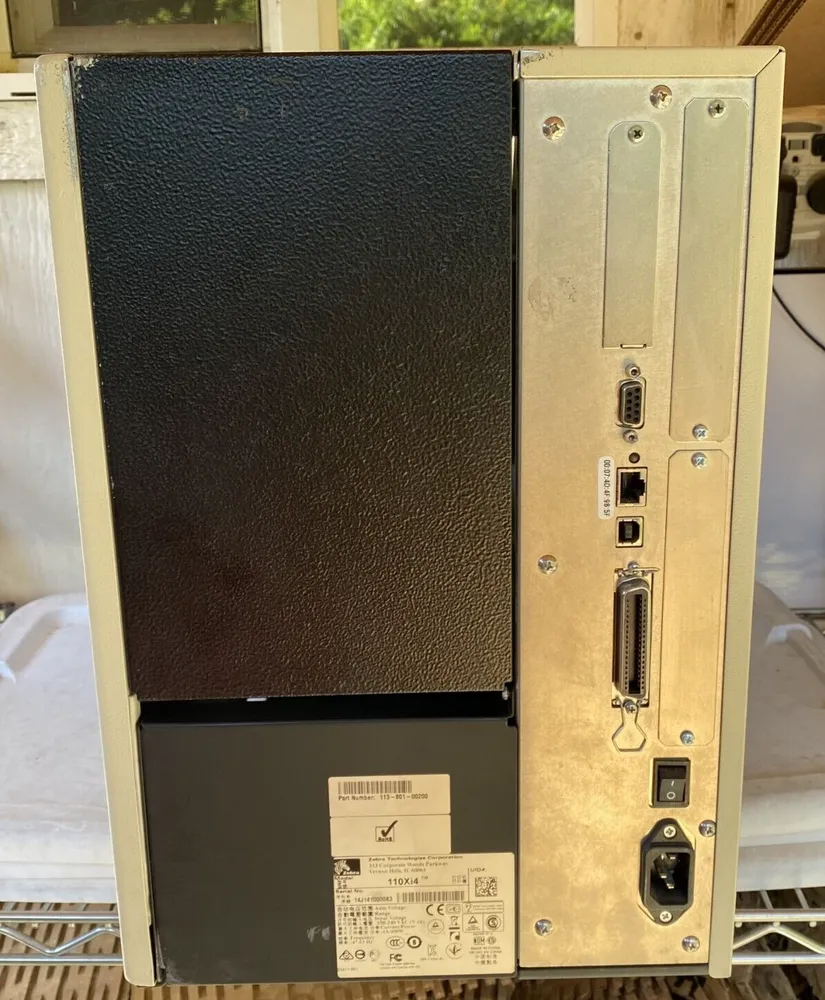

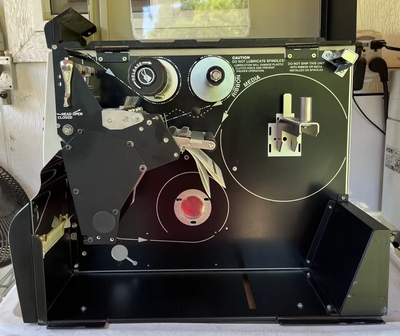

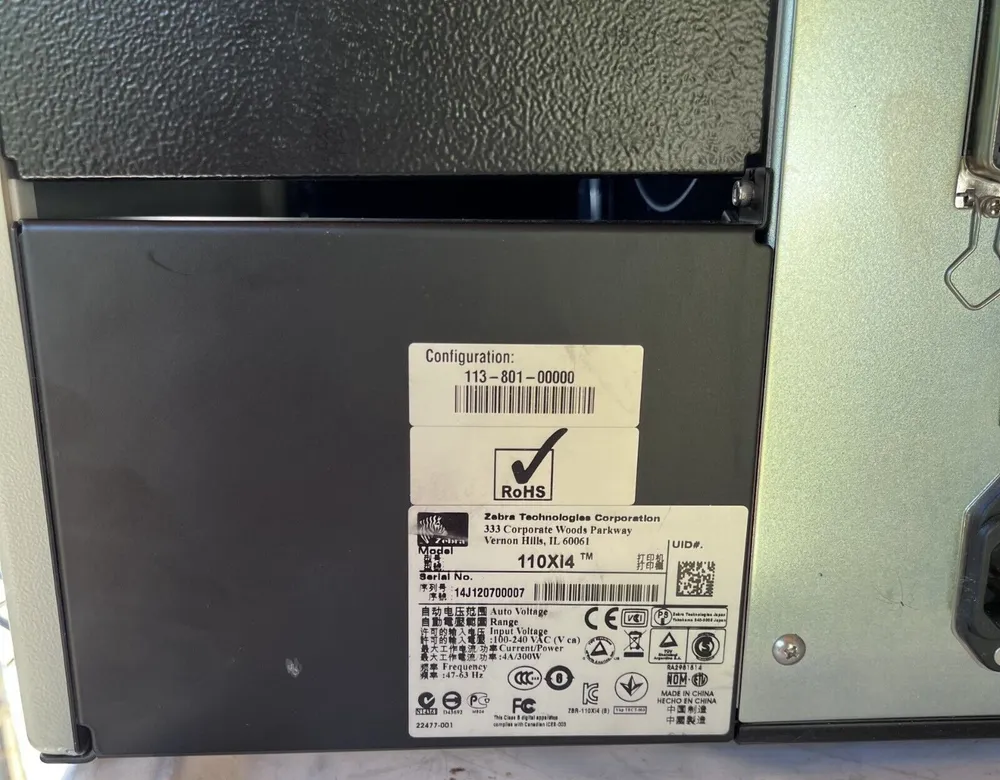

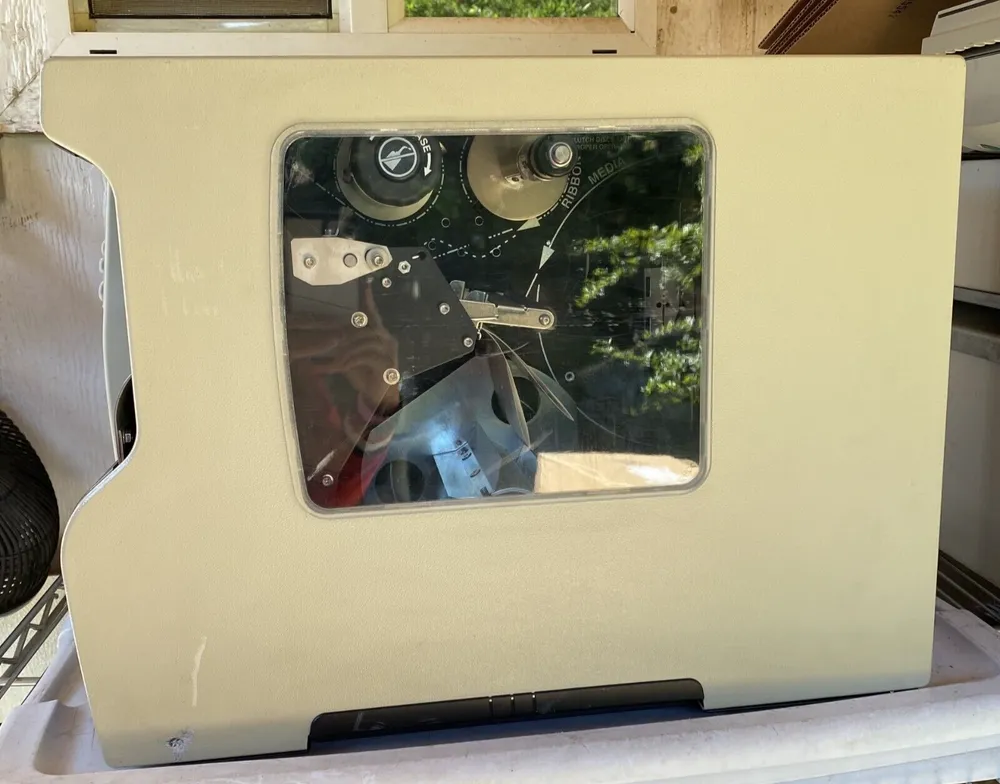

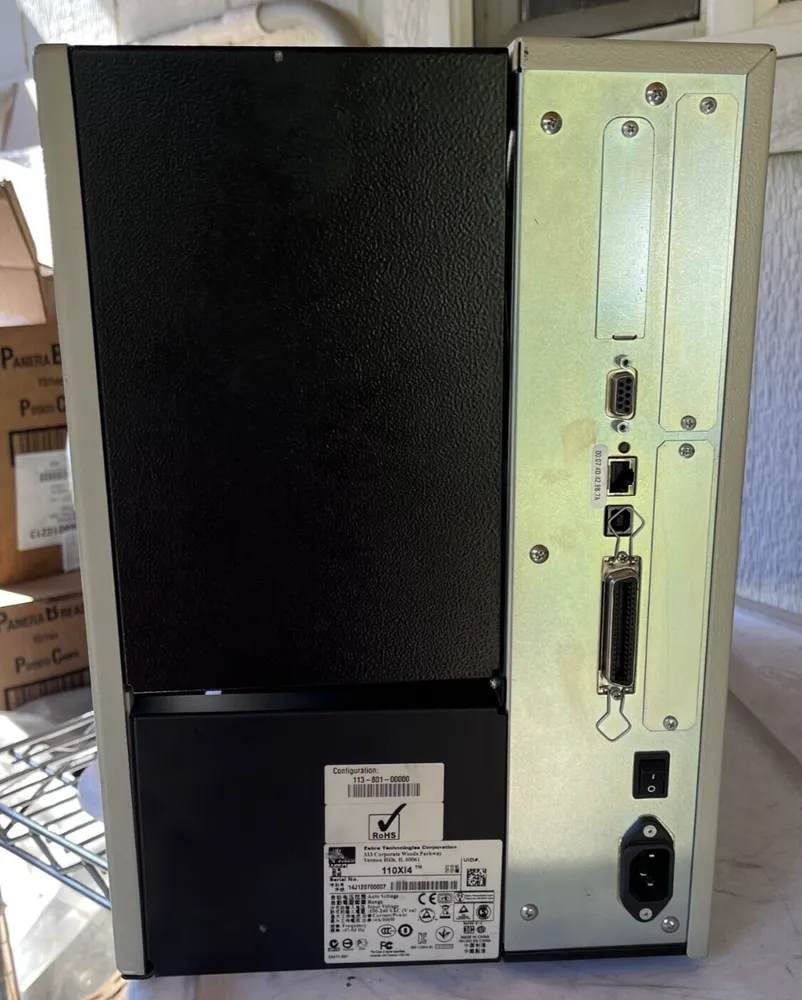

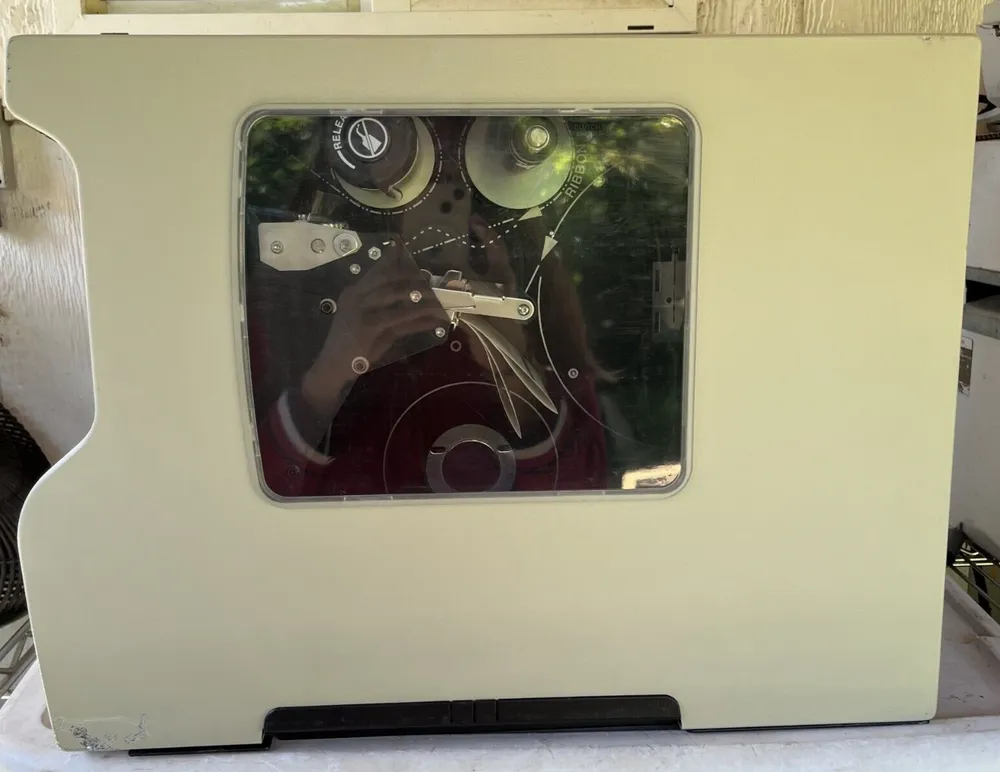

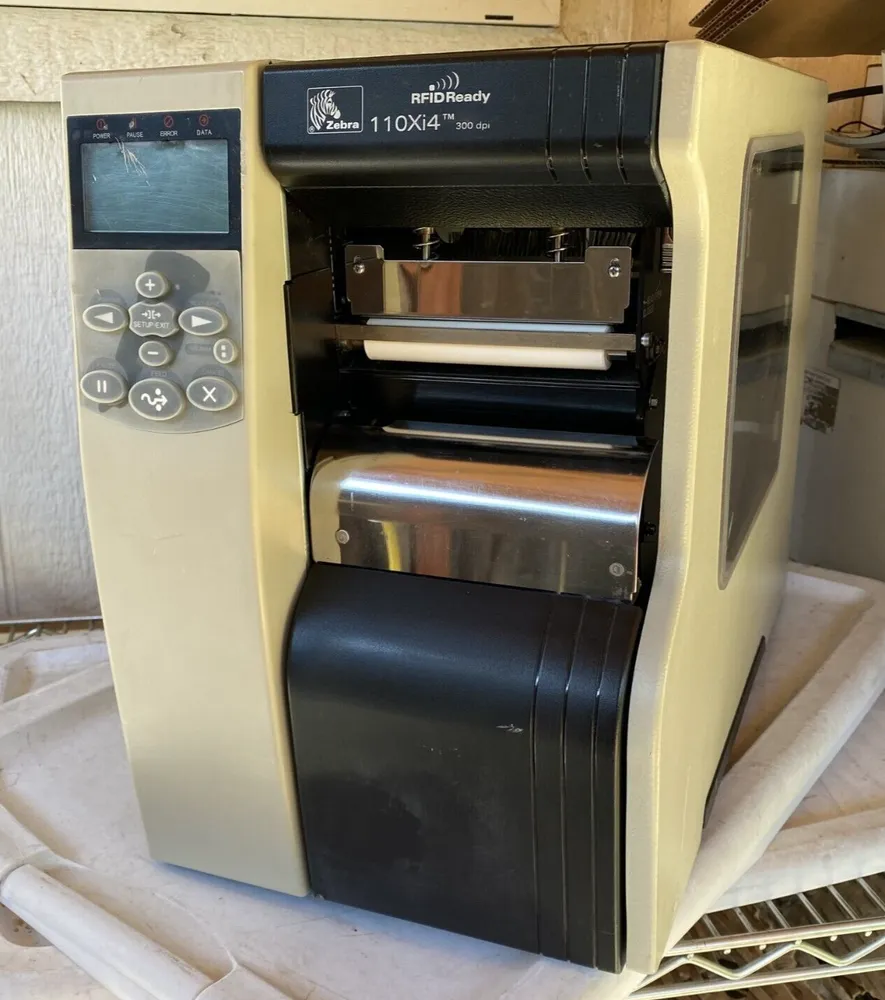

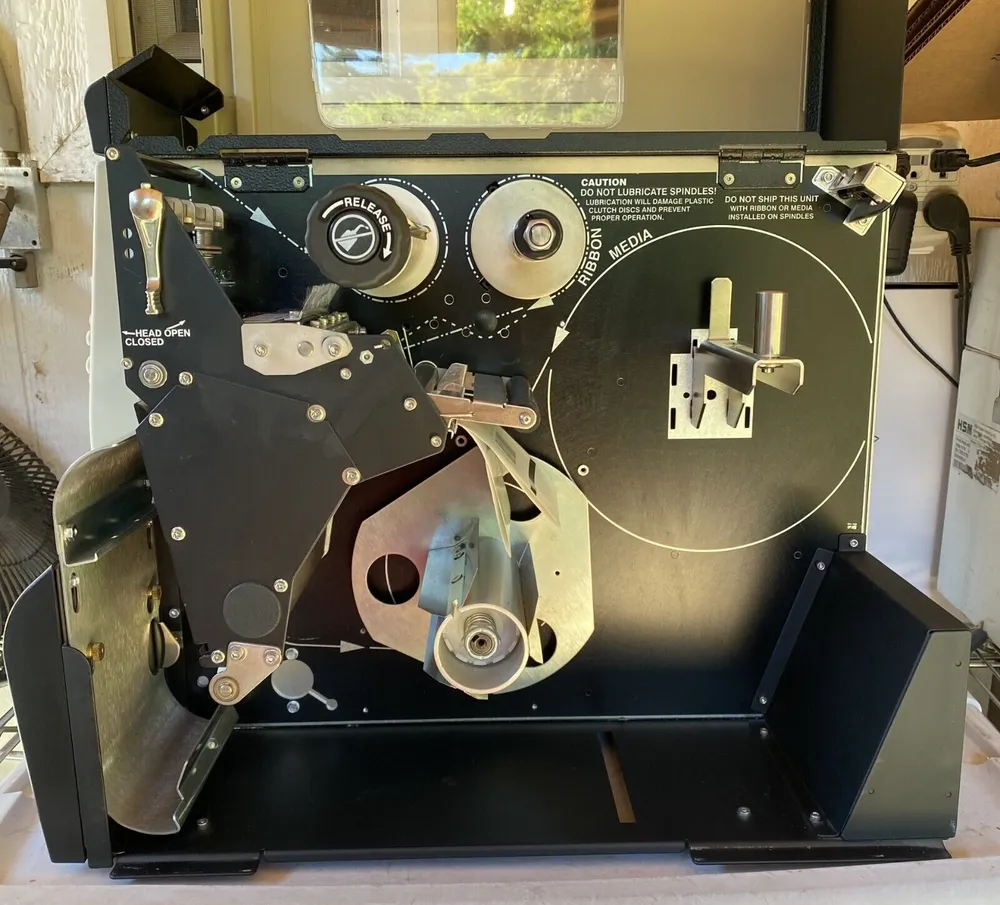

Images
Key Advantages
The Zebra 110Xi4 offers exceptional durability with its rugged steel frame, making it ideal for heavy industrial use. It provides fast print speeds reaching up to 14 inches per second, enhancing productivity. The printer supports a wide variety of media types and widths, ensuring compatibility with many labeling applications. Its modular design allows for future expansions such as RFID encoding and additional connectivity options. Easy-to-use controls and an intuitive LCD display simplify operation and reduce training time. Enhanced print quality with precision mechanics ensures consistently clear and readable labels.
Limitations
The Zebra 110Xi4 is relatively large and heavy compared to desktop printers, which limits its portability. Initial investment costs may be higher than entry-level printers, potentially deterring small businesses. Some advanced features require optional accessories or modules, increasing overall cost. The printer requires routine maintenance to maintain optimal performance in demanding environments. Media types that are not compatible with thermal transfer or direct thermal technologies cannot be used. Firmware updates may require professional support for seamless integration.
FAQ
What printing technologies does the Zebra 110Xi4 support?
The Zebra 110Xi4 supports thermal transfer and direct thermal printing technologies.
What are the maximum print speed and print width of the 110Xi4?
The printer achieves print speeds up to 14 inches per second with a maximum print width of 4.09 inches (104 mm).
Is the Zebra 110Xi4 suitable for RFID encoding?
Yes, the 110Xi4 offers optional RFID encoding modules for compliant tags.
Which connectivity options are available on the Zebra 110Xi4?
Standard connectivity interfaces include USB 2.0, Ethernet, and serial ports.
Is the printer compatible with various label materials?
Yes, it supports a wide range of media types including paper, synthetic, and tags.
Can the Zebra 110Xi4 handle complex label formatting?
Yes, it features advanced memory capacity and a powerful processor to manage complex formats.
Has the Zebra 110Xi4 been discontinued?
Yes, the Zebra 110Xi4 has been discontinued, but support and parts may still be available.
