Zebra 110xi4
| Brand | Zebra 2010 |
| Model | 113-801-00000 |
| Released Year | 2010 |
| Type | Printers |
| Series | Xi |
| Status | Discontinued |
Quick view
Overview
The Zebra 110xi4 is a rugged industrial printer designed for high-volume barcode and label printing environments. It features a direct thermal and thermal transfer printing method with resolutions up to 203, 300, or 600 dpi, offering flexibility for diverse printing demands. The printer supports a fast print speed of up to 14 inches per second, enhancing productivity in demanding industrial settings. It uses a heavy-duty print mechanism and supports media up to 8.5 inches wide, making it suitable for a variety of label sizes and applications. Connectivity options include serial, parallel, USB, and Ethernet interfaces, allowing for seamless integration into existing networks. The device supports multiple barcode symbologies and various font options, ensuring compatibility with different labeling standards.
The 110xi4 is part of Zebra’s Xi series, recognized for its durability and reliability under harsh industrial conditions.
Specifications
| MPN | 113-801-00000 |
| Model | Zebra 110Xi4 |
| Memory | Standard 64 MB SDRAM, 128 MB Flash |
| Technology | Thermal |
| Connectivity | Serial (RS-232), Parallel (IEEE 1284), Ethernet (RJ-45), USB 2.0 |
| Output Type | Black & White |
| Features | Networkable |
| Input Type | Monochrome |
| Type | Label Printer |
| Maximum Resolution | 300 x 300 DPI |
| Product Line | Zebra Xi |
| Item Length | 10.31 in |
| Item Height | 20.38 in |
| Item Width | 15.5 in |
| Weight | Approximately 49 lbs (22.2 kg) |
| Printer type | Industrial thermal transfer and direct thermal printer |
| Print resolution | 203 dpi, 300 dpi, 600 dpi |
| Max print width | 8.5 inches (216 mm) |
| Max print speed | 14 inches per second |
| Media types supported | Labels, continuous, tags, fanfold |
| Media width range | 0.79 inches to 8.5 inches (20 mm to 216 mm) |
| Media thickness | 0.0023 in to 0.01 in (0.06 mm to 0.25 mm) |
| Ribbon type | Wax, wax/resin, resin |
| Ribbon length | 450 m standard, 600 m optional |
| Connectivity options | Serial, parallel, USB 2.0, 10/100 Ethernet |
| Display | 4.3-inch color LCD touch screen |
| Barcode symbologies | Code 39, Code 128, EAN-13, UPC, RSS, DataMatrix, QR Code, PDF417 |
| fonts | Built-in scalable and bitmap fonts |
| Operating temperature | 5°C to 40°C (41°F to 104°F) |
| Dimensions | 24.8 x 13.6 x 17.6 inches (630 x 345 x 447 mm) |
| Power supply | 100-240 VAC, 3.5 A, 50-60 Hz |

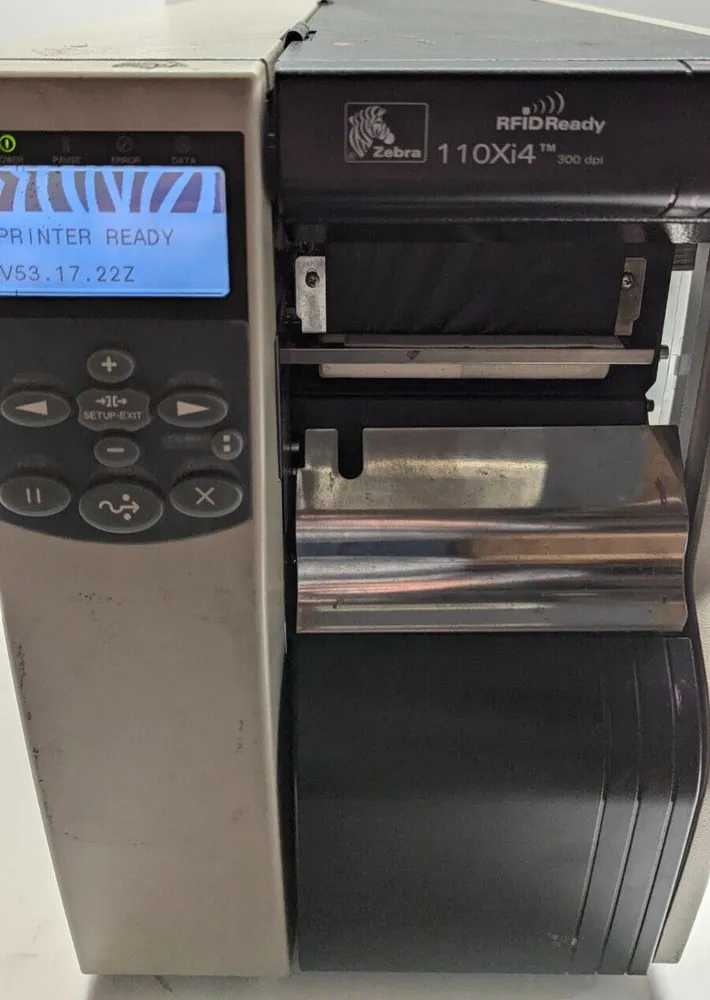

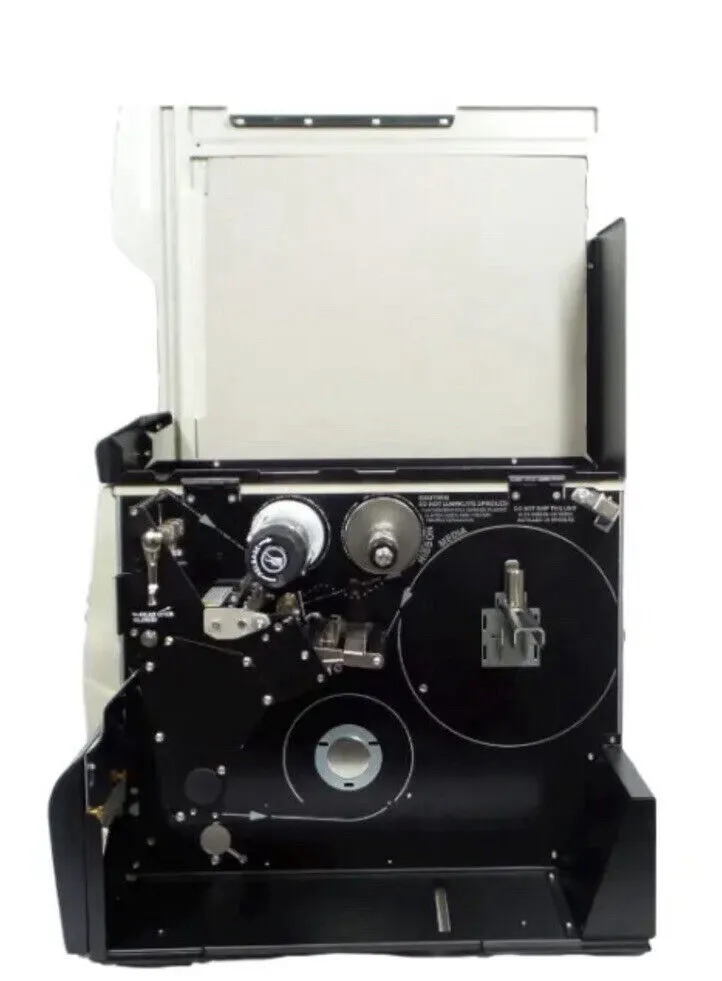

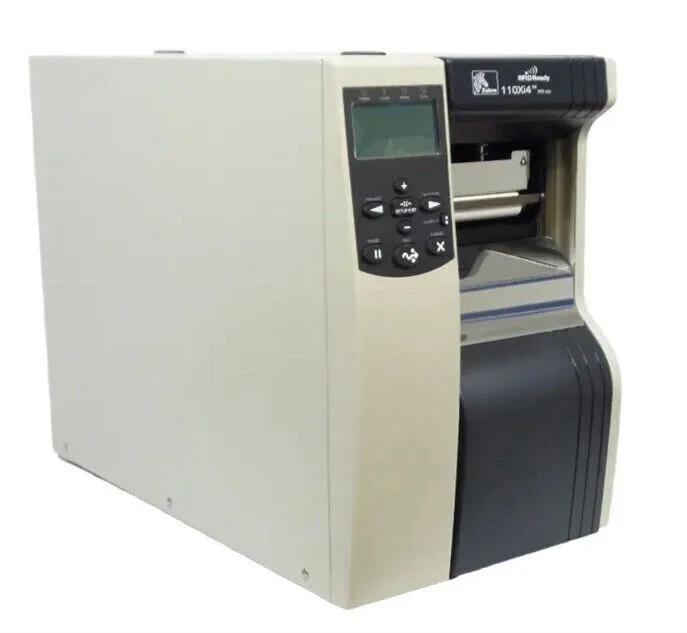

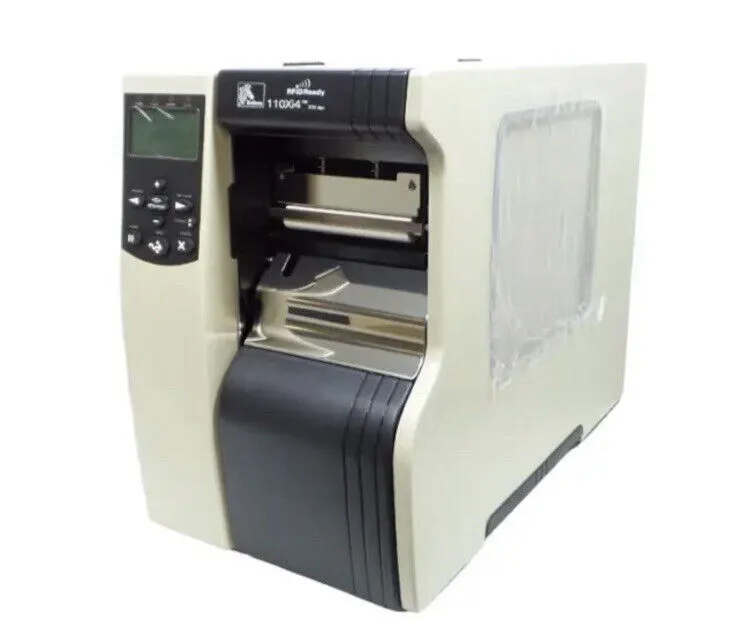

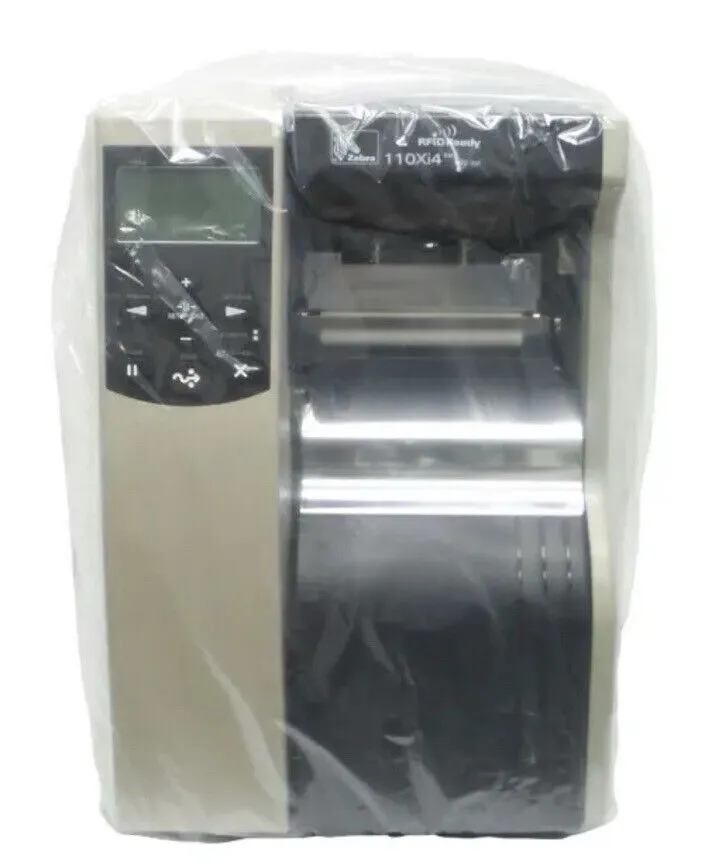

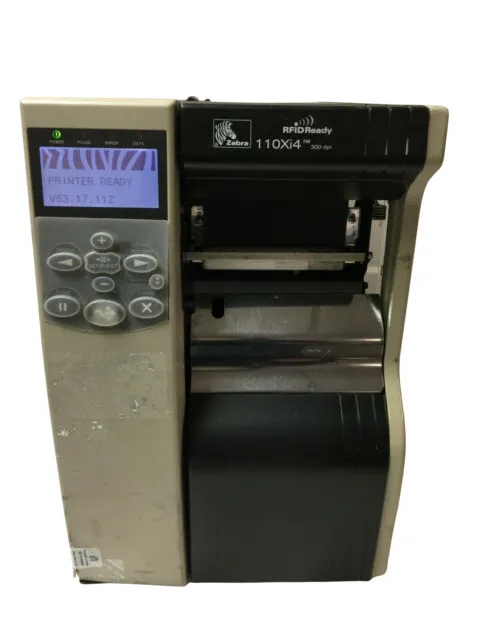

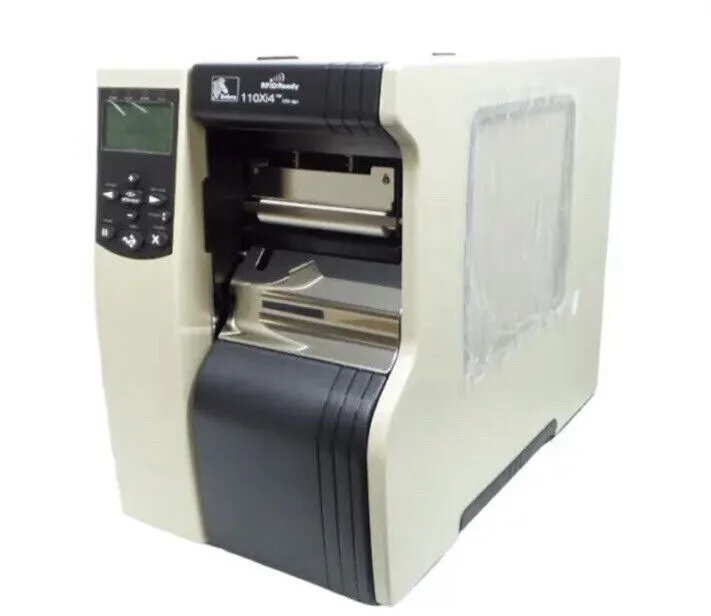

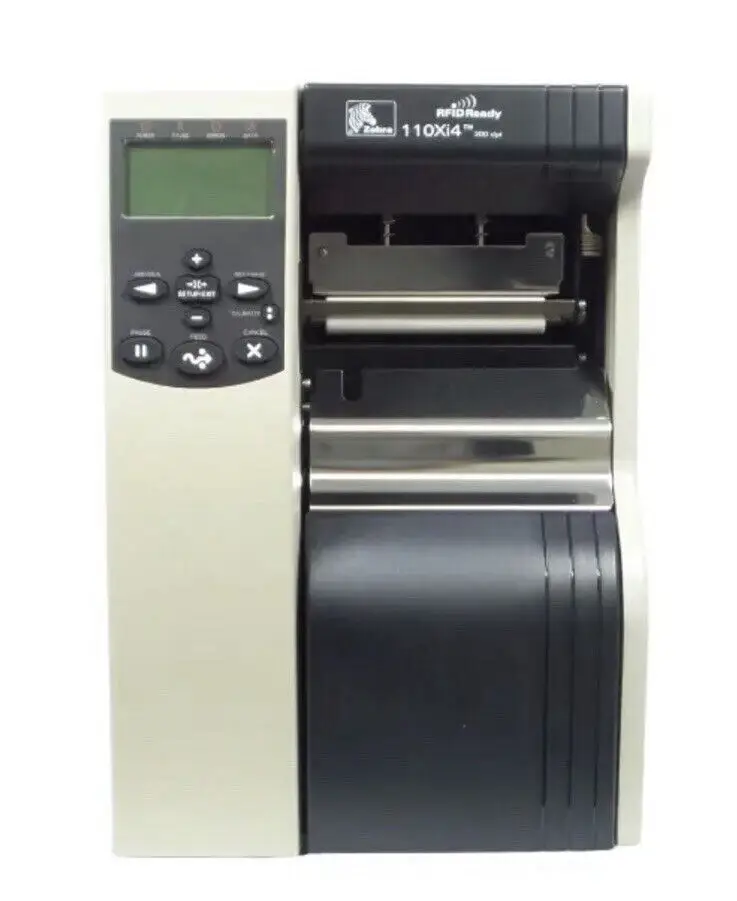

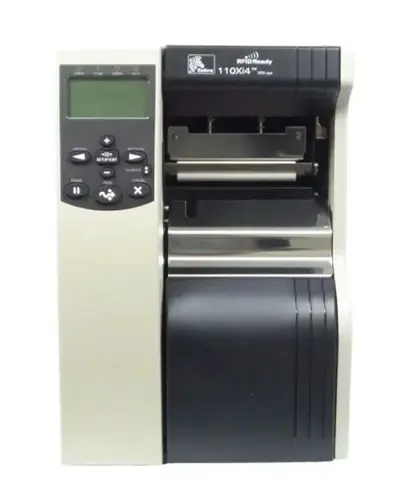

Images
Key Advantages
The Zebra 110xi4 offers exceptional build quality designed for continuous operation in tough industrial environments. Its versatile printing resolutions (203, 300, and 600 dpi) allow for detailed barcode and label production. The printer's fast print speed (up to 14 ips) meets high throughput requirements. It supports a wide range of media widths and types, including labels, tags, and continuous media, increasing application versatility. Multiple connectivity options ensure easy network integration and compatibility with various host systems. Additionally, user-friendly features like a large color display with a graphical user interface facilitate straightforward operation and maintenance.
Limitations
While the 110xi4 is robust, its size and weight might limit mobility, as it is designed primarily for stationary industrial use. The machine's initial cost and maintenance expenses might be higher compared to smaller desktop printers. Despite supporting multiple resolutions, switching between dpi settings can require calibration and setup time. The printer utilizes thermal transfer ribbons, which is an added consumable expense in comparison to direct thermal-only printers. Advanced networking features may require technical knowledge for proper configuration. Limited third-party software support might restrict customization beyond Zebra's proprietary tools.
FAQ
What printing methods does the Zebra 110xi4 support?
The Zebra 110xi4 supports both direct thermal and thermal transfer printing methods.
What are the max print resolutions available on the 110xi4?
The printer offers printing resolutions of 203 dpi, 300 dpi, and 600 dpi, depending on the model configuration.
Can the 110xi4 be connected to a network?
Yes, it supports Ethernet connectivity along with serial, parallel, and USB interfaces for network integration.
Is the Zebra 110xi4 still in production?
No, the 110xi4 has been discontinued but is still supported with parts and service by Zebra.
What maximum media width does the 110xi4 support?
The printer supports media widths up to 8.5 inches (approximately 216 mm).
Does the 110xi4 support color printing?
No, the 110xi4 is a monochrome thermal printer designed for black and white label printing.
What operating systems are compatible with Zebra 110xi4 drivers?
The printer drivers are compatible with major operating systems including Windows and selected versions of Linux.
