Zebra 105SL Plus image

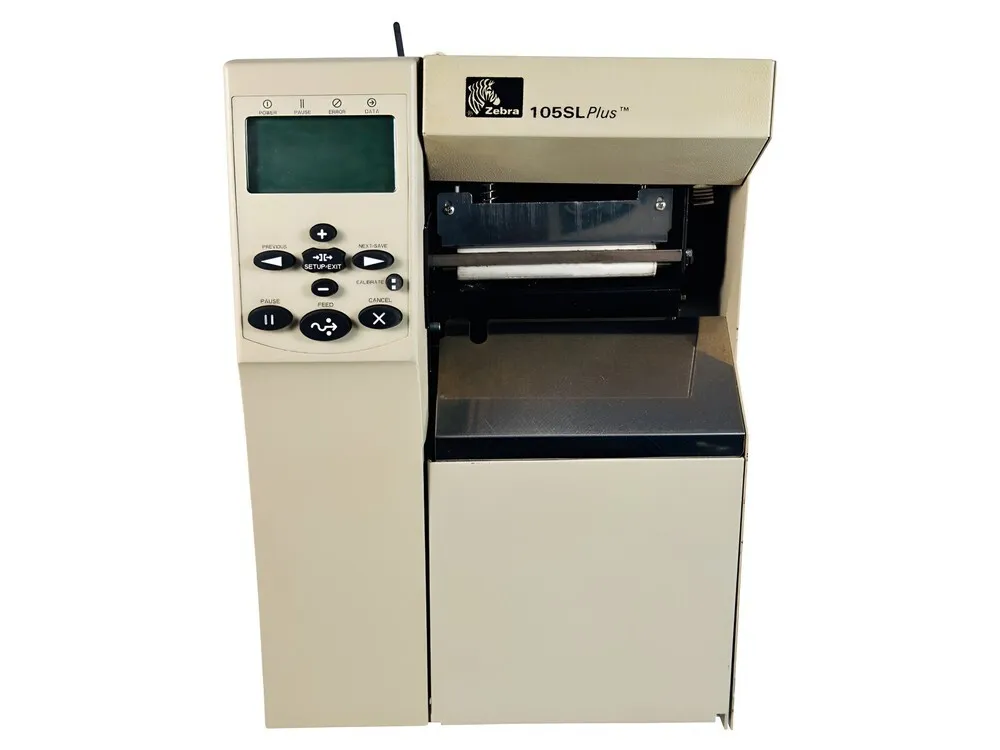

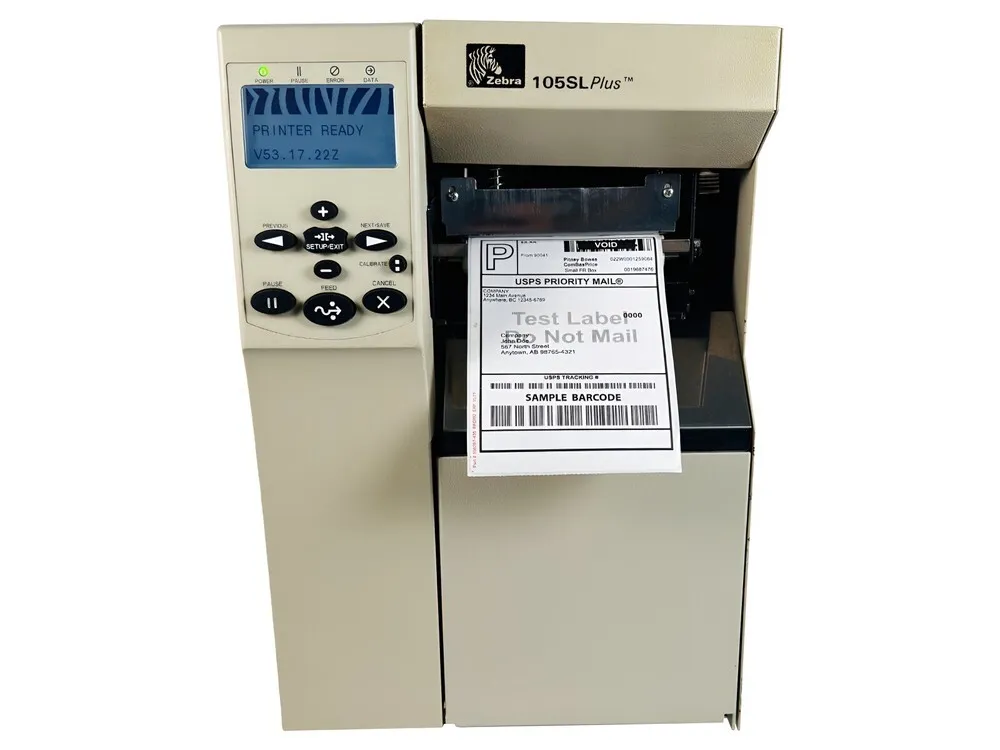

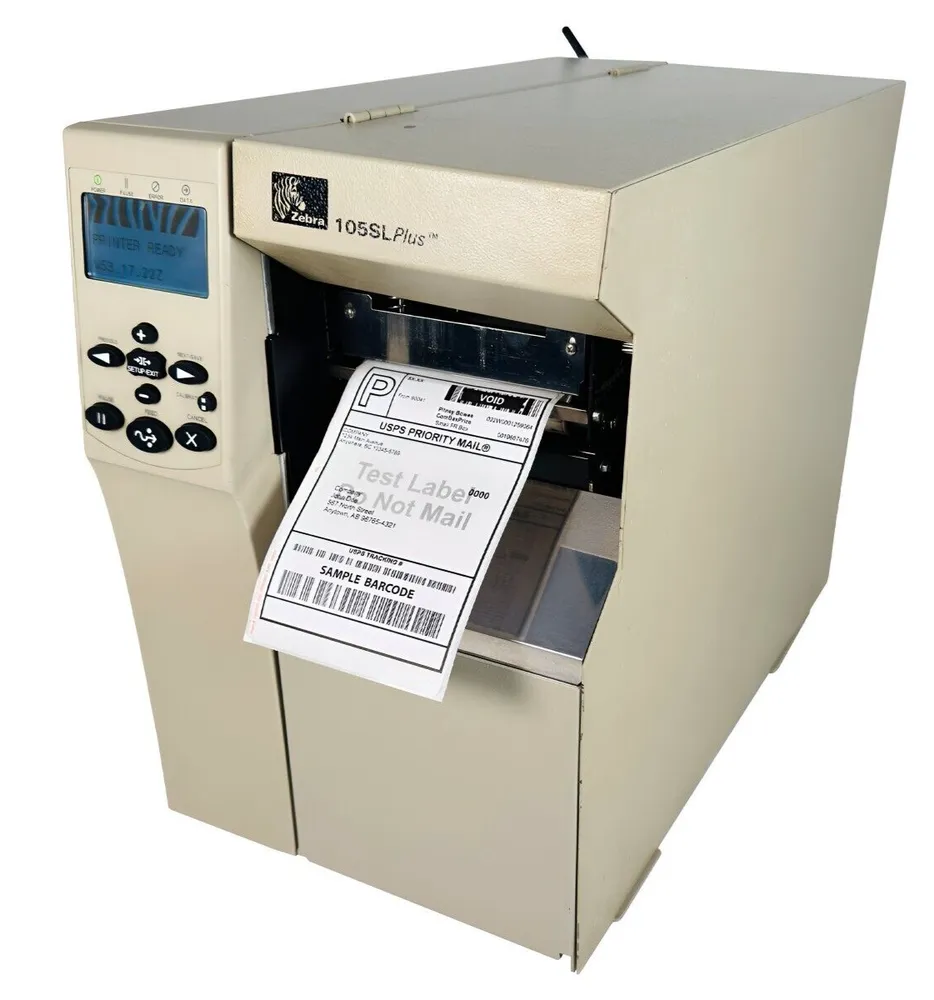

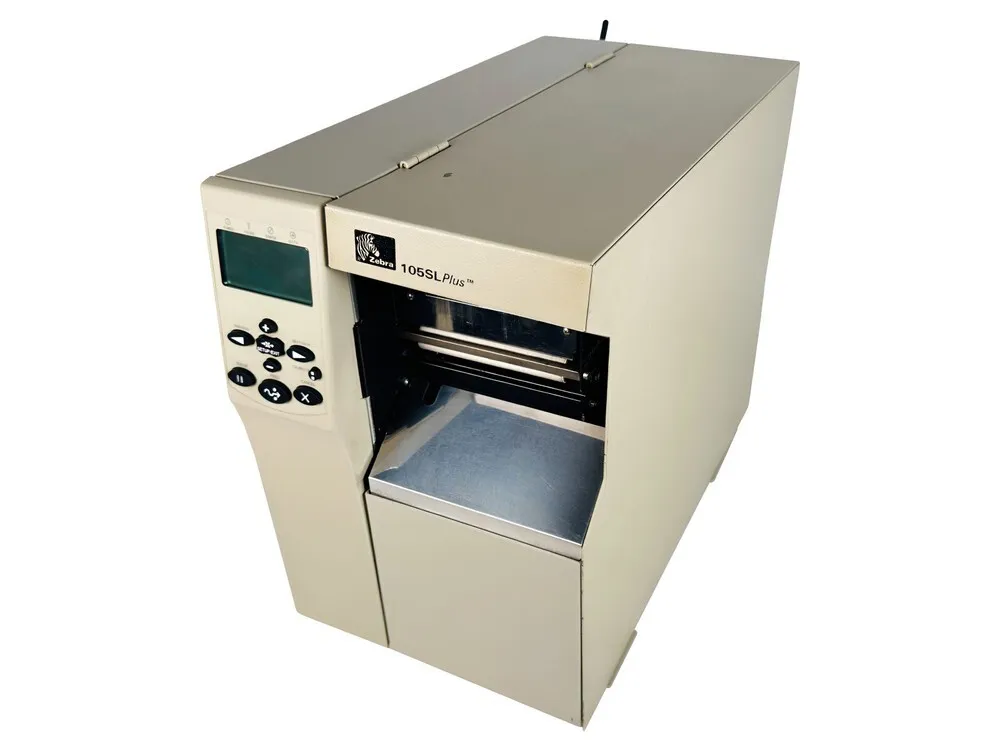

Zebra 105SL Plus

Quick information
Brand Zebra 2004
Model Ethernet Network, Barcode, 102-8KP-00000, Wi-Fi WiFi
Released Year 2004
Type Printers
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Zebra 105SL Plus is a high-performance industrial label printer designed for medium to high-volume printing applications. It features a 32-bit RISC processor that ensures fast and efficient print processing. This model supports direct thermal and thermal transfer printing methods, allowing versatile label production. The printer includes an Ethernet network interface, barcode printing capabilities, and optional Wi-Fi connectivity for flexible installation. It supports a maximum print width of 4.09 inches and a print speed of up to 6 inches per second. Robust metal construction and advanced media handling options contribute to its industrial-grade durability and reliability.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 8MB SDRAM, 4MB Flash standard; expandable
MPN Ethernet Network, Barcode, 102-8KP-00000, Wi-Fi WiFi
Supported Paper Size Max. Width: 4.52"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model 105SL Plus

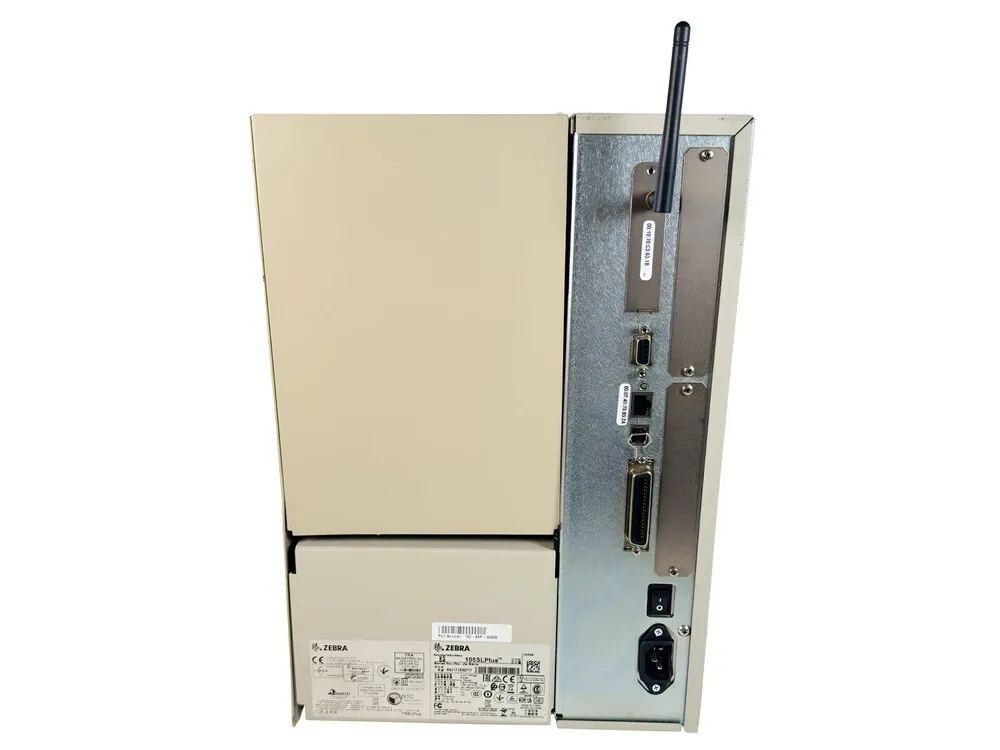

Connectivity Ethernet (standard), Optional Serial, Parallel, Wi-Fi
Features Networkable, Wireless
Black Print Speed 12 ips
Product Line Zebra
Printer Type Thermal Transfer and Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Print Speed Up to 6 inches per second (152 mm/s)
Maximum Print Width 4.09 inches (104 mm)
Processor 32-bit RISC CPU

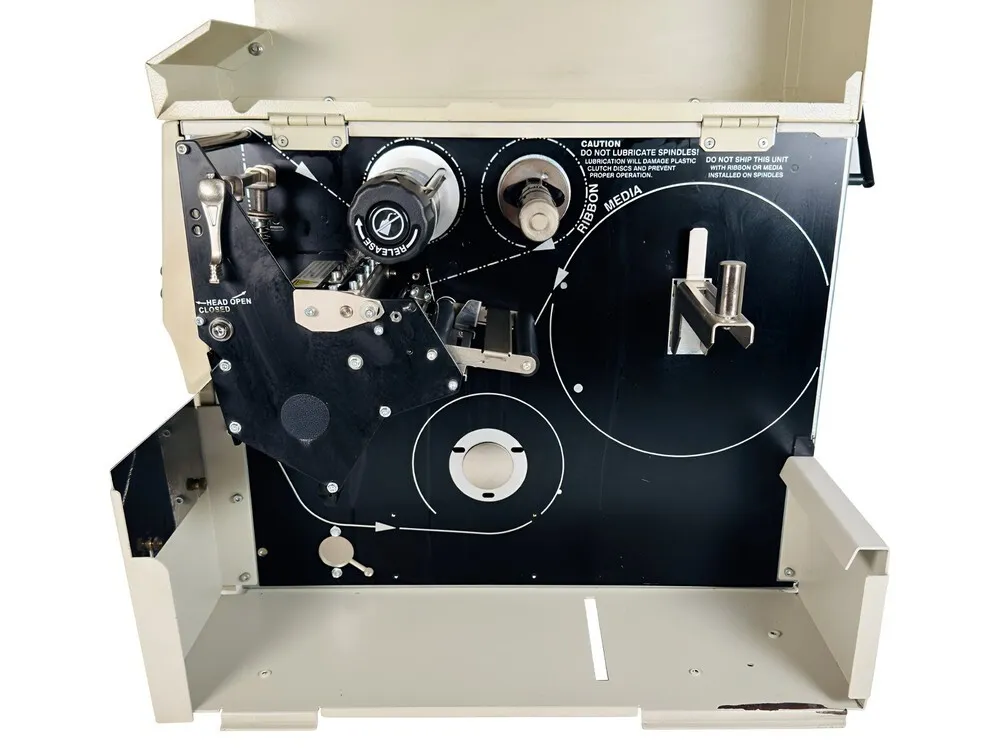

Media Types Roll-fed labels, tags, continuous and fanfold stock
Media Width 1 inch to 4.5 inches (25.4 mm to 114 mm)
Ribbon Type Wax, wax/resin, resin
Barcode Support 1D and 2D barcodes including Code 39, Code 128, UPC, EAN, PDF417
Operating Temperature 40°F to 104°F (5°C to 40°C)
Dimensions 11.5 x 14 x 14 inches (292 x 356 x 356 mm)
Weight 18 lbs (8.2 kg)

Key Advantages

The Zebra 105SL Plus boasts excellent print quality with a resolution of up to 203 dpi. Its rugged design ensures consistent performance in demanding industrial environments. The inclusion of Ethernet and optional Wi-Fi interfaces provides strong network connectivity options. Enhanced memory capacity enables storage of multiple fonts, graphics, and formats. The printer supports a wide range of barcodes and fonts, making it suitable for diverse labeling needs. Easy maintenance and quick ribbon/media loading reduce downtime and increase operational efficiency.

Limitations

The 105SL Plus's print speed and resolution may not meet the demands of the newest ultra-high-speed printing requirements. As a legacy device, its integration with modern cloud-based systems may require additional middleware. The wireless Wi-Fi option is less secure compared to contemporary encryption standards. Replacement parts and accessories may be harder to source over time. It does not support color printing, limiting its use to monochrome labels. The printer's firmware updates are infrequent due to its discontinued status.
