Zebra 105SL Plus image

Zebra 105SL Plus

Quick information
Brand Zebra 1989
Model 10380100000
Released Year 1989
Type Printers
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Zebra 105SL Plus is a high-performance industrial barcode printer designed for durability and continuous operation in demanding environments. It features a robust metal frame and a high-speed processing unit enabling label printing at speeds up to 8 inches per second. The printer supports both direct thermal and thermal transfer printing methods, allowing versatile media compatibility. Equipped with a large memory, it efficiently manages complex label formats and barcodes. Connectivity options include serial, parallel, and optional Ethernet interfaces to ensure flexible integration into existing systems. Its advanced calibration capabilities enhance print accuracy and media handling, making it suitable for various industrial applications.

Specifications

MPN 10380100000
GTIN 0665084722714
Model 105SL Plus
Memory 2 MB DRAM, 1 MB Flash
Technology Thermal
Connectivity Cable, Serial (RS-232), Ethernet (RJ-45), USB 2.0
Output Type Black & White
Features Networkable
Type Label Printer
Maximum Resolution 300 x 300 DPI
Black Print Speed 12.01in/S
Weight 30 lbs (13.6 kg)
Depth 19.5in
Height 15.5in
Width 11.2in
Length 11.2in
Custom Bundle No
Print method Direct Thermal / Thermal Transfer
Print resolution 203 dpi (8 dots/mm)
Max print width 4.09 inches (104 mm)
Max print speed Up to 8 inches per second (203 mm/s)
Processor 32-bit RISC processor

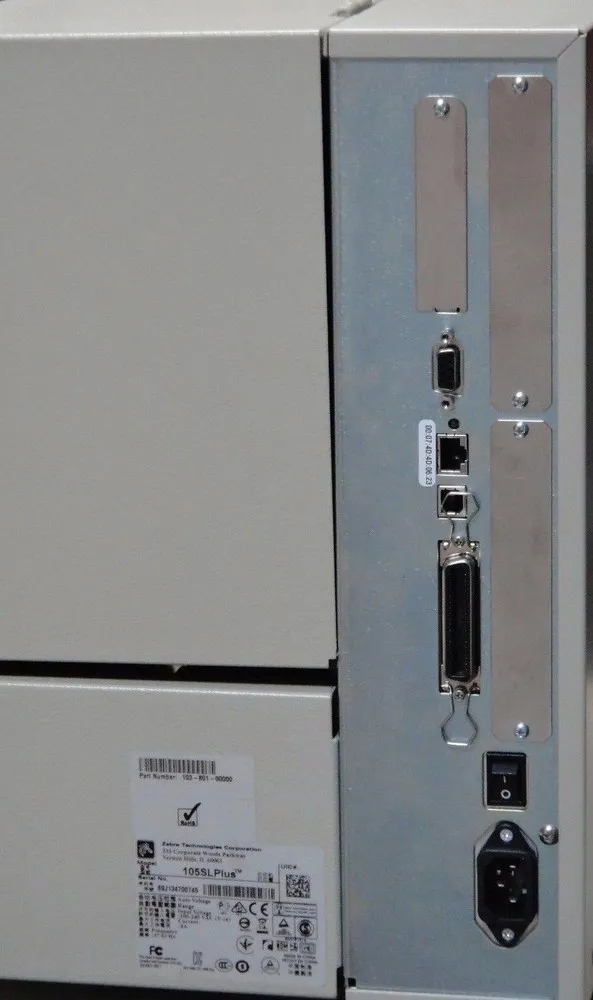

Interfaces RS-232 serial, parallel, optional Ethernet
Media types Continuous, die-cut, black-mark, fanfold
Media width 0.75 to 4.5 inches (19 to 114 mm)
Ribbon types Wax, wax/resin, resin
Dimensions 16.3 x 11 x 15.7 inches (414 x 279 x 399 mm)
Power supply 100 to 240 V AC, 50-60 Hz

Key Advantages

The 105SL Plus offers exceptional durability with a rugged metal housing designed for continuous industrial use. It supports fast printing speeds of up to 8 inches per second, optimizing productivity in high-volume environments. The printer's large memory capacity allows storage of complex fonts and graphics for versatile label designs. It provides multiple connectivity options including optional network interfaces for seamless integration. The device’s compatibility with a wide range of label sizes and print media enhances operational flexibility. Its user-friendly interface and diagnostic tools simplify maintenance and troubleshooting.

Limitations

Despite its robust design, the 105SL Plus lacks some modern connectivity options like standard USB or wireless interfaces, limiting plug-and-play convenience. The printer is relatively large and heavy compared to compact modern models, impacting ease of placement. It requires specialized ribbons and labels for optimal performance, which may increase operating costs. The firmware and software support are less frequently updated, potentially leading to compatibility issues with newer operating systems. It does not support color printing, limiting use cases to monochrome labels. Additionally, its maintenance involves expert servicing due to its complex mechanical systems.
