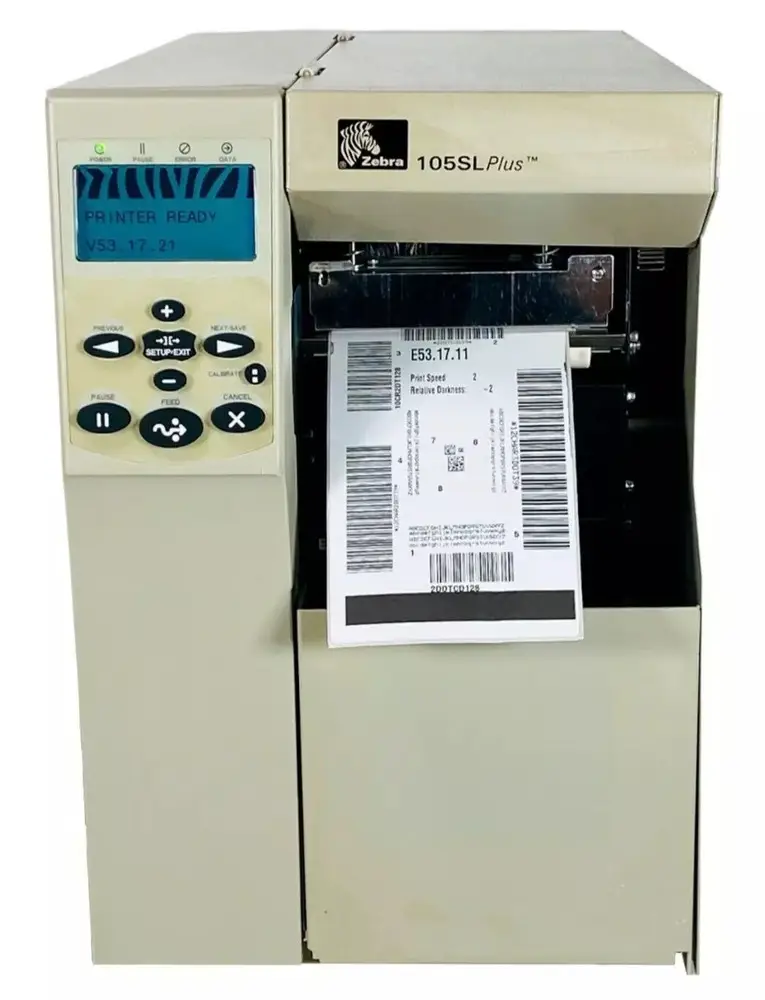

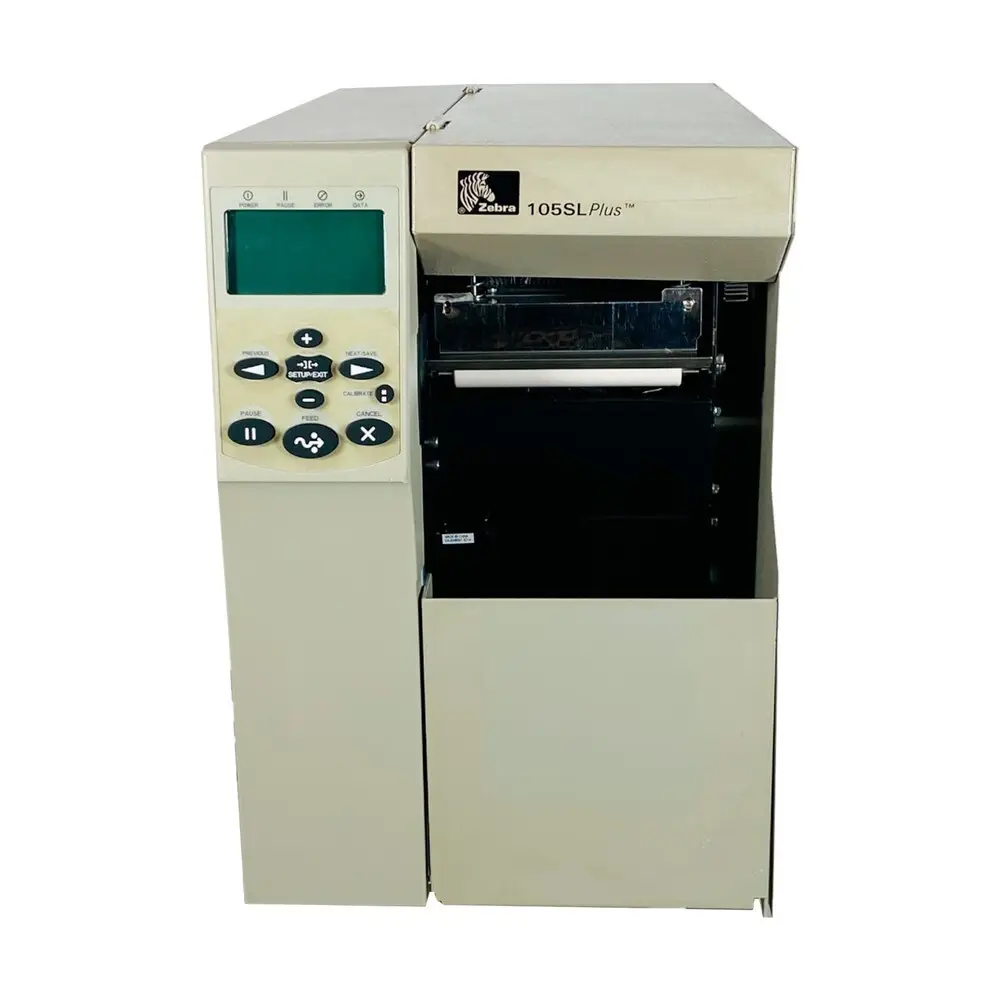

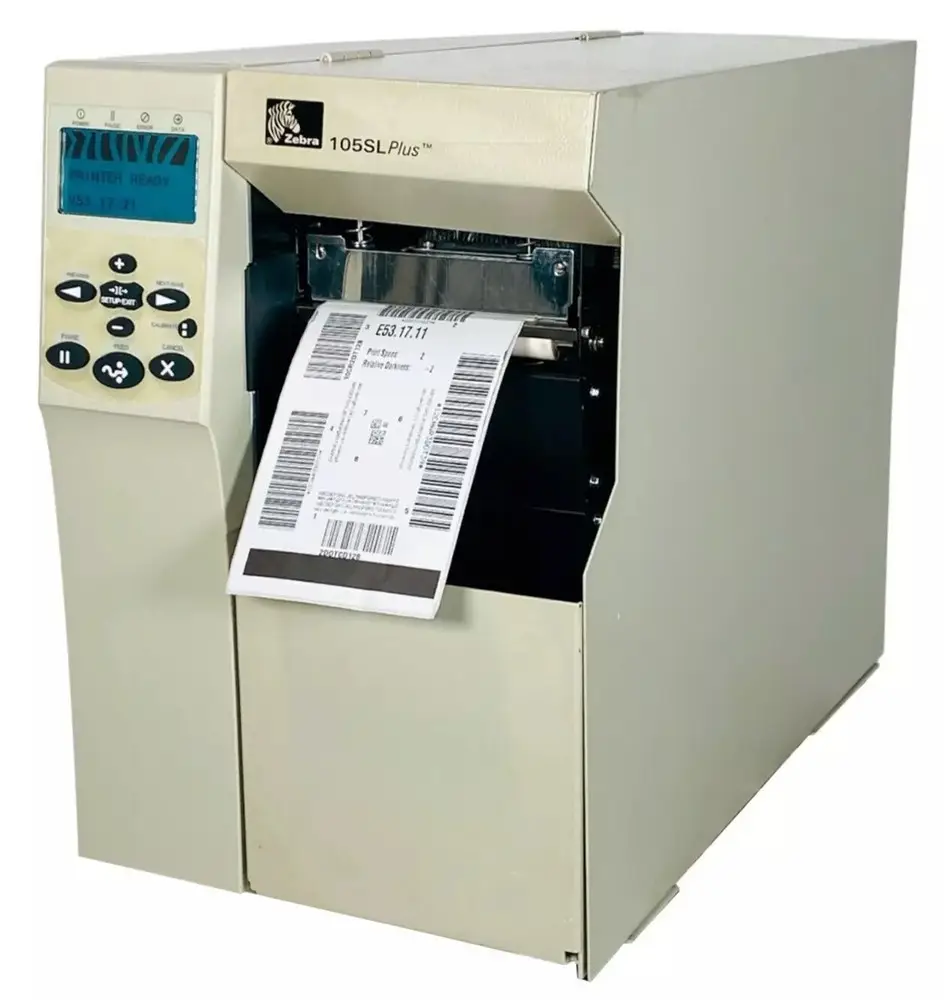

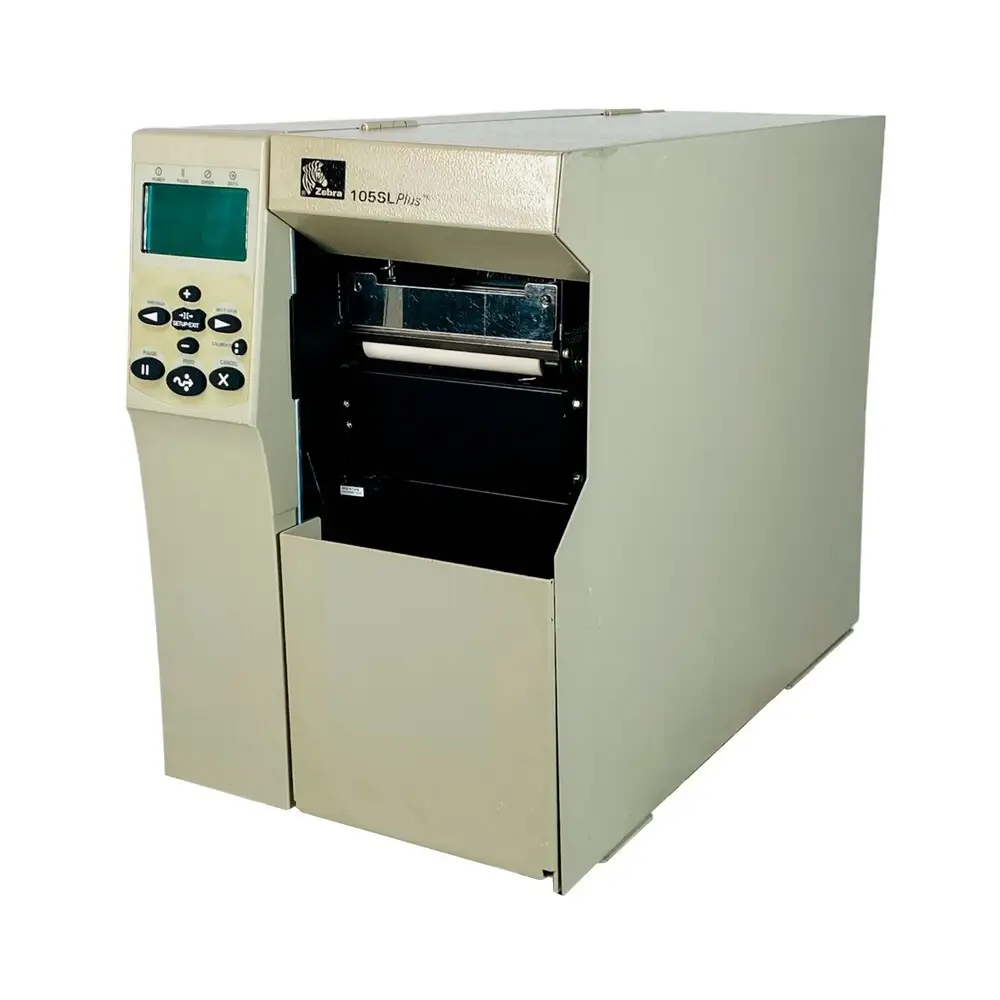

Zebra 105SL Plus
Brand | Zebra 2004 |
Model | 102-801-00250-05, Peel, Rewind, Ethernet Network, Barcode |
Released Year | 2004 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Zebra 105SL Plus is an industrial-grade thermal barcode label printer designed to offer durable and high-quality label printing for demanding environments. It supports both direct thermal and thermal transfer printing, using ribbons and labels to produce crisp barcodes and text. The device features a robust metal enclosure, ensuring longevity and reliability in industrial settings. Connectivity options include built-in Ethernet for network printing, facilitating easy integration into enterprise workflows. The 105SL Plus is equipped with peel and rewind functionality, allowing the printer to automatically peel labels from the liner and rewind used backing material, streamlining labeling processes. Its control panel interface and firmware support multiple barcode symbologies and print resolutions for versatile applications.
Specifications
Printer Type | Industrial Thermal Barcode Printer |
Printing Method | Direct Thermal and Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 6 inches per second |
Max Print Width | 4.09 inches (104 mm) |
Memory | 16 Mb |

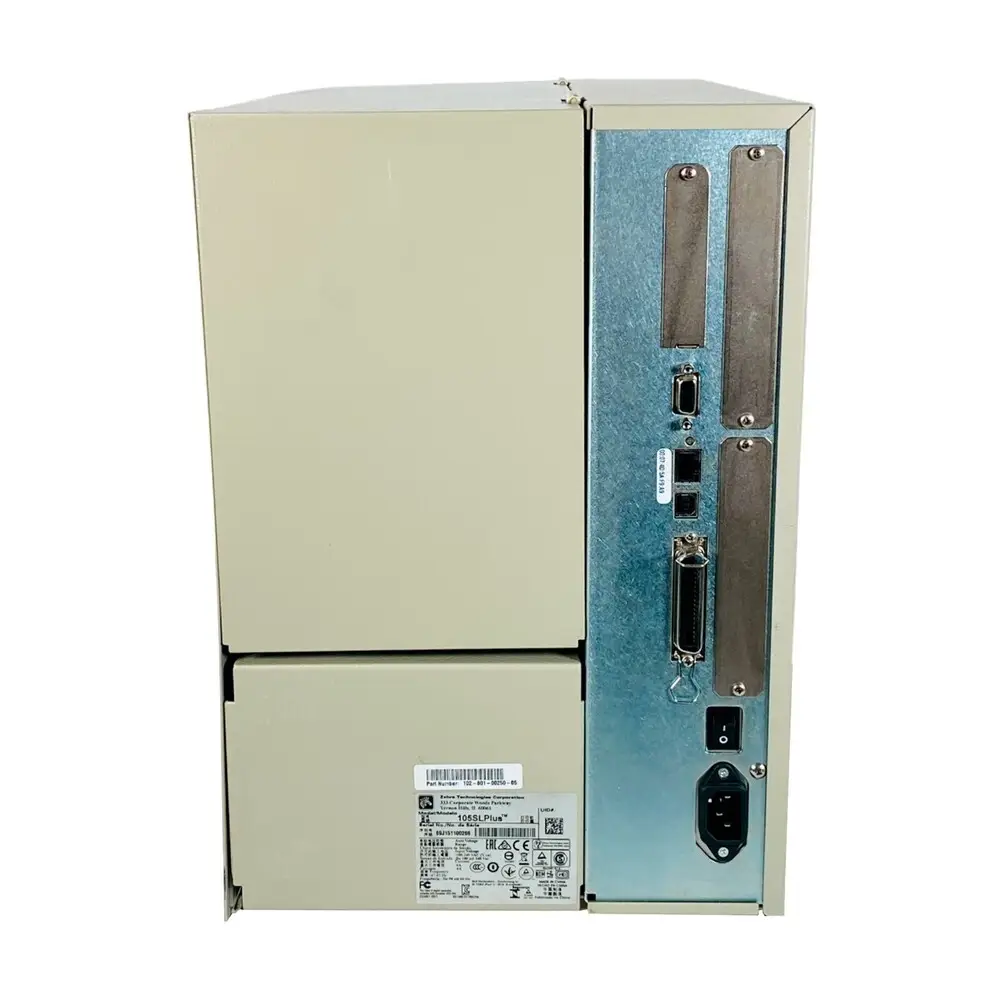

Connectivity | Serial (RS-232 DB9), Ethernet (RJ-45), Parallel (IEEE 1284), USB 2.0 |

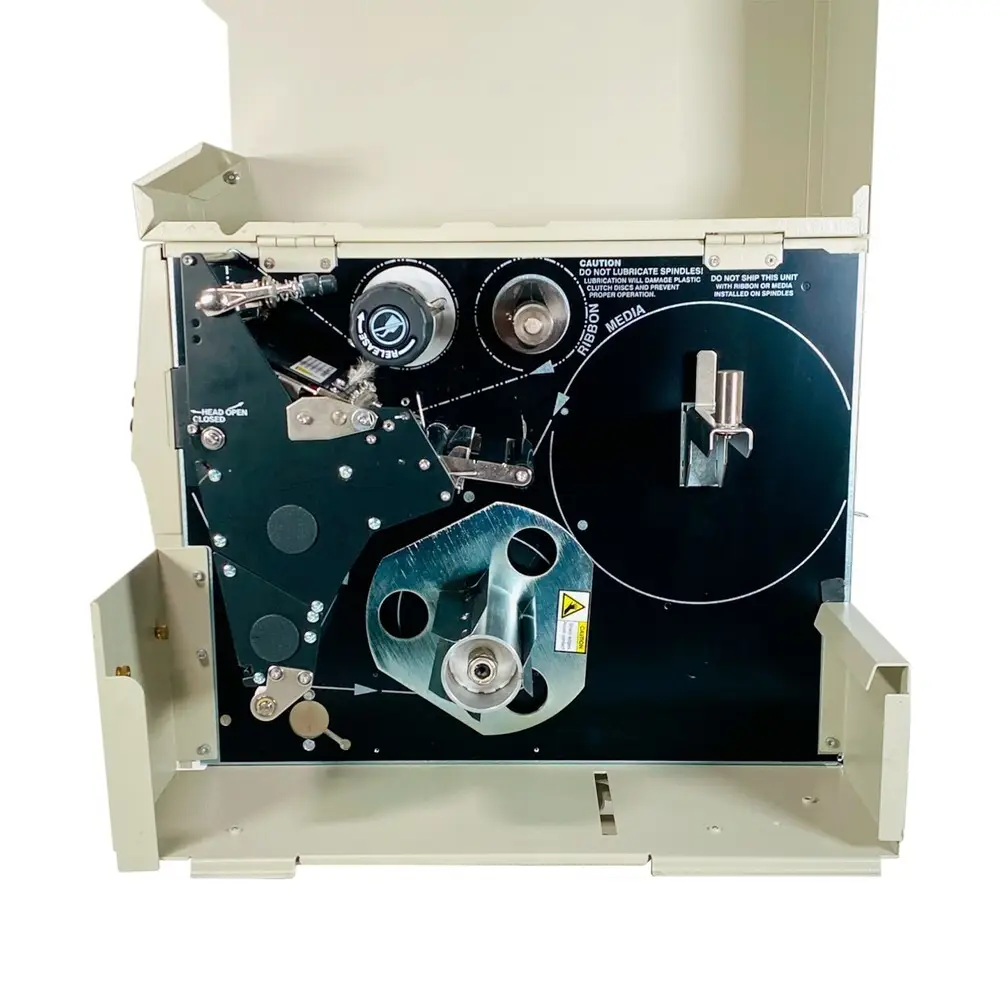

Label Handling | Peel and Rewind functionality |
Supported Symbologies | Code 39, Code 128, UPC, EAN, PDF417, DataMatrix and others |
Ribbon Type | Wax, Wax/Resin, Resin ribbons |
Media Types | Die-cut labels, continuous labels, fan-fold, tags |
Dimensions (WxHxD) | 11.13 x 14.13 x 19.0 inches |
Weight | Approx. 30 lbs (13.6 kg) |
Power Supply | External 24V DC power supply |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |
Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
Humidity | 20-85% non-condensing |
Input Type | Monochrome |
Output Type | Black & White |
MPN | 102-801-00250-05, Peel, Rewind, Ethernet Network, Barcode |
Supported Paper Size | Max. Width: 4.52" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | 105SL Plus |
Features | Networkable |
Black Print Speed | 12 ips |
Product Line | Zebra |
UPC | Does not apply |
Images
Key Advantages
The printer boasts a rugged construction ideal for industrial environments, enhancing durability and operational life. Its wide range of connectivity options including Ethernet enables seamless network integration. The peel and rewind features improve efficiency by automating label handling, reducing manual labor. It supports high-resolution printing up to 203 dpi, ensuring sharp and clear barcode labels. Compatibility with various label materials and ribbon types makes it versatile for different applications. The user-friendly interface and extensive firmware options provide flexibility and ease of configuration.
Limitations
The 105SL Plus has a relatively larger footprint which might not fit well in compact office spaces. Its print speed, while adequate, may be slower compared to newer models with advanced technology. The absence of wireless connectivity options limits modern flexible usage scenarios. Setup and calibration might require technical knowledge, potentially causing a learning curve for new users. It has limited internal memory by current standards, which could constrain complex label formats. Replacement parts and consumables for this legacy model are increasingly hard to source as it ages.
FAQ
What printing technologies does the Zebra 105SL Plus support?
The Zebra 105SL Plus supports both direct thermal and thermal transfer printing technologies.
Does the 105SL Plus support network connectivity?
Yes, it includes built-in Ethernet connectivity, enabling network printing capabilities.
What is the maximum print resolution of the Zebra 105SL Plus?
The maximum print resolution is 203 dpi.
Can the 105SL Plus automatically peel labels?
Yes, it comes with peel and rewind functionality to optimize label processing.
Is the Zebra 105SL Plus still in production?
No, the model has been discontinued.
What types of labels and ribbons are compatible?
It supports a variety of label materials and thermal transfer ribbons suitable for industrial labeling.
Is Wi-Fi connectivity available on the 105SL Plus?
No, this model does not have built-in wireless connectivity options.
