Zebra 105SL (10500-2001-0030)
| Brand | Zebra 1998 |
| Model | 10500-2001-0030 |
| Released Year | 1998 |
| Type | Printers |
| Status | Discontinued |
Quick view
Overview
The Zebra 105SL is a high-performance industrial thermal label printer introduced in the late 1990s for heavy-duty printing tasks. It uses direct thermal and thermal transfer technology to produce crisp, durable barcodes and labels. The printer supports a print resolution of 203 dpi (dots per inch), which is suitable for clear barcode and text output. It is equipped with a fast processor and substantial onboard memory to handle complex label formats and large print jobs efficiently. Connectivity options typically include parallel, serial, and optionally, Ethernet interfaces, facilitating versatile integration in various office and manufacturing environments. The device is designed with a rugged metal frame to withstand demanding industrial usage conditions.
Specifications
| MPN | 10500-2001-0030 |
| Model | 105SL (10500-2001-0030) |
| Technology | Thermal |
| Connectivity | Serial RS-232, Parallel IEEE 1284, optional Ethernet |
| Output Type | Black & White |
| Type | Label Printer |
| Weight | Approximately 15 lbs (6.8 kg) |
| Depth | 20in |
| Height | 16in |
| Width | 11in |
| Extend Printer Technology | Direct Thermal / Thermal Transfer |
| Installed RAM | 6MB |
| Data Link Protocol | IEEE 802.11b, Ethernet |
| Form Factor | Desktop, Stationary |
| Networking Type | 10baset/2, Print Server (Optional) |
| Media Type | Continuous Forms, Perforated or Continuous Tag/Ticket Stock, Roll Paper, Die-Cut |
| Printers Special Features | Autocutter, Remote Management |
| Panel | Monochrome LCD |
| Max Resolution (Bw) | 203DPI |
| Max Media Size | Roll (11.4cm) |
| Black Print Speed | 8in/Sec |
| Media Capacity | 1 Roll(s) |
| Release Date | May, 2001 |
| Print Method | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 4 inches per second (102 mm/s) |
| Maximum Print Width | 4.09 inches (104 mm) |
| Processor | 32-bit RISC |
| Memory | Up to 4 MB DRAM and 2 MB Flash (configurable) |
| Media Types | Continuous, die-cut labels, tags, receipts |
| Media Width | 0.79 inches to 4.65 inches (20 mm to 118 mm) |
| Media Thickness | 0.0025 to 0.01 inches (0.0635 to 0.254 mm) |
| Ribbon Type | Wax, wax/resin, resin ribbons |
| Ribbon Length | 300 meters |

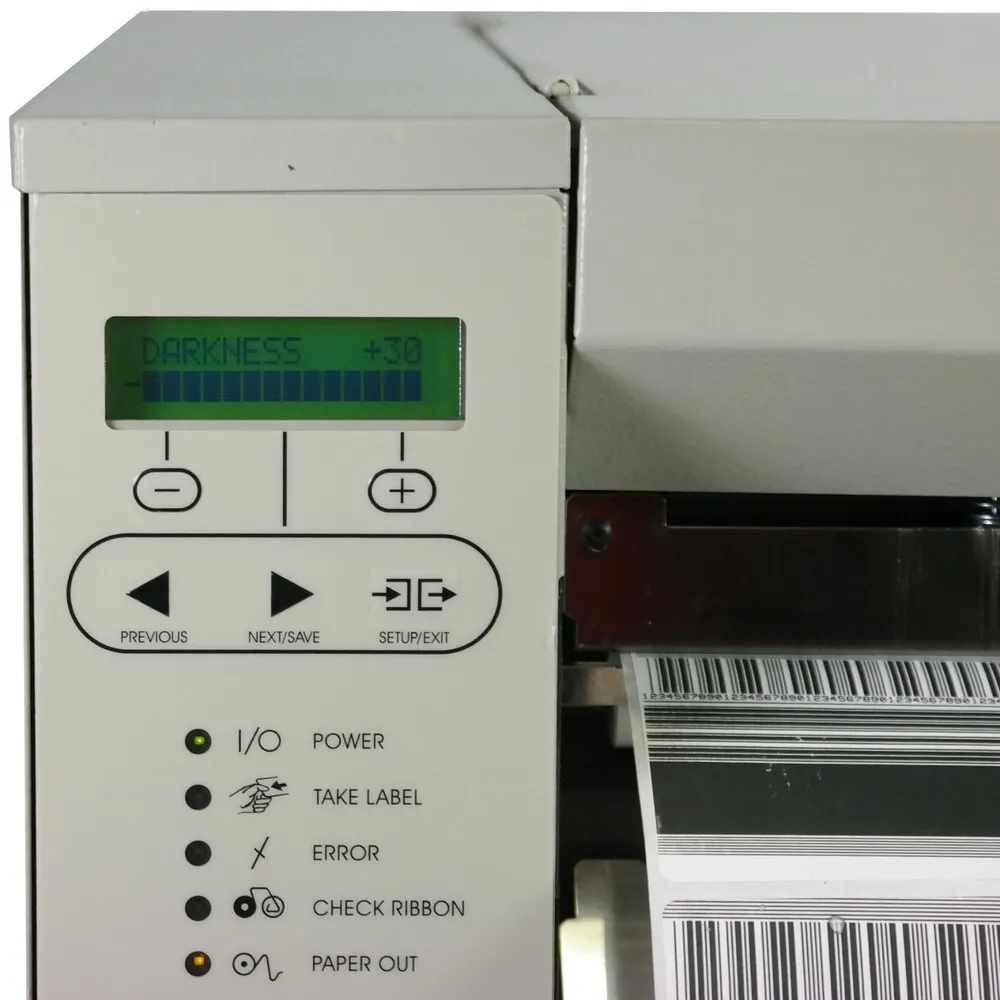

| Display | 2-line LCD for status and configuration |
| Dimensions | 12.4 in (W) x 14.0 in (D) x 11.0 in (H) |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Power Supply | External 100-240V AC adapter |
| Case | Heavy-duty metal construction |

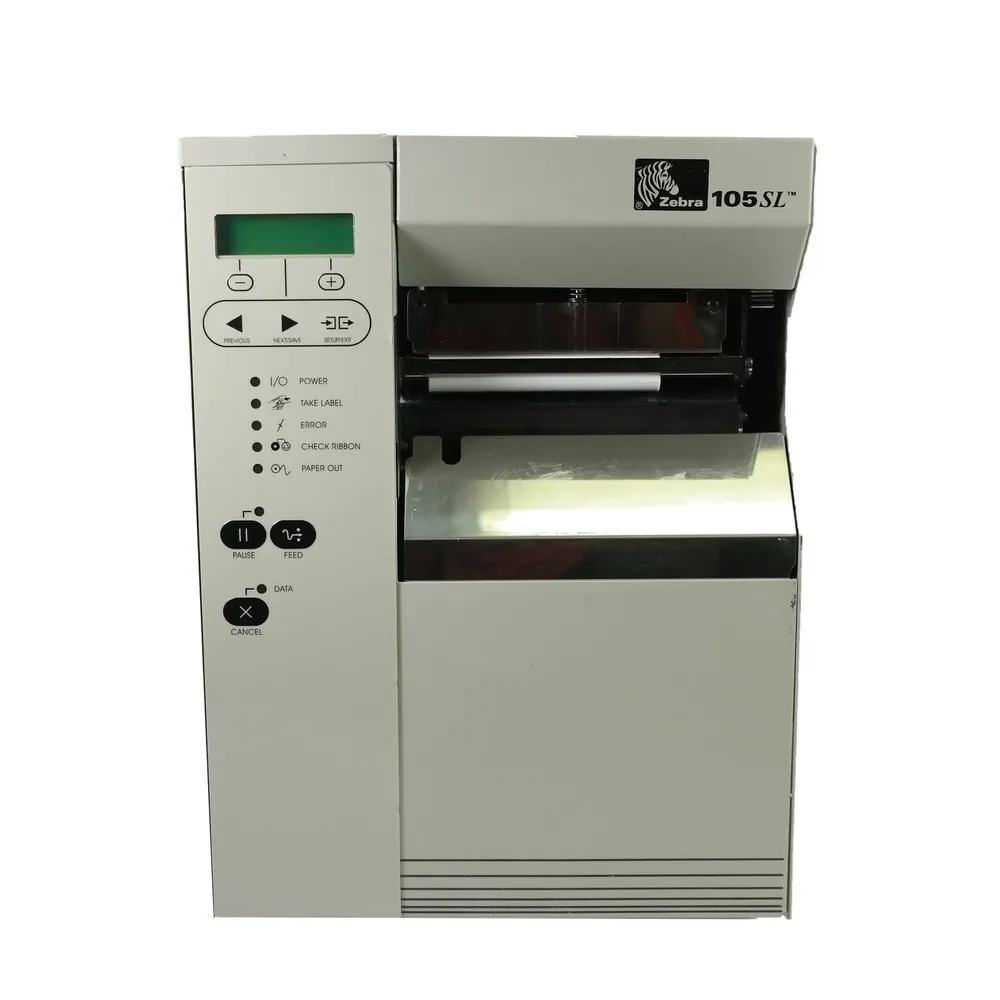

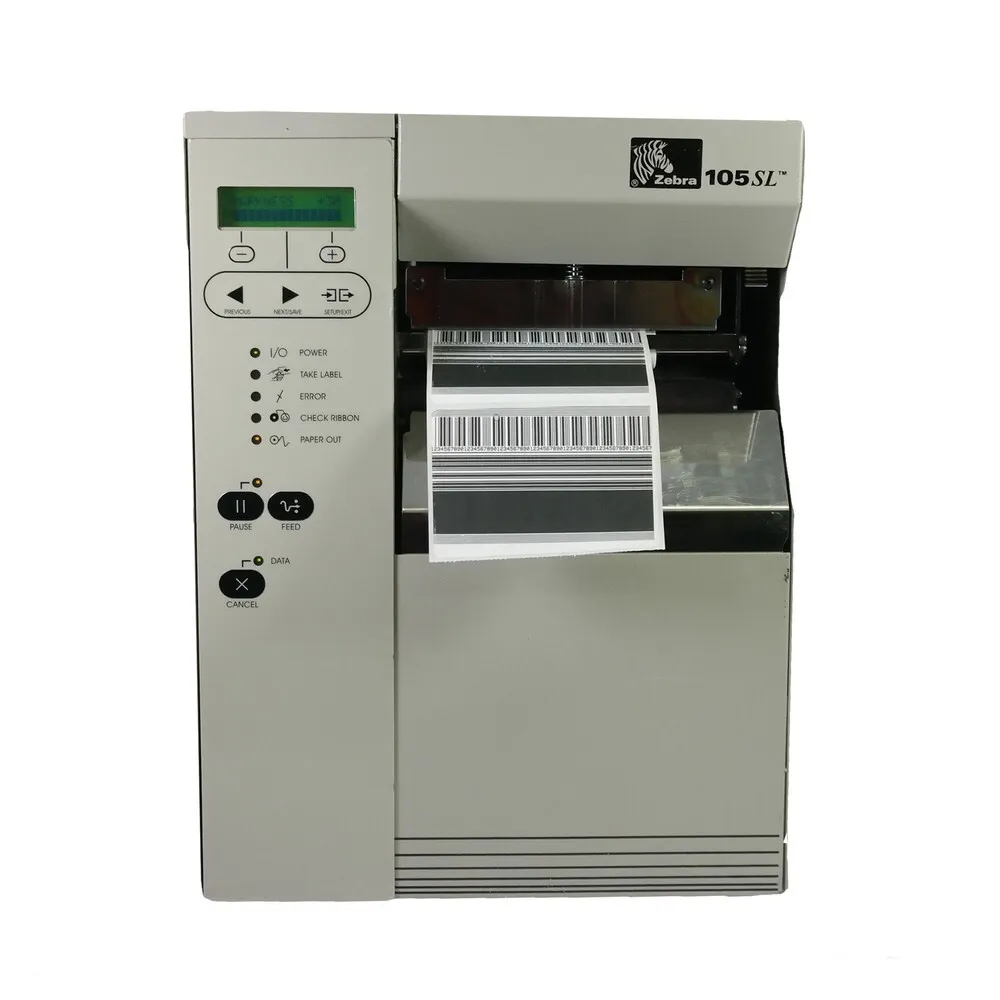

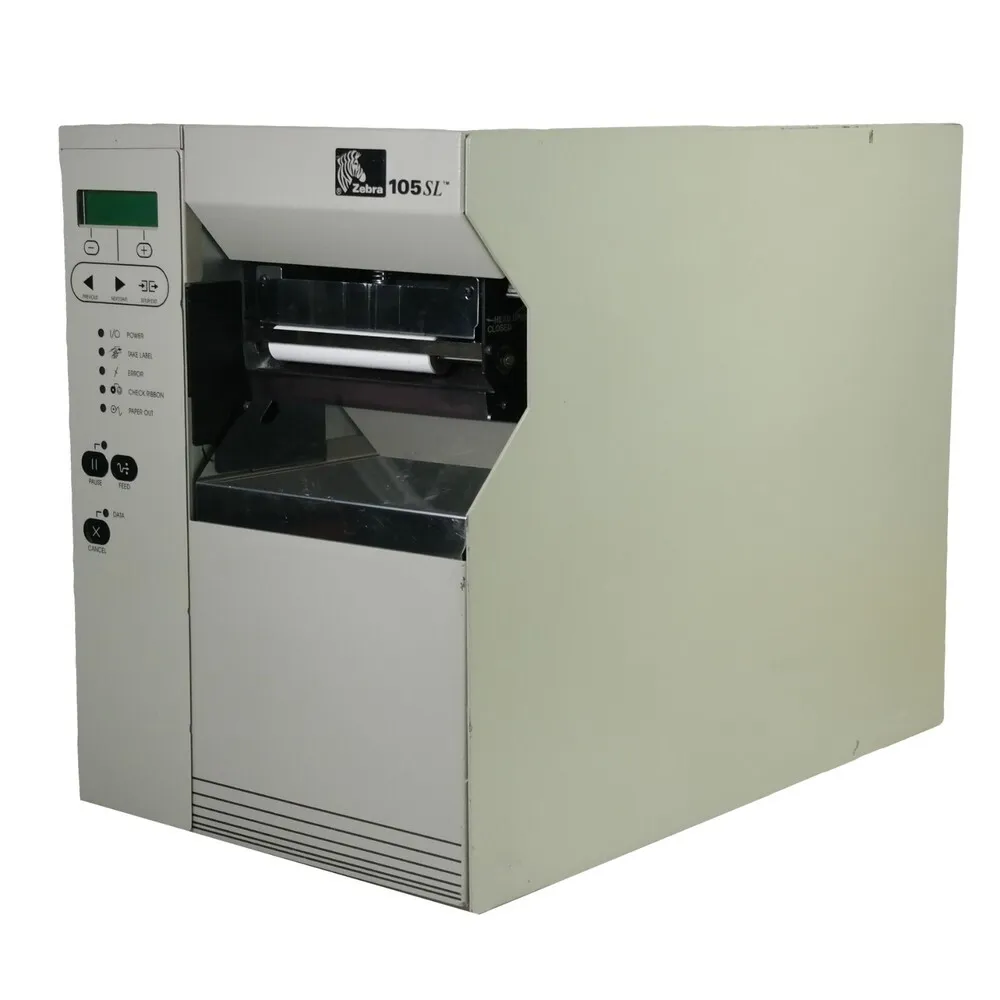

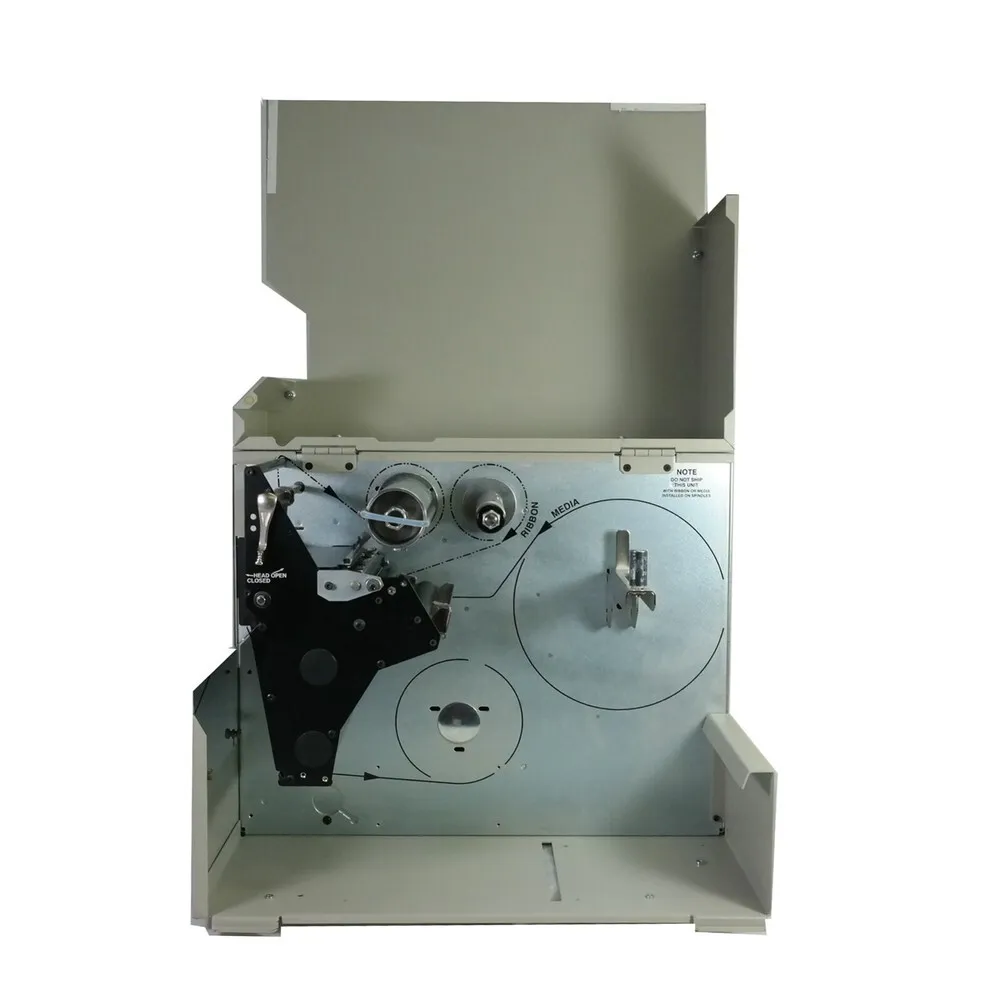

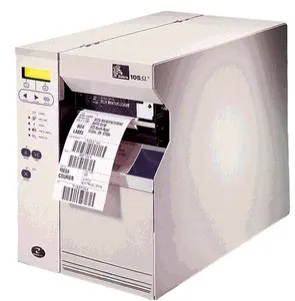

Images
Key Advantages
The Zebra 105SL offers outstanding durability and reliability for continuous printing in industrial settings. Its compatibility with various media types and wide label widths up to 4.09 inches enhances versatility. The printer supports high-speed printing up to 4 inches per second, increasing workflow efficiency. It has a user-friendly interface with an LCD display for easy status monitoring and configuration. The availability of multiple connectivity options allows seamless integration in diverse setups. Additionally, the printer firmware supports a wide range of barcode protocols and label formats for varied application needs.
Limitations
The Zebra 105SL is limited to a maximum print resolution of 203 dpi, which may not meet the demands for very high-detail labels. It lacks some modern connectivity options such as USB or wireless interfaces that are common in newer models. The printer does not support color printing as it is purely designed for monochrome thermal printing. Its relatively large physical footprint may be unsuitable for environments with limited space. Replacement parts and consumables for this older model might be difficult to find due to its discontinued status. It also lacks advanced software integration features present in newer printers, which could limit ease of use in highly automated systems.
FAQ
What printing technology does the Zebra 105SL use?
The Zebra 105SL uses direct thermal and thermal transfer printing technologies to produce durable and resistant labels.
What is the maximum print resolution of the Zebra 105SL?
The printer supports a maximum resolution of 203 dpi, suitable for standard barcode and label printing.
Which connectivity options are available on the Zebra 105SL?
It generally includes serial and parallel ports, with optional Ethernet support, but does not have USB or wireless connectivity.
Is the Zebra 105SL still in production?
No, the Zebra 105SL model has been discontinued and replaced by more modern printer models.
What types of label materials can the Zebra 105SL handle?
It supports a variety of label materials including paper, synthetic, and thermal transfer ribbon compatible labels.
How fast can the Zebra 105SL print?
This printer can print at speeds up to 4 inches per second depending on print mode and media.
Are there downloadable manuals or PDFs available for the Zebra 105SL?
Yes, PDF manuals and technical documents for setup and maintenance are available from Zebra’s official support resources.
