Star Micronics TSP700
Brand | Star Micronics 2009 |
Model | TSP700, TSP743U |
Released Year | 2009 |
Type | Printers |
Series | Tsp |
Status | Discontinued |
Quick view
Overview
The Star Micronics TSP700 series, including the TSP700 and TSP743U models, are high-performance thermal printers designed primarily for point-of-sale (POS) environments. They feature fast printing speeds of up to 50 receipts per minute, using direct thermal printing technology which eliminates the need for ink or toner. Both models support high resolution printing at 203 dpi, ensuring clear and precise text and graphics output. Connectivity options include USB for the TSP743U and parallel/serial ports for TSP700, catering to various POS system requirements. The devices are engineered for reliability and durability, with a sturdy build and jam-resistant paper loading mechanisms. Additionally, they support ESC/POS command compatibility, enabling seamless integration with a wide range of POS software applications.
Specifications
MPN | TSP700, TSP743U |
UPC | 0879981900001 |
Model | TSP700 |
Depth | 8.38in |
Height | 5.82in |
Width | 5.78in |
Extend Printer Technology | Direct Thermal |
Technology | Thermal |
Color Print Speed Up to | 75mm/Sec |
Connectivity | Serial (RS-232C), Parallel (IEEE 1284), USB 1.0/1.1 |
Computer Operating System | Microsoft Windows 2000, Microsoft Windows NT, Linux, Microsoft Windows 98, Microsoft Windows 95, Apple Mac OS X |
Output Type | Color |
Form Factor | Desktop |
Media Type | Roll Paper |
Max Resolution (Bw) | 203DPI |
Printer Type | Point of Sale Printer |
Max Media Size | Roll (8cm) |
Black Print Speed | 250mm/Sec |
Media Capacity | 1 Roll(s) |
Product Line | Star Micronics Tsp |
Print Technology | Direct Thermal |
Print Speed | Up to 50 receipts per minute |
Print Resolution | 203 dpi (8 dots/mm) |
Paper Width | 80 mm (standard), optionally 58 mm |
Paper Type | Thermal roll paper |
Interface | TSP700: Parallel and Serial, TSP743U: USB |
Command System | ESC/POS compatible |
Power Supply | AC Adapter (external) |
Dimensions (W x D x H) | 145 mm x 195 mm x 148 mm |
Weight | Approximately 1.9 kg |
Operating Temperature | 0°C to 45°C |
Reliability | Auto-cutter: 1.5 million cuts |
Drivers Supported | Windows, Linux, Mac OS (depending on model and driver availability) |
Paper Loading | Drop-in paper loading |
Warranty | Varies by region, typically 1 year |

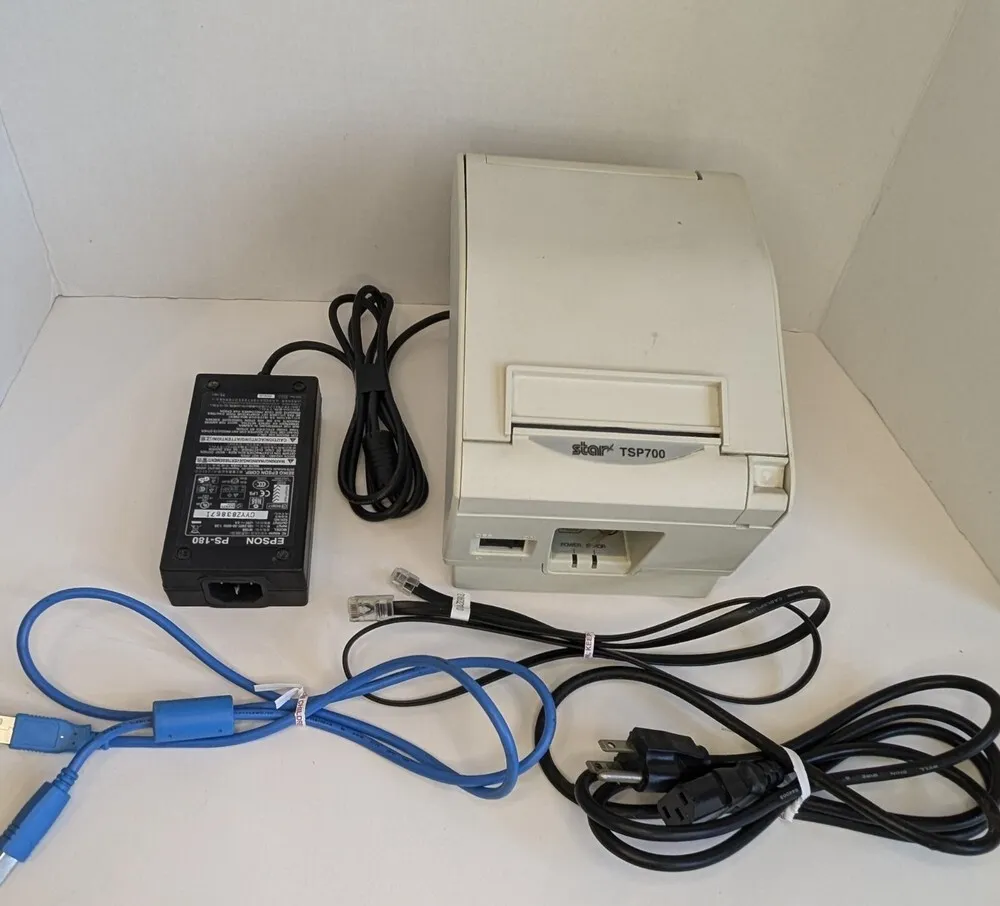

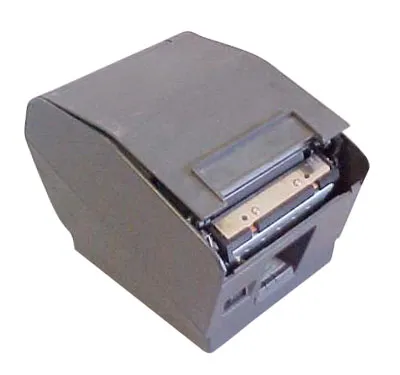

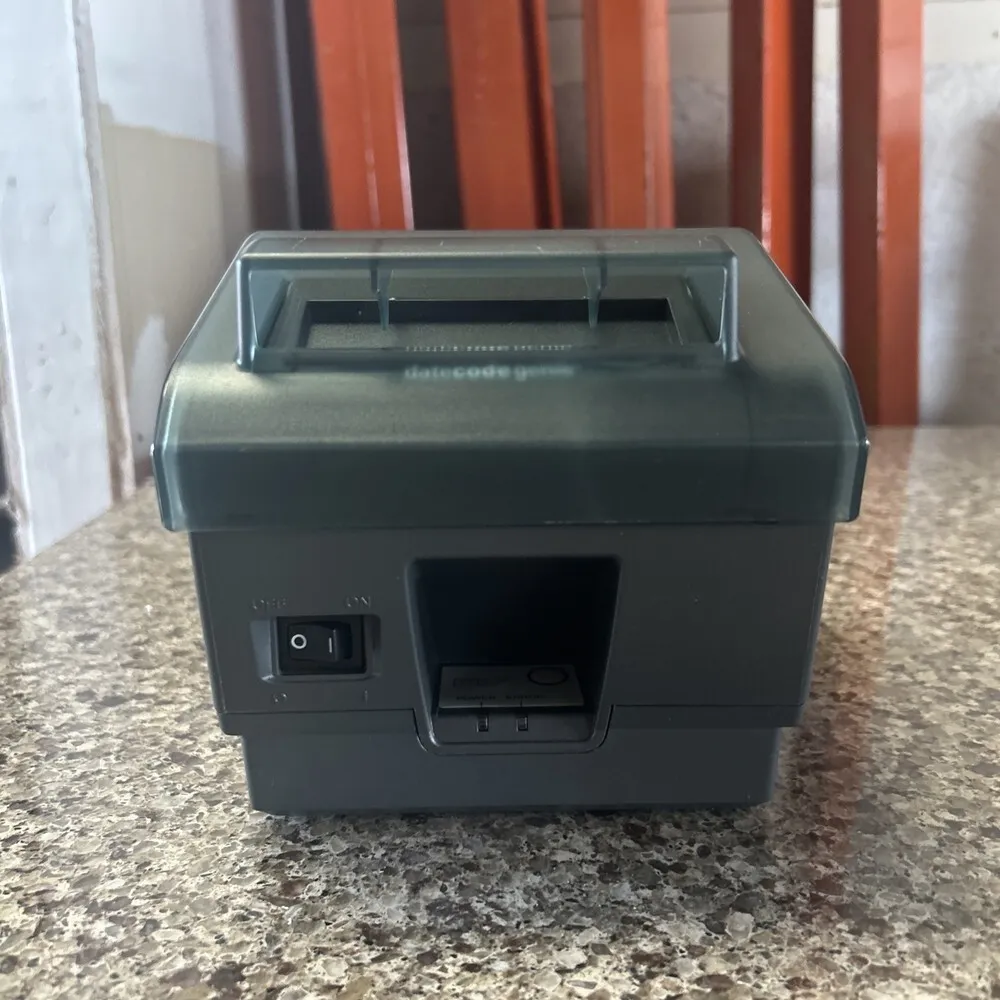

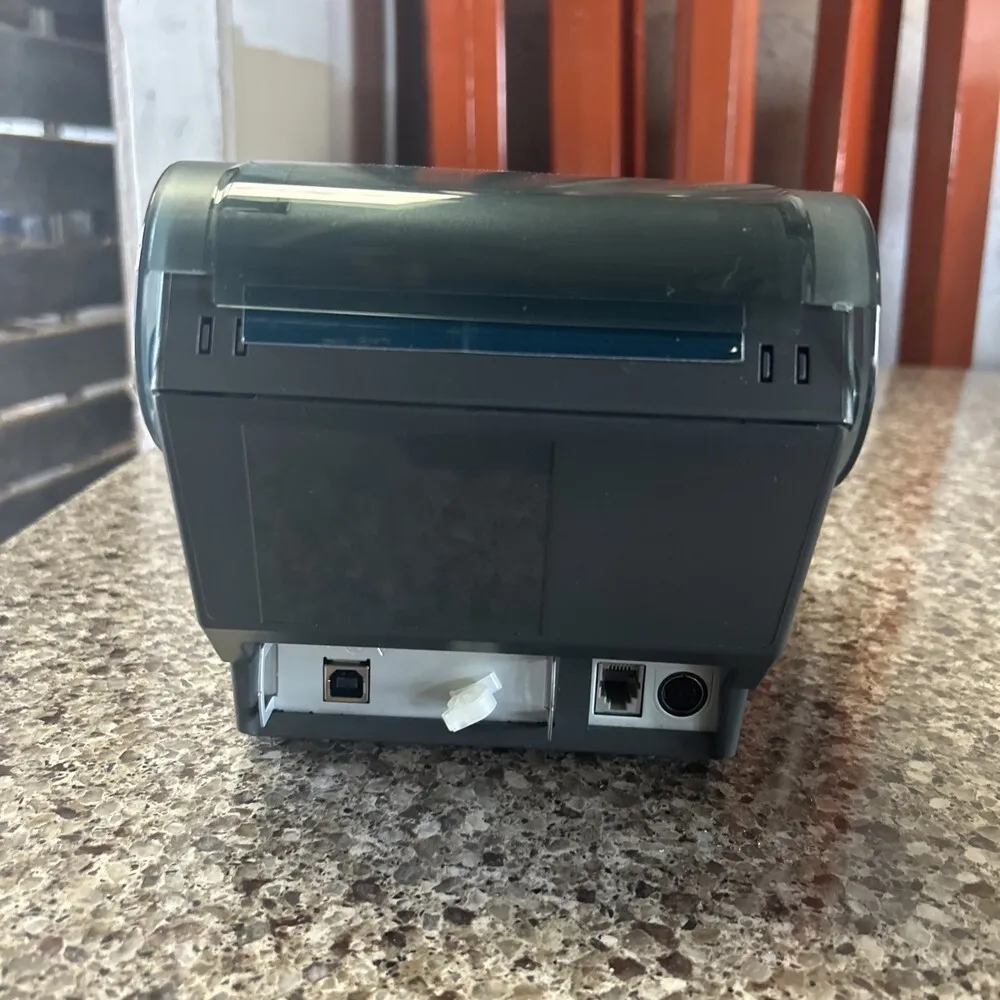

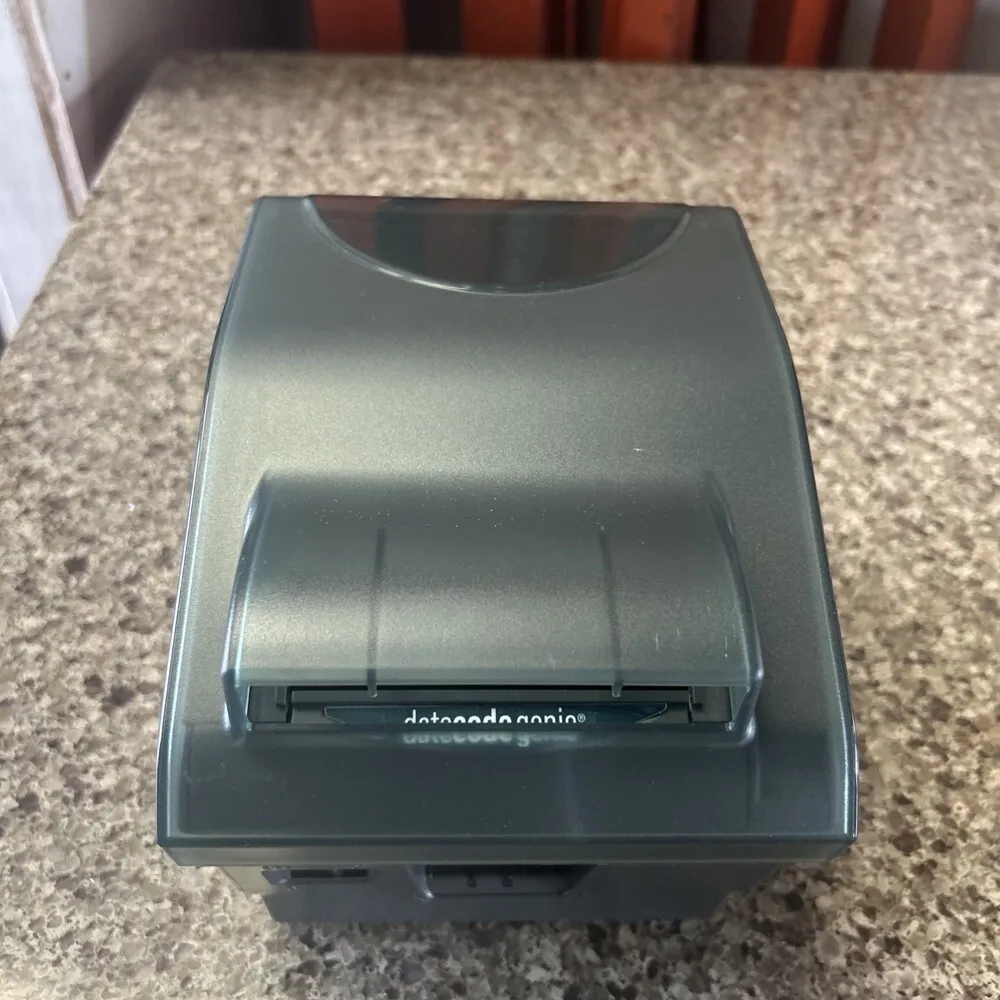

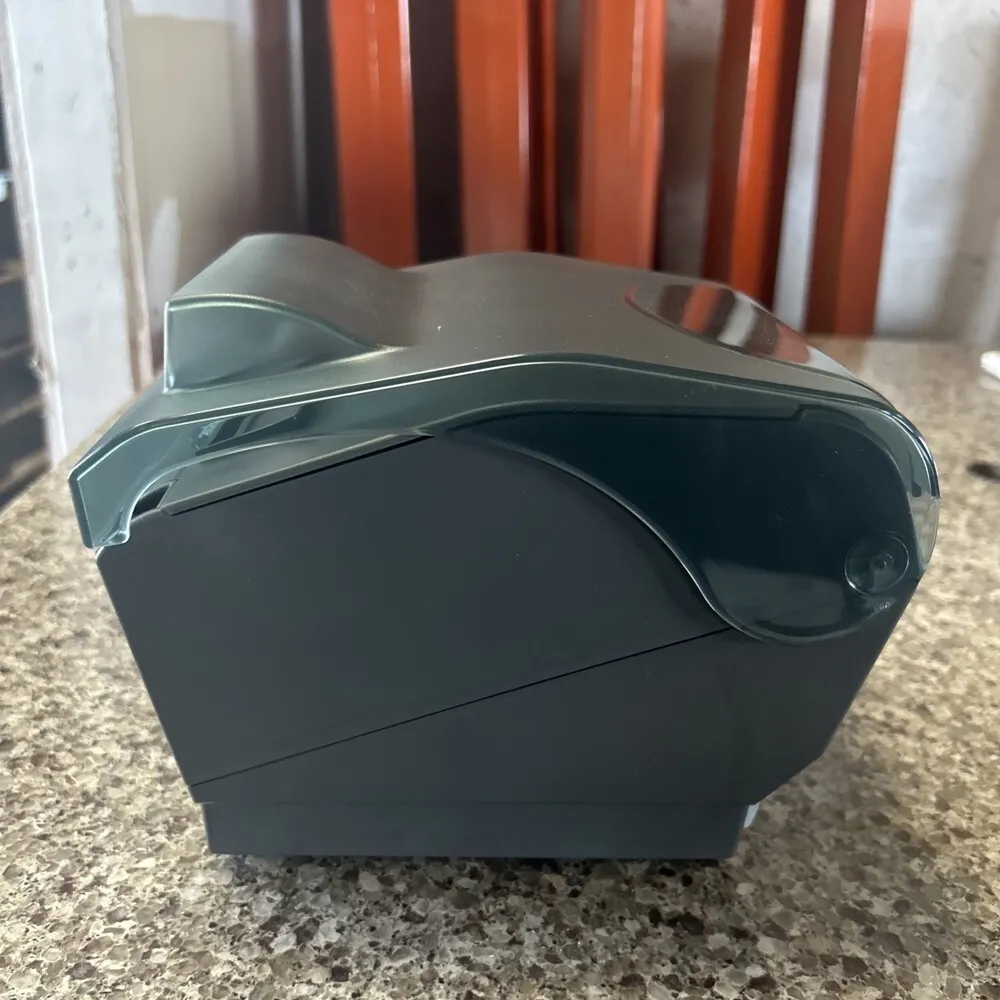

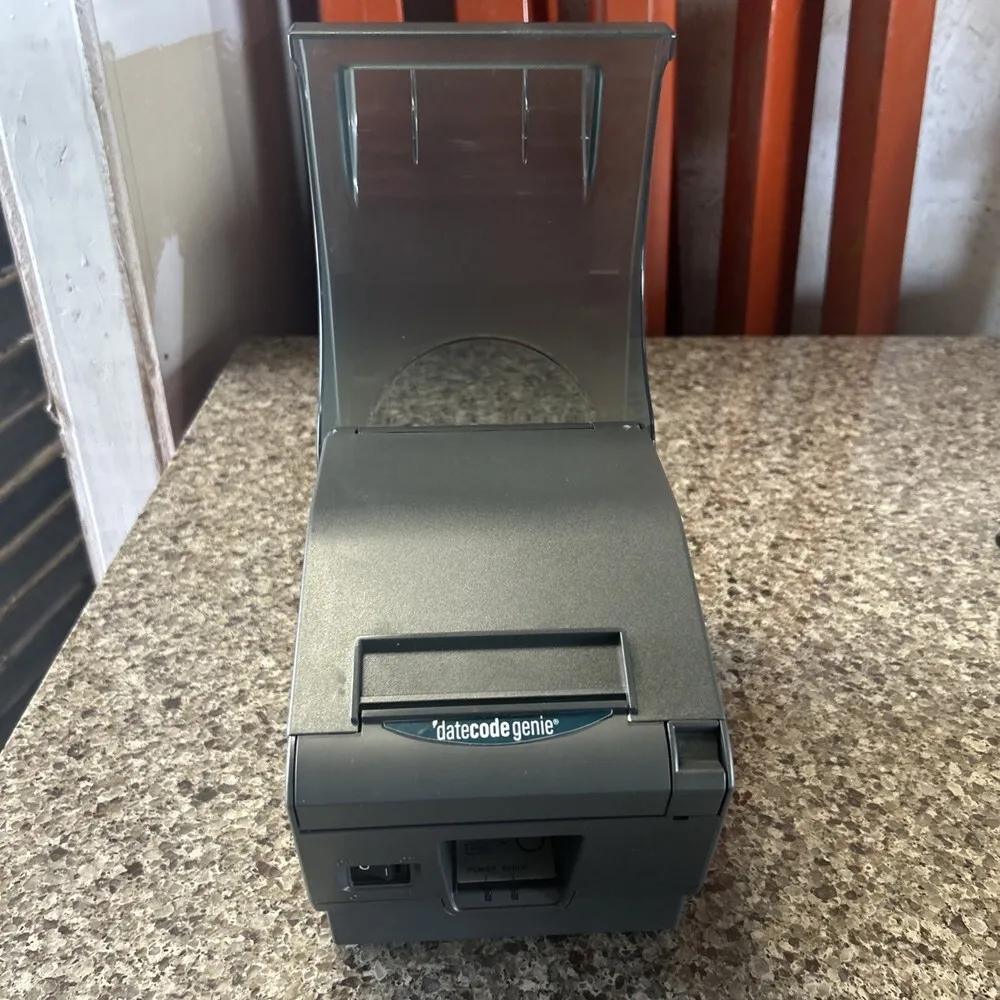

Images
Key Advantages
The TSP700 series delivers exceptional print speed and high-resolution output, boosting transaction efficiency in busy retail environments. Their direct thermal technology means no consumable ink or toner is necessary, reducing maintenance costs and downtime. The printers feature user-friendly drop-in paper loading that minimizes operational interruptions. Multiple interface options increase compatibility with diverse POS systems. Designed with a compact footprint, they help save valuable counter space. The robust construction and reliability ensure long-term operation with minimal service issues.
Limitations
As thermal printers, the TSP700 series require special thermal paper, which can limit printing options and increase consumable costs. They do not support color printing, restricting use to monochrome receipts. The TSP700 model's connectivity options are somewhat outdated compared to modern network-enabled printers, limiting integration flexibility. Their drivers and software support might be less compatible with the latest operating systems. The printing technology may cause paper fade over extended time periods due to thermal sensitivity. The devices may lack some advanced features found in newer models, such as wireless connectivity or higher print resolutions.
FAQ
What is the print speed of the Star Micronics TSP700 printer?
The TSP700 series printers can print receipts at speeds up to 50 receipts per minute, ensuring fast transaction times.
Does the TSP700 printer support color printing?
No, the TSP700 series uses direct thermal printing, which supports monochrome output only.
What connectivity options are available for the TSP700 and TSP743U models?
The TSP700 model offers parallel and serial interfaces, while the TSP743U model features a USB connection for flexible POS system integration.
Is special paper required for the TSP700 printers?
Yes, the printers use thermal paper, which is heat-sensitive and necessary for the direct thermal printing process.
Are the TSP700 printers still supported by Star Micronics?
The TSP700 series is discontinued and may have limited official support, though spare parts and documentation might still be available.
What command language does the TSP700 printer use?
The printers use ESC/POS command compatibility, enabling them to work with a wide range of POS software and systems.
Can the TSP700 printers be used with modern operating systems?
While basic functionality is generally supported, driver compatibility may be limited on the latest operating systems, potentially requiring legacy drivers or third-party software.
