SATO GL408e
Brand | SATO 2014 |
Model | GL408E, WWGL08001, WWGL08001 GL408E |
Released Year | 2014 |
Type | Printers |
Status | Active |
Quick view
Overview

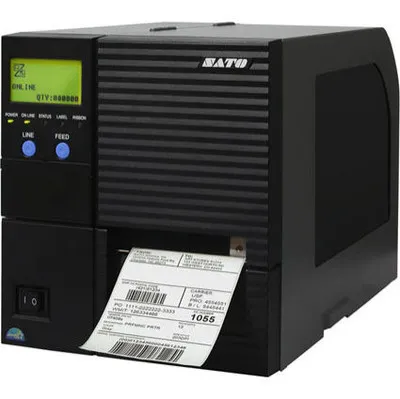

The SATO GL408e is a mid-range industrial barcode printer designed to deliver high-quality label printing with thermal transfer and direct thermal technologies. It features a print resolution of 203 dpi, ensuring sharp text and barcode clarity suitable for warehouse, retail, and manufacturing environments. The printer supports a maximum print width of 4.1 inches and a print speed up to 6 inches per second, balancing throughput and precision. Equipped with multiple connectivity options including USB, serial, and Ethernet interfaces, it easily integrates into various network setups. The GL408e uses an ARM9 processor, enabling efficient print processing and handling of complex label formats. Additionally, the printer supports an extensive range of media types and sizes, providing flexibility for diverse labeling applications.
Robust build quality and user-friendly interface facilitate simple media loading and operation, minimizing downtime. It also offers barcode symbologies, graphic support, and scalable font options to meet specific labeling standards. The printer firmware is programmable with SATO's BASIC and XML languages, allowing customization and automation in printing processes.
Specifications
MPN | GL408E, WWGL08001, WWGL08001 GL408E |
Model | GL408e |
Technology | Thermal |
Connectivity | USB 2.0, Serial RS-232C, Ethernet 10/100Base-T |
Output Type | Black & White |
Type | Label Printer |
Weight | Approx. 11 kg |
Depth | 17.91in |
Height | 12.01in |
Width | 10.67in |
Extend Printer Technology | Direct Thermal |
Installed RAM | 32MB |
Data Link Protocol | IEEE 802.11g, Ethernet, IEEE 1284 Ecp/Epp, Fast Ethernet |
Form Factor | Point of Sale |
Networking Type | Wireless Network Adapter, Wireless Network Adapter (Optional), Network Adapter (Optional), Network Adapter, Print Server |
Media Type | Labels, Tags, Continuous media |
Panel | Monochrome LCD |
Max Resolution (Bw) | 203DPI |
Max Media Size | Roll (10.4cm) |
Black Print Speed | 10 Ips |
Print Method | Thermal Transfer / Direct Thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 6 inches per second (152 mm/s) |
Maximum Print Width | 4.1 inches (104 mm) |
Processor | ARM9 32-bit RISC CPU |
Memory | 16 MB SDRAM, 8 MB Flash ROM |
Media Width | 0.79 to 4.5 inches (20 to 114 mm) |
Media Roll Diameter | Up to 8 inches (203 mm) |
Media Thickness | 0.08 to 0.25 mm |
Dimensions (W x D x H) | 260 mm x 465 mm x 326 mm |
Programmable Firmware | SATO BASIC, XML support |
Operating Temperature | 5°C to 40°C |
Storage Temperature | -20°C to 60°C |
Images
Key Advantages
SATO GL408e offers reliable print quality with 203 dpi resolution, making it suitable for most barcode and label printing needs. It provides versatile media handling capability accommodating different roll sizes and types for varied applications. The device supports both thermal transfer and direct thermal printing methods, increasing operational flexibility. Connectivity options like Ethernet, USB, and serial ports ensure seamless integration into existing systems. User-friendly controls and quick media loading reduce operation time and improve productivity. The programmable firmware allows customization and advanced label formatting enhancing workflow efficiency.
Limitations
The GL408e's 203 dpi print resolution may not be adequate for applications demanding very high-detail or small text printing. Compared to higher-end industrial printers, it may not support extremely high print speeds above 6 ips, limiting throughput in high-volume environments. The device lacks built-in wireless connectivity such as Wi-Fi or Bluetooth, which could restrict flexibility in some network setups. Its firmware, while programmable, may require technical knowledge to fully utilize advanced customization options. The printer's size and weight make it less portable relative to desktop models. Lastly, it is primarily suited for medium-duty usage rather than heavy industrial continuous printing operations.
FAQ
What printing technologies does the SATO GL408e support?
The GL408e supports both direct thermal and thermal transfer printing technologies, allowing flexibility in label types and durability.
What is the maximum print speed of the GL408e?
The maximum print speed of the SATO GL408e is up to 6 inches per second, balancing quality and efficiency.
Which connectivity interfaces are available on the GL408e?
It includes USB, serial, and Ethernet interfaces for versatile and reliable connection options.
Can the GL408e handle different label sizes?
Yes, it supports a wide range of media widths up to 4.1 inches and various roll diameters to accommodate diverse labeling needs.
Is the SATO GL408e still supported by the manufacturer?
As of current information, the GL408e is not discontinued and remains supported with parts and firmware updates.
Does the GL408e support wireless printing?
No, this model does not include built-in wireless options like Wi-Fi or Bluetooth.
What firmware or programming language does the GL408e use?
It supports SATO's BASIC and XML language firmware, allowing for advanced label customization and automation.
