JetSet Label ZD420
| Brand | JetSet Label 2022 |
| Model | ZD420 |
| Released Year | 2022 |
| Type | Printers |
| Series | ZD420d |
| Item Weight | 7.24 pounds |
| Maximum Media Size | 4.25 inches |
| Product Dimensions | 1"D x 1"W x 1.1"H |
| Status | Active |
Quick view
Overview
The JetSet Label ZD420d is a direct thermal desktop printer designed for office and retail labeling applications. It supports a print width of up to 4.09 inches (104mm) with a maximum print speed of 6 inches per second, making it suitable for moderate volume printing tasks. The printer is equipped with a 203 dpi resolution thermal printhead, delivering crisp and clear barcode and text output. Connectivity options include USB, Ethernet, and optional Wi-Fi, allowing flexible integration into existing networks. The ZD420d supports a variety of media types, including label rolls, continuous paper, and tags with intuitive media handling and calibration. Additionally, its compact form factor and energy-efficient design make it an ergonomically and environmentally conscious choice for office environments.
Specifications
| Product Dimensions | 1"D x 1"W x 1.1"H |
| Maximum Media Size | 4.25 inches |
| Print media | Labels |
| Max Input Sheet Capacity | 13 |
| Max Copy Speed (Black & White) | 438 ppm |
| Compatible Devices | PC |
| Sheet Size | 4.25 inches |
| Maximum Black and White Print Resolution | 203 dpi |
| Warranty Type | limited warranty |
| Color Depth | 1 bpp |
| Dual-sided printing | No |
| Max copy resolution black-white | 203 dpi |
| Duplex | Simplex |
| Hardware Interface | USB |
| Ink Color | Black |
| Resolution | 203 x 203 DPI |
| Additional Printer functions | Print Only |
| Control Method | Remote |
| Number of Drivers | 2 |
| Processor Count | 1 |
| Total Ethernet Ports | 1 |
| Total USB Ports | 1 |
| UPC | 860007924736 |
| Printer Ink Type | Direct Thermal |
| Item Weight | 7.24 pounds |
| Item model number | ZD420 |
| Date First Available | January 18, 2022 |
| Manufacturer | JetSet Label |
| Printer type | Direct Thermal |
| Print width max | 4.09 inches (104 mm) |
| Print resolution | 203 dpi (8 dots/mm) |
| Print speed max | Up to 6 inches per second (152 mm/s) |

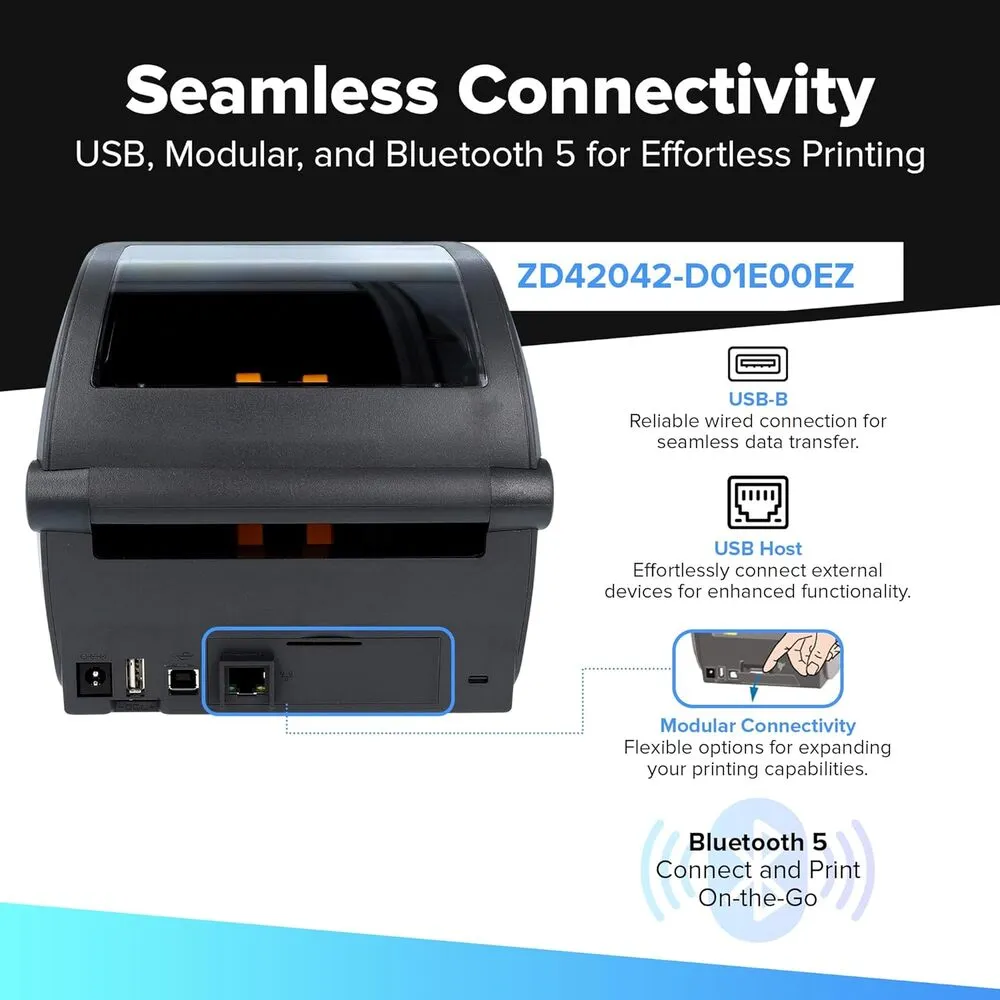

| Connectivity | USB 2.0, Ethernet 10/100, optional Wi-Fi and Bluetooth |
| Memory | 256 MB Flash, 128 MB SDRAM |
| Media types | Roll-fed, fan-fold, die-cut labels, tags, continuous paper |
| Media width | 0.75 inches to 4.25 inches (19 mm to 108 mm) |
| Media thickness | 0.003 inches to 0.0075 inches (0.08 mm to 0.19 mm) |
| Media sensing | Adjustable gap, black mark, and continuous sensing |
| Dimensions (W x D x H) | 7.0 x 8.0 x 6.3 inches (178 x 203 x 160 mm) |
| Weight | 3.6 lbs (1.63 kg) |
| Power supply | External 100-240VAC, 50-60Hz |
| Operating temperature | 40°F to 105°F (5°C to 40°C) |
| Display | Single status LED indicators |
| Certifications | Energy Star, CE, FCC Class A |
Images
Key Advantages
The ZD420d offers ease of use with quick media loading and an intuitive operator interface. Its wide connectivity options provide seamless integration with various devices and networks. The printer provides high-quality printing with 203 dpi resolution suitable for most barcode and labeling needs. Compact and lightweight, it fits well into limited office spaces. Energy Star certification ensures energy efficiency and reduced operational costs. Additionally, modular design allows for easy maintenance and optional upgrades like Wi-Fi or RFID capabilities, enhancing versatility.
Limitations
The ZD420d uses direct thermal technology, which limits label durability and resistance to heat or sunlight compared to thermal transfer printers. Maximum print speed is moderate and may not satisfy extremely high-volume industrial printing demands. The printer’s memory capacity is limited for large or complex label formats. Media width is constrained to 4.25 inches maximum, which may not accommodate wider label requirements. While connectivity is good, some advanced wireless features require additional options. The printer lacks a color display, which might reduce ease of status monitoring in some environments.
FAQ
What types of media does the JetSet Label ZD420d support?
The ZD420d supports direct thermal labels, tags, and continuous paper used in roll formats, suitable for a variety of office and retail labeling applications.
What is the maximum print resolution of the ZD420d?
The maximum print resolution is 203 dpi, delivering clear and precise printed output ideal for barcode and text labels.
Which connectivity options are available on the ZD420d?
Standard connectivity includes USB and Ethernet, with optional wireless connectivity such as Wi-Fi available through add-on modules.
Is the JetSet Label ZD420d still supported or discontinued?
As of now, the ZD420d is still supported and has not been discontinued.
Can the JetSet Label ZD420d print in color?
No, the ZD420d is a monochrome direct thermal printer and does not support color printing.
What is the maximum print speed of the ZD420d printer?
The maximum print speed of the ZD420d is up to 6 inches per second, suitable for moderate volume printing needs.
Does the ZD420d support RFID encoding?
RFID encoding is available as an optional upgrade for specific ZD420d models equipped with RFID modules.
