Intermec PM4i

Quick information
Brand Intermec 2006
Model Network LAN, PM4G011000300020, Barcode
Released Year 2006
Type Printers
Series Easycoder
Status Discontinued
Quick view
Full specs Images FAQ

Overview

The Intermec EasyCoder PM4i is a thermal transfer and direct thermal desktop printer designed for medium-duty label printing. It features a LAN (Local Area Network) interface allowing seamless connectivity in office and industrial network environments. The printer supports a resolution of 203 dpi (dots per inch) for clear and precise label printing. Equipped with a real-time clock and multiple barcoding symbologies compatibility, it fits diverse labeling applications. The PM4i employs Emulation languages and supports XML and IPDS protocols for flexible integration into existing systems. Its modular design facilitates easy maintenance and upgradeability.

Specifications

Printer Type Label Printer
Print Resolution 203 dpi
Max Print Speed 4 inches per second
Max Print Width 4 inches (104 mm)
Connectivity Ethernet (RJ-45), Parallel (IEEE 1284), USB-B, Serial (RS-232 DB9)
Memory 32 MB
Supported Languages IPL, DPL, ZSim (Zebra emulation), XML, IPDS

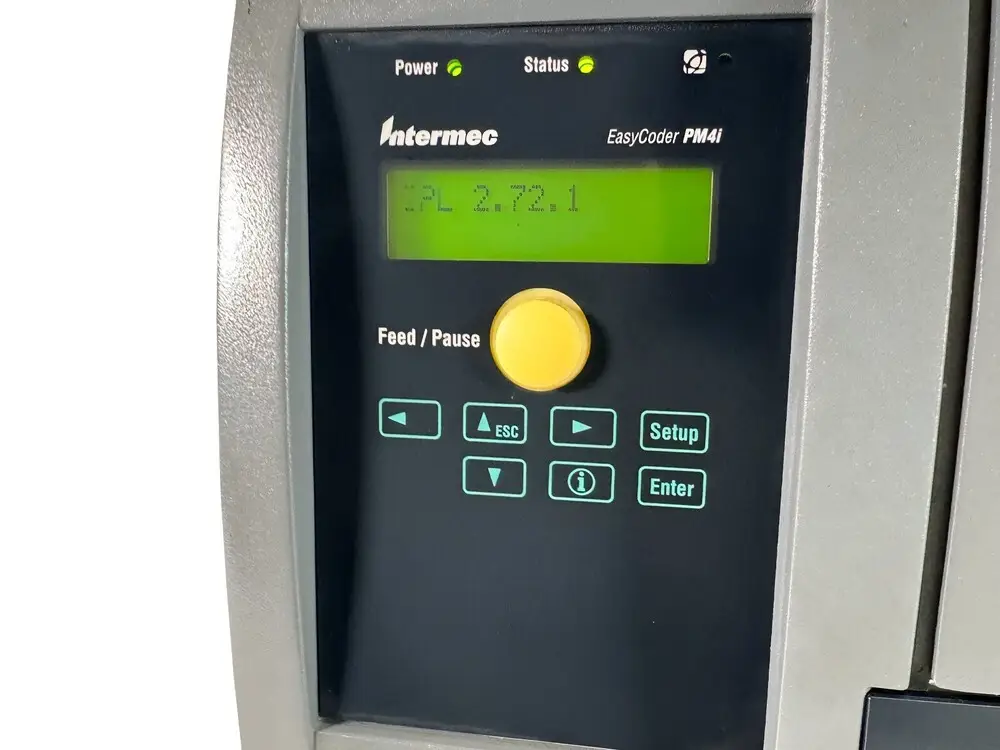

Display LCD with backlight
Media Types Die-cut labels, continuous labels, black mark, fanfold
Barcodes Supported UPC, EAN, Code 39, Code 128, PDF417, Data Matrix
Power Supply External, 110-240 V AC
Dimensions (WxDxH) 208 x 365 x 282 mm
Weight 6.2 kg
Operating Temperature 5°C to 40°C
Input Type Monochrome
Print Technology Thermal
Output Type Black & White
MPN Network LAN, PM4G011000300020, Barcode
Max. Resolution 203 dpi
Bundle Listing Yes
Supported Paper Size Max. Width: 4.5"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Supported Printing Sizes Max. Width: 104 mm (4.09 in)
Model PM4i
Features Networkable, RFID
Black Print Speed 8 ips
Country/Region of Manufacture United States
Product Line Intermec EasyCoder

Key Advantages

The PM4i offers robust networking options including built-in LAN for easy integration. Its high printing speed up to 4 inches per second increases productivity in busy office environments. The versatile media handling supports a wide range of label sizes and types, improving adaptability. The printer's user-friendly LCD interface simplifies operation and configuration. Additionally, the energy-efficient design reduces power consumption, beneficial for office sustainability goals. Durable construction ensures reliability for extended operational periods.

Limitations

The PM4i printer has limited print resolution at 203 dpi, which might not meet needs for very high detail labels. Color printing capability is absent, restricting it to monochrome output. Its print width is capped at 4 inches, limiting use for larger label formats. The printer's firmware updates and support could be less frequent due to the product age. Initial setup may require technical knowledge for network configuration. Handling of newer media types may be limited without specific accessory upgrades.
