Intermec PM4i
| Brand | Intermec 2014 |
| Model | Network LAN, Barcode, Industrial, RFID, PM4D011400005120 |
| Released Year | 2014 |
| Type | Printers |
| Series | Easycoder |
| Status | Discontinued |
Quick view
Overview
The Intermec EasyCoder PM4i is a high-performance industrial barcode printer designed for demanding labeling applications. It supports various connectivity options including Network LAN, ensuring reliable integration into enterprise environments. The PM4i offers versatile media handling with support for multiple barcode symbologies including 1D and 2D barcodes and has built-in RFID encoding capabilities for enhanced tracking and inventory management. The printer uses durable, long-lasting components suitable for industrial environments. It features a rugged design with a color graphical display for easy operation and monitoring. Its advanced print engine technology delivers high-quality, consistent prints at speeds up to 10 inches per second.
Specifications
| Print Method | Thermal Transfer / Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) optional |
| Maximum Print Speed | 254 mm/s (10 inches per second) |
| Print Width | Up to 104 mm (4.09 inches) |
| Media Type | Roll-fed, die-cut, continuous labels, tags, fan-fold media |
| Media Width | 25 mm to 114 mm (1 inch to 4.5 inches) |
| Media Thickness | 0.08 mm to 0.25 mm |
| Connectivity | USB type-B, Serial (RS-232 DB9), Ethernet (RJ-45), USB 2.0 |
| Memory | 16 MB |
| Supported Barcode Symbologies | Code 39, Code 128, QR Code, Data Matrix, EAN-13, UPC-A, etc. |
| RFID Support | Yes, supports ISO 18000-6C / EPC Gen 2 UHF RFID encoding |
| Controls | Color graphical LCD display with keypad |
| Dimensions | 280 mm (W) x 236 mm (D) x 232 mm (H) |
| Weight | Approximately 6.3 kg |
| Power Supply | 100-240 VAC, 50/60 Hz |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Input Type | Monochrome |
| Output Type | Black & White |
| Custom Bundle | No |
| MPN | Network LAN, Barcode, Industrial, RFID, PM4D011400005120 |
| Supported Paper Size | Max. Width: 4.50" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | PM4i |
| Features | Networkable |
| Black Print Speed | 7.6 ips |
| Country/Region of Manufacture | Malaysia |
| Product Line | Intermec EasyCoder |
| UPC | Does not apply |

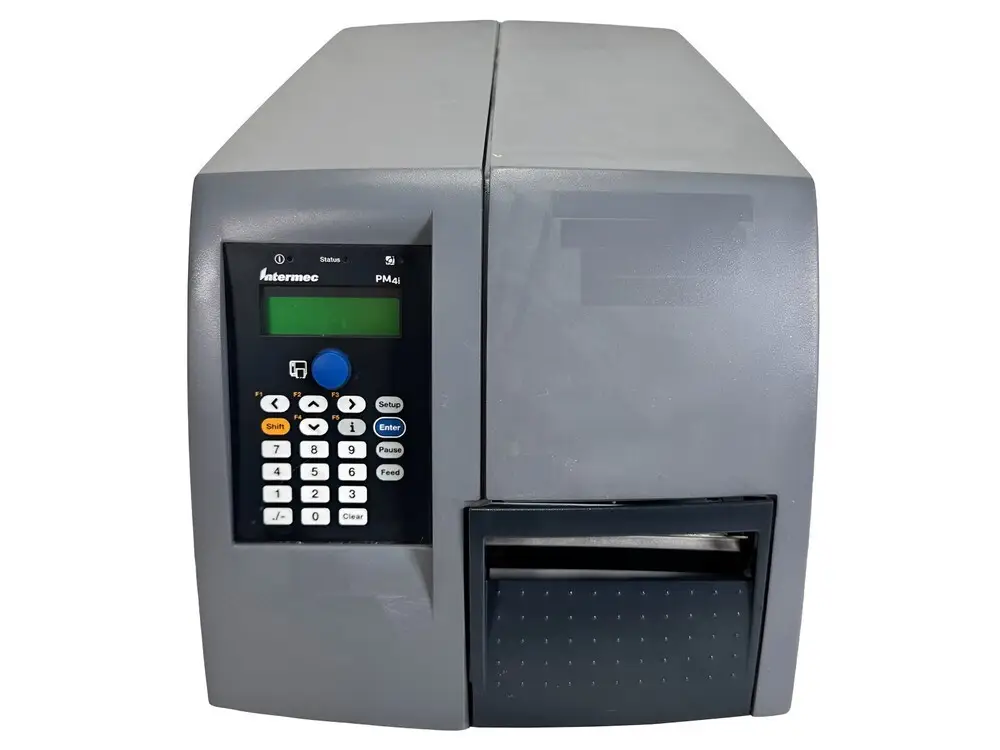

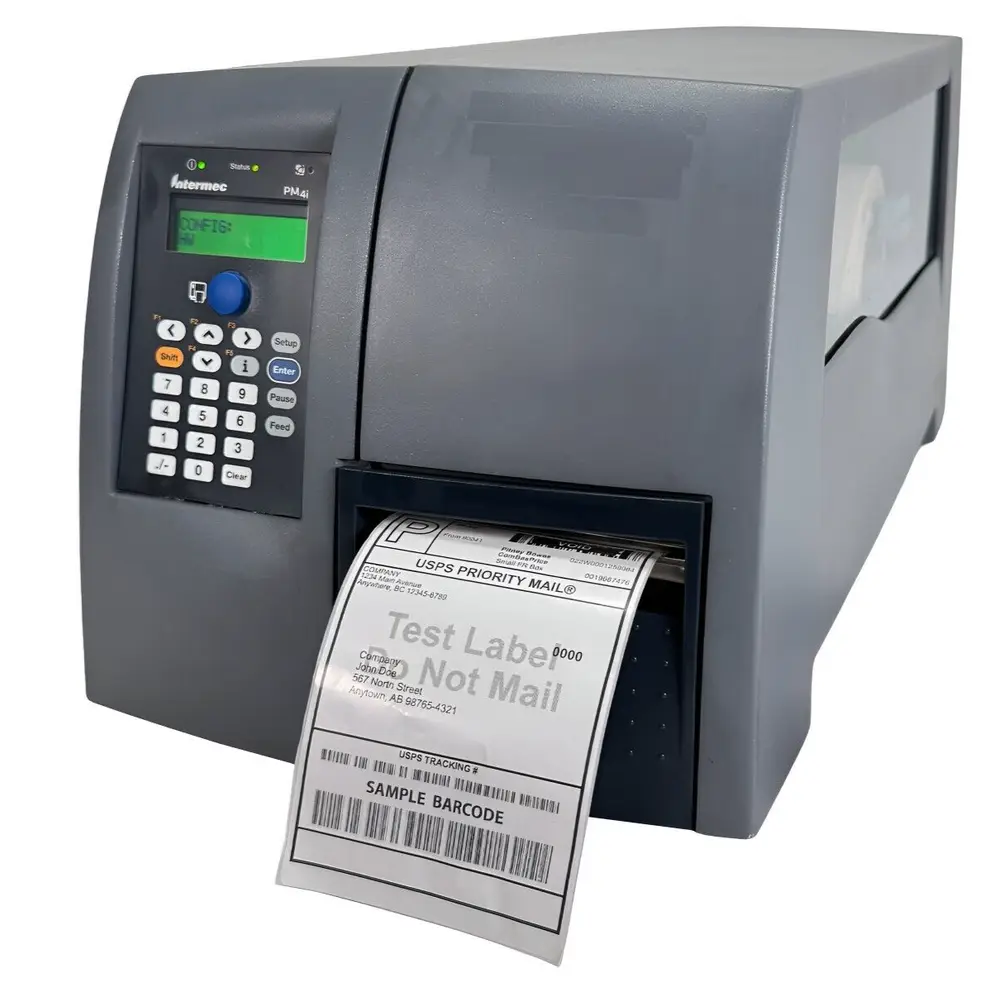

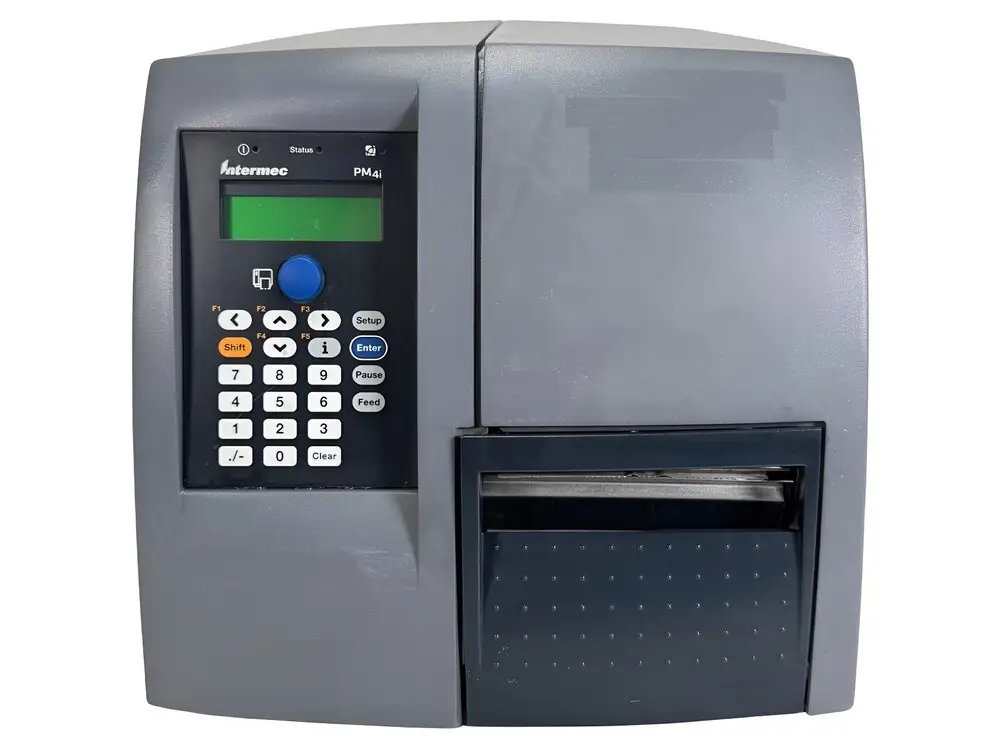

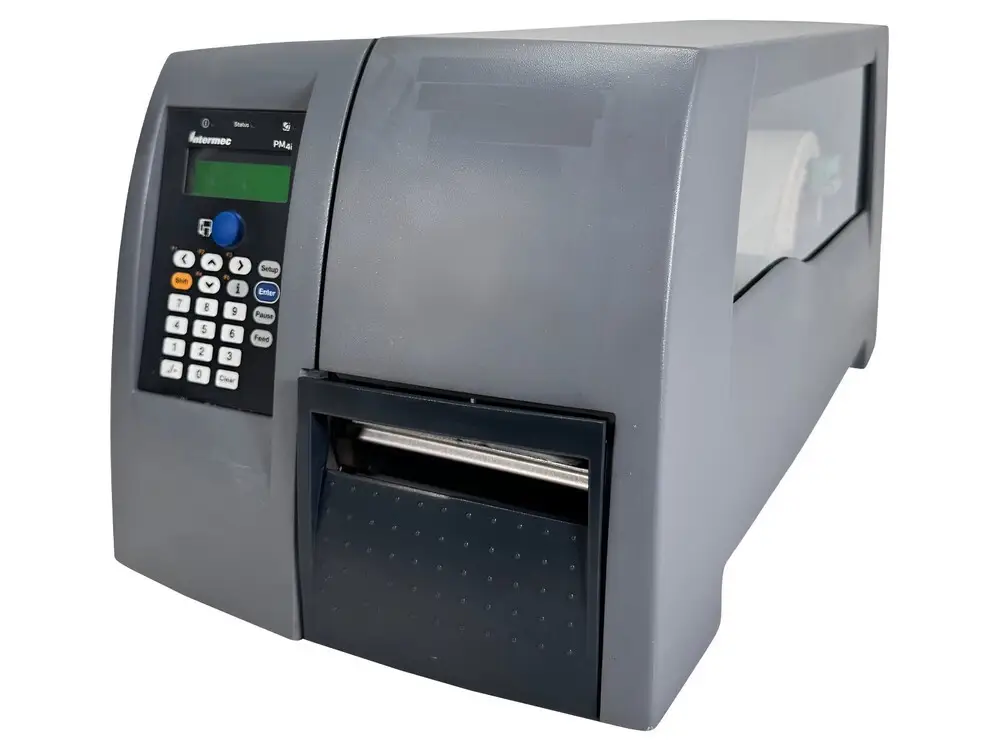

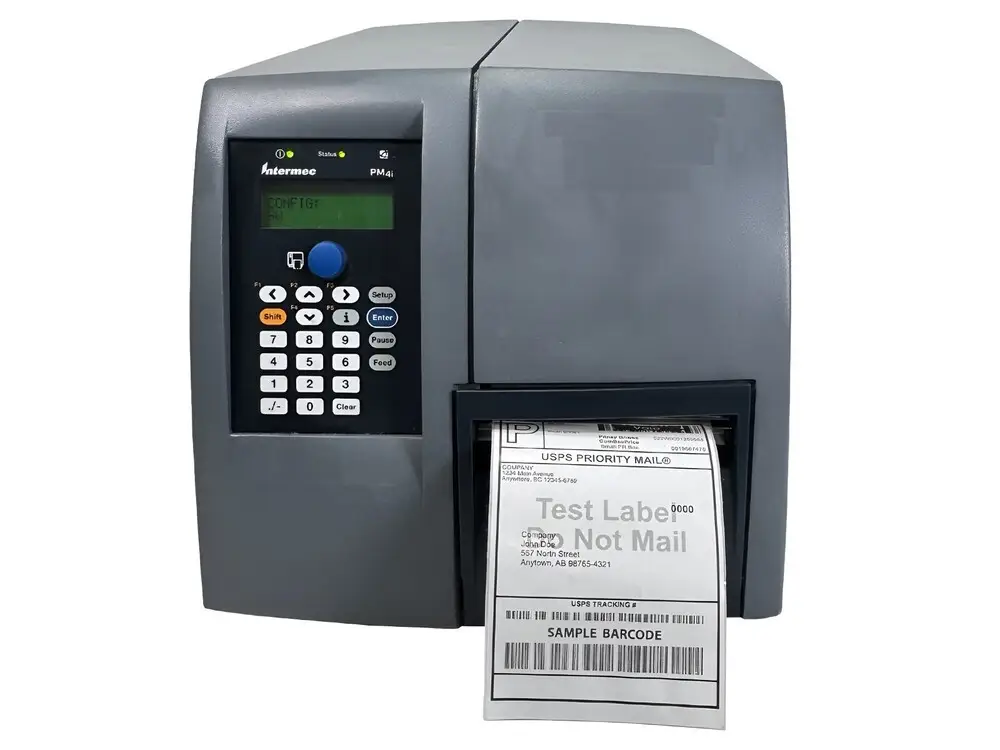

Images
Key Advantages
The EasyCoder PM4i boasts versatile connectivity options like Network LAN and USB, enhancing flexibility in various network setups. It supports a wide range of barcode and RFID protocols, making it suitable for multiple industrial applications. The device features a user-friendly graphical interface with a color display, simplifying configuration and operation. Durable construction and industrial-grade materials ensure uptime and reliability in harsh environments. High print speeds and precision improve productivity without sacrificing print quality. Additionally, the PM4i's compatibility with multiple media types and sizes offers adaptability across labeling needs.
Limitations
Despite its robust features, the PM4i has a relatively large footprint, which may limit placement options in constrained spaces. The initial setup and integration may require technical expertise, especially for RFID functionality. Firmware updates and advanced configurations might pose difficulties without specialized support. Compared to more modern printers, the PM4i lacks some wireless connectivity options such as Wi-Fi or Bluetooth. The device's operation noise level can be distracting in quiet office environments. Consumable costs can be higher relative to desktop-grade printers due to its industrial-grade components.
FAQ
What types of barcodes does the EasyCoder PM4i support?
The EasyCoder PM4i supports a wide range of 1D and 2D barcode symbologies including Code 128, Code 39, QR Code, Data Matrix, and many others.
Does the PM4i support RFID printing and encoding?
Yes, the PM4i includes built-in RFID encoding capabilities, allowing it to print and encode labels with RFID tags.
What connectivity options are available on the PM4i?
The printer offers Network LAN, USB, and serial port connectivity to integrate easily into various network environments.
Is the EasyCoder PM4i still in production?
No, the EasyCoder PM4i has been discontinued, but support and consumables might still be available through third-party vendors.
What is the maximum print speed of the PM4i?
The PM4i can print at speeds of up to 10 inches per second depending on print quality settings.
Can the PM4i handle different media sizes?
Yes, the printer supports various media widths up to 4 inches, with adjustable settings for different label and tag sizes.
Does the PM4i have a display for configuration?

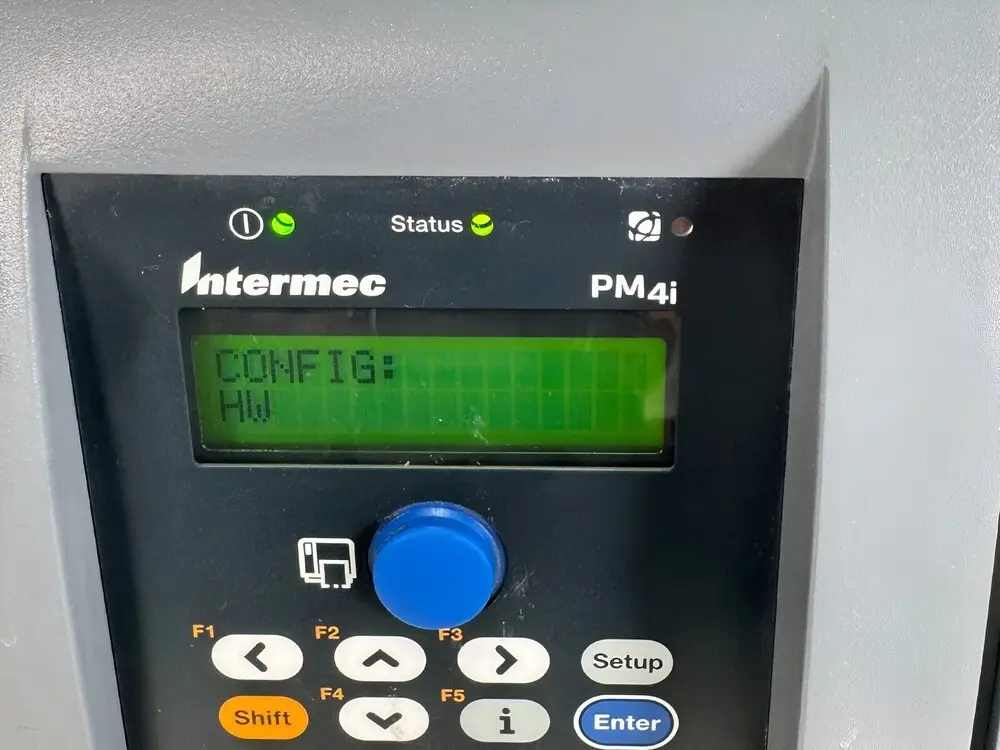

Yes, it features a color graphical display that simplifies printer configuration and status monitoring.
