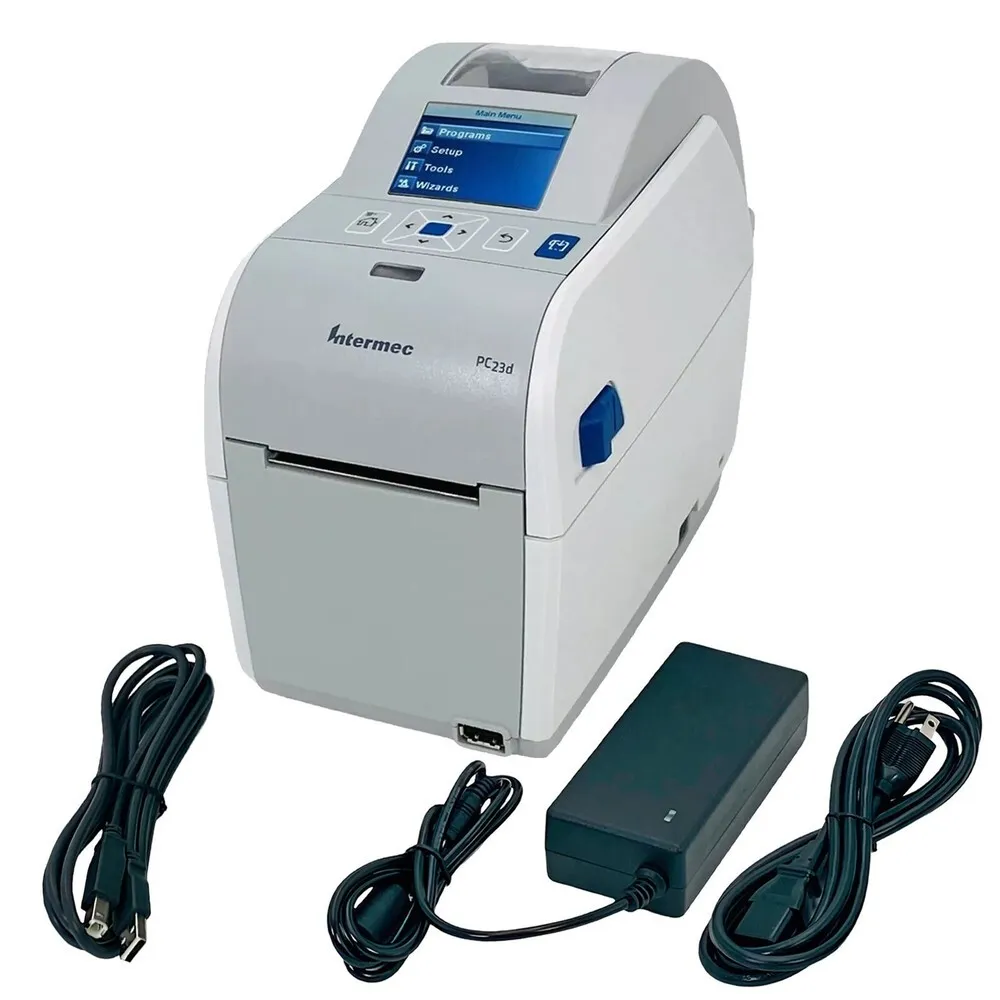

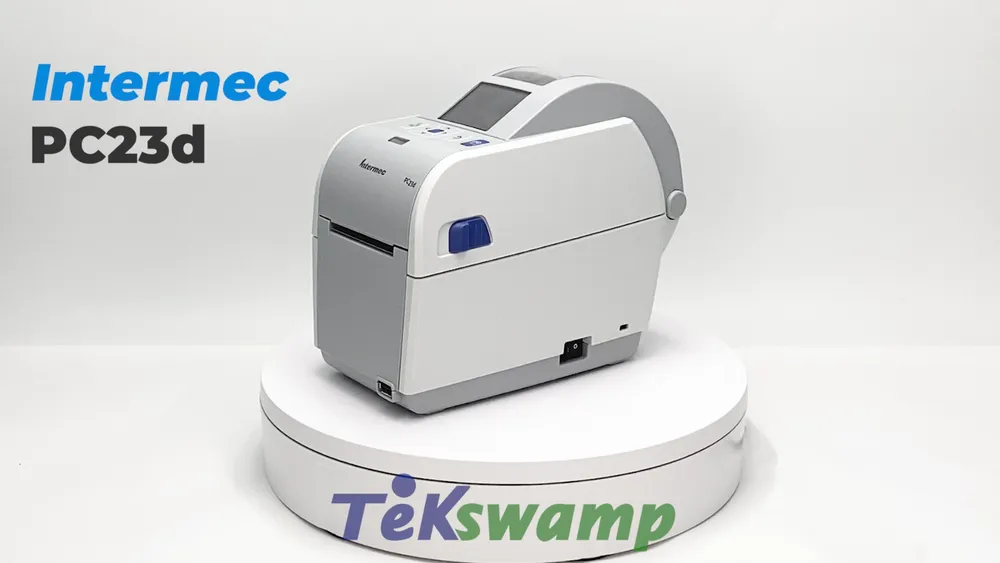

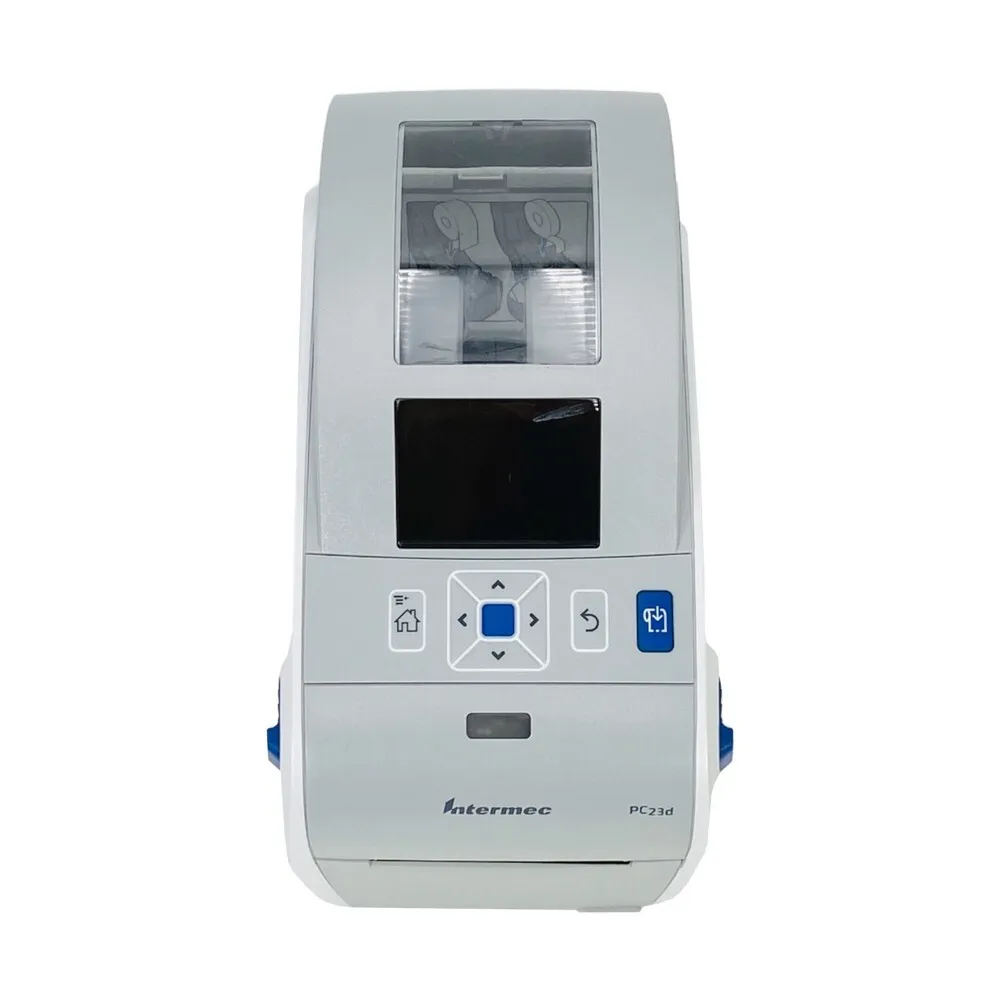

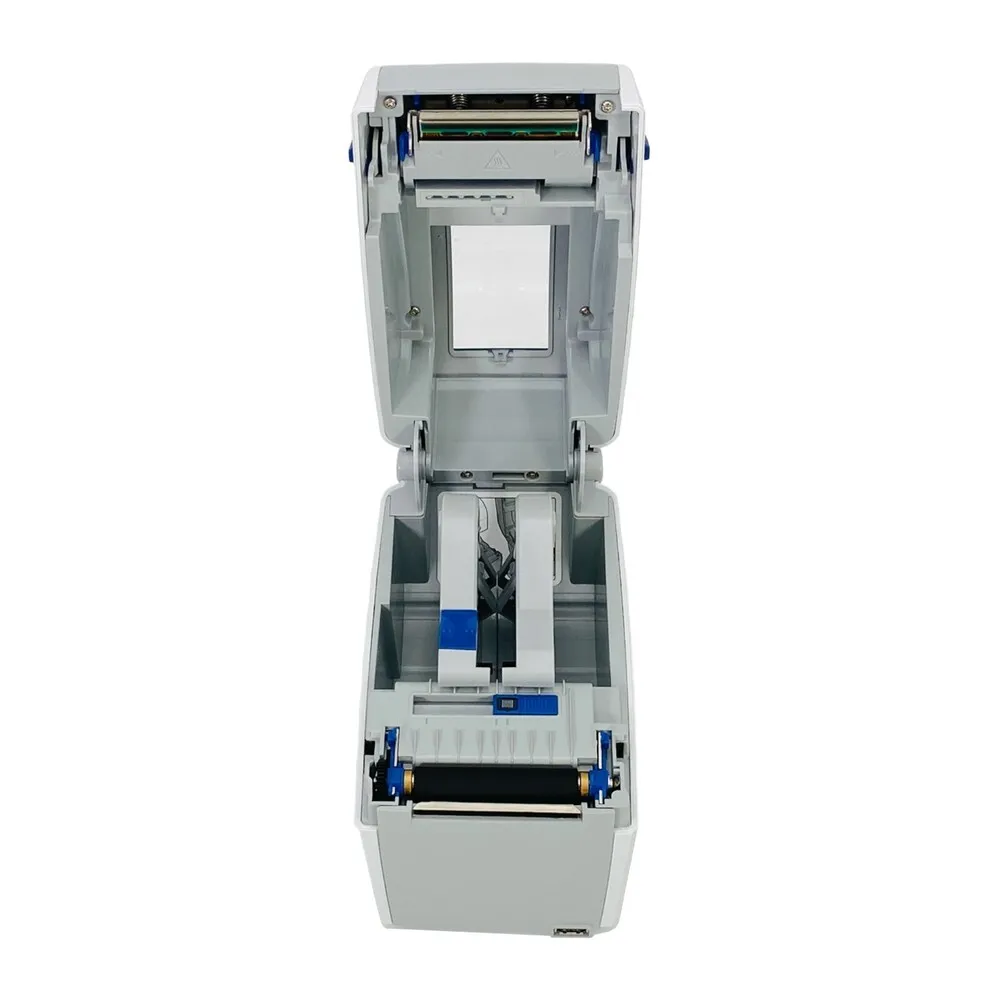

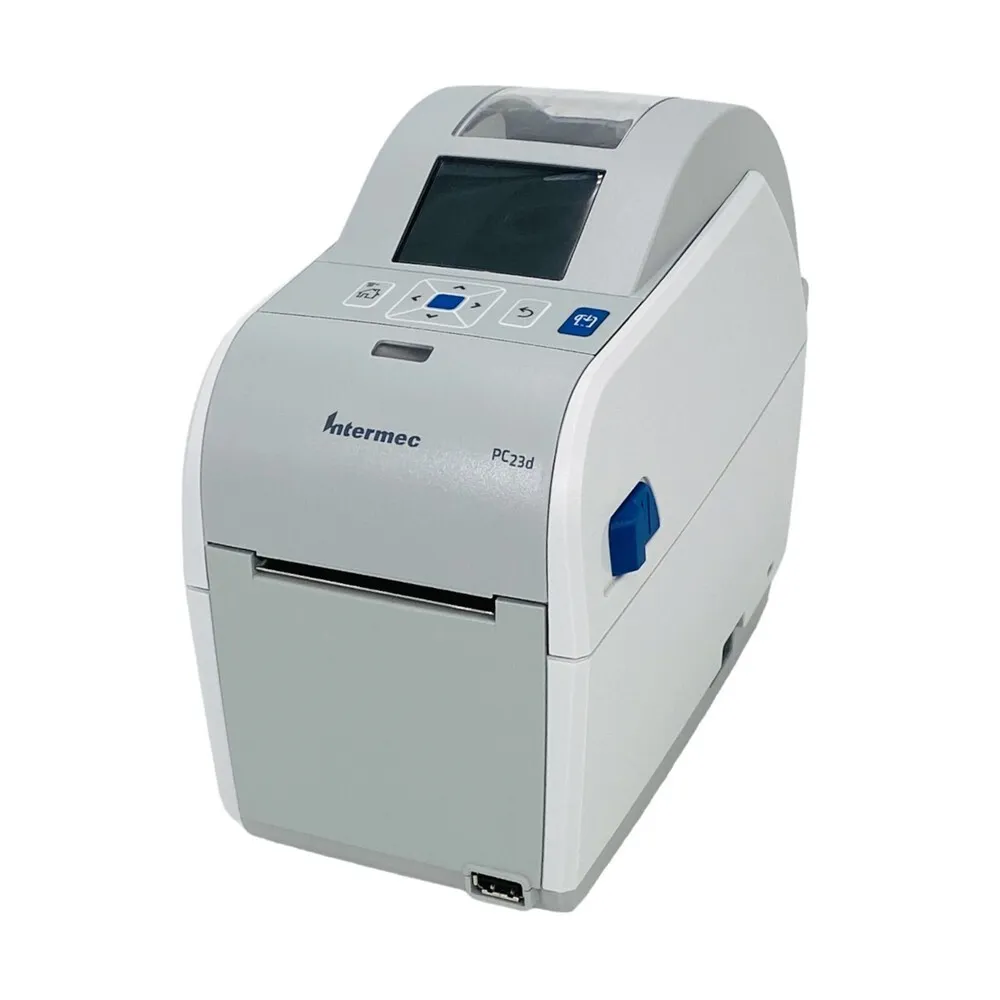

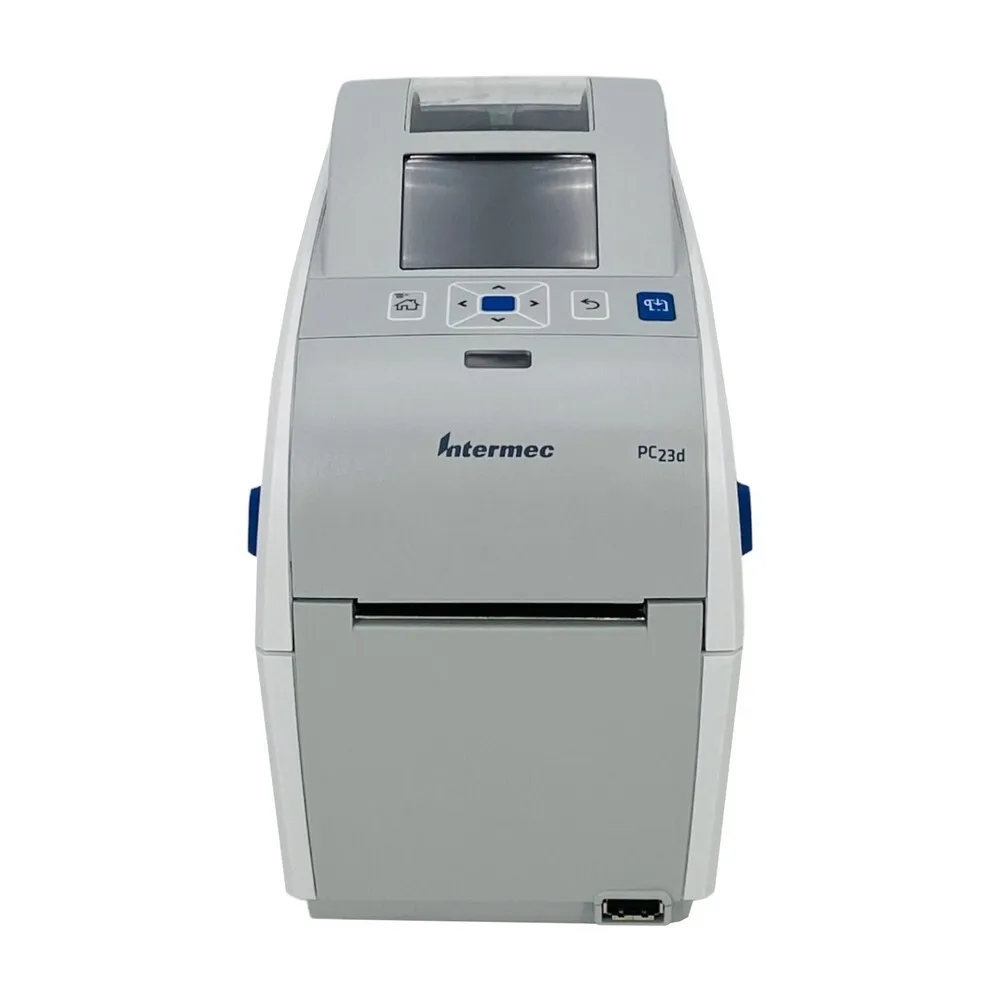

Intermec PC23d
Brand | Intermec 2008 |
Model | PC23DA0010020, AC Adapter, Healthcare Hospitality Retail, Honeywell |
Released Year | 2008 |
Type | Printers |
Series | Pc |
Printing Technology | Direct Thermal |
Status | Discontinued |
Quick view
Overview
The Intermec PC23d is a compact, lightweight printer designed primarily for mobile and desktop barcode label printing applications.
It features direct thermal printing technology with a print speed up to 4 inches per second and a print resolution of 203 dpi.
The device supports multiple connectivity options including USB, serial, and Bluetooth, enhancing its versatility in different environments.
The PC23d is equipped with an intuitive LCD display and user-friendly interface, facilitating ease of operation and quick configuration.
Its durable housing ensures reliability in demanding healthcare, hospitality, and retail settings.
Additionally, the printer supports media rolls up to 2.36 inches in diameter to accommodate various label sizes.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 128 MB |
MPN | PC23DA0010020, AC Adapter, Healthcare Hospitality Retail, Honeywell |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Supported Paper Size | Max Label Width: 2.36" |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | PC23d |
Connectivity | USB, Serial, Bluetooth |
Features | Portable |
Black Print Speed | 8 ips |
Product Line | Intermec PC |
UPC | 682017462264 |
Printing Technology | Direct Thermal |
Print Resolution | 203 dpi |
Print Speed | Up to 4 inches per second |
Media Type | Direct thermal labels and tags |
Media Width | 1 inch to 2.36 inches (25.4 mm to 60 mm) |
Max Media Roll Diameter | 2.36 inches (60 mm) |
Display | LCD with user-friendly interface |
Power Supply | AC Adapter model PC23DA0010020 |
Dimensions | 5.6 x 7.1 x 3.6 inches (142 x 180 x 91 mm) |
Weight | Approx. 1.8 lbs (0.8 kg) |
Supported Operating Systems | Windows XP, Vista, 7 |
Typical Applications | Healthcare, Hospitality, Retail label printing |
Images
Key Advantages
Compact and lightweight design makes it highly portable and easy to integrate into different workspaces.
The use of direct thermal technology eliminates the need for ink or toner, reducing maintenance costs.
Multiple connectivity options such as USB, serial, and Bluetooth ensure flexibility in usage scenarios.
High print speed of up to 4 inches per second increases operational efficiency in high-volume environments.
Durable construction enables reliable performance in healthcare, hospitality, and retail sectors.
Supports a variety of label sizes, accommodating diverse application needs.
Limitations
Limited to direct thermal printing, which may cause labels to fade over time when exposed to heat or sunlight.
Print resolution capped at 203 dpi, which may not be suitable for very fine graphic or text details.
Media roll capacity is relatively small, requiring frequent label replacement in heavy usage.
Bluetooth connectivity options may have limited range compared to newer wireless technologies.
AC adapter model PC23DA0010020 may not be compatible with all power standards worldwide.
The printer may lack some advanced features found in newer or higher-end models, such as color printing or Wi-Fi connectivity.
FAQ
What types of labels can the Intermec PC23d print?
The PC23d prints on direct thermal labels suited for healthcare, hospitality, and retail labeling applications.
Does the PC23d support wireless connectivity?
Yes, it supports Bluetooth wireless connectivity alongside USB and serial connections.
What is the print resolution of the PC23d?
The printer offers a print resolution of 203 dots per inch (dpi).
Is the Intermec PC23d still supported by the manufacturer?
No, the PC23d series has been discontinued and is no longer supported officially.
What power adapter does the PC23d use?
It uses the PC23DA0010020 AC adapter suitable for healthcare, hospitality, and retail environments.
Can the PC23d print color labels?
No, the PC23d uses direct thermal printing technology which only supports black and white labels.
What is the maximum print speed of the PC23d?
The maximum print speed is up to 4 inches per second.
