Honeywell PM43
| Brand | Honeywell 2018 |
| Model | Ethernet Network, Industrial, Intermec, Touch screen, PM43A1100004020 |
| Released Year | 2018 |
| Type | Printers |
| Series | Pm |
| Status | Active |
Quick view
Overview
The Honeywell PM43 is an industrial label printer designed for high-performance and reliability in manufacturing and warehouse settings. It operates with Ethernet network connectivity for seamless integration into enterprise systems, delivering rapid and precise label printing. The printer features an intuitive touch screen interface allowing for easy configuration and operation on site. Built on a robust metal frame, the PM43 withstands harsh industrial conditions, including dust and temperature variations. The device supports multiple barcode symbologies and large media rolls to minimize downtime. Additionally, its advanced printing technology ensures accurate and durable label output in diverse applications.
Specifications
| Input Type | Monochrome |
| Output Type | Black & White |
| Memory | 256 MB Flash, 128 MB SDRAM |
| MPN | Ethernet Network, Industrial, Intermec, Touch screen, PM43A1100004020 |
| Supported Paper Size | Maximum Label Width: 4.50" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | PM43 |
| Connectivity | Ethernet 10/100 Mbps, USB 2.0, Serial (optional) |
| Features | Networkable, Rewinder |
| Black Print Speed | 12 ips |
| Product Line | Honeywell PM |
| UPC | Does not apply |
| Print Technology | Thermal Transfer and Direct Thermal |
| Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) optional |
| Print Speed | Up to 12 inches per second (305 mm/s) |
| Media Type | Labels, tags, continuous rolls |
| Media Width | 2.0 to 4.65 inches (50.8 to 118 mm) |
| Max Print Width | 4.1 inches (104 mm) |

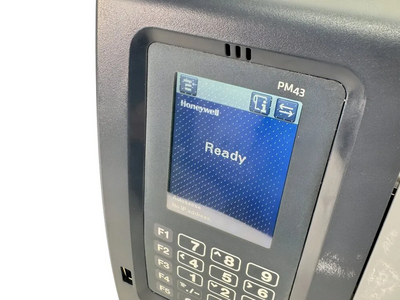

| Display | Color LCD touch screen (4.3 inch) |
| Dimensions | 270 x 255 x 432 mm (W x H x D) |
| Weight | Approx. 13 kg |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Power Supply | 100-240V AC, 50/60Hz |
| Supported Barcodes | UPC, EAN, Code 128, Code 39, Data Matrix, QR code, others |
| Emulations | IPL, DP, ZSim, DSim, and ZPL |
| Durability | Metal casing designed for industrial use |

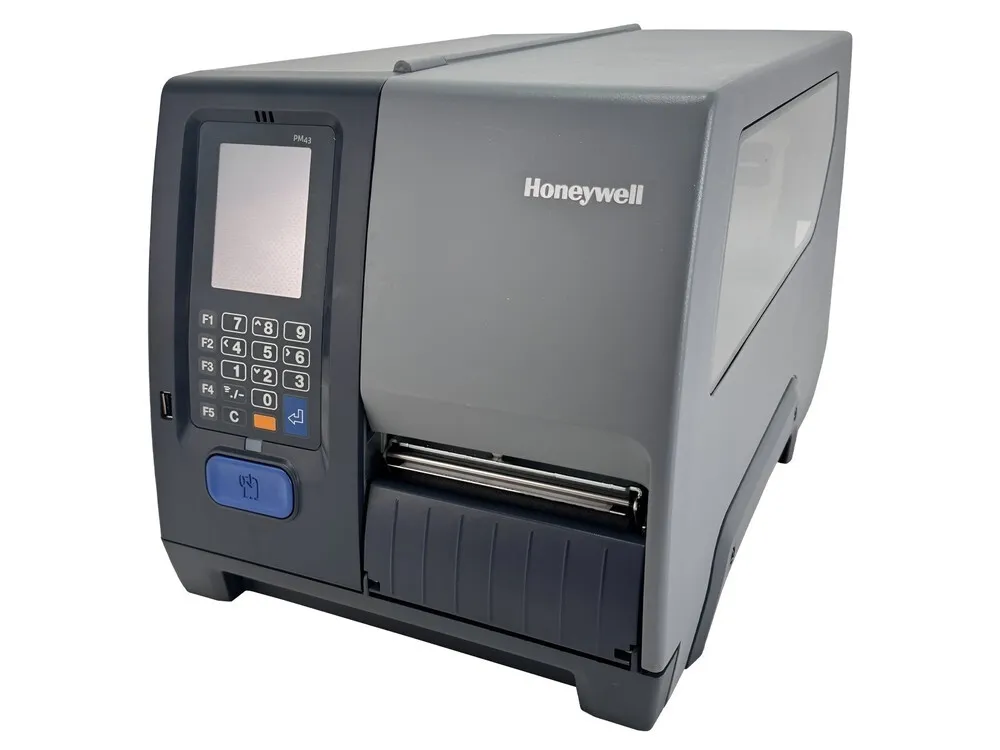

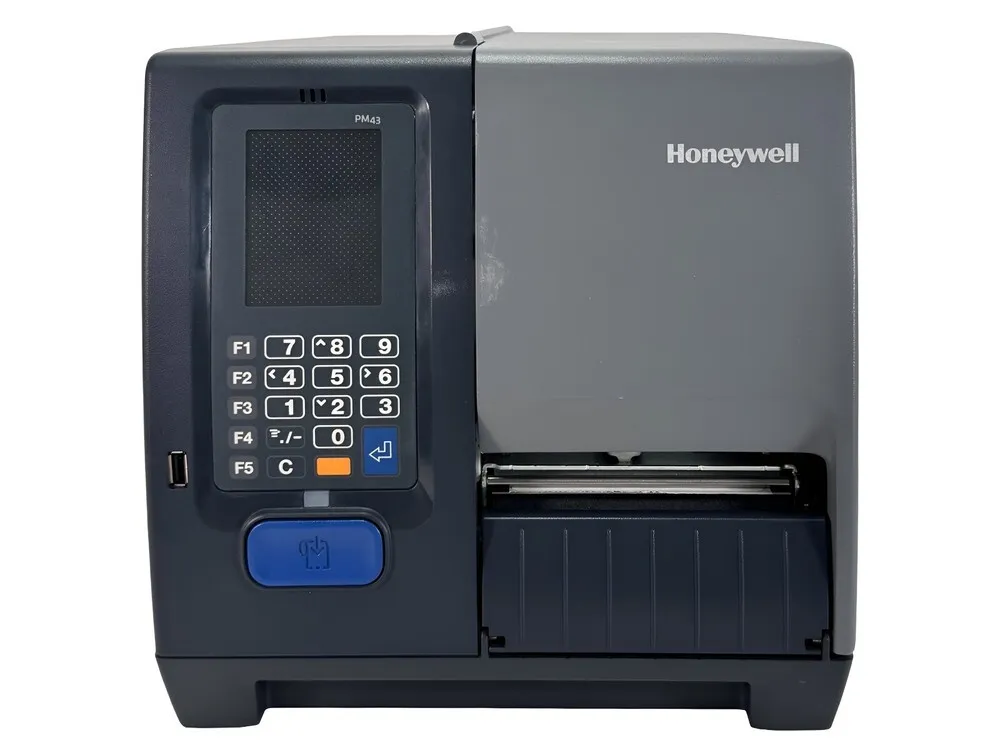

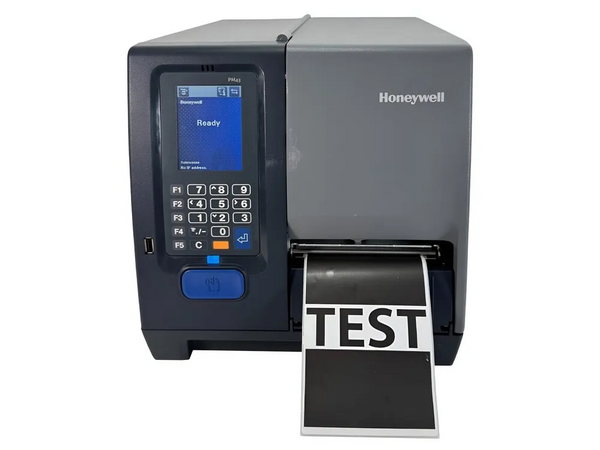

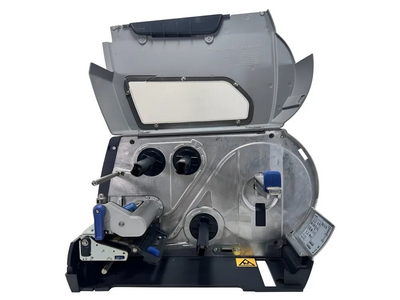

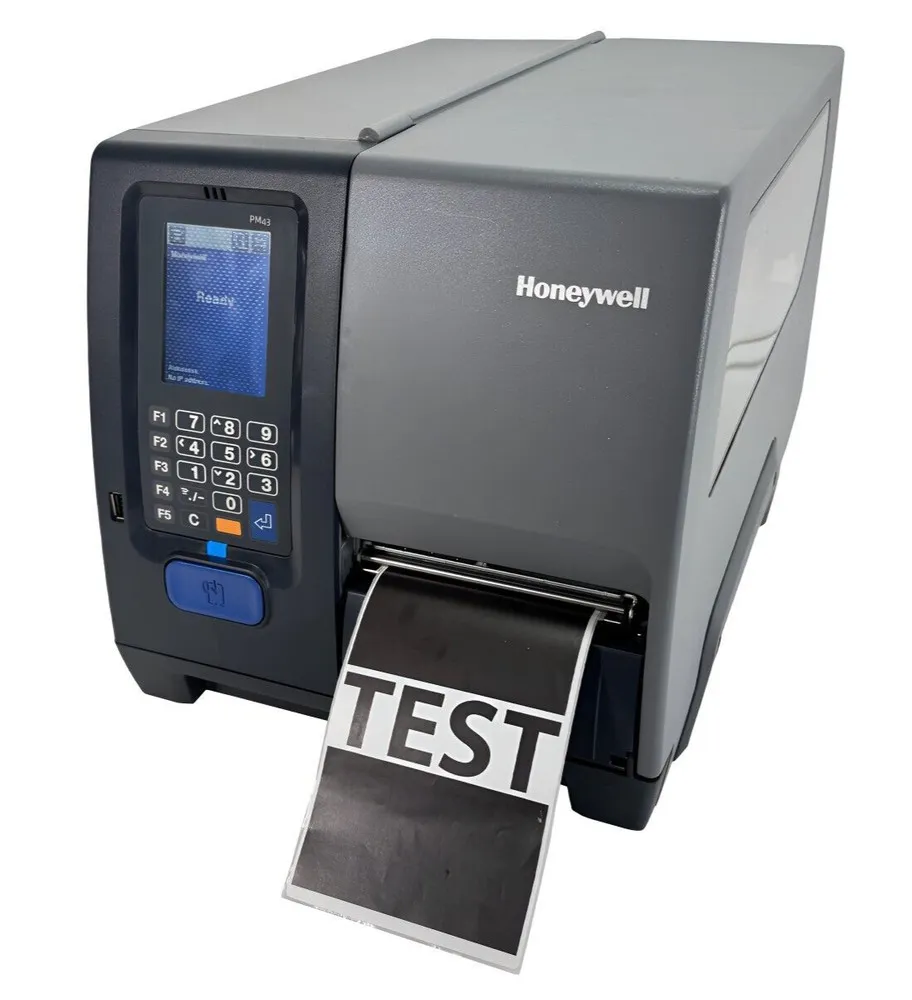

Images
Key Advantages
The PM43 offers excellent network connectivity through its Ethernet interface, enabling efficient communication and remote management. Its touch screen display enhances user experience with simplified control and real-time status updates. The rugged design ensures long-term durability in industrial environments, reducing maintenance costs. It supports a wide variety of media types and sizes, providing flexibility for different labeling needs. The printer achieves high-resolution print quality for clear barcodes and text. Integration with existing business systems is facilitated by comprehensive software and protocol support.
Limitations
The PM43 printer’s upfront cost may be higher compared to basic office printers, posing a challenge for small businesses. Some users might find the initial setup and configuration complex without technical expertise. Its size and weight make it less portable and suitable primarily for fixed industrial locations. The reliance on Ethernet networks means connectivity issues can impact print operations if network infrastructure is inadequate. Consumables such as ribbons and labels have ongoing costs. Firmware updates occasionally require technician intervention, which could cause brief operational downtime.
FAQ
What connectivity options does the Honeywell PM43 support?
The PM43 supports Ethernet as its primary communication interface, allowing integration with wired network environments. It also may support optional USB and serial connections depending on configuration.
Is the PM43 suitable for harsh industrial environments?
Yes, the PM43 is built with a rugged metal frame designed to withstand dust, temperature fluctuations, and physical impacts common in industrial settings.
What kind of media can the PM43 handle?
The printer supports a wide range of label types and sizes including continuous, die-cut, and fan-fold media, with widths suitable for various labeling applications.
Does the PM43 have a user-friendly interface?
Yes, it features a color touch screen that simplifies printer setup, configuration, and status monitoring, enhancing operational efficiency.
Is the Honeywell PM43 still in production?
As of now, the PM43 is not discontinued and is actively supported and manufactured by Honeywell.
What printing technology does the PM43 use?
The PM43 utilizes direct thermal and thermal transfer printing technologies to produce durable, high-resolution labels.
Can the PM43 be integrated with existing enterprise systems?
Yes, the PM43 supports multiple printer languages and protocols allowing seamless integration with warehouse management and other business systems.
