HID HDP5600 image

HID HDP5600

Quick information
Brand HID 2015
Model 093652
Released Year 2015
Type Printers
Status Active
Quick view
Full specs Images

Overview

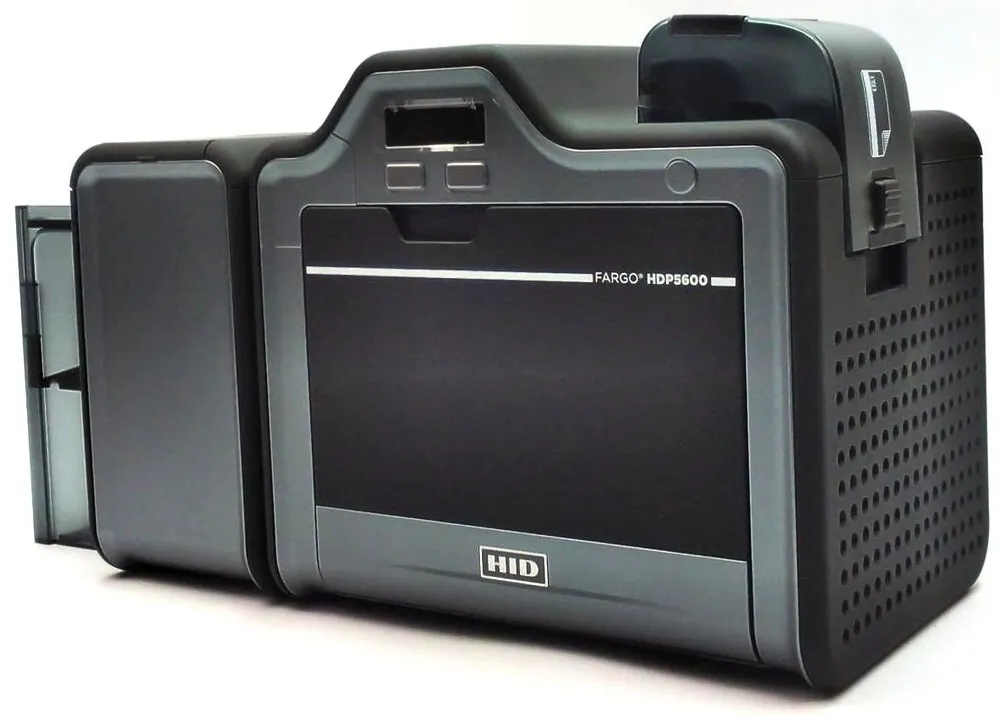

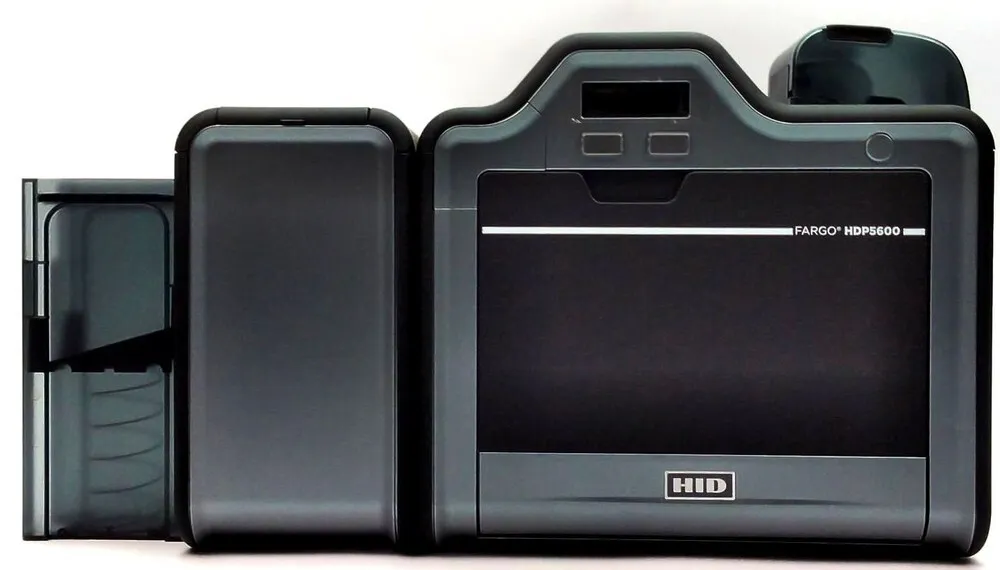

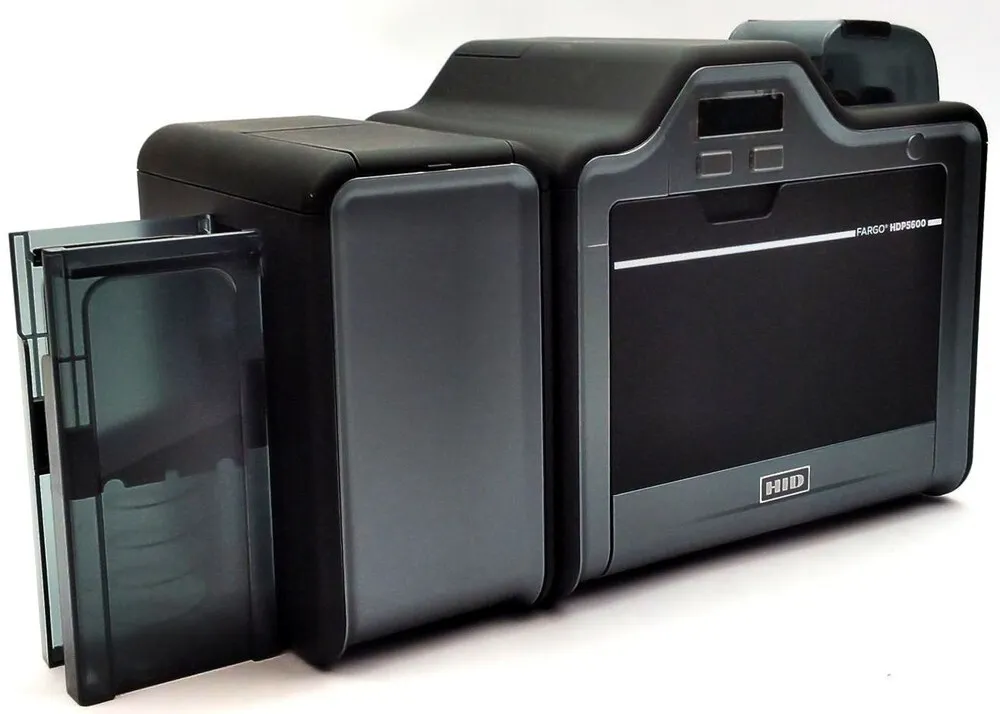

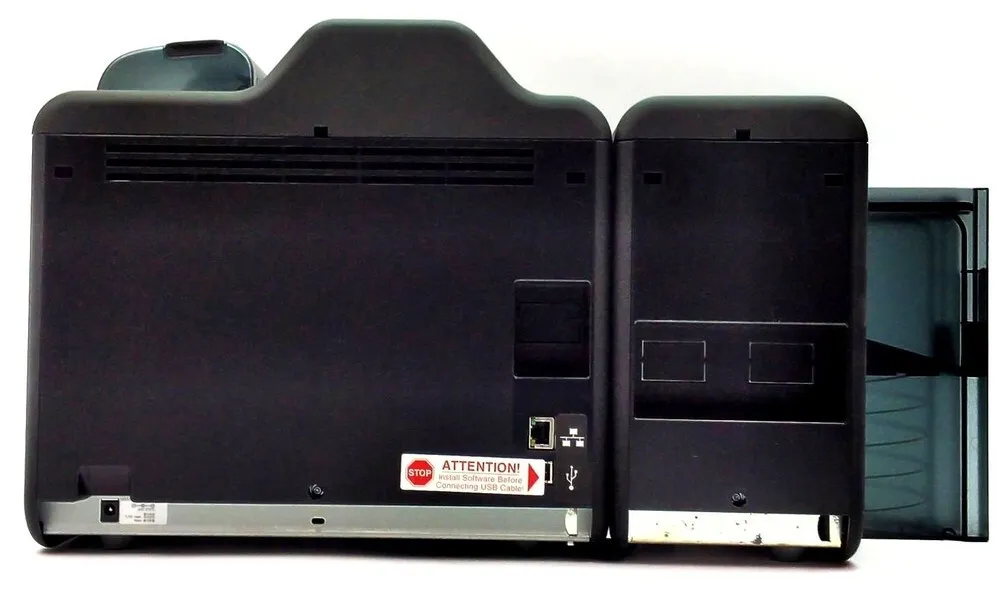

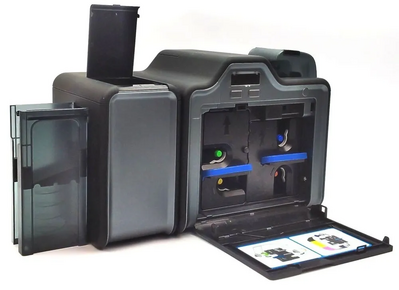

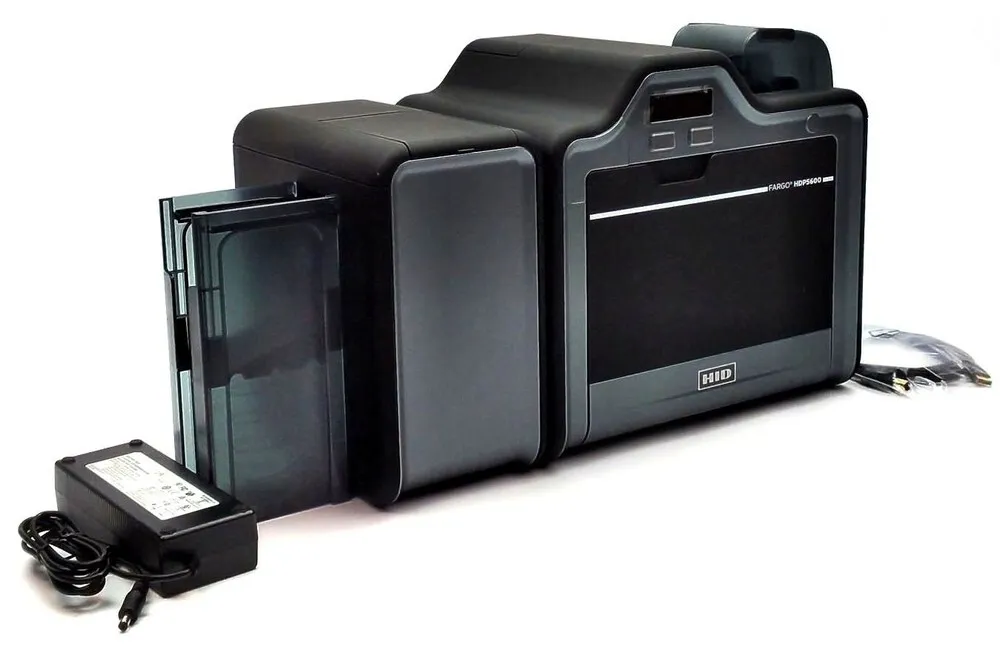

The HID HDP5600 is a high-definition retransfer ID card printer designed for secure credential issuance in enterprise and government environments.

It uses a retransfer printing technology that delivers durable, high-resolution images by printing onto the card surface through a dye-sublimation and thermal transfer process.

The printer supports standard CR-80 PVC cards and offers edge-to-edge printing with precise color reproduction and enhanced image quality.

Equipped with a robust cleaning mechanism and automated ribbon replacement, it ensures consistent print output and reduces downtime.

The HDP5600 connects via USB and Ethernet interfaces, supporting integration into networked office environments.

Its user-friendly control panel and security features like Kensington lock compatibility make it suitable for office electronics focused on identification and access control.

Specifications

Features Desktop, Color
MPN 093652
Scanning Resolution 600dpi
Item Width 12.25”
Interface USB Ethernet USB-A Dual-Sided
Item Length 9.25”
Item Height 11.50”
Country/Region of Manufacture China
Output Type Color
Print Method Dye-Sublimation / Resin Thermal Transfer
Input Type Color
Model HDP5600
Supply Voltage 100-240 VAC, 3.3A max
Supply Frequency 50 Hz / 60 Hz
Color Printing Color
Connectivity USB 2.0, Ethernet 10/100 Mbps
Color Grey/Black
Technology Dye-Sublimation / Resin Thermal Transfer
Type ID Card Printer
Print Technology Retransfer Dye-Sublimation
Print Resolution 300 dpi
Print Speed Up to 190 cards per hour (color dual-sided)
Supported Card Sizes CR-80 (Standard 85.60 mm x 53.98 mm)
Card Thickness Supported 0.25 mm to 1.25 mm
Memory 512 MB RAM
Encoding Options Magnetic stripe encoder (optional), Contact and contactless smart card encoding (optional)
Display LCD control panel
Operating System Compatibility Windows 7, 8, 10
Power Supply 100-240 V AC, 50/60 Hz
Dimensions (WxDxH) 22.5 x 42 x 33 cm
Weight 14 kg
Security Features Kensington lock, Secure boot

Key Advantages

The HDP5600 provides superior print quality with vibrant colors and sharper images compared to direct-to-card printers.

Its retransfer printing technology ensures edge-to-edge coverage without white borders, enhancing card aesthetics.

Automated ribbon management reduces manual intervention, increasing operational efficiency.

Robust build quality and security features make it reliable for environments requiring high-security credentialing.

Supports a wide range of card materials including composite cards, increasing versatility.

Network connectivity options allow centralized printing management and ease of deployment in enterprise settings.

Limitations

The retransfer printing technology leads to a slower print speed compared to dye-sublimation direct-to-card printers.

Initial investment and maintenance costs are higher due to advanced printing mechanics and consumables.

It is limited to printing standard CR-80 card sizes and does not support other card formats.

Requires periodic cleaning and maintenance to prevent printhead wear and image quality degradation.

Bulk printing for very large card volumes may necessitate additional hardware or seamless workflow setups.

Some users may find the software interface less intuitive compared to newer models with modern touchscreen controls.

FAQ

The HDP5600 supports standard CR-80 PVC cards, composite cards, and cards with embedded technology suitable for secure ID issuance.

The printer offers a print resolution of 300 dots per inch (dpi), delivering high-quality, crisp images and text.

Yes, it includes Ethernet and USB interfaces, allowing for flexible integration into office networks.

While the HDP5600 is reliable for moderate volumes, very high-volume printing may require additional productivity solutions.

Regular cleaning of the printhead and internal mechanisms is required to maintain print quality and extend printer life.

Yes, the retransfer printing technology allows for full edge-to-edge printing without any white borders.

As of now, the HDP5600 is an actively supported model within HID’s product line, with available firmware updates and consumables.
