Datamax-ONeil RL4 802.11 LINERLESS
Brand | Datamax-ONeil 2015 |
Model | Mobile, AC Adapter, Barcode, Honeywell, Direct Thermal, Rugged, USB |
Released Year | 2015 |
Type | Printers |
Series | RL |
Status | Active |
Quick view
Overview

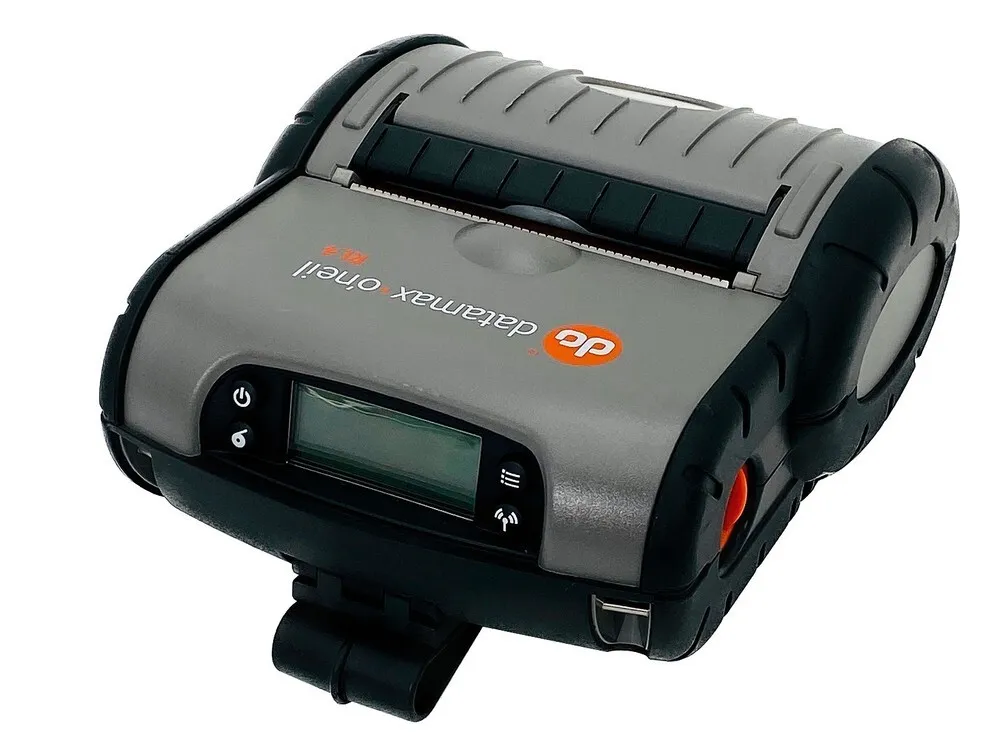

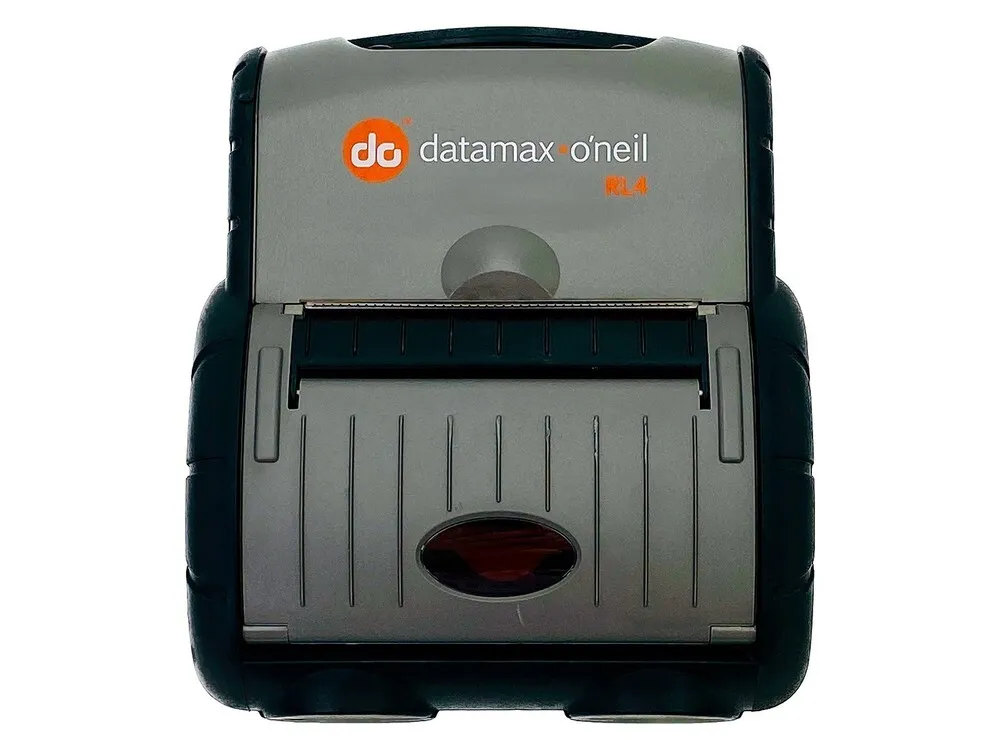

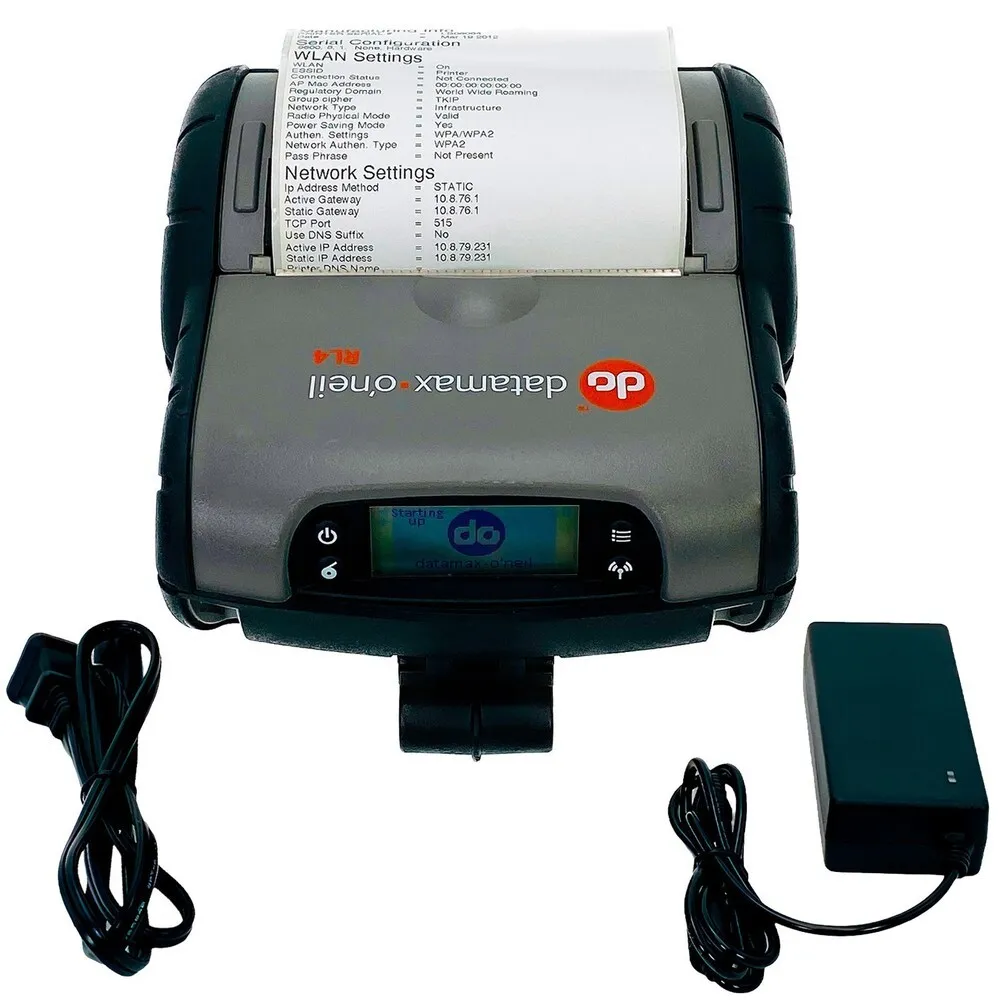

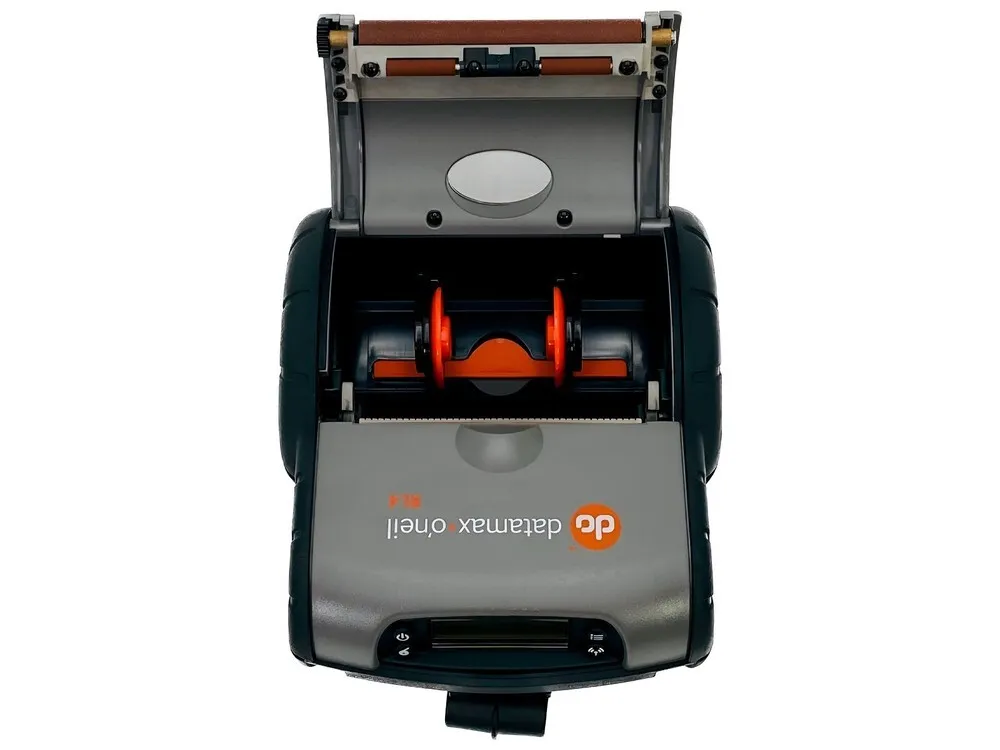

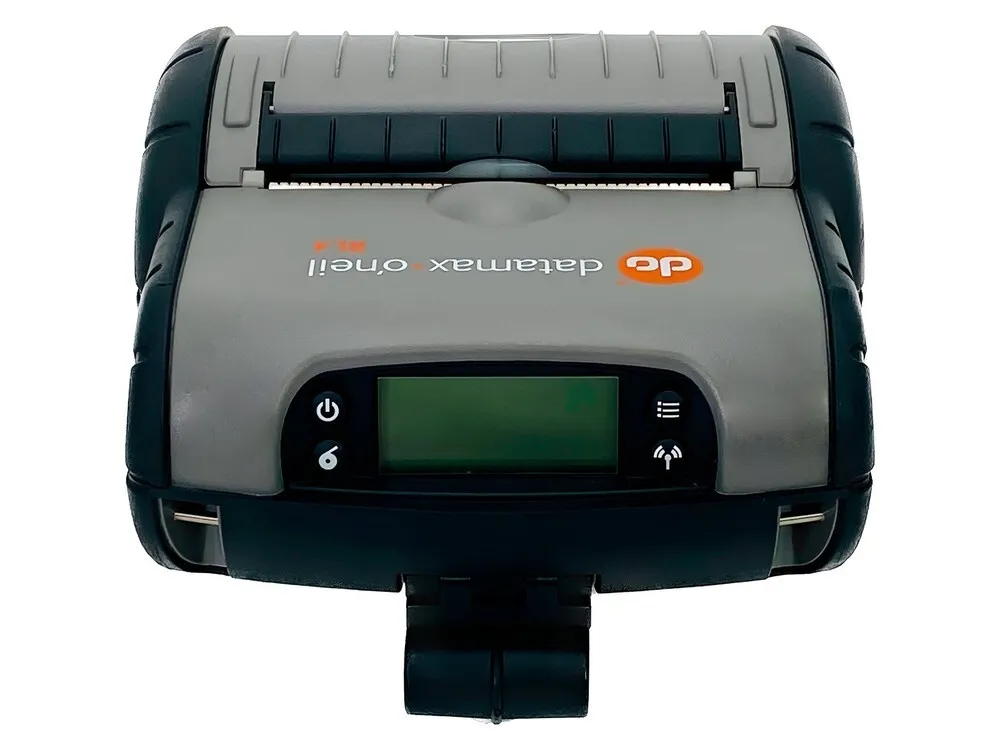

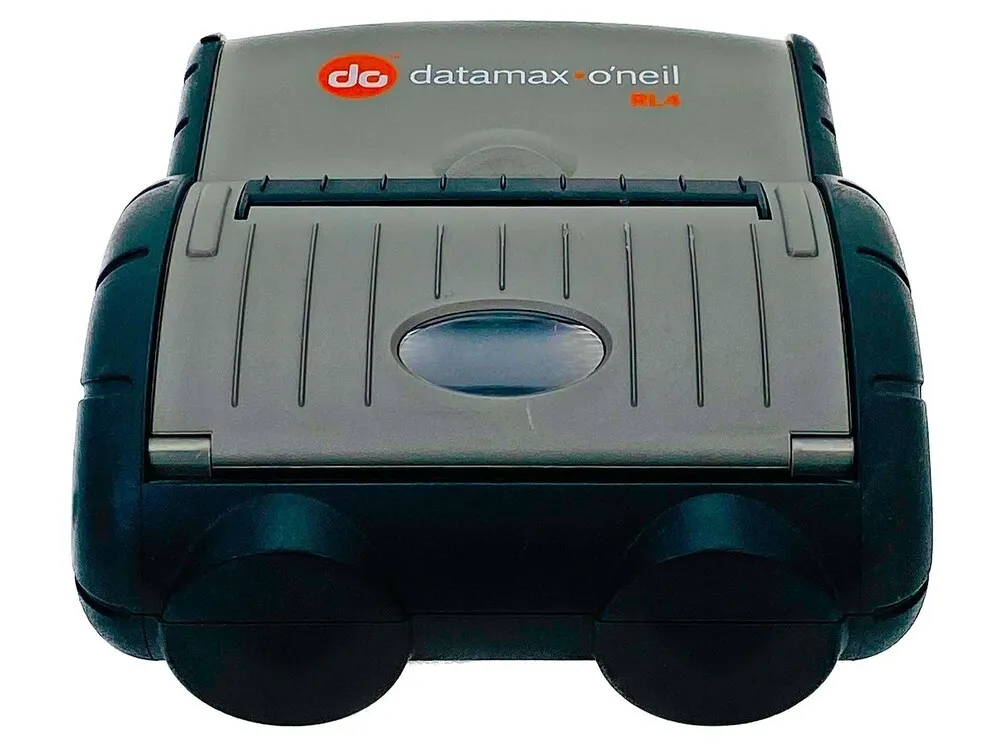

The Datamax-O'Neil RL4 802.11 Linerless is a rugged mobile barcode printer designed for direct thermal printing without the need for liner backing. It incorporates 802.11 wireless connectivity enabling seamless mobile integration and improved workflow efficiency. The device is built with durability in mind, suitable for harsh environments, and supports USB connectivity and AC adapter power options for versatile operational settings. It features a compact form factor with a high-resolution printhead optimized for labeling applications in logistics and field service. The direct thermal technology eliminates the need for ink, toner, or ribbons, minimizing maintenance requirements. Additionally, the printer supports Honeywell barcode standards, ensuring compatibility with a wide range of barcode symbologies.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 16 MB |
MPN | Mobile, AC Adapter, Barcode, Honeywell, Direct Thermal, Rugged, USB |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Supported Paper Size | Maximum Label Width: 4.12" |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | RL4 802.11 LINERLESS |
Connectivity | 802.11 Wireless, USB |
Features | Portable |
Black Print Speed | 4 ips |
Product Line | RL |
Print Technology | Direct Thermal |
Power Source | Rechargeable Battery, AC Adapter |
Print Width | 4 inches (approx. 104 mm) |
Label Compatibility | Linerless Label Media |
Durability | Ruggedized design with drop and vibration resistance |
Barcode Support | Honeywell Barcode Standards |
Print Speed | Up to 4 inches per second |
Resolution | 203 dpi (8 dots/mm) |
Dimensions | Approx. 6.9 x 3.7 x 2.7 inches |
Weight | About 1.5 lbs (680 grams) |
Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
Storage Temperature | -40°F to 140°F (-40°C to 60°C) |
Images
Key Advantages
The RL4 802.11 Linerless printer boasts wireless 802.11 connectivity for flexible mobile printing on the go. Its rugged design enhances durability, making it resistant to drops, shocks, and vibrations in industrial environments. The linerless label capability reduces waste and lowers operating costs by eliminating release liners. USB and AC adapter support facilitate easy charging and data connectivity options. The printer offers fast and reliable direct thermal printing with sharp barcode clarity. Integration with Honeywell barcode technology ensures broad compatibility, streamlining data capture processes across many applications.
Limitations
Being a direct thermal printer, the RL4 is prone to label fading when exposed to heat or sunlight over extended periods. Wireless connectivity may be affected in areas with poor network coverage, limiting deployment flexibility. The linerless labels require specific media handling which may not be available from all suppliers, potentially leading to sourcing issues. Battery life constraints may require frequent charging during intensive usage periods. The relatively small print width restricts usage to narrow label formats, unsuitable for larger printing needs. Lastly, the rugged features increase the device weight compared to non-rugged mobiles, possibly affecting portability.
FAQ
What type of printing technology does the RL4 802.11 linerless printer use?
It uses direct thermal printing technology, which does not require ink or toner and prints by selectively heating thermal paper.
Is the RL4 printer suitable for outdoor use?
Yes, its rugged design allows it to operate in harsh environments, though direct thermal labels can fade with prolonged sunlight exposure.
What connectivity options are available with the RL4 printer?
The printer supports 802.11 wireless connectivity, USB interface, and power through an AC adapter.
Can the RL4 print on linerless labels, and what is the benefit?
Yes, it supports linerless labels which reduce waste and lower label cost by eliminating backing liners.
Does the RL4 support all barcode symbologies?
It supports a wide range of Honeywell barcode symbologies, making it compatible with most common application standards.
What are the power options for this printer?
Power options include a rechargeable battery and an AC adapter for continuous use and charging.
Is the RL4 still available on the market?
As of now, the RL4 is not discontinued and remains available for purchase.
