Olympus E-5
| Brand | Olympus 2010 |
| Model | E-5 |
| Released Year | 2010 |
| Type | DSLR Cameras |
| Series | Olympus E-System |
| Status | Discontinued |
Overview
The Olympus E-5 is a professional DSLR camera released in 2010, featuring a 12.3 megapixel Four Thirds sensor designed for high image quality and detail capture. It incorporates the advanced Olympus 5-Axis Image Stabilization system that significantly reduces camera shake during handheld shooting. The camera body is constructed with durable magnesium alloy and comprehensive weather sealing for reliable performance in diverse environmental conditions. It uses the Zuiko Digital ED lenses, offering excellent optical performance across a wide focal range. The E-5 supports high-speed continuous shooting up to 5 frames per second with full autofocus and exposure tracking. Additionally, it includes a high-resolution electronic viewfinder and a 3-inch LCD screen for convenient image review and menu navigation.
The camera's autofocus system is a 11-point cross-type sensor array, providing accurate and fast focusing even in challenging lighting. The E-5 integrates live view mode with multiple focusing options, including face detection. For storage, it supports CF and SD memory cards providing versatile recording options. Image processing is handled by the TruePic III+ engine, which enhances color rendition and noise reduction. The camera supports full manual control and offers RAW image file format for professional post-processing.
Specifications
| MPN | 262865 |
| UPC | 0050332176348 |
| Model | E-5 |
| Type | Digital SLR |
| Depth | 2.9in |
| Width | 5.6in |
| Item Weight | 28.2 Oz. |
| Height | 4.6in |
| Waterproof | Yes |
| Screen Details | LCD Display-Tft Active Matrix-3"-Color |
| Exposure Compensation | ±5 Ev Range, in 1, 1/2 or 1/3 Ev Steps |
| Light Sensitivity | Iso Auto (200-6400), Iso 100-6400 |
| Sensor Type | Mos, High Speed Live Mos |
| Max Shutter Speed | 1/8000 Sec |
| Exposure Range | Ev 1-20 (Iso 100) |
| Max Video Resolution | 1280x720 |
| Face Detection | Yes |
| Special Effects | Black & White Green Filter, Pop Art, I-Enhance, Diorama, Natural, Pin Hole, Soft Focus, Sepia, Black & White Red Filter, Monotone, Light Tone, Blue, Portrait, Pale & Light Colour, Black & White Yellow Filter, Grainy Film, Vivid, Gentle Sepia, Black & White Orange Filter, Purple, Cross Process, Green, Dramatic Tone, Custom Effect, Muted |
| Camera Flash Features | Af Illuminator, Fill-In Flash, Slow Sync, Flash +/- Compensation, Flash Exposure Bracketing, Manual, Red-Eye Reduction Flash, Wireless Off-Camera Control, Auto Flash |
| White Balance | Auto, Halogen (Preset), Flash (Preset), Cloudy (Preset), Shade (Preset), Fluorescent (Preset), Daylight / Sunny (Preset) |
| Battery Form Factor | Manufacturer Specific |
| Focus Adjustment | Autofocus & Manual Focus |
| Expansion Slot | 1X CompactFlash Card-Type I, 1X SD Memory Card |
| Sensor Size | 13.0x17.3mm |
| Display Size | 3in |
| Still Image Format | Dpof, Raw Image, Dcf, Raw + JPEG, Raw, JPEG |
| Exposure Modes | Aperture-Priority, Bulb, Shutter-Priority, Manual, Automatic |
| Microphone Operation Mode | Mono |
| Display Rotation | Rotating |
| Digital Video Format | Avi, HD (High Definition), Mjpeg, Motion JPEG |
| Screen Size | 3.0"in |
| Light Sensitivity Max | 6400 |
| Max Operating Temperature | 40°C |
| Optical Viewfinder Type | Fixed Eye-Level Pentaprism |
| Red Eye Reduction | Yes |
| Min Shutter Speed | 60 Sec |
| Display Type | LCD |
| Sensor Resolution | 12.3MP |
| Exposure Metering | Multi-Segment, Spot, Center-Weighted |
| Additional Features | Photo Preview |
| Flash Type | Pop-Up Flash |
| Min Operating Temperature | 0°C |
| Viewfinder-Field Coverage | 100% |
| Exterior Color | Black |
| Microphone Type | Microphone-Built-In-Mono |
| Connector Types | 1X Microphone, 1X Hdmi Output, 1X Composite Video/Audio Output, 1X DC Power Input, 1X USB |
| Flash Modes | Red-Eye Reduction, Slow Synchro, Fill-In Mode, Off Mode, Auto Mode, Rear Curtain Sync |
| Dioptric Correction Range | -3 to +1 |
| Viewfinder Magnification | 1.15x |
| Camera Type | Digital SLR |
| Auto Focus Type | TTL Contrast and Phase Detection |
| Viewfinder Type | Optical, Optical (Through-The-Lens) |
| Lens for Sd | Body only |
| Supported Flash Memory | CompactFlash Card Type I, SDHC Memory Card, SDXC Memory Card, SD Memory Card, CompactFlash, SDHC Card, SD Card, SDXC Card |
| Continuous Shooting Speed | 5fps |

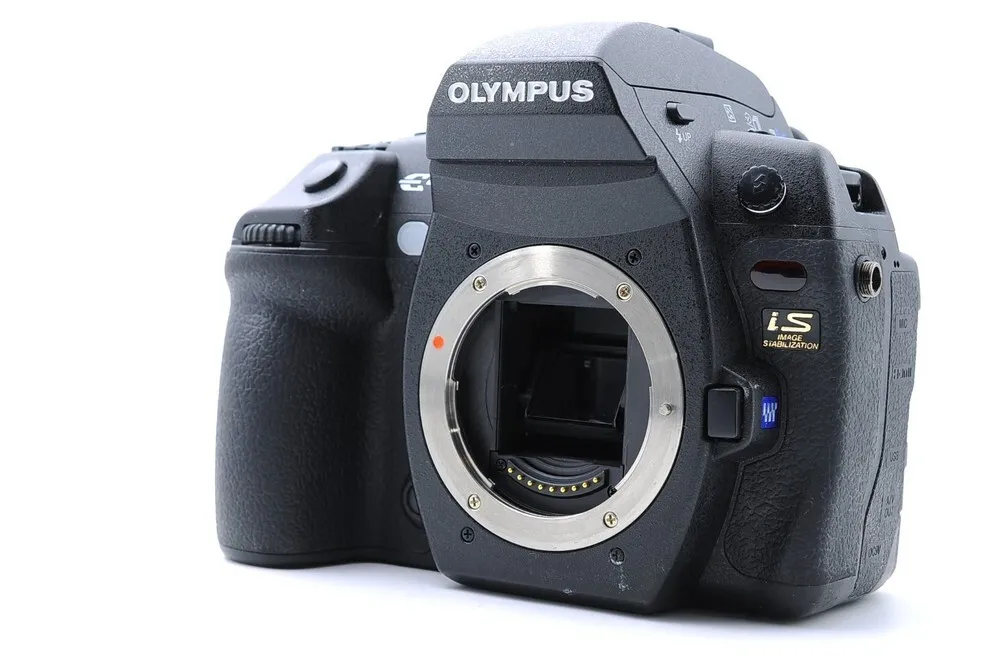

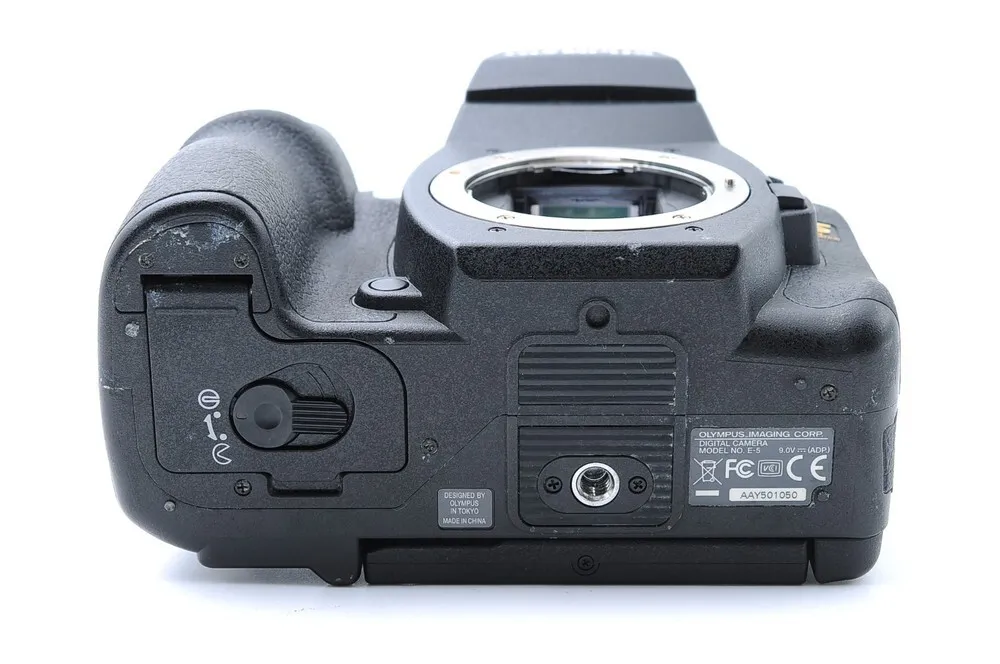

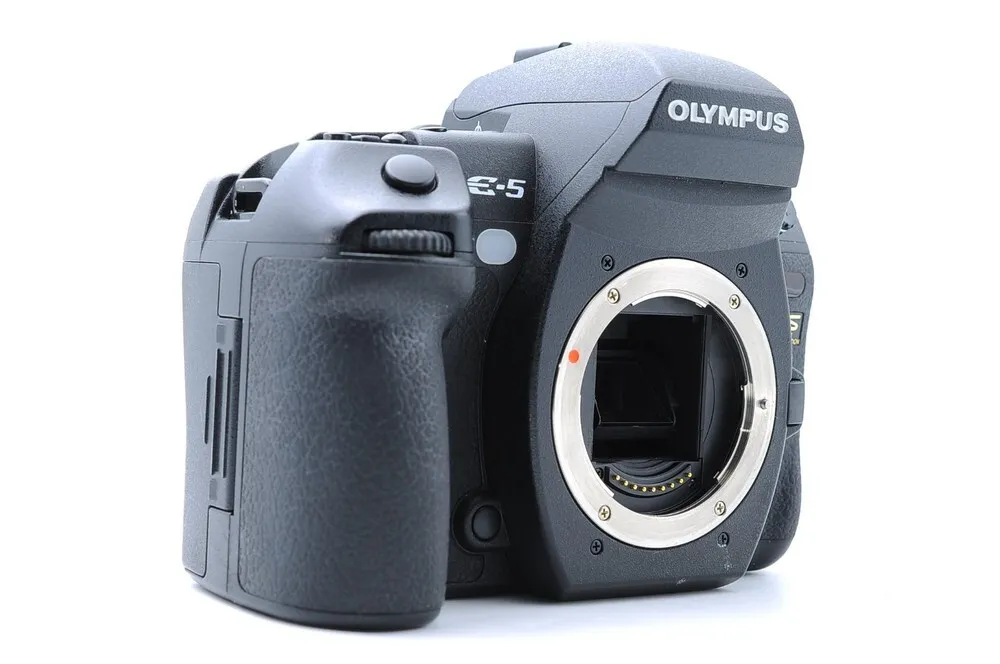

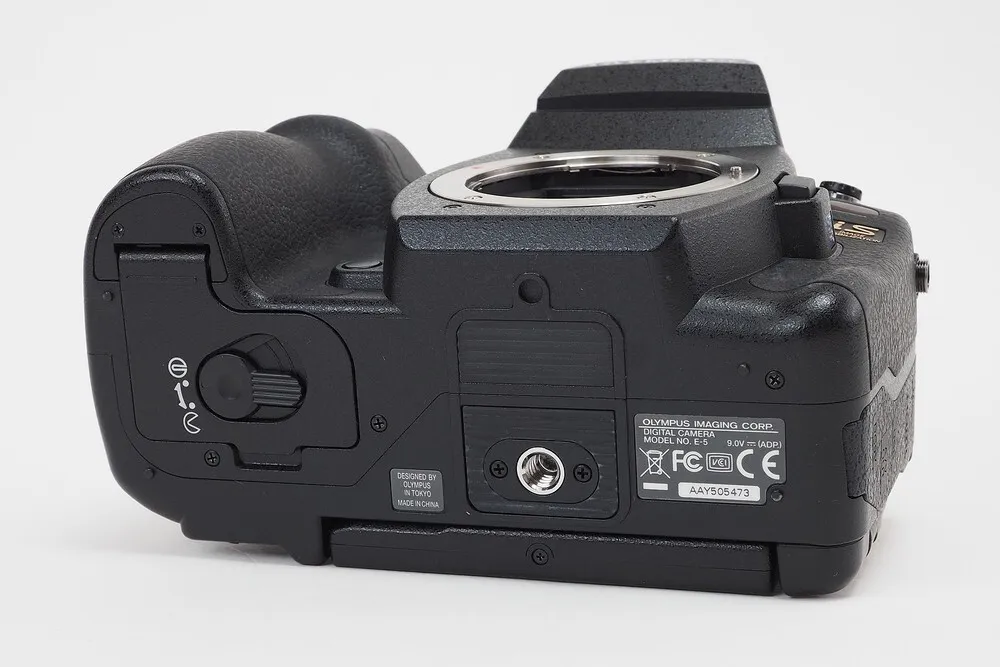

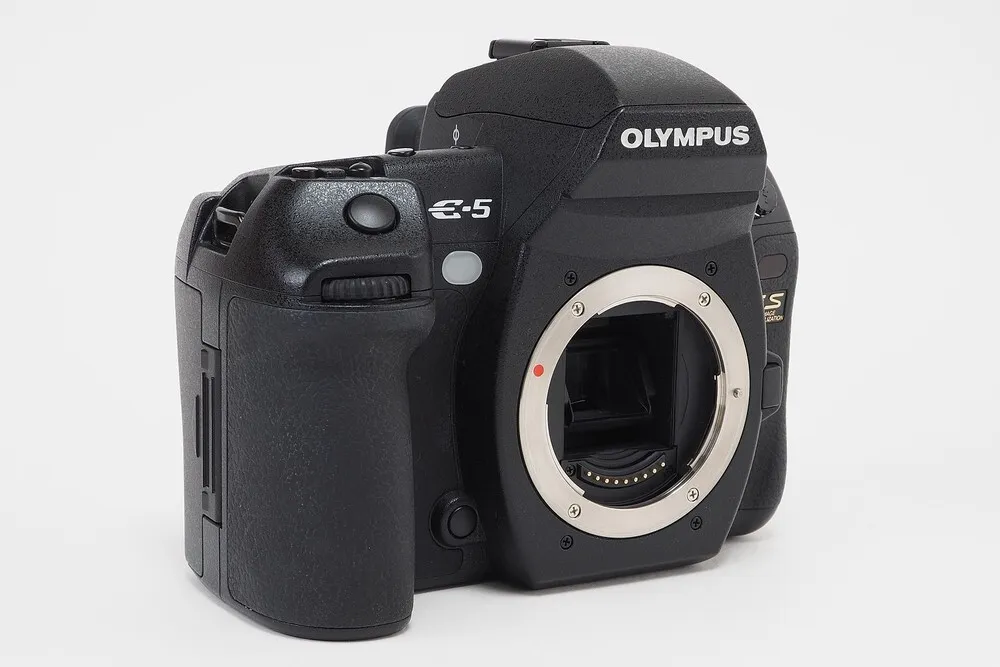

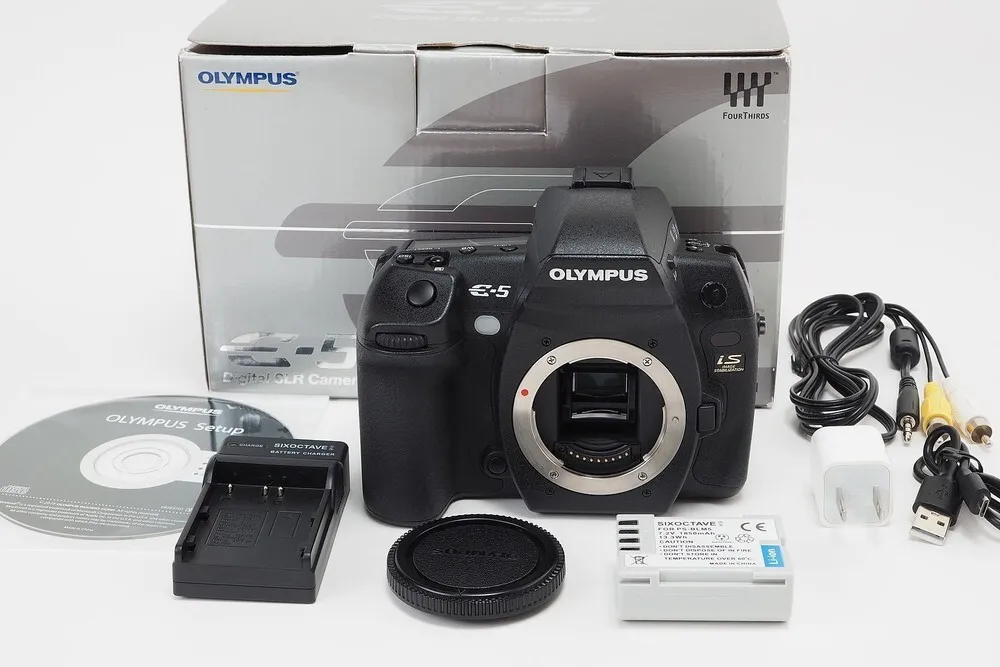

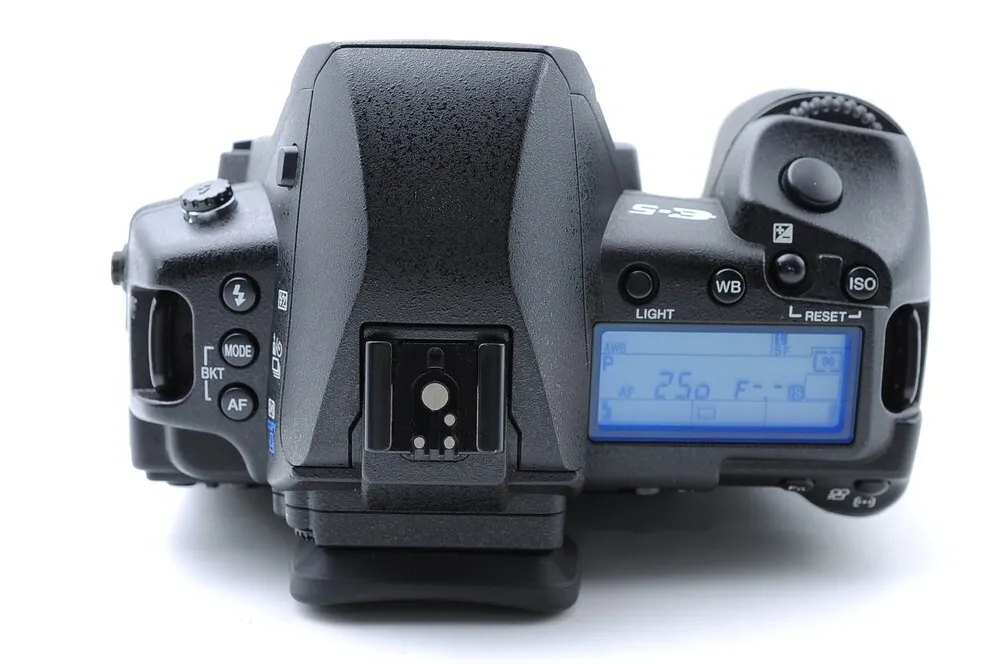

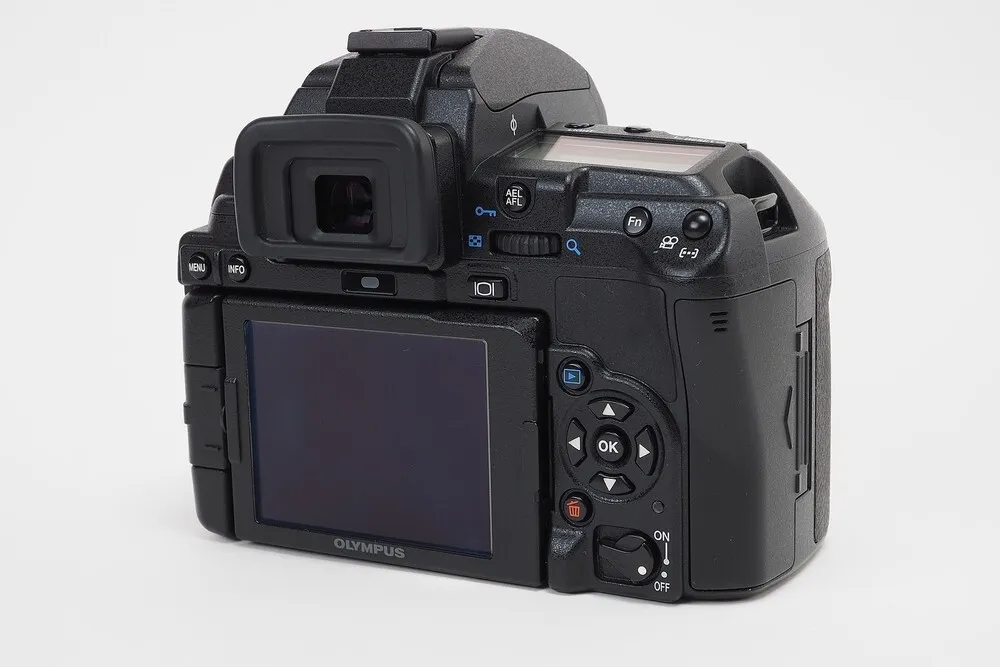

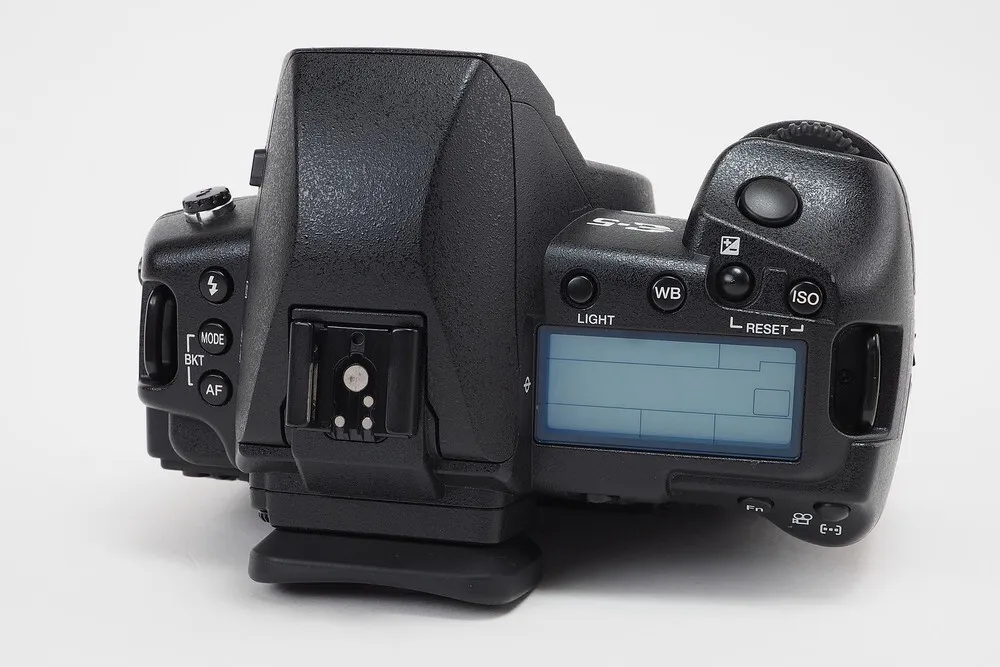

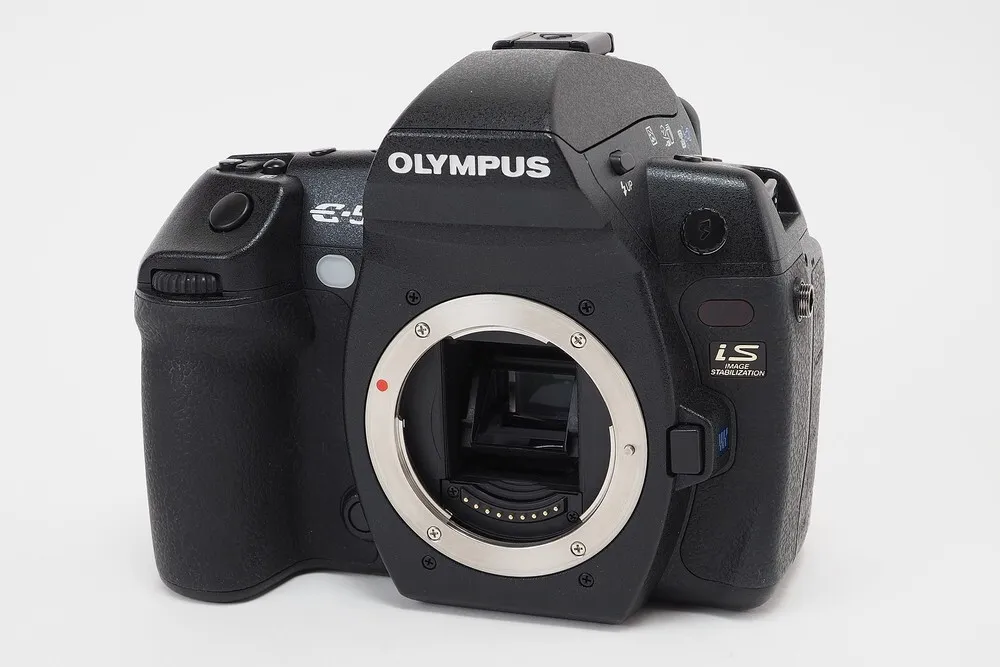

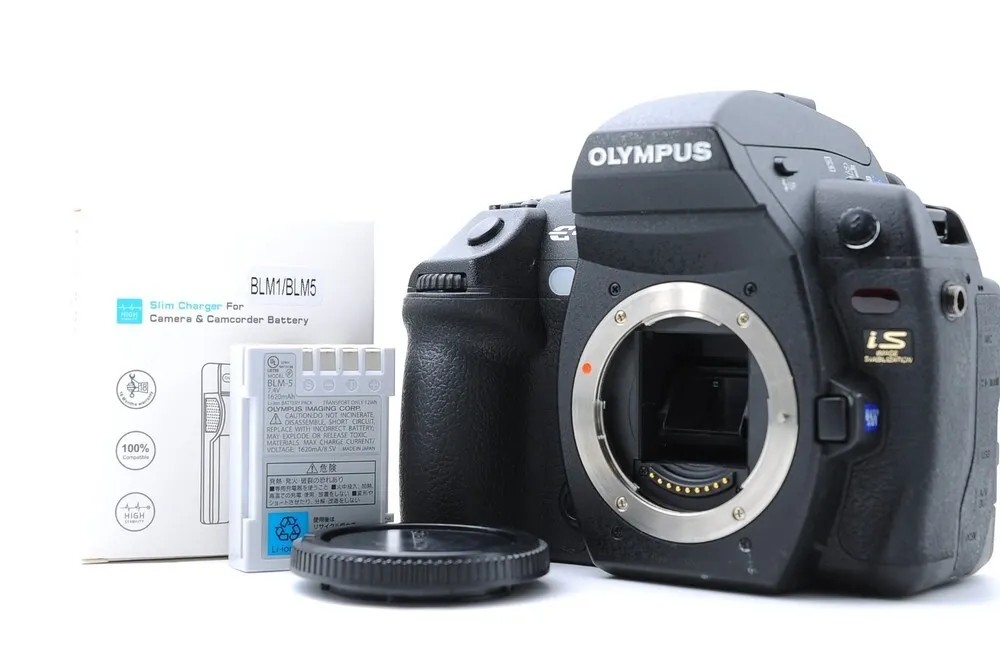

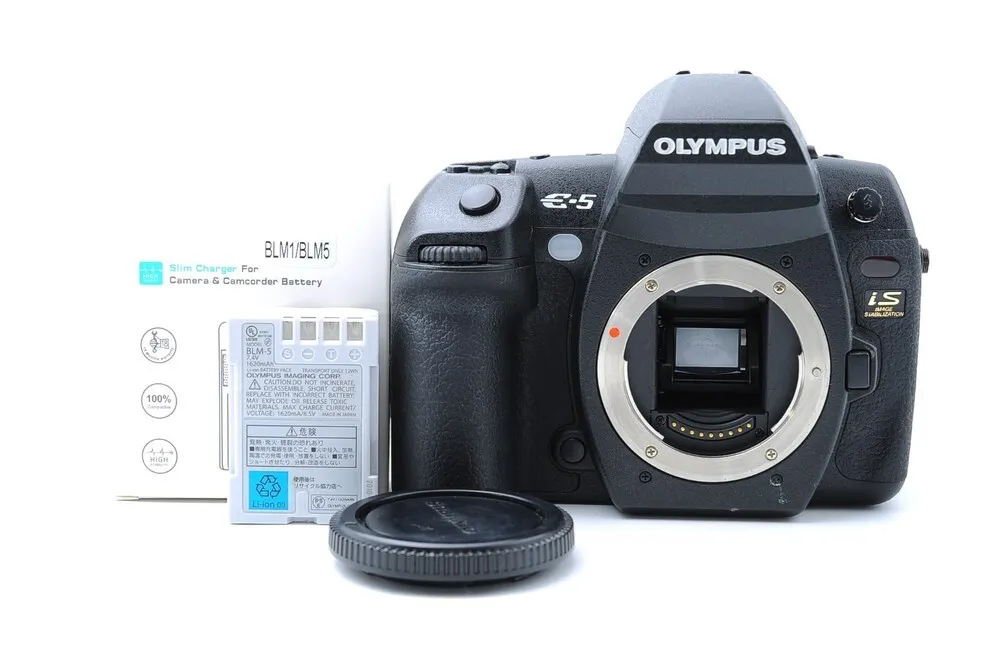

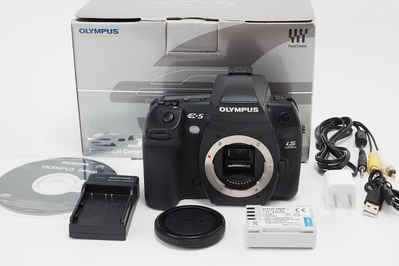

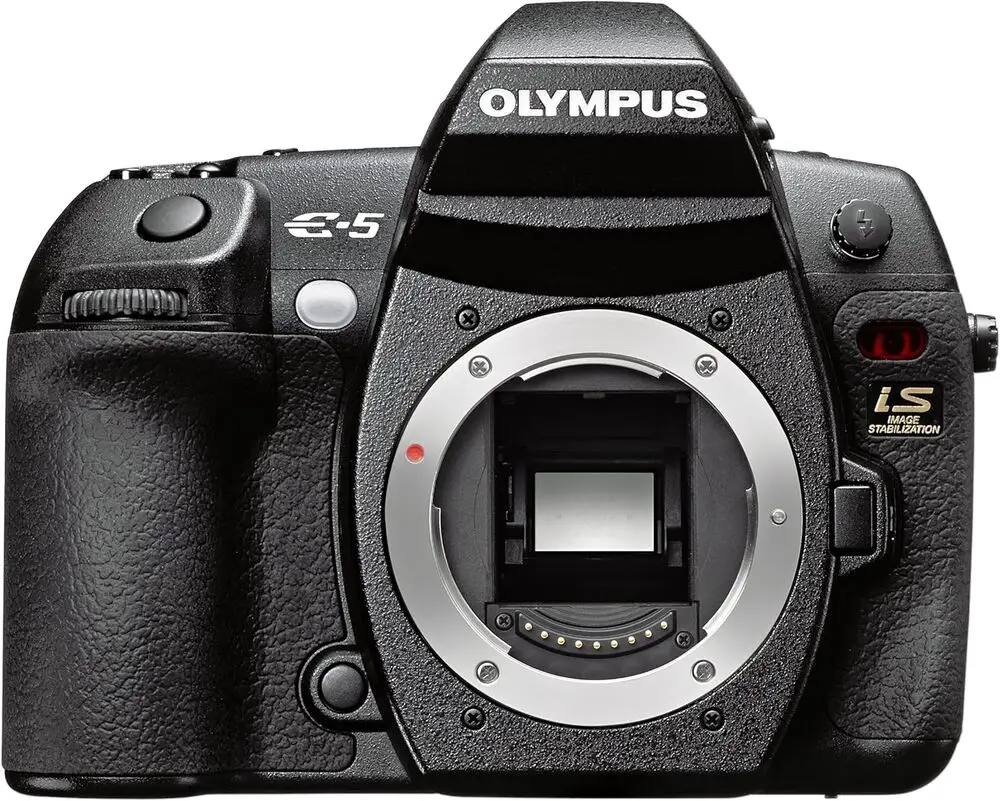

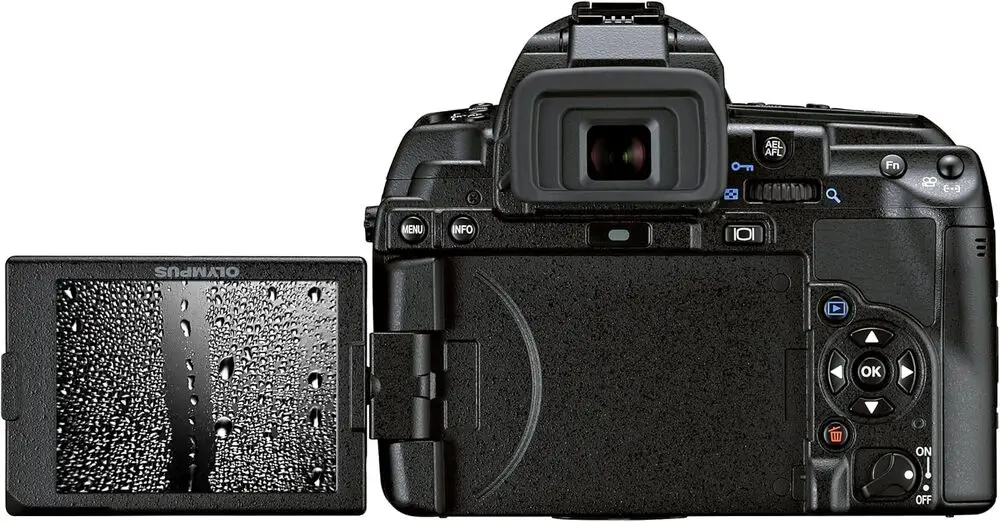

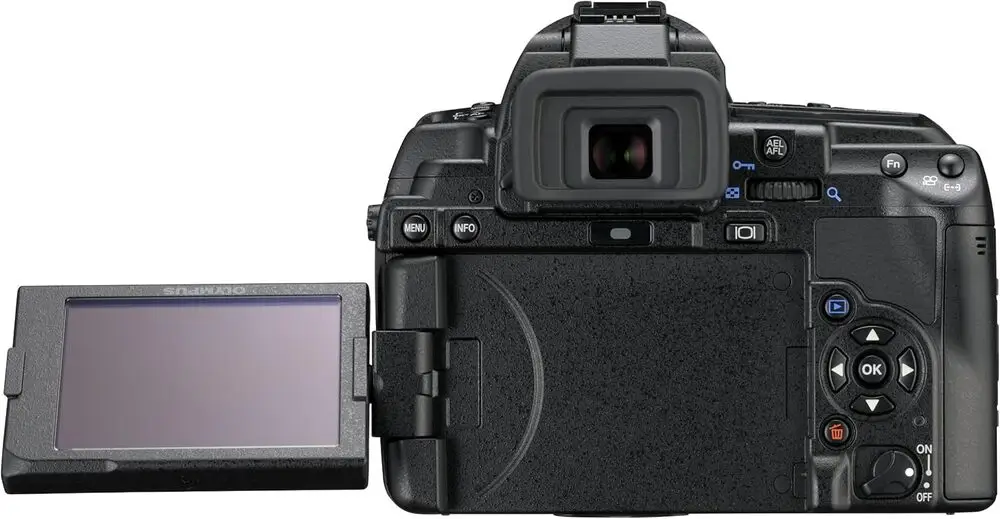

Images
Key Advantages
The Olympus E-5 boasts robust build quality with weather sealing and magnesium alloy construction, ideal for outdoor and rugged use. Its 5-axis image stabilization provides excellent shake compensation unmatched by many DSLRs of its time. The 11-point cross-type autofocus delivers precise focus in diverse conditions, enhancing usability. Dual-card slots allow flexible and reliable image storage options. The TruePic III+ processor ensures superior image rendering and noise control for cleaner photos. The camera supports versatile exposure modes and manual settings for creative control by photographers.
Limitations
The Olympus E-5 uses a 12.3 MP Four Thirds sensor which is smaller compared to APS-C and full-frame sensors, limiting low-light performance and dynamic range. Its autofocus system, while advanced for its time, may be slower and less accurate than modern hybrid systems. The continuous shooting speed of 5 fps is modest compared to competitors aimed at action photography. The camera is relatively heavy and bulky, potentially reducing portability. It lacks built-in Wi-Fi connectivity which limits instant sharing and remote control. Battery life is average and may require carrying additional batteries for prolonged use.
FAQ
What type of sensor does the Olympus E-5 use?
The Olympus E-5 uses a 12.3 megapixel Four Thirds digital sensor designed to balance image quality and size.
Is the Olympus E-5 weather sealed?
Yes, the Olympus E-5 features extensive weather sealing and a magnesium alloy body for durability in adverse conditions.
What is the continuous shooting speed of the Olympus E-5?
The Olympus E-5 can shoot continuously at up to 5 frames per second with autofocus and exposure tracking enabled.
Does the Olympus E-5 support live view shooting?
Yes, the camera offers live view mode with multiple autofocus options including face detection.
What lenses are compatible with the Olympus E-5?
The Olympus E-5 is compatible with Zuiko Digital ED lenses designed for the Four Thirds system.
Can the Olympus E-5 shoot in RAW format?
Yes, the Olympus E-5 supports RAW image capture for greater flexibility in post-processing.
Is the Olympus E-5 still in production?
No, the Olympus E-5 was discontinued, with production ceasing several years after its 2010 release.
