KODAK CX4230
| Brand | KODAK 2006 |
| Model | 1339514, 8843716 |
| Released Year | 2006 |
| Type | Digital Cameras |
| Series | Easyshare |
| Optical Zoom | 3x |
| Status | Discontinued |
Quick view
Overview
The KODAK Easyshare CX4230 is a compact digital camera featuring a 4.0-megapixel CCD sensor designed to capture high-quality images suitable for everyday photography. It includes a 3x optical zoom lens to offer versatile shooting options ranging from wide-angle to telephoto perspectives. The camera supports full-color LCD viewing for image preview and menu navigation, enhancing user interaction. It utilizes SD/MMC memory cards for external storage alongside 16MB internal memory, allowing flexibility in storing photos. Powered by four AA batteries, the device provides portable usage without the need for proprietary chargers. Interface connectivity includes USB 1.1, enabling simple image transfer to computers and supporting easy file management.
The CX4230 supports various image capture modes such as auto, night, and sport, optimizing shutter speed and settings for different scenes. Additionally, it can record short video clips with audio, extending its functionality beyond still photos. Its compact body integrates ergonomically placed controls to facilitate handheld shooting, while the optical viewfinder complements the LCD screen for framing shots in bright conditions. Overall, the technical design balances user-friendly operation and fundamental digital camera features typical of mid-2000s entry-level models.
Specifications
| MPN | 1339514, 8843716 |
| Model | Easyshare CX4230 |
| Digital Zoom | 4x |
| Battery Type | AA, CR-V3 |
| Features | USB, Not Interchangeable Lenses, Direct Print, Date/Time Stamp, With Tripod Mount, Orientation Detection, DPOF Support, Auto Power Save |
| Series | Kodak EasyShare |
| Optical Zoom | 3x |
| Depth | 2in |
| Width | 5in |
| Item Weight | 7.8 Oz. |
| Height | 3in |
| Screen Details | LCD Display-Tft Active Matrix-1.6"-Color |
| Exposure Compensation | ±2 Ev Range, in 1/2 Ev Steps |
| Light Sensitivity | Iso 200, Iso 100 |
| Sensor Type | CCD |
| Max Shutter Speed | 1/1700 Sec |
| Macro Focus Range | 10-60cm |
| Focal Length Equivalent to 35mm Camera | 36-108mm |
| Camera Flash Features | Fill-In Flash, Flash Off, Red-Eye Reduction Flash, Auto Flash |
| White Balance | Automatic |
| Focus Adjustment | Automatic |
| Battery Form Factor | Standard Form Factor |
| Operating System Supported | Microsoft Windows 98SE, Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows ME, Microsoft Windows 98, Apple Mac OS 9, Apple Mac OS 8, Apple Mac Os X |
| Expansion Slot | 1X SD Memory Card |
| Display Size | 1.6in |
| Still Image Format | JPEG |
| Exposure Modes | Program, Automatic |
| Integrated Memory Size | 16MB |
| Display Rotation | Built-In |
| Screen Size | 1.6in |
| Light Sensitivity Max | 200 |
| Max Operating Temperature | 40°C |
| Type | Point & Shoot |
| Maximum Resolution | 2.0MP |
| Optical Viewfinder Type | Real-Image Zoom |
| Red Eye Reduction | Yes |
| Min Shutter Speed | 1/8 Sec |
| Display Type | LCD |
| Sensor Resolution | 2.0MP |
| Exposure Metering | Evaluative, Matrix |
| Additional Features | Not Interchangeable Lenses, USB, Direct Print, Date/Time Stamp, With Tripod Mount, Dpof Support, Orientation Detection, Auto Power Save |
| Flash Type | Built-In Flash |
| Min Operating Temperature | 0°C |
| Effective Flash Range | 0.5m-3.5m |
| Exterior Color | Silver |
| Microphone Type | None |
| Connector Types | 1X Docking Station, 1X Composite Video Output, 1X DC Power Input, 1X USB |
| Shooting Programs | Landscape, Macro |
| Flash Modes | Red-Eye Reduction, Fill-In Mode, Off Mode, Auto Mode |
| Camera Type | Point & Shoot |
| Auto Focus Type | TTL Contrast Detection |
| Viewfinder Type | Optical, Optical (Through-The-Lens) |
| Supported Flash Memory | MultiMediaCard, SD Memory Card, Built-In, SD Card |
| Release Year | 2006 |
| Megapixels | 4.0 MP |
| Display | 1.5-inch color LCD |
| Viewfinder | Optical |
| Storage Media | 16MB internal, SD/MMC card support |
| Video Recording | Yes, with audio, low resolution |
| Power Source | 4 x AA batteries |
| Connectivity | USB 1.1 |
| Shooting Modes | Auto, Night, Sport, etc. |
| Image Resolution | Up to 2288 x 1712 pixels |
| Weight | Approx. 160 grams (without batteries) |
| Dimensions | Approx. 96 x 61 x 36 mm |

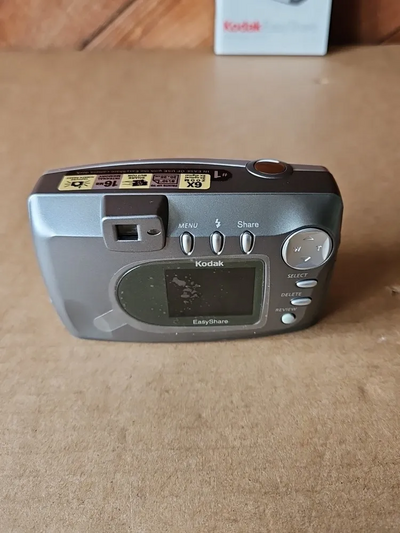

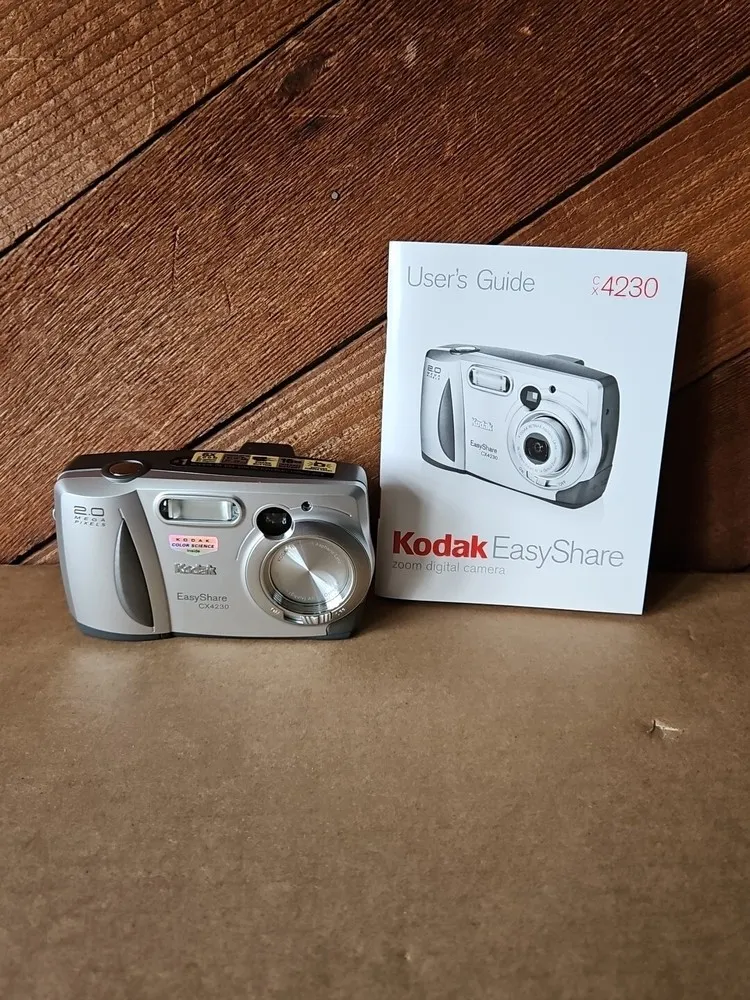

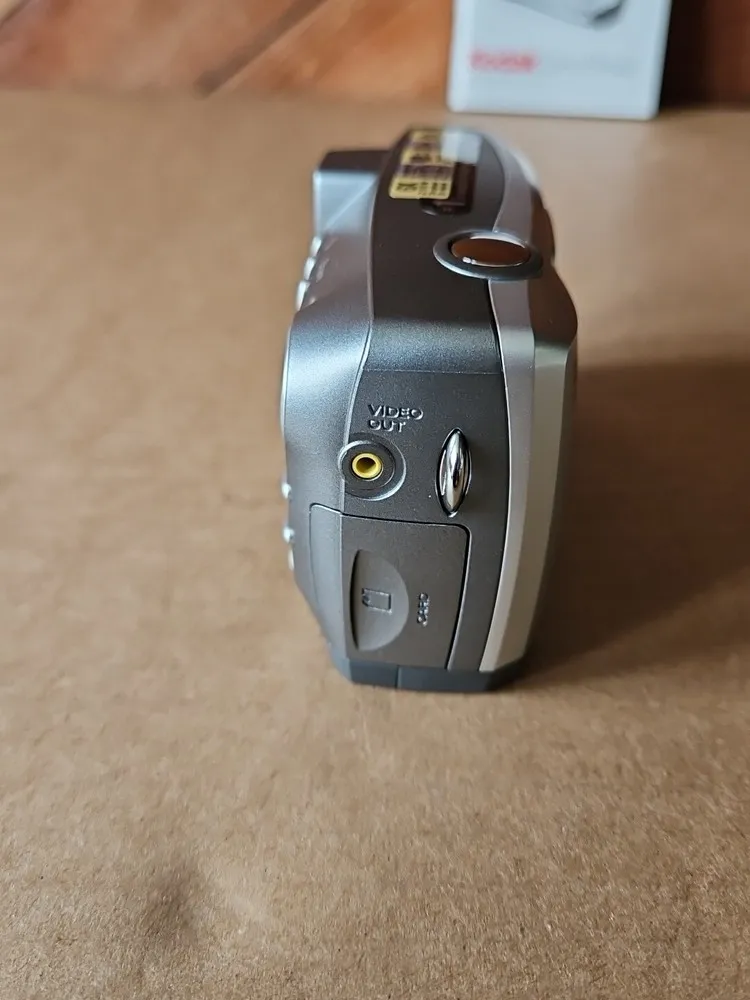

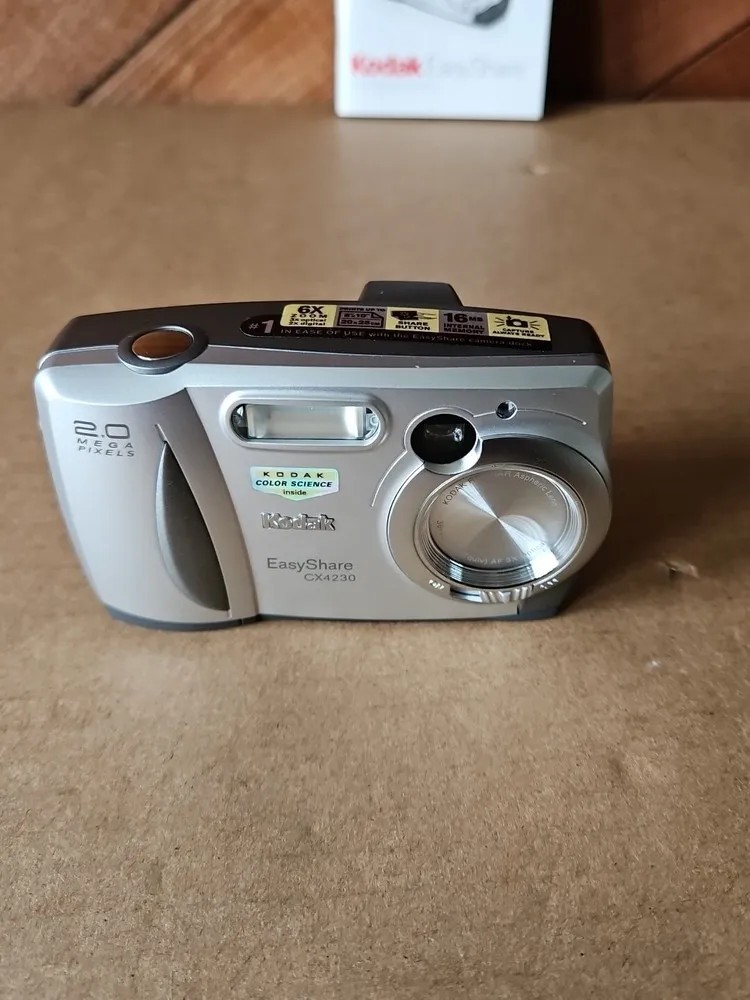

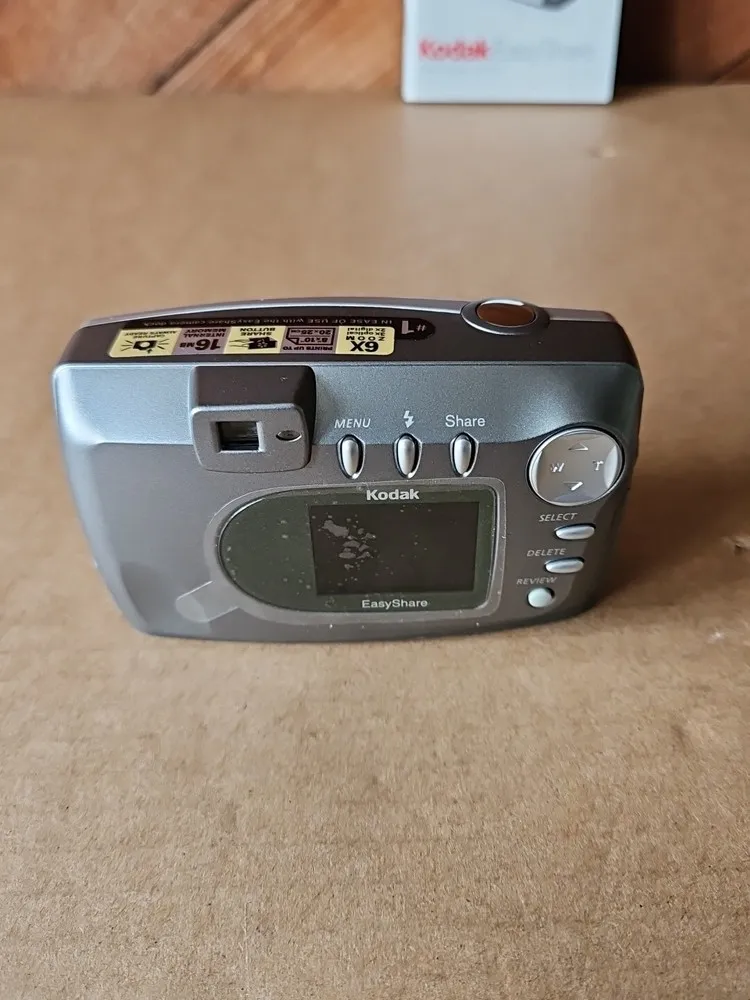

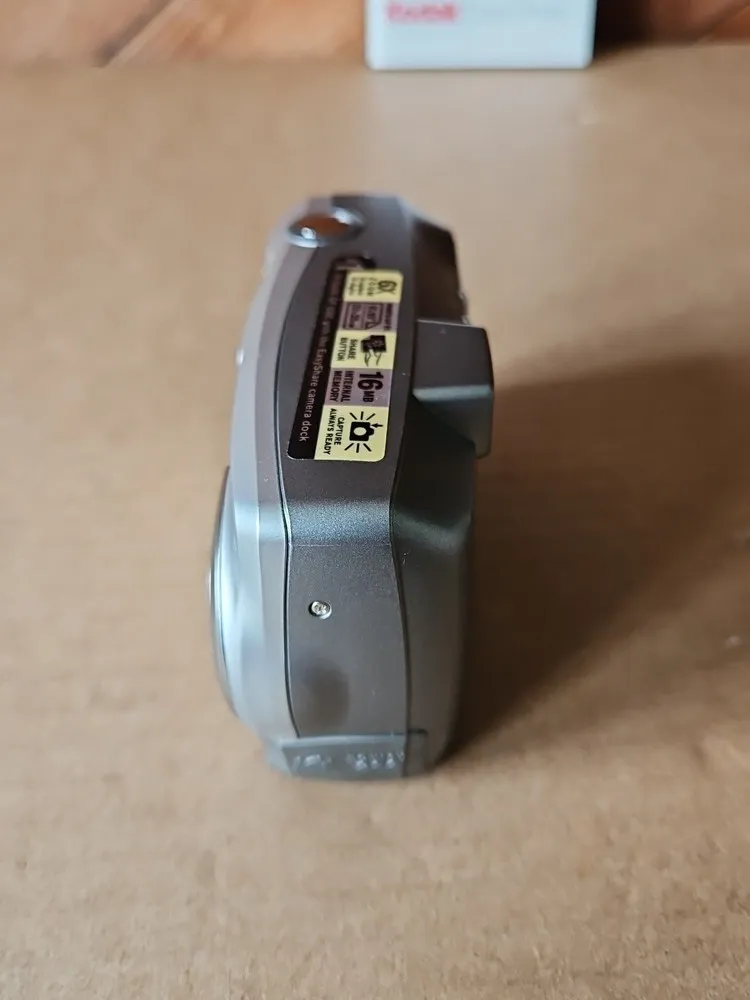

Images
Key Advantages
Affordable and easy to use: The KODAK Easyshare CX4230 was designed for beginner photographers, offering simple operation with automatic scene modes.
Decent image quality: The 4.0 MP CCD sensor provides acceptable resolution for prints up to 8x10 inches and casual sharing.
Optical zoom lens: The 3x optical zoom allows framing flexibility, superior to digital zoom-only cameras of its era.
Expandable memory: Support for SD/MMC cards lets users add more storage space beyond the built-in 16MB.
USB connectivity: Easy image transfer and charging compatibility foster quick computer integration.
Compact and lightweight: The camera’s portability makes it convenient for everyday snapshots and travel use.
Limitations
Modest megapixel count: At 4.0 MP, the resolution is limited compared to modern cameras, restricting large-size print quality.
Basic video capabilities: Video recording is limited to low resolution and short durations without advanced options.
Battery dependency: Uses four standard AA batteries, resulting in a heavier camera and potential need for frequent replacements.
Slow USB 1.1 transfer: Data transfer speeds are slower than current USB standards, prolonging image downloads.
No advanced manual controls: Lacks full manual exposure options, limiting creative photographic techniques.
LCD screen visibility issues: The small color LCD may be hard to see in bright outdoor light, impacting composition accuracy.
FAQ
What is the resolution of the KODAK Easyshare CX4230?
The camera features a 4.0 megapixel CCD sensor capable of producing images suitable for standard prints and casual photography.
What type of memory card does the CX4230 support?
It supports SD and MMC memory cards in addition to having an internal memory of 16MB.
Can the CX4230 record video?
Yes, it can record short video clips with audio, though video quality is limited compared to modern digital cameras.
What kind of batteries does the CX4230 use?
The camera operates on four AA batteries, providing the convenience of commonly available power sources.
Does this camera have manual exposure controls?
No, the CX4230 is primarily designed for automatic operation and does not offer full manual exposure settings.
Is the CX4230 still being manufactured?
No, the KODAK Easyshare CX4230 has been discontinued and is no longer in production.
How can I transfer photos from the CX4230 to my computer?
Photos can be transferred via the USB 1.1 interface, allowing connection to most computers for easy file download.
