GSPUSA DC96-01585C-JF

Quick information
Brand GSPUSA 2025
Model DC96-01585C-JF
Released Year 2025
Type Washers & Dryers
Color Multicolor
Item Weight 1 pounds
Status Active
Quick view
Full specs Images

Overview

The GSPUSA DC96-01585C-JF is an advanced electronic control board designed for washing machines and dryers. It functions as the main controller, managing the timing, motor operations, water levels, and cycle sequences. Built with robust PCB materials, it ensures reliable connectivity and signal integrity throughout appliance operation. This control board supports multiple sensor inputs, including temperature and moisture sensors, to optimize washing and drying efficiency. It integrates solid-state relays and connectors for seamless power distribution to various appliance components. Designed to replace OEM boards, it fits specific washer and dryer models for streamlined repairs.

Specifications

Brand Name GSPUSA
Model Info DC96-01585C-JF
Item Weight 1 pounds
Product Dimensions 6 x 4 x 4 inches
Item model number DC96-01585C-JF
Capacity 1 Centiliters
Part Number DC96-01585C-JF
Special Features Inbuilt Heater
Color Multicolor
Access Location Front Load
Material Type Plastic
Included Components Pump Drain Assembly
Date First Available June 11, 2025
Device Type Control Board for Washers & Dryers
Operating Voltage 120V - 240V AC
Control Type Electronic PCB
Sensor Compatibility Temperature, Moisture, Water Level Sensors
Material High-grade PCB with protective coating
Connector Type Standard appliance connector pins
Functions Managed Cycle timing, motor control, water levels, heating elements
Installation Plug and play replacement with professional installation recommended

Key Advantages

The DC96-01585C-JF control board offers precise cycle management improving appliance performance. It ensures compatibility with multiple sensor types enhancing washing and drying accuracy. Its durable PCB construction increases the lifespan of the appliance control system. The board is engineered for easy installation, reducing downtime and repair costs. It supports firmware upgradeability facilitating enhanced functions over time. This component provides stable and consistent operation while preventing common electronic failures.

Limitations

The DC96-01585C-JF control board is model-specific and may not fit all washer and dryer units. It requires professional installation to avoid damage due to static electricity and incorrect wiring. Firmware updates may not be user-accessible, limiting customization options. The board's reliance on sensors means failures in sensor inputs can affect overall performance. It is sensitive to voltage fluctuations which may cause malfunctions without proper surge protection. Replacement parts can be costly compared to simpler mechanical controls.

FAQ

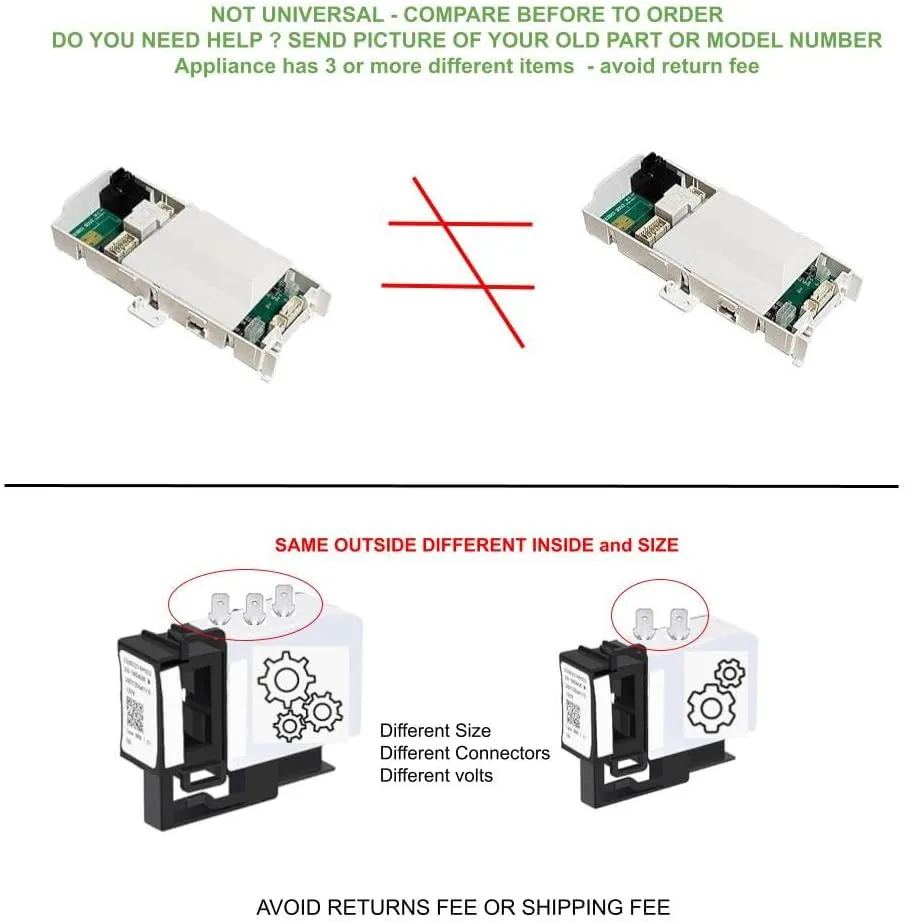

This control board is designed primarily for certain washer and dryer models from compatible brands that use similar control systems. Confirm compatibility by checking the appliance's model number and OEM part listings.

Installation is possible by technically skilled individuals but it is recommended that a professional technician performs the replacement to ensure safety and avoid damage.

Warranty terms vary depending on the seller or distributor but typically the control board includes a limited warranty covering manufacturing defects.

Yes, detailed service manuals, wiring diagrams, and installation guides are usually available from the manufacturer or authorized distributors.

Troubleshooting generally involves checking sensor connections, testing electrical continuity, verifying power supply, and inspecting for visible damages on the PCB.

Firmware upgrade capability depends on the specific unit version and interface support; users should consult the technical documentation or support for upgrade procedures.

Common signs include appliance cycles not starting or stopping prematurely, unresponsive control panels, error codes, or unusual noises during operation.
