Samsung UH55F-E
Brand | Samsung 2014 |
Model | UH55F-E |
Released Year | 2014 |
Type | TV |
Screen Size | 55 in |
Resolution | 3840 x 2160 (UHD) |
Refresh Rate | 60 Hz |
Display Technology | LED |
Status | Discontinued |
Quick view
Overview
The Samsung UH55F-E is a 55-inch UHD (Ultra High Definition) professional signage display designed primarily for commercial and digital signage applications. It boasts a resolution of 3840 x 2160 pixels ensuring crystal clear visuals with four times the detail of Full HD displays. The panel technology is LED-backlit LCD, providing consistent brightness and energy efficiency. The display supports various connectivity options including DisplayPort and HDMI inputs for versatile media playback. Built with a slim bezel design and robust metal chassis, it is engineered for 24/7 operation in demanding environments. In addition, the UH55F-E includes integrated color calibration tools to maintain image accuracy over time.
Its smart signage capabilities allow for convenient content management with embedded scheduling features and compatibility with external media players. The device also supports Daisy Chain capabilities via DisplayPort to allow multi-display setups with synchronized video output. This commercial display is targeted for use in retail, corporate, broadcast, and public information settings, providing high visual impact and reliability.
Specifications
Year Manufactured | 1920 x 1080 |
Features | Wall Mountable, Flat Screen |
UPC | 0887276155074 |
Display Technology | LED |
Screen Size | 55 in |
Refresh Rate | 60 Hz |
Maximum Resolution | 1080p (FHD) |
Color | Black |
Model | UH55F-E |
MPN | UH55F-E |
Audio/Video Inputs | VGA, USB, DisplayPort, DVI, HDMI |
Weight | 17.1 kg |
Display Size | 55 inches |
Resolution | 3840 x 2160 (UHD) |
Panel Type | LED-backlit LCD |
Brightness | 350 cd/m² |
Contrast Ratio | 4500:1 |
Viewing Angle | 178°/178° (H/V) |
Response Time | 8 ms |
Color Support | 16.7 Million Colors |
Input Ports | 2 x HDMI, 1 x DisplayPort |
Audio | Built-in 10W x 2 Speakers |
Operating Hours | 24/7 |
Power Consumption | 175W (Typ) |
Dimensions (WxHxD) | 1231.2 x 711.6 x 47.9 mm |
Bezel Width | 6.9 mm |
Daisy Chain | Yes, via DisplayPort |
OS Support | Compatible with external media players, no built-in OS |
Color Calibration | Integrated color calibration |
Mounting | VESA 400 x 400 mm |
Images
Key Advantages
The UH55F-E delivers ultra-high definition resolution providing exceptional image clarity and detail, ideal for professional signage needs. Its 24/7 grade design ensures continuous operation without compromising reliability or performance. The display's slim and durable metal bezel design offers a sleek appearance suited for modern commercial installations. Multiple connectivity options including HDMI and DisplayPort allow flexible integration with a broad range of media devices. The built-in color calibration capability helps maintain accurate colors, important for signage brand consistency. Furthermore, the display supports daisy-chaining which simplifies multi-display configurations and reduces cabling complexity.
Limitations
The UH55F-E, despite its advanced features, lacks built-in media storage and requires an external player for content playback which may add to system complexity. It does not support touchscreen functionality, limiting interactive applications. The display lacks wireless connectivity options, which could reduce deployment flexibility in certain environments. Its brightness levels, while sufficient for indoor commercial use, may not be optimal for very bright or direct sunlight settings. The product does not feature integrated smart TV functionality, focusing solely on signage capabilities. Additionally, the absence of a built-in tuner limits its use as a conventional consumer TV.
FAQ
What is the resolution of the Samsung UH55F-E?
The UH55F-E features a 3840 x 2160 Ultra High Definition (UHD) resolution.
Does the UH55F-E support 24/7 operation?
Yes, the display is designed for 24/7 continuous commercial use.
What input connections does the Samsung UH55F-E have?
It supports HDMI and DisplayPort inputs for multimedia connectivity.

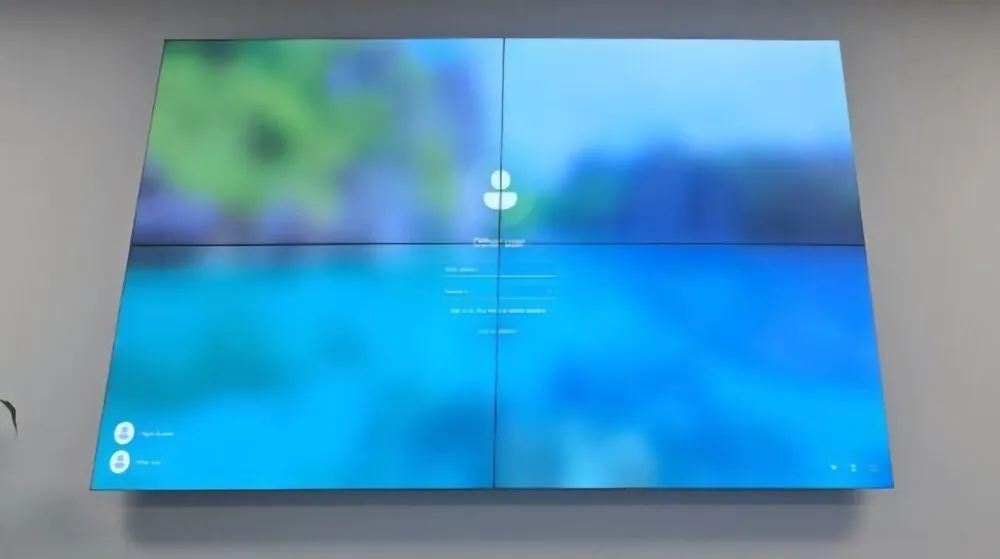

Can multiple UH55F-E displays be connected together?
Yes, the display supports DisplayPort daisy chaining to allow multi-display configurations.
Does the display include built-in speakers?
Yes, it includes basic built-in speakers suitable for signage audio needs.
Is the UH55F-E suitable for outdoor use?
No, it is designed primarily for indoor commercial environments and does not have weatherproofing.
Does the Samsung UH55F-E have touchscreen capabilities?
No, this model does not include a touchscreen interface.
