Samsung QB75R image

Samsung QB75R

Quick information
Brand Samsung 2018
Model QB75R
Released Year 2018
Type TV
Screen Size 75 in
Resolution 3840 x 2160 (4K UHD)
Refresh Rate 120 Hz
Display Technology LED
Status Active
Quick view

Overview

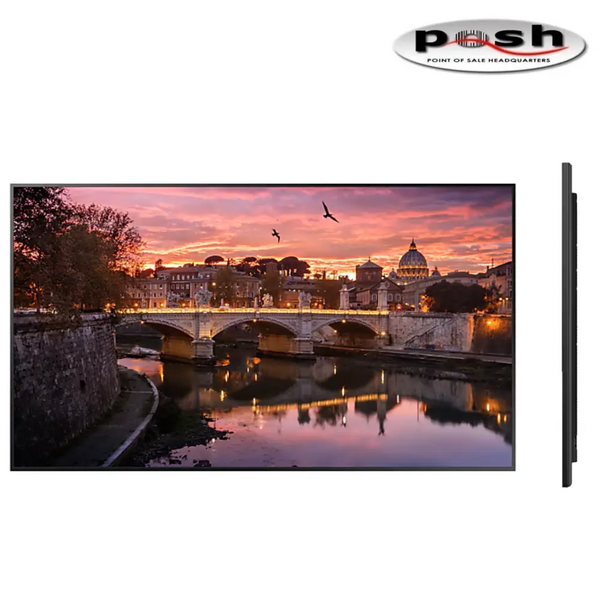

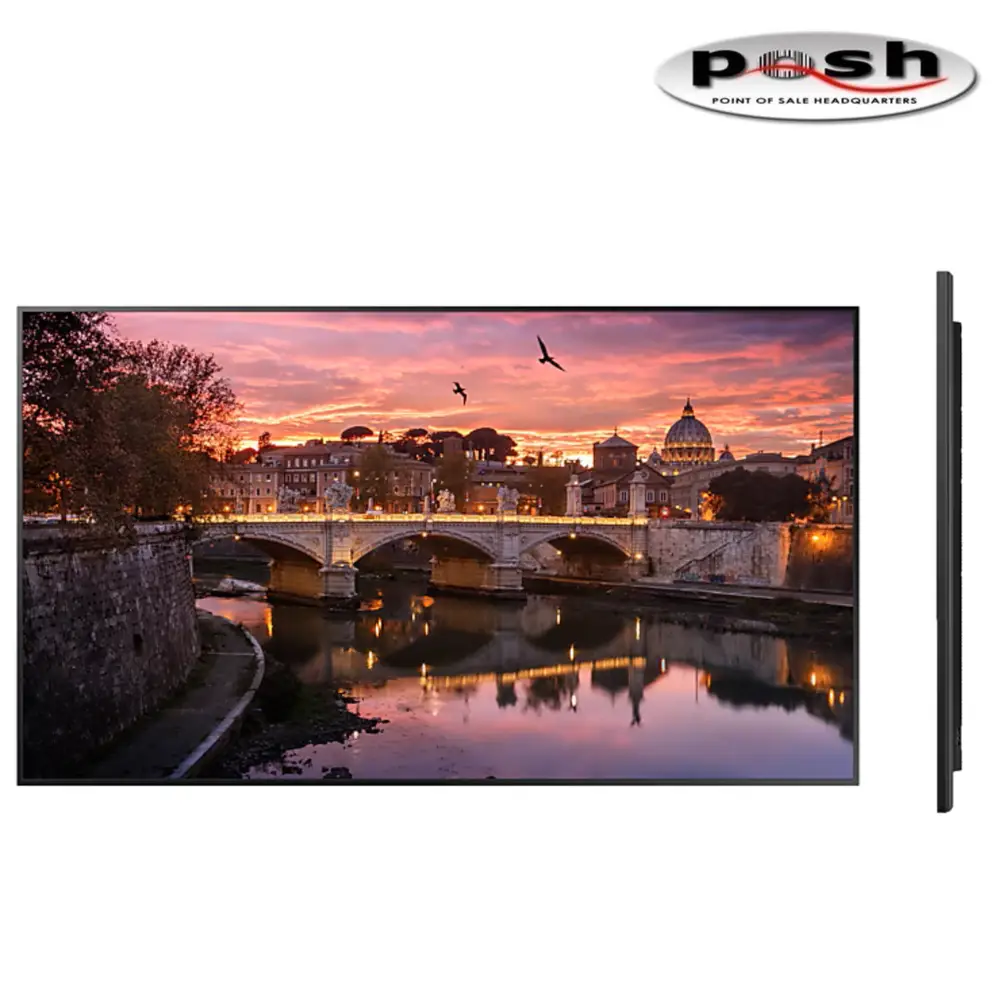

The Samsung QB75R is a 75-inch UHD commercial display designed primarily for professional and business environments. It features a 4K (3840 x 2160) resolution panel utilizing VA technology which provides high contrast ratios and wide viewing angles ideal for signage applications. The display operates with a brightness of approximately 500 nits ensuring visibility even in well-lit environments. It supports HDR content and includes Tizen OS for smart functionality and easy content management. Connectivity options include HDMI, DisplayPort, USB ports, and RJ45 for network integration. The display supports Daisy Chain setup for extended video walls and features integrated cooling systems tailored for prolonged usage.

The panel's 120Hz refresh rate enhances motion handling for dynamic content, while the Anti-Glare coating reduces reflections. The device is engineered to operate 16/7 hours per day making it suitable for retail, transportation, and hospitality sectors. Samsung integrates MagicInfo content management software support allowing remote control and scheduling capabilities.

Specifications

Display Technology LED
Screen Size 75 in
Maximum Resolution 2160p (4K)
Refresh Rate 120 Hz
Color Black
Model QB75R
Features Wall Mountable, Glossy Screen, Wi-Fi / Bluetooth, Pivot Adjustment, Built-In Speakers

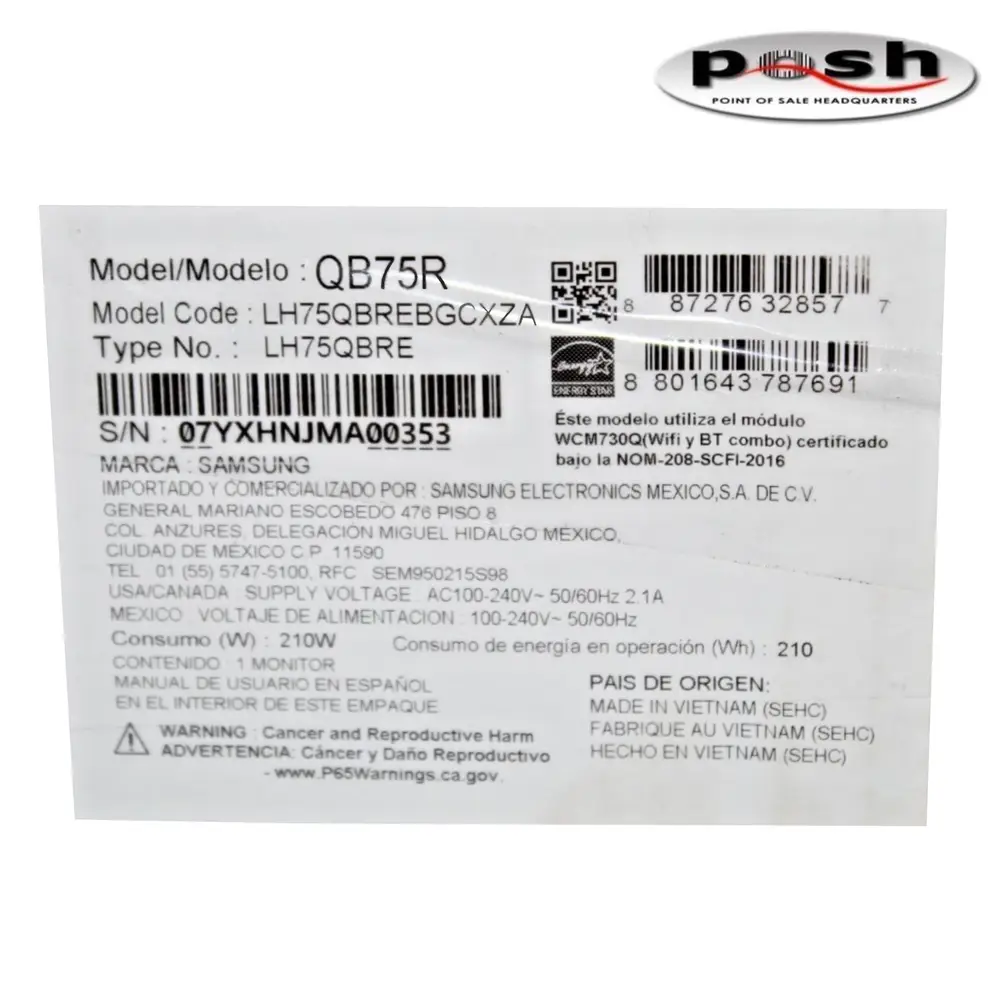

MPN LH75QBREBGCXZA
Country/Region of Manufacture Vietnam
Audio/Video Inputs Audio-In Jack (3.5mm), HDMI, USB 2.0, DisplayPort 1.2
UPC does not apply
Display Size 75 inches
Resolution 3840 x 2160 (4K UHD)
Panel Technology VA (Vertical Alignment)
Brightness 500 nits
Aspect Ratio 16:9
Operating System Samsung Tizen OS
HDR Support HDR10 (basic HDR support)

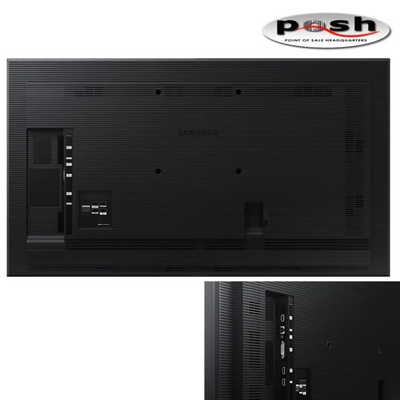

Connectivity HDMI 3 ports, DisplayPort 1.2, USB 2.0 x2, USB 3.0 x1, RJ45 Ethernet, RS232C
Speaker Output 10W x 2
Daisy Chain Support Yes
Usage Rating 16/7 hours per day
Dimensions (WxHxD) Approx. 1672.1 x 963.7 x 59.9 mm (without stand)
Weight Approx. 38.5 kg
Anti-Glare Yes
Cooling System Integrated fan cooling
Color Gamut 72% NTSC
Viewing Angle 178° (H) / 178° (V)
Power Consumption Approximately 210W

Key Advantages

The QB75R excels with its 4K UHD resolution delivering stunning image clarity and detail for commercial purposes. Its VA panel technology ensures excellent color reproduction and contrast important for advertising content. High brightness level of 500 nits helps maintain visibility in brightly lit areas without compromising image quality. The built-in Tizen OS platform provides seamless smart features and easy management of multimedia content. Wide connectivity options including multiple HDMI ports and USB allow for versatile multimedia integration. The display’s durability and design support long operational hours, optimizing it for continuous professional use.

Limitations

While powerful for its intended use, the QB75R does not have built-in speakers loud enough for large venues, necessitating external audio systems. The 75-inch size might be impractical for smaller spaces or limited mounting options. Its Tizen-based smart functionality, though convenient, limits the available apps compared to general consumer smart TVs. The device lacks HDR10+ support, only supporting basic HDR content formats. Compared to newer models, the refresh rate at 120Hz might be less effective for ultra-fast motion video applications. Finally, external control requires familiarity with MagicInfo software, possibly limiting use for non-technical users.
