ZTECH ZD420
Brand | ZTECH 2021 |
Model | ZD420 |
Released Year | 2021 |
Type | Printers |
Series | ZD |
Status | Active |
Quick view
Overview

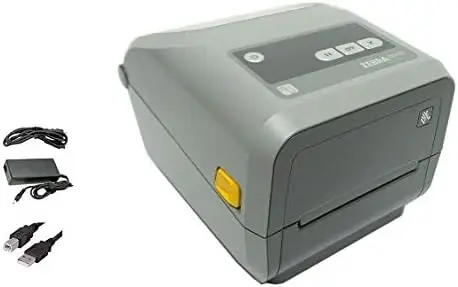

The ZTECH ZD420 is a compact and versatile office label printer designed for high-quality label printing in professional environments. It supports multiple printing technologies including direct thermal and thermal transfer, providing flexibility for various labeling needs. The printer offers a print resolution of up to 203 dpi, balancing sharpness with speed for efficient output. Connectivity options include USB, Ethernet, and optional Bluetooth or Wi-Fi modules, ensuring seamless integration into most office networks. The device features a 300 MHz processor and 128 MB SDRAM to handle complex label formats and fast printing tasks reliably. Its compact footprint and user-friendly interface make it ideal for space-constrained workspaces, with support for a wide variety of media types and sizes for diverse applications.
Specifications
Print Technology | Direct Thermal / Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm) |
Print Speed | Up to 6 inches per second |
Processor | 32-bit 300 MHz |
Memory | 128 MB SDRAM, 128 MB Flash |
Media Types | Continuous, die-cut, black mark, and tag stock |
Media Width | 0.75 inch to 4.25 inches (19 mm to 108 mm) |
Media Thickness | 0.0023 - 0.01 inches (0.06 - 0.25 mm) |
Roll Capacity | Up to 5 inches (127 mm) outer diameter |
Ribbon Type | Wax, wax/resin, resin (Thermal Transfer mode) |
Ribbon Length | Up to 74 meters |
Connectivity | USB 2.0, 10/100 Ethernet, optional Bluetooth and Wi-Fi |
Display | Single LED with buttons |
Dimensions | 7.2 x 5.9 x 7.5 inches (183 x 150 x 191 mm) |
Weight | 2.3 lbs (1.04 kg) |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Power Supply | External 100-240V AC adapter |
Emulations | ZPL, EPL, CPCL compatible |
Certifications | FCC, CE, TUV |
Print media | Labels |
Max Input Sheet Capacity | 100 |
Sheet Size | 4 inches |
Maximum Black and White Print Resolution | 203 dpi |
Warranty Type | 90 days limited warranty |
Dual-sided printing | No |
Max copy resolution black-white | 203 dpi |
Duplex | Simplex |
Hardware Interface | USB |
Ink Color | black |
Additional Printer functions | Print Only |
Control Method | Remote |
Total USB Ports | 1 |
Specific Uses For Product | Office, Label Printing |
UPC | 649661887263 |
Item model number | ZD420 |
Date First Available | April 8, 2021 |
Manufacturer | ZTech |
Images
Key Advantages
The ZTECH ZD420 stands out with its reliable print quality and versatile media compatibility, meeting a variety of office labeling requirements. Its compact size allows for easy placement in tight spaces, optimizing office workflow without sacrificing performance. The inclusion of multiple connectivity options such as USB, Ethernet, and wireless interfaces enhances its adaptability in different network configurations. It features quick media loading mechanisms, reducing downtime and increasing productivity. The built-in processor and memory capacity enable fast processing of complex labels and graphics. Additionally, the printer supports energy-efficient operation modes, helping offices reduce energy consumption.
Limitations
While the ZTECH ZD420 offers solid performance, it is limited to a maximum print resolution of 203 dpi, which may not suffice for applications requiring ultra-high-definition labels. Its media capacity is modest, limiting the size of rolls it can handle before requiring replacement. The thermal transfer ribbon length options are somewhat shorter compared to larger industrial models, potentially increasing consumable replacement costs for high-volume printing. Certain advanced network features might require additional hardware purchases. The device lacks a full-color touchscreen interface, which might reduce user convenience compared to newer models. Lastly, its firmware updates and support might be limited given its specialized market niche.
FAQ
What printing technologies does the ZTECH ZD420 support?
The ZTECH ZD420 supports both direct thermal and thermal transfer printing technologies, allowing for flexible label printing options.
What is the maximum print resolution of the ZD420?
The ZD420 offers a maximum print resolution of 203 dpi, suitable for clear barcode and text printing.
Which connectivity options are available on the ZTECH ZD420 printer?
Standard connectivity includes USB and Ethernet, with optional modules for Bluetooth and Wi-Fi connectivity.
Is the ZTECH ZD420 suitable for high volume printing tasks?
Yes, it supports fast processing with its 300 MHz processor and 128 MB RAM, but its media roll capacity is best suited for medium volume printing.
Does the ZD420 printer support different label sizes and types?
Yes, it accommodates a wide range of media types and sizes, making it versatile for various labeling applications.
Can the ZTECH ZD420 be integrated into office networks easily?
Absolutely, with Ethernet and optional wireless connectivity, it is designed for easy network integration.
Is the ZTECH ZD420 still supported by the manufacturer?
As of now, the ZD420 is not discontinued and continues to receive support and updates.
