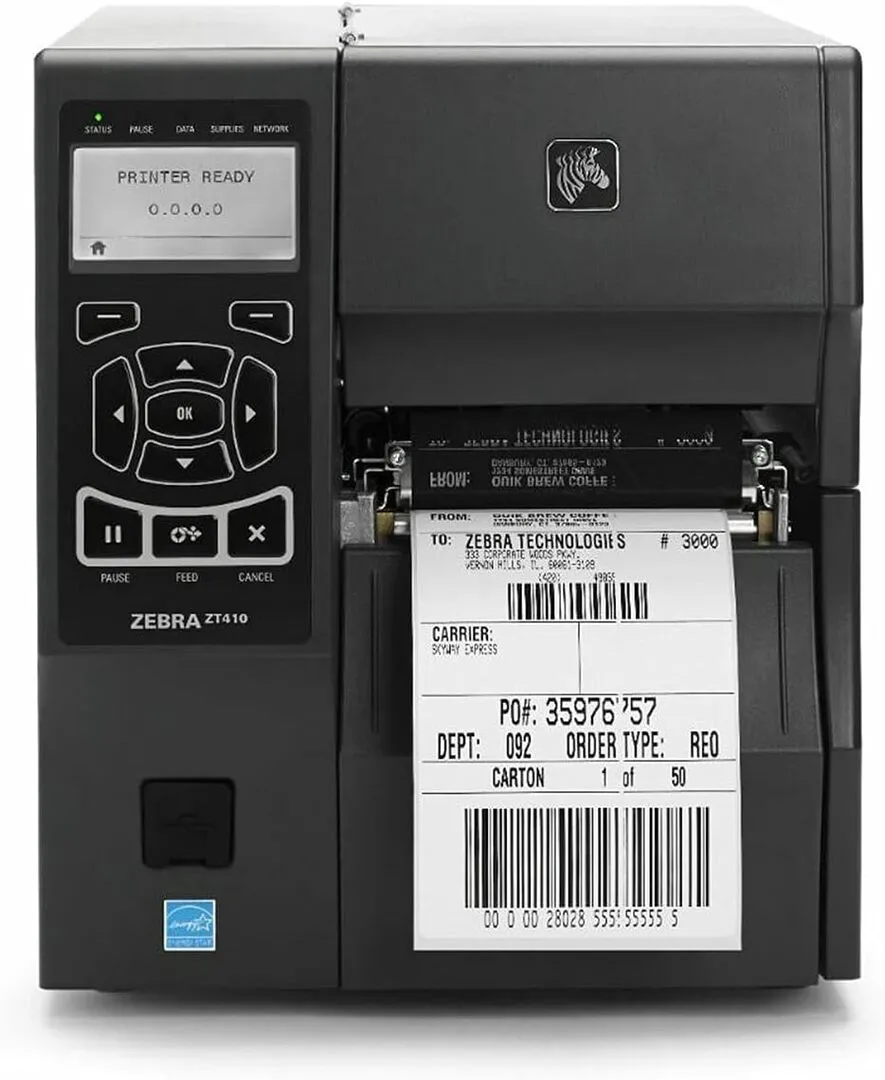

ZEBRA - Z SERIES ZT410 image

ZEBRA - Z SERIES ZT410

Quick information
Brand ZEBRA - Z SERIES 2014
Model ZT410
Released Year 2014
Type Printers
Item Weight 43.9 pounds
Maximum Color Print Resolution 300 dpi
Status Active
Quick view

Overview

The Zebra ZT410 is an industrial-grade label printer designed to meet high-volume printing demands. It features a metal frame construction ensuring durability in harsh environments. The printer supports direct thermal and thermal transfer printing methods. It comes equipped with a 4-inch print width and print speed up to 14 inches per second. Connectivity options include USB, Serial, and Ethernet interfaces for versatile integration. The device supports a variety of media types and is compatible with Zebra's Link-OS operating system for advanced printer management.

The ZT410 also includes an easy-to-use LCD interface for configuration and monitoring. It is designed for applications such as manufacturing, transportation, warehousing, and healthcare labeling requirements, delivering precise, high-resolution printing with a maximum 203 or 300 dpi resolution.

Specifications

Included Components Labels
Print media Labels
Max Input Sheet Capacity 100
Compatible Devices Laptops
Maximum Color Print Resolution 300 dpi
Sheet Size 4 inches
Maximum Black and White Print Resolution 300 dpi
Warranty Type limited warranty
Color Depth 1 bpp
Dual-sided printing No
Max copy resolution black-white 300 dpi
Duplex Simplex
Hardware Interface USB
Ink Color Black
Additional Printer functions Print Only
Control Method App
Total USB Ports 1
Specific Uses For Product Office, General Purpose
Item Weight 43.9 pounds
Item model number ZT410
Is Discontinued By Manufacturer No
Date First Available July 25, 2014
Manufacturer ZEBRA - Z SERIES
Print method Direct thermal and thermal transfer
Print width 4.09 inches (104 mm)
Print speed Up to 14 inches per second (ips)
Resolution 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Media types supported Ribbon coated and uncoated paper, synthetic labels
Connectivity USB 2.0, Serial, Ethernet (optional)
Processor 32-bit RISC CPU
Memory 512 MB Flash, 256 MB SDRAM
Display 4.3-inch color LCD
Dimensions 11.7 x 19 x 13.5 inches (W x D x H)
Weight 33 lbs (15 kg)
Operating Temperature 40°F to 105°F (4.4°C to 41°C)
Power supply 90-264 VAC, 47-63 Hz
Operating system Zebra Link-OS

Key Advantages

The ZT410 boasts robust metal construction enhancing durability and longevity in industrial settings. Its support for both direct thermal and thermal transfer offers flexibility for different labeling needs. High print speeds of up to 14 ips reduce wait times in high-volume operations. Multiple connectivity options ease integration with existing systems. The printer supports advanced Link-OS applications for remote monitoring and management. Its intuitive LCD user interface simplifies setup and operation for users.

Limitations

The ZT410 is relatively large and heavy compared to desktop printers, limiting portability. It requires a stable power source and is not designed for mobile use. Initial configuration can be complex for users unfamiliar with industrial printers. Replacement parts and supplies are specialized, potentially increasing maintenance cost. It primarily supports a limited set of print widths which may not suit very narrow labels. Firmware updates need to be managed to ensure compatibility with newer systems.
