Zebra Technologies ZT231
Brand | Zebra Technologies 2025 |
Model | ZT231 |
Released Year | 2025 |
Type | Printers |
Series | ZT231 |
Controller Type | Touchscreen |
Item Weight | 59.9 pounds |
Maximum Media Size | 4.2 Inches |
Maximum Color Print Resolution | 203 Dots Per Inch |
Product Dimensions | 17"D x 11"W x 9.5"H |
Status | Discontinued |
Quick view
Overview
The Zebra ZT231 is an industrial thermal transfer and direct thermal printer designed for medium-duty labeling applications. It supports print widths up to 4.09 inches (104 mm) and print speeds ranging from 2 to 6 inches per second, allowing versatile labeling solutions. The printer incorporates a durable all-metal frame, enhancing reliability in demanding production environments. It offers connectivity options including USB, serial, and parallel ports, facilitating easy integration with existing systems. The device supports standard label media rolls and ribbon rolls, providing flexibility for various printing needs. Its user-friendly control panel allows straightforward operation and diagnostic functions.
Specifications
Product Dimensions | 17"D x 11"W x 9.5"H |
Controller Type | Touchscreen |
Maximum Media Size | 4.2 Inches |
Power Consumption | 250 Watts |
Included Components | Printer |
Print media | Thermal Paper |
Max Input Sheet Capacity | 1000 |
Compatible Devices | PC |
Maximum Color Print Resolution | 203 Dots Per Inch |
Sheet Size | 4 Inches |
Maximum Black and White Print Resolution | 203 Dots Per Inch |
Warranty Type | Limited Manufacturer |
Dual-sided printing | No |
Maximum copies per run | Unlimited |
Wattage | 250 watts |
Printer resolution bw horiz max | 203 Inches |
Duplex | Manual |
Hardware Interface | Ethernet |
Printer resolution bw vert max | 203 Inches |
Ink Color | Black |
Additional Printer functions | Print Only |
Control Method | Touch |
Compatible Cartridge | 3" Core |
Output sheet capacity | 100 |
Number of Trays | 1 |
Total Ethernet Ports | 1 |
Number of USB 2 Ports | 1 |
Total USB Ports | 1 |
Specific Uses For Product | Industrial Labels |
UPC | 663056016151 |
Printer Ink Type | Thermal Transfer |
Memory Storage Capacity | 256 MB |
Item Weight | 59.9 pounds |
Item model number | ZT231 |
Date First Available | July 31, 2025 |
Manufacturer | Zebra Technologies |
Printer Type | Industrial label printer |

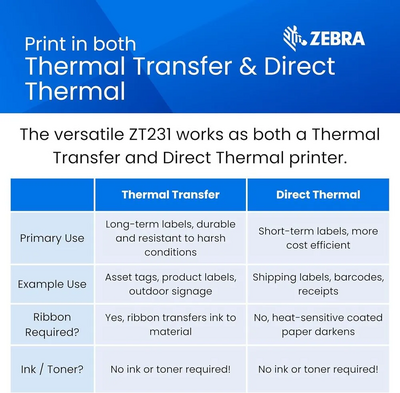

Print Method | Thermal transfer and direct thermal |
Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Width | 4.09 inches (104 mm) |
Print Speed | 2 - 6 inches per second |
Processor | 32-bit RISC CPU |
Memory | 8 MB Flash; 16 MB SDRAM |
Media Type | Roll-fed labels, tags |
Max Media Width | 4.5 inches (114 mm) |
Max Media Roll Diameter | 8.0 inches (203 mm) |
Ribbon Length | Up to 450 meters |
Connectivity | USB 2.0, Serial RS-232, Parallel (Centronics) |
Display | 2-line LCD control panel |
Dimensions (W x D x H) | 10.25 x 19.5 x 15.63 inches |
Weight | 30 lbs (13.6 kg) |
Operating Temperature | 40°F to 105°F (5°C to 40°C) |
Images
Key Advantages
- Robust industrial metal frame construction ensures long-term durability and reliability in harsh environments.
- Supports both direct thermal and thermal transfer printing, offering flexible media compatibility.
- High-resolution print capability up to 203 dpi (8 dots/mm) for clear, crisp labels.
- Multiple connectivity options including USB, serial, and parallel ports simplify integration into various workflows.
- User-friendly interface with intuitive controls for easy setup and operation.
- Wide range of media handling options accommodate different label types and sizes, increasing versatility.
Limitations
- Limited wireless connectivity options; the base model lacks Wi-Fi or Bluetooth support.
- Maximum print speed of 6 ips may be slower compared to newer industrial printers.
- Print resolution capped at 203 dpi, which may not be sufficient for high-detail barcode or graphic printing needs.
- Does not support auto-calibration for certain label types, requiring manual adjustment.
- Larger footprint and weight compared to compact desktop models, restricting portability.
- Discontinued by manufacturer, resulting in limited availability of replacement parts and official support.
FAQ
What printing technologies does the Zebra ZT231 support?
The Zebra ZT231 supports both thermal transfer and direct thermal printing technologies.
What is the maximum print resolution of the ZT231 printer?
The maximum print resolution of the Zebra ZT231 is 203 dpi (8 dots per millimeter).
Can the Zebra ZT231 connect to modern networks via Wi-Fi?
The base ZT231 does not have Wi-Fi capabilities; it only supports USB, serial, and parallel interfaces.
What is the maximum printing speed of the Zebra ZT231?
The maximum print speed for the Zebra ZT231 is 6 inches per second.
Is the Zebra ZT231 still supported by Zebra Technologies?
No, the Zebra ZT231 has been discontinued and is no longer officially supported by Zebra Technologies.
What are common uses for the Zebra ZT231 printer?
It is commonly used for medium-duty industrial labeling, including product labeling, shipping, and warehouse management.
Does the Zebra ZT231 support automatic label calibration?
The ZT231 requires manual calibration for certain media types and does not feature automatic label calibration.
