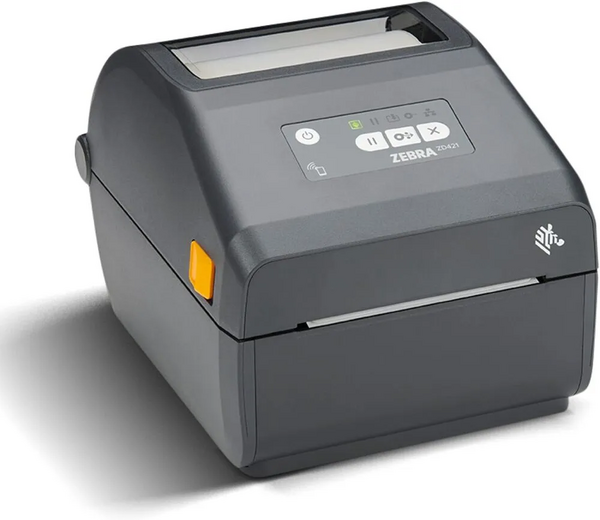

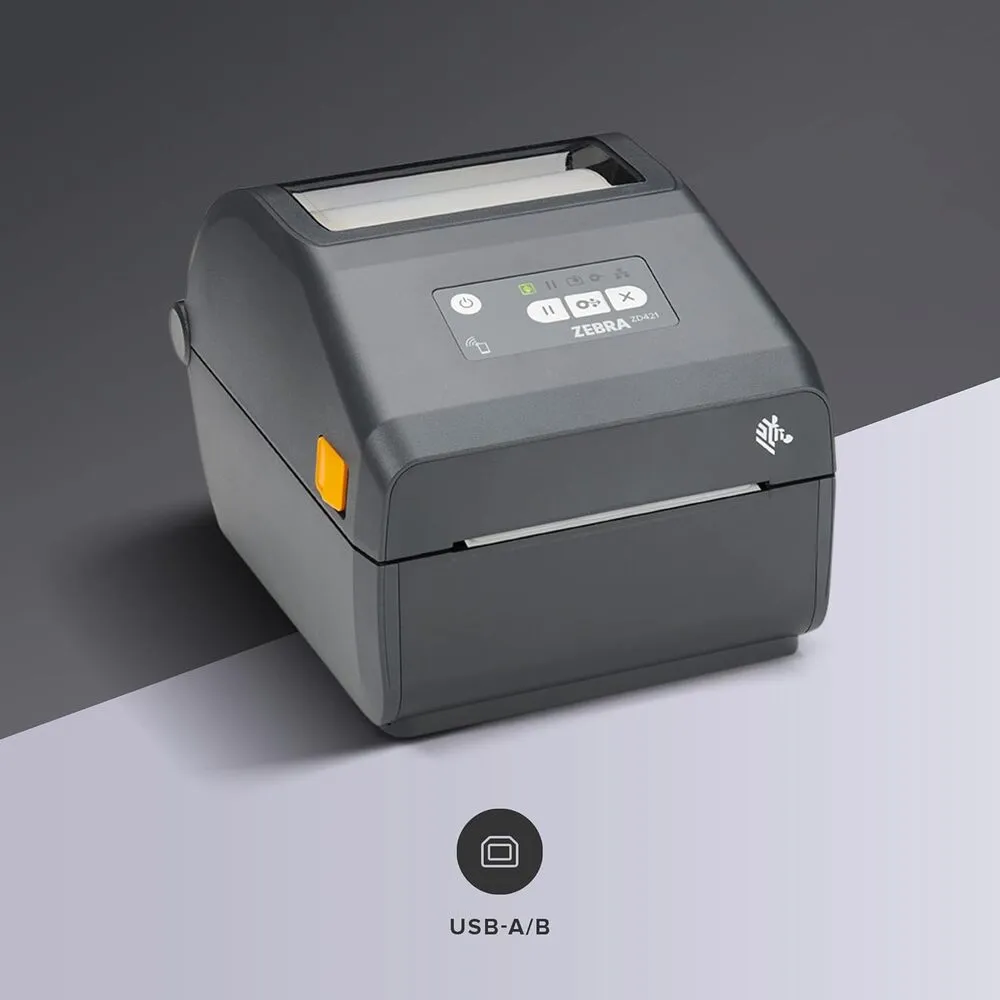

Zebra Technologies ZD421
Brand | Zebra Technologies 2021 |
Model | ZD4A042-D01M00EZ |
Released Year | 2021 |
Type | Printers |
Series | ZD421 |
Item Weight | 3.6 pounds |
Maximum Media Size | Label Standard Sizes |
Maximum Color Print Resolution | 203 x 203 DPI |
Product Dimensions | 12.25 x 9.75 x 9.5 inches |
Status | Active |
Overview
The Zebra ZD421 is a high-performance desktop printer designed for office environments requiring fast, reliable barcode and label printing. It operates with thermal transfer and direct thermal printing technologies, supporting a print width up to 4.09 inches (104 mm) and a maximum print speed of 6 inches per second (152 mm/s). The device features a 32-bit ARM processor for efficient data processing and multiple connectivity options, including USB, Ethernet, Bluetooth, and optional Wi-Fi, ensuring versatile deployment. The ZD421 supports various media types such as continuous, die-cut, and black mark labels, and ribbons compatible with thermal transfer printing, increasing flexibility. Additionally, it incorporates an intuitive LCD interface for easy status monitoring and configuration. The printer's compact design and field-installable options make it adaptable to evolving office workflow needs.
Specifications
Maximum Media Size | Label Standard Sizes |
Included Components | Printer |
Print media | Labels |
Max Input Sheet Capacity | 100 |
Compatible Devices | PC |
Maximum Color Print Resolution | 203 x 203 DPI |
Sheet Size | 152 millimeters |
Maximum Black and White Print Resolution | 203 x 203 DPI |
Warranty Type | standard warranty |
Dual-sided printing | No |
Max copy resolution black-white | 203 DPI |
Duplex | simplex |
Hardware Interface | USB |
Ink Color | black |
Resolution | 203 x 203 DPI |
Additional Printer functions | Print Only |
Control Method | Remote |
Output sheet capacity | 100 |
Processor Count | 1 |
Series Number | 421 |
Number of USB 2 Ports | 1 |
Total USB Ports | 1 |
Specific Uses For Product | label printing, mailing, file folder organization, barcode scanning, receipt generation, identification (name tags, wristbands) |
Memory Storage Capacity | 64 MB |
Product Dimensions | 12.25 x 9.75 x 9.5 inches |
Item Weight | 3.6 pounds |
Item model number | ZD4A042-D01M00EZ |
Date First Available | August 4, 2021 |
Manufacturer | ZEBRA TECHNOLOGIES VTI, INC. |
Images
FAQ
What types of printing technologies does the Zebra ZD421 support?

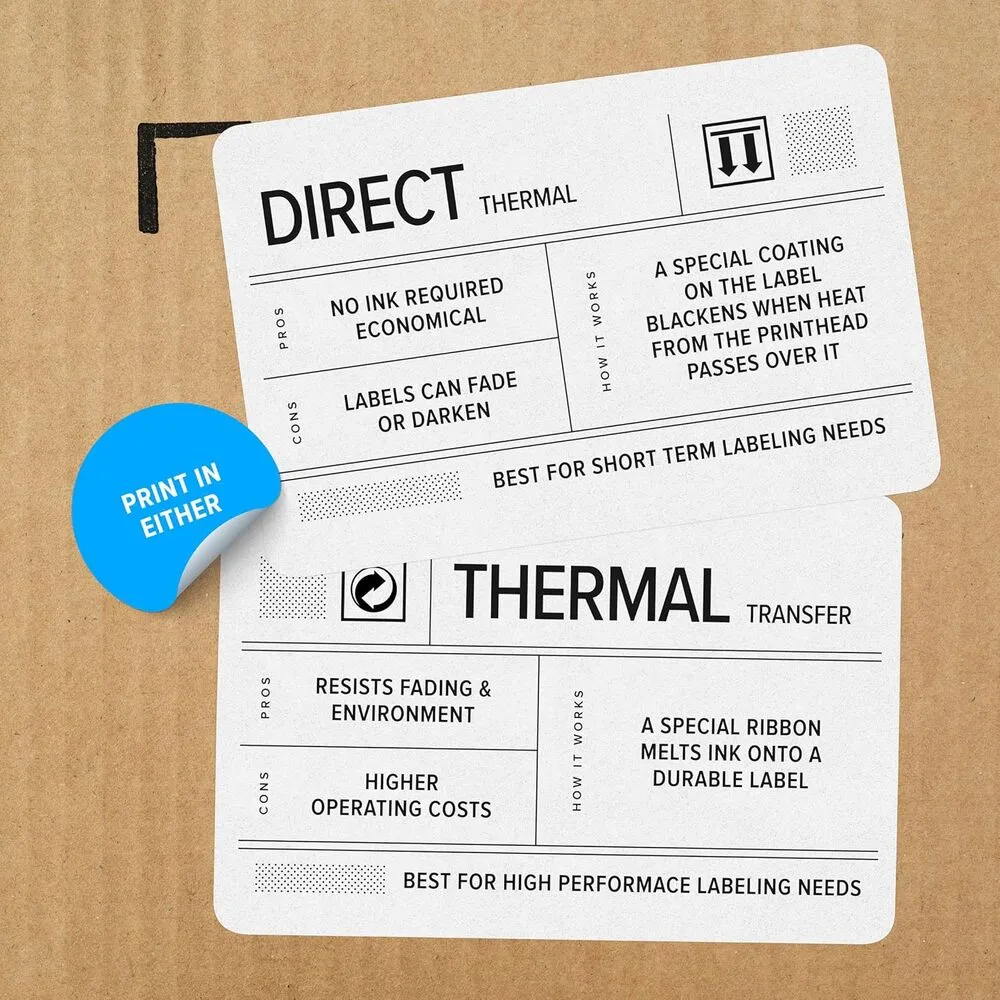

The Zebra ZD421 supports both direct thermal and thermal transfer printing technologies, allowing it to print on various label materials with or without ribbons.
What is the maximum print speed of the Zebra ZD421?
The maximum print speed of the Zebra ZD421 is 6 inches per second (152 mm per second), enabling quick label production.
Does the Zebra ZD421 support wireless connectivity?
Yes, the Zebra ZD421 offers standard USB and Ethernet connectivity, with optional modules for Bluetooth and Wi-Fi to support wireless communications.

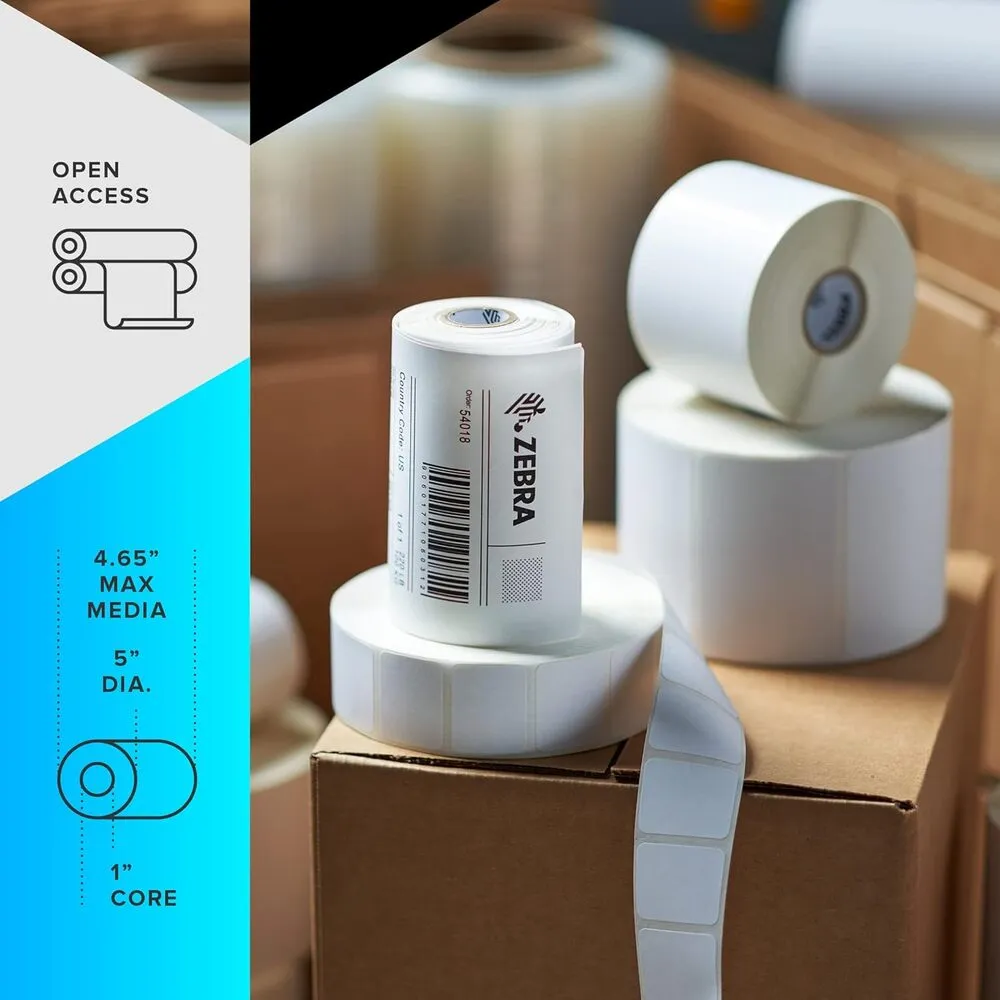

What label widths can the Zebra ZD421 printer handle?
The printer supports labels up to 4.09 inches (104 mm) wide, suitable for a wide range of barcode and label printing applications.
Is the Zebra ZD421 still being manufactured?
No, the Zebra ZD421 is not discontinued and continues to be supported and manufactured as part of Zebra Technologies' printer lineup.
Can I upgrade connectivity options on the Zebra ZD421 printer?
Yes, the ZD421 has field-installable connectivity options, allowing users to upgrade or add Bluetooth and Wi-Fi modules as needed.
Where can I find manuals or parts for the Zebra ZD421?
Zebra Technologies provides detailed PDF manuals, replacement parts, and accessories through their official website and authorized distributors.
