Zebra Technologies QLn320
Brand | Zebra Technologies 2020 |
Model | QLn320 |
Released Year | 2020 |
Type | Printers |
Series | QLn |
Item Weight | 3.57 pounds |
Status | Active |
Quick view
Overview
The Zebra QLn320 is a portable mobile printer designed for office and industrial environments, providing efficient on-demand label printing. It features direct thermal printing technology with 203 dpi resolution, optimized for durability and clarity. The device supports multiple connectivity options including USB, Bluetooth, and optional Wi-Fi for versatile integration into different systems. Powered by a rechargeable battery, it ensures mobility with a battery life suitable for extended print runs. The printer is compatible with Zebra’s Link-OS for advanced printer management and supports a wide range of media widths up to 3 inches. Its rugged design meets military drop specifications and IP54 rating for dust and water resistance, suitable for tough work conditions.
Additionally, the QLn320 includes an intuitive user interface with backlit buttons and a LCD for simple operation and status monitoring. Its compact form factor and lightweight design further contribute to ease of use in mobile applications such as retail, logistics, and healthcare. The printer’s print speed reaches up to 4 inches per second, balancing speed with print quality to optimize workflow efficiency.
Specifications
Max Input Sheet Capacity | 50 |
Compatible Devices | Smartphones |
Sheet Size | 3 inches |
Maximum Black and White Print Resolution | 203 dpi |
Warranty Type | 90 days limited warranty |
Dual-sided printing | No |
Duplex | simplex |
Hardware Interface | Bluetooth |
Additional Printer functions | Print Only |
Control Method | App |
Processor Count | 1 |
Series Number | 3 |
UPC | 753575414238 |
Package Dimensions | 12.24 x 9.37 x 6.77 inches |
Item Weight | 3.57 pounds |
Item model number | QLn320 |
Batteries | 1 Lithium Ion batteries required. (included) |
Date First Available | May 21, 2020 |
Manufacturer | Zebra-Technologies |
Print method | Direct Thermal |
Print resolution | 203 dpi (8 dots/mm) |
Max print width | 3.15 inches (80 mm) |
Max print speed | 4 inches per second (102 mm/s) |
Media type | Receipts, labels, tags |
Media width | Up to 3.15 inches (80 mm) |
Connectivity | USB 2.0, Bluetooth 2.1, optional Wi-Fi 802.11a/b/g/n |
Memory | 128 MB RAM, 256 MB Flash |
Operating system compatibility | Windows, Android, iOS |
Battery | Rechargeable Li-Ion, 7.4V 2200 mAh |
Display | One LCD with backlight and status LEDs |
Dimensions (WxHxD) | 4.72 x 6.96 x 2.61 inches (120 x 177 x 66 mm) |
Weight | 14.5 oz (0.41 kg) without battery, approx. 1.35 lbs with battery |
Environmental rating | IP54 dust/water resistant |
Durability | Meets MIL-STD 810G drop test |
Software Platform | Zebra Link-OS |
Supported languages | ZPL, EPL, CPCL |
Release year | 2013 |

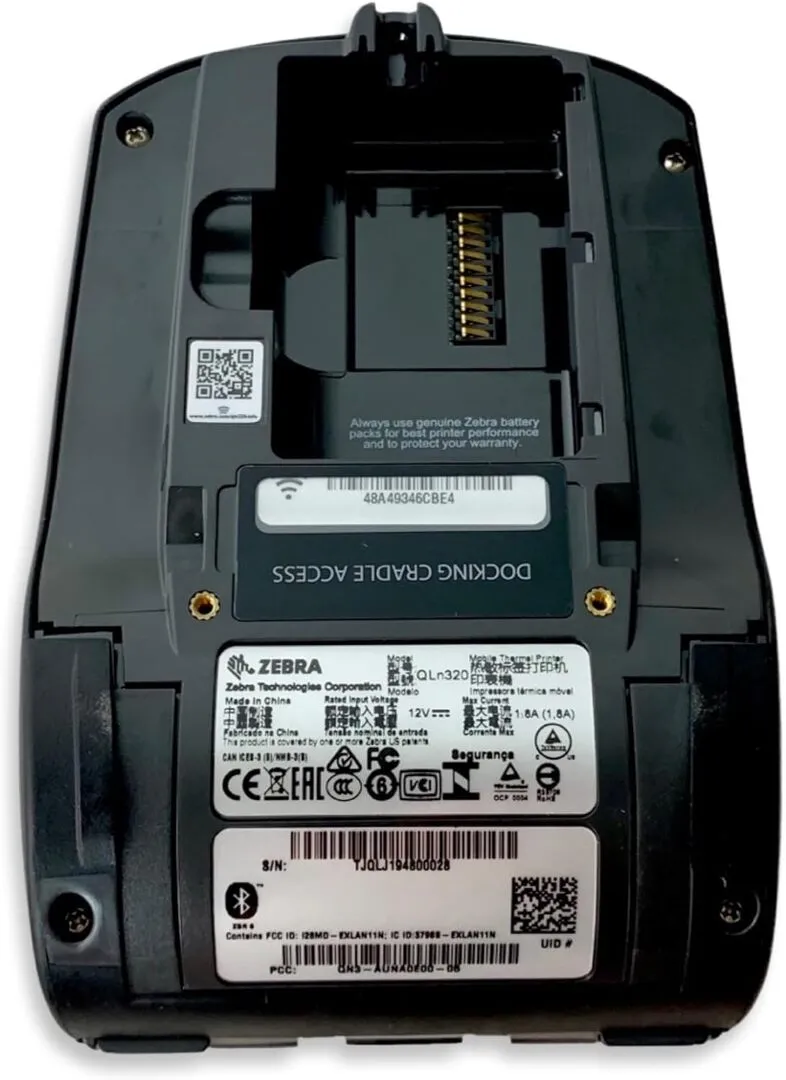

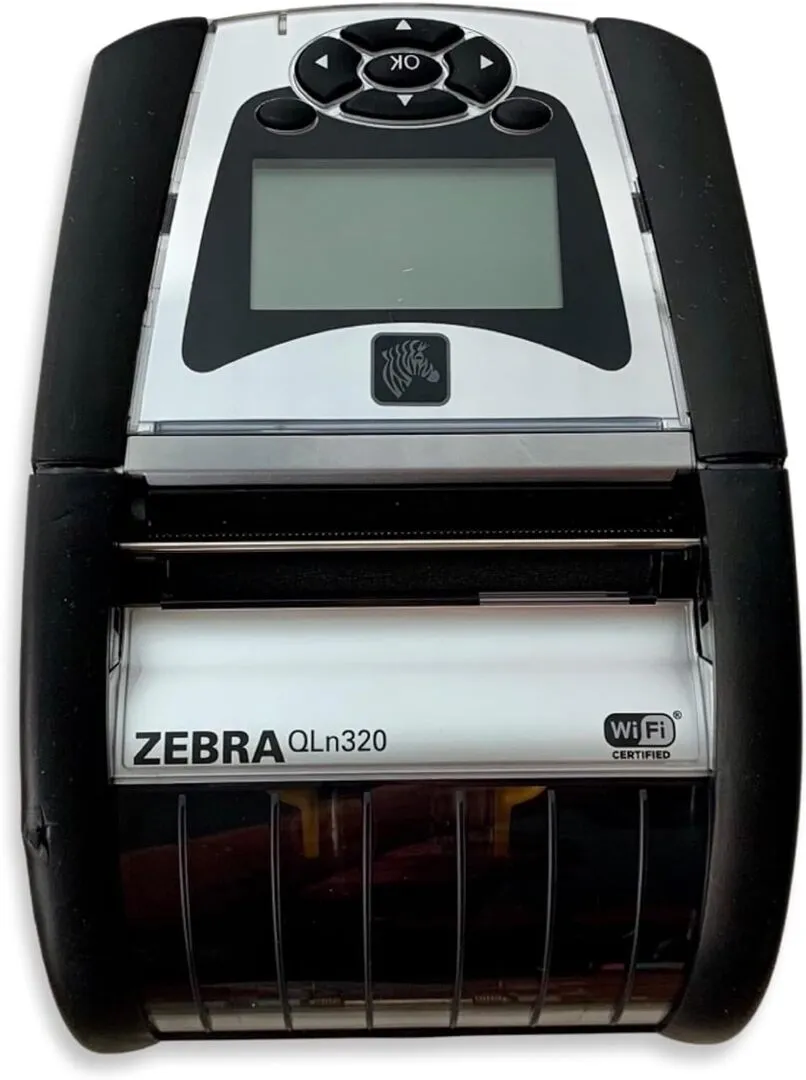

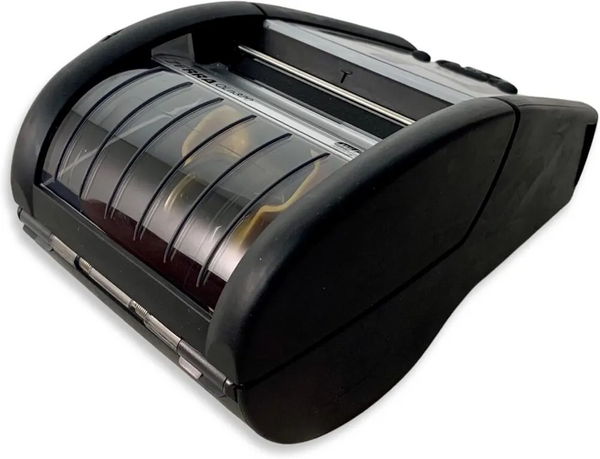

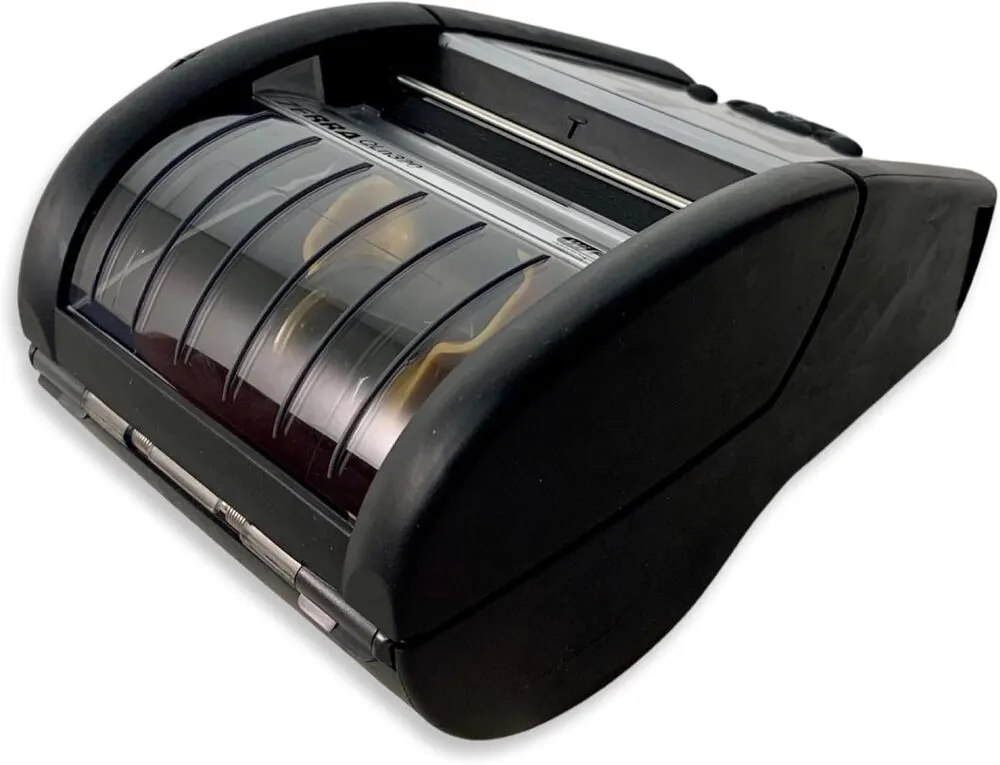

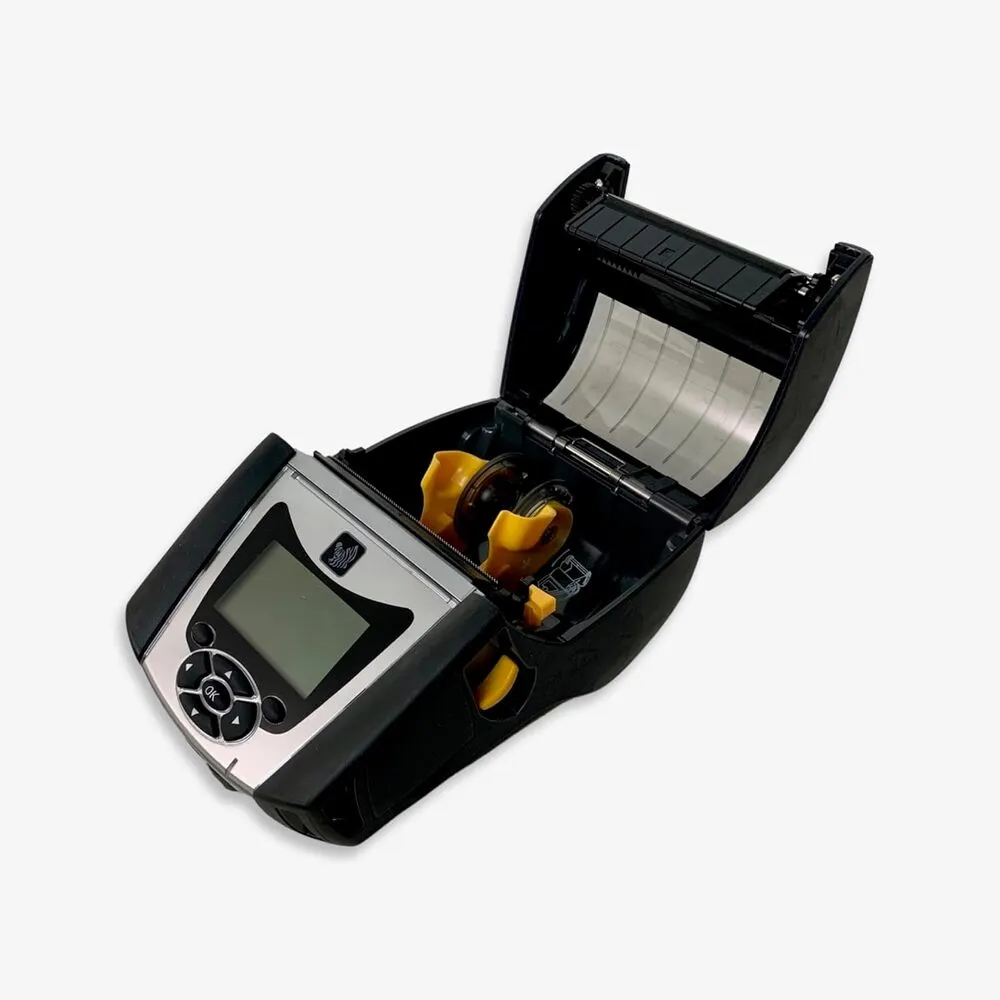

Images
Key Advantages
The Zebra QLn320 offers exceptional mobility thanks to its compact, lightweight design and long-lasting battery life. Its rugged build ensures reliability in demanding environments with resistance to dust, water, and multiple drops. The printer supports multiple connectivity options including USB, Bluetooth, and Wi-Fi for versatile usage. Its compatibility with Zebra’s Link-OS platform allows seamless integration and remote management. High-quality print output at 203 dpi ensures clear and durable labels suitable for various applications. The device is easy to operate with an intuitive interface and supports various media types and roll sizes up to 3 inches wide.
Limitations
The QLn320 supports only direct thermal printing and does not accommodate thermal transfer printing, limiting the type of media and longevity of printed labels. Its maximum print speed of 4 inches per second may be slower compared to some newer mobile printers in the segment. The device’s battery life, while adequate, may require frequent recharging during very high-volume printing scenarios. It lacks advanced touch screen interface which some competitors offer for easier navigation. The printer’s limited memory may restrict very large or complex print jobs. Some users report that initial setup and driver installations can be challenging on certain operating systems.
FAQ
What printing technology does the Zebra QLn320 use?
The Zebra QLn320 uses direct thermal printing technology, which does not require ink or toner, printing directly on heat-sensitive paper.
What connectivity options are available with the QLn320?
The QLn320 supports USB, Bluetooth, and optional Wi-Fi connectivity for flexible integration with various devices and systems.
Is the QLn320 suitable for rugged environments?
Yes, the QLn320 is designed to withstand tough conditions with an IP54 rating for dust and water resistance and meets military drop test standards.
What is the maximum print width and speed of the QLn320?
The printer supports a maximum print width of 3 inches and a print speed up to 4 inches per second.
Can the QLn320 be used with thermal transfer ribbons?
No, the QLn320 is a direct thermal printer and does not support thermal transfer ribbons.
What kind of battery life can I expect from the QLn320?
The printer’s rechargeable battery provides sufficient power for a typical work shift, although exact battery life depends on print volume and usage.
Is the QLn320 compatible with modern operating systems?
Yes, the QLn320 supports Windows, and its drivers and Zebra’s printing software maintain compatibility with many current operating systems, though initial setup may require some technical steps.
