Zebra Technologies GX420
| Brand | Zebra Technologies 2020 |
| Model | GX420 |
| Released Year | 2020 |
| Type | Printers |
| Series | GX |
| Item Weight | 7 pounds |
| Status | Active |
Quick view
Overview

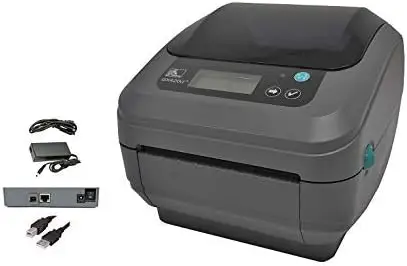

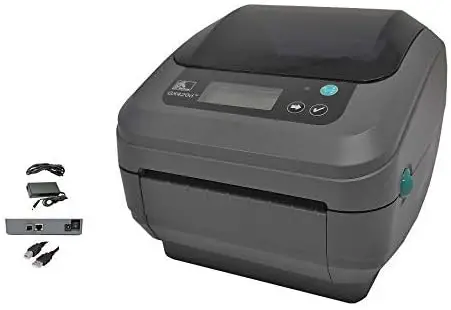

The Zebra GX420 is a desktop thermal barcode printer designed for office and light industrial environments.
It utilizes direct thermal and thermal transfer printing technologies to produce labels with high clarity.
The device offers a print resolution of 203 dpi (8 dots/mm) ensuring sharp barcode and text prints.
Connectivity options include USB, serial, and optionally Ethernet interfaces for flexible deployment.
The printer supports various media types and sizes with automatic media calibration.
It includes a user-friendly LCD display for ease of configuration and monitoring.
Specifications
| Printer Type | Desktop Thermal Printer |
| Print Technology | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 4 inches per second |
| Max Print Width | 4.09 inches (104 mm) |
| Media Types | Continuous, die-cut, black mark, notch, tag stock |
| Media Width | 0.75 to 4.5 inches (19 to 114 mm) |
| Media Length | 0.25 to 39 inches (6.4 to 991 mm) |
| Ribbon | Ink-coated, wax, wax/resin, resin ribbons; 74 m length max |
| Connectivity | USB 2.0, RS-232 Serial, optional Ethernet |
| Memory | 8 MB SDRAM, 4 MB Flash |
| Dimensions | 8.7" W x 7.6" D x 6.7" H (221 x 192 x 170 mm) |
| Weight | 5.2 lbs (2.4 kg) |
| Operating Temperature | 40°F to 105°F (5°C to 40°C) |
| Power Supply | External 100-240 VAC, 50-60 Hz |
| Programming Languages | ZPL II, EPL2 |
| Display | LCD with status indicators |
| Max Input Sheet Capacity | 100 |
| Compatible Devices | PC |
| Sheet Size | 4 inch x 6 Inches |
| Maximum Black and White Print Resolution | 1200 dpi |
| Warranty Type | 90 days limited warranty |
| Dual-sided printing | No |
| Max copy resolution black-white | 1200 dpi |
| Duplex | simplex |
| Hardware Interface | USB |
| Additional Printer functions | Print Only |
| Control Method | Touch |
| Processor Count | 1 |
| Total Ethernet Ports | 1 |
| Number of USB 2 Ports | 1 |
| Total USB Ports | 1 |
| Specific Uses For Product | Barcode and shipping label printing for eBay and Amazon sellers |
| UPC | 760575229465 |
| Package Dimensions | 12 x 8 x 8 inches |
| Item Weight | 7 pounds |
| Item model number | GX420 |
| Date First Available | March 13, 2020 |
| Manufacturer | Zebra-Technologies |
Images
Key Advantages
The GX420 series provides reliable and fast label printing suitable for a wide range of labeling applications.
Its compact design saves space in office environments while maintaining good media capacity.
The printer's compatibility with Zebra's EPL and ZPL programming languages allows seamless integration with existing systems.
Thanks to multiple connectivity options, it is versatile in networked and standalone settings.
Easy maintenance and user-friendly interface reduce downtime and require minimal technical skills.
The thermal transfer option extends label durability, enhancing performance in different operational conditions.
Limitations
The 203 dpi resolution, while sufficient for many applications, may not be adequate for extremely high-detail printing requirements.
Print speed is moderate compared to industrial-grade printers, potentially limiting throughput in high-volume environments.
The printer's ribbon capacity is limited compared to larger models, necessitating more frequent replacements for thermal transfer printing.
Lack of advanced connectivity options such as wireless or Bluetooth out of the box.
The device is not optimized for heavy industrial use or harsh environmental conditions.
Some advanced features require optional accessories or firmware upgrades, which may increase overall cost.
FAQ
What printing technologies does the Zebra GX420 support?
The Zebra GX420 supports both direct thermal and thermal transfer printing technologies.
What is the maximum print resolution of the GX420?
The printer offers a maximum print resolution of 203 dpi (8 dots/mm).
Which connectivity options are available on the GX420?
Standard connectivity includes USB and serial ports; Ethernet connectivity is available as an option.
Can the GX420 print on different label sizes and types?
Yes, the GX420 supports various label sizes and types with automatic media calibration for accurate printing.
Is the printer suitable for industrial environments?
The GX420 is designed primarily for office and light industrial environments; it is not optimized for heavy-duty industrial use.
Does the GX420 support Zebra programming languages?
Yes, it supports Zebra's EPL and ZPL programming languages for easy integration.
Is the Zebra GX420 printer discontinued?
No, the Zebra GX420 is not officially discontinued and remains available through some channels.
