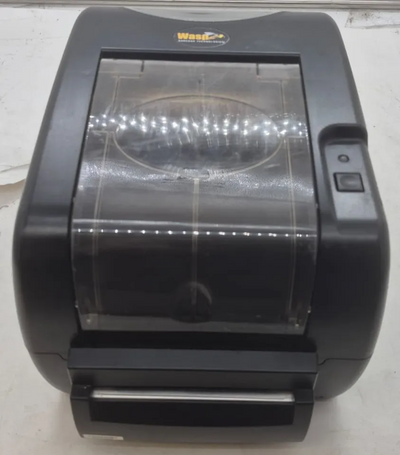

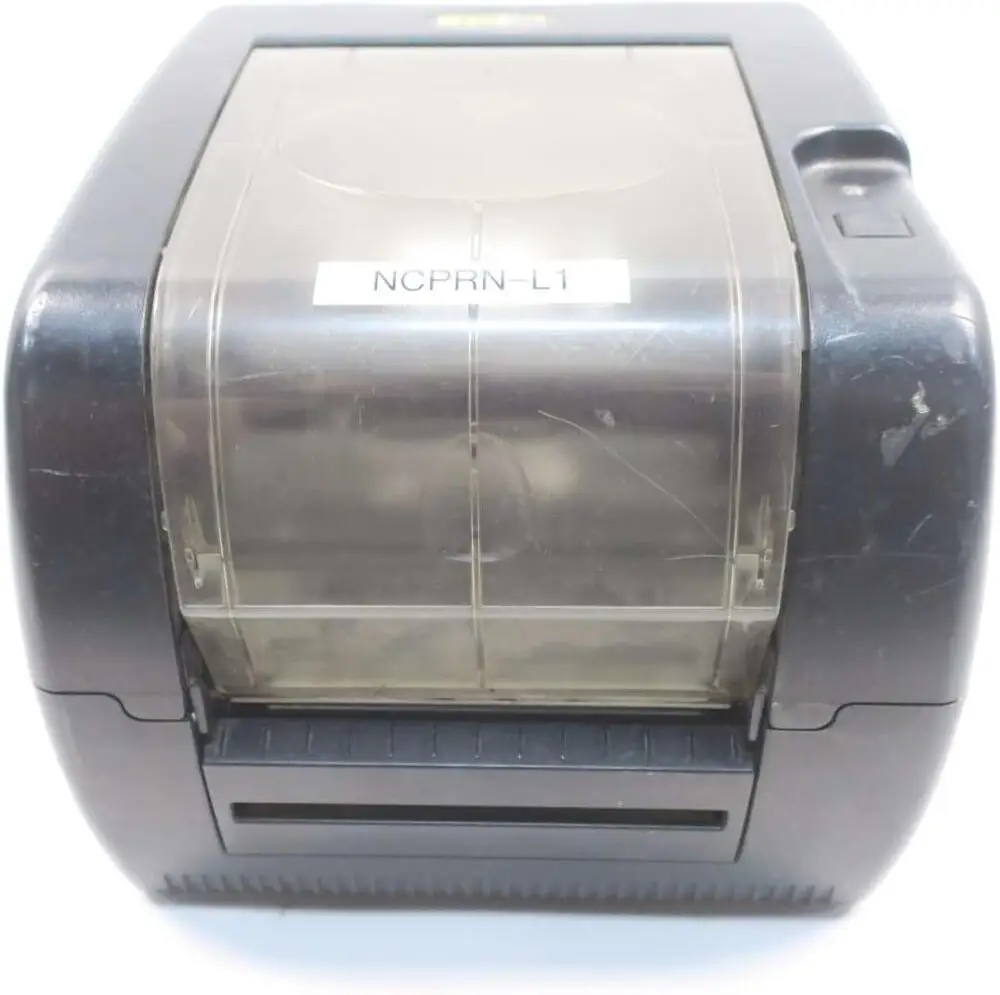

Wasp WPL305E image

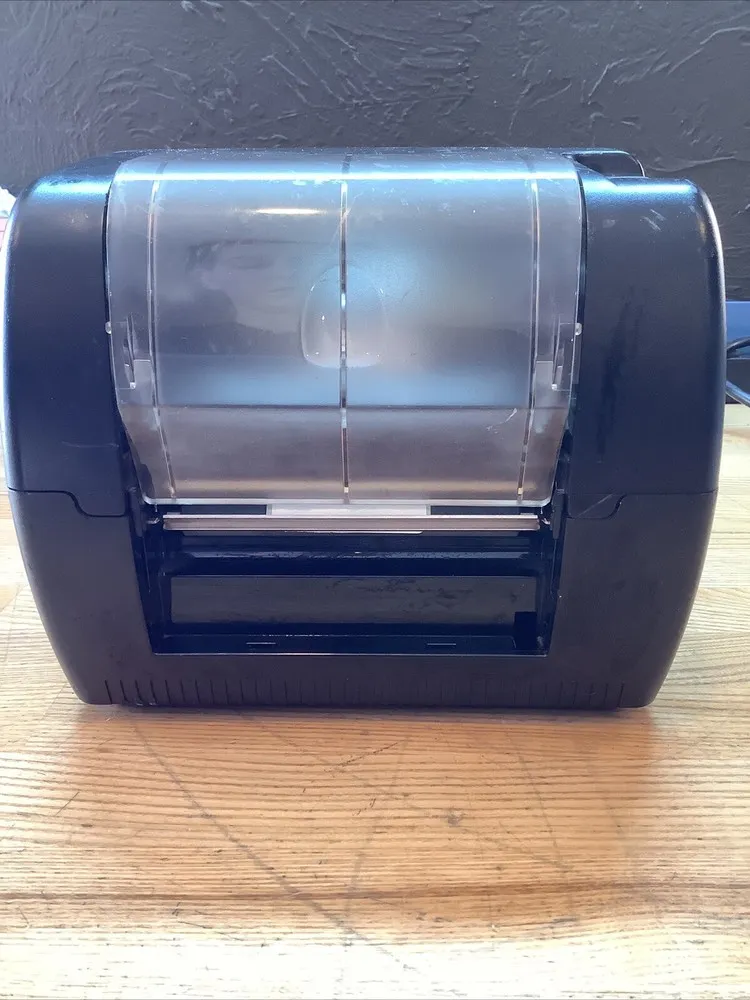

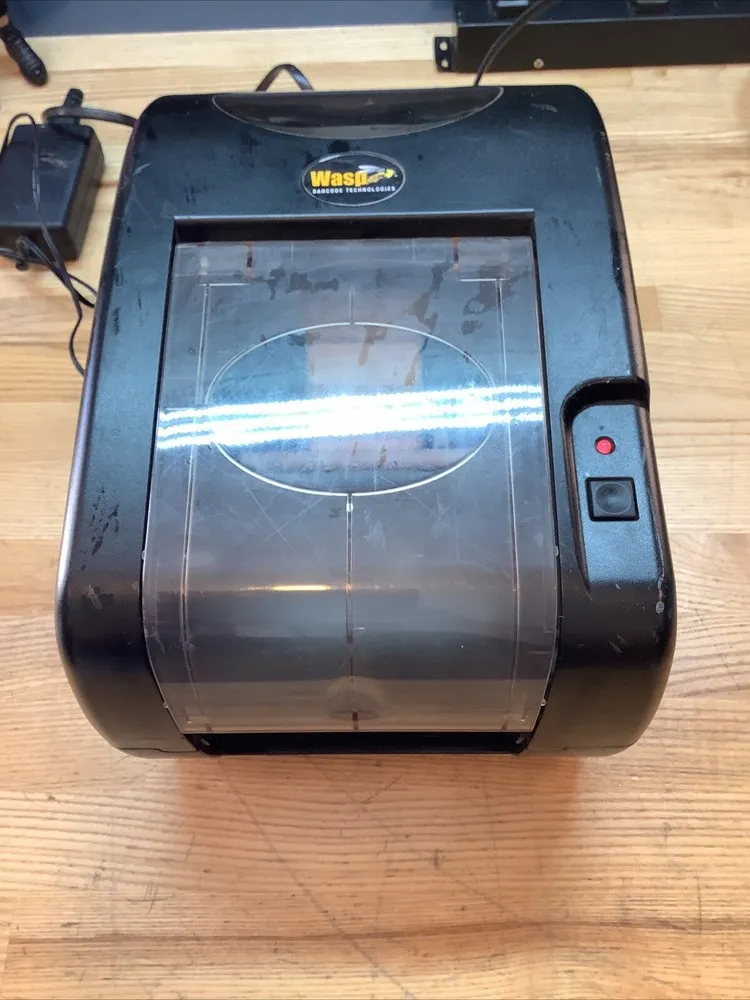

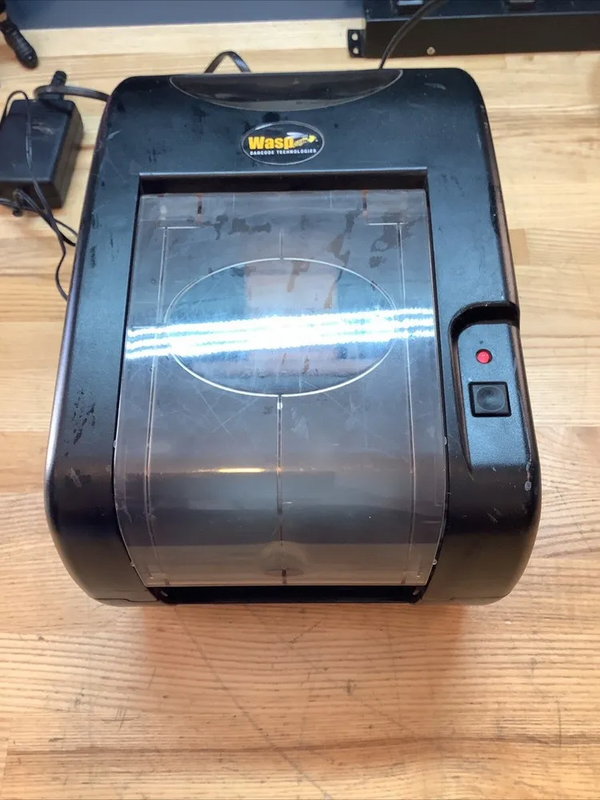

Wasp WPL305E

Quick information
Brand Wasp 2010
Model WPL305E
Released Year 2010
Type Printers
Status Discontinued
Quick view
Full specs Images

Overview

The Wasp WPL305E is an advanced label printer designed primarily for office and industrial environments requiring high-quality barcode and label output. It operates with a 32-bit processor ensuring fast print speeds up to 4 inches per second. This thermal transfer and direct thermal printer supports ribbon widths of 2.36 to 4.33 inches, facilitating versatile media compatibility. It offers a print resolution of 203 dpi (8 dots/mm), balancing image clarity with printing speed. Connectivity options include USB 2.0 and RS-232 serial ports for flexible integration with existing systems. The printer supports a maximum label width of 4.25 inches and maximum print width of 4.09 inches, making it suitable for a variety of label sizes.

Its compact footprint and rugged enclosure make it adaptable for tight workspaces while maintaining durability for high-volume printing tasks. The WPL305E includes an intuitive control panel for easy operation and configuration. The device supports a wide range of industry-standard barcode symbologies and fonts, making it an effective solution in logistics, manufacturing, and retail.

Specifications

MPN WPL305E
Model WPL305E
Memory 4 MB flash memory, 8 MB SDRAM
Technology Thermal

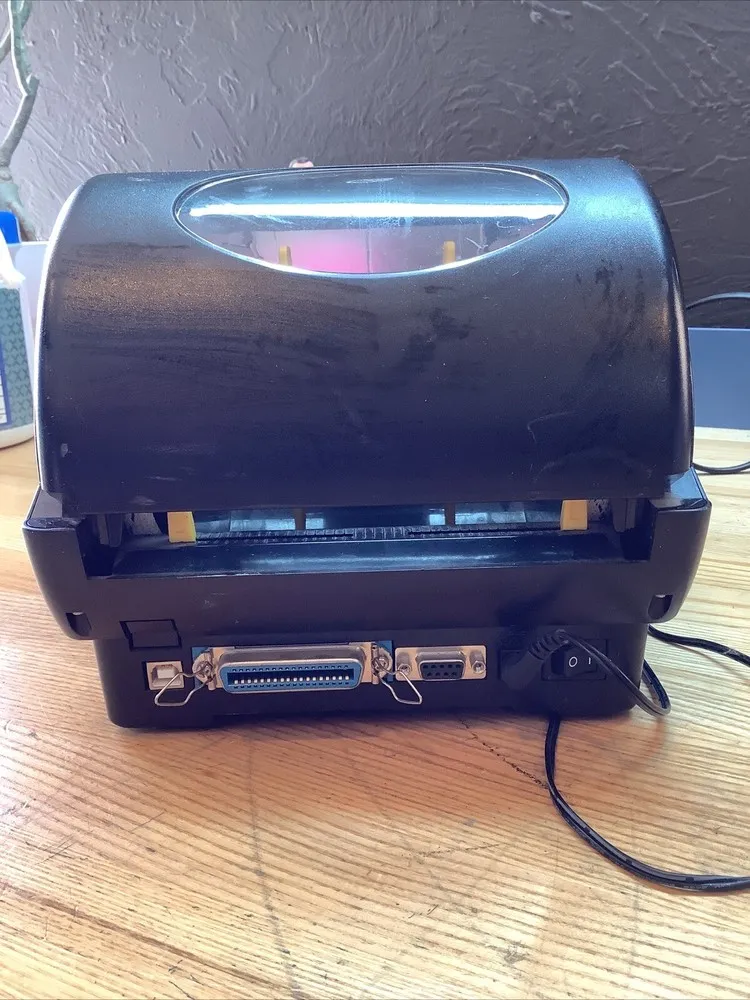

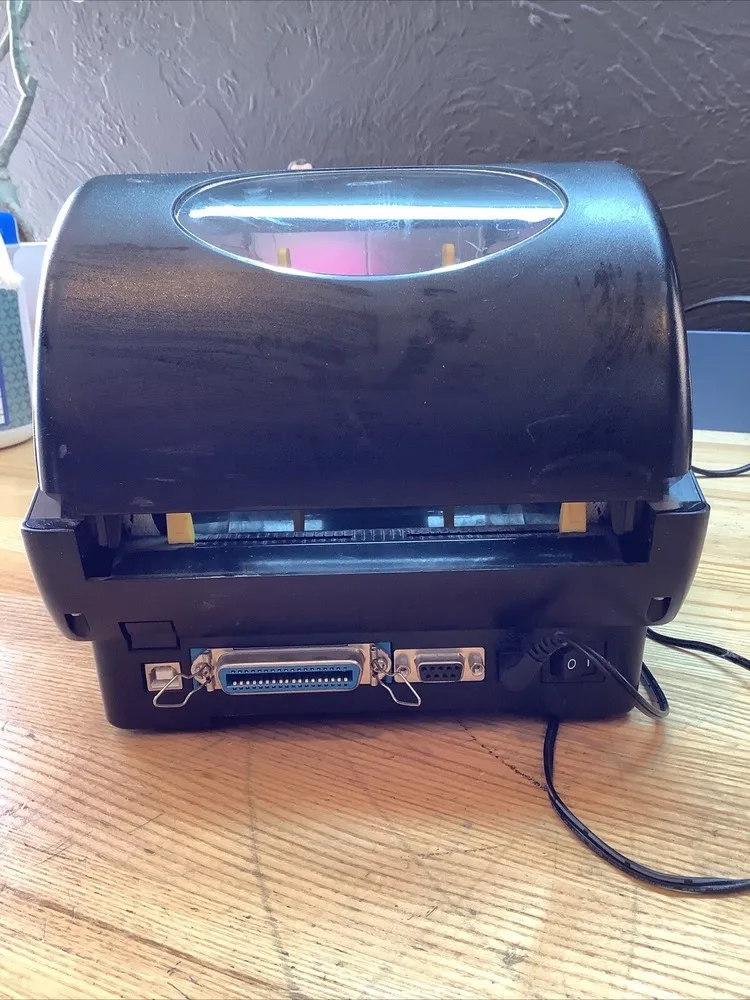

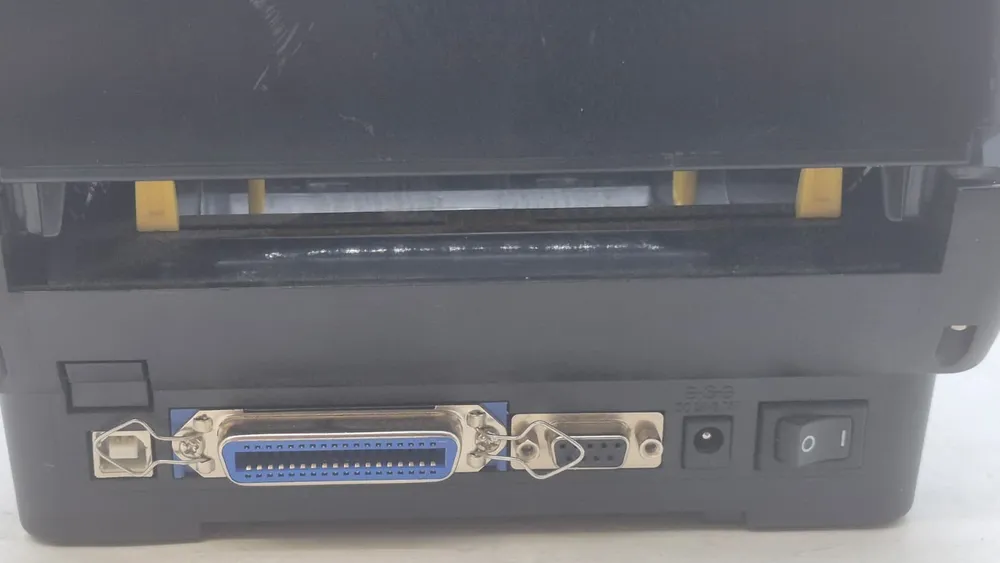

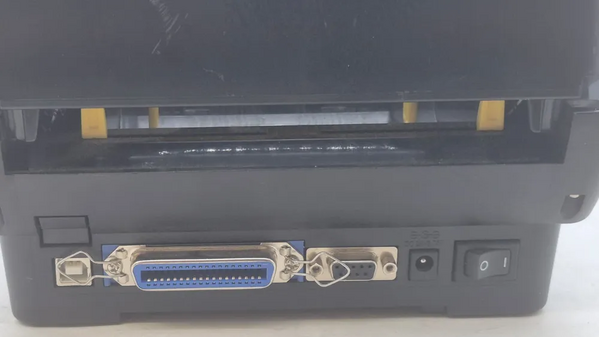

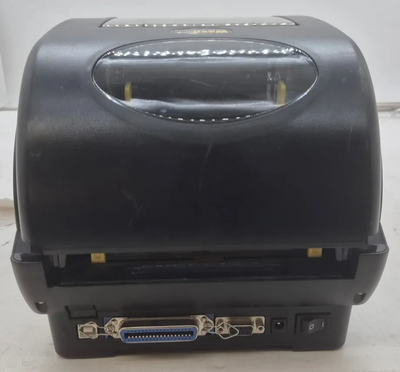

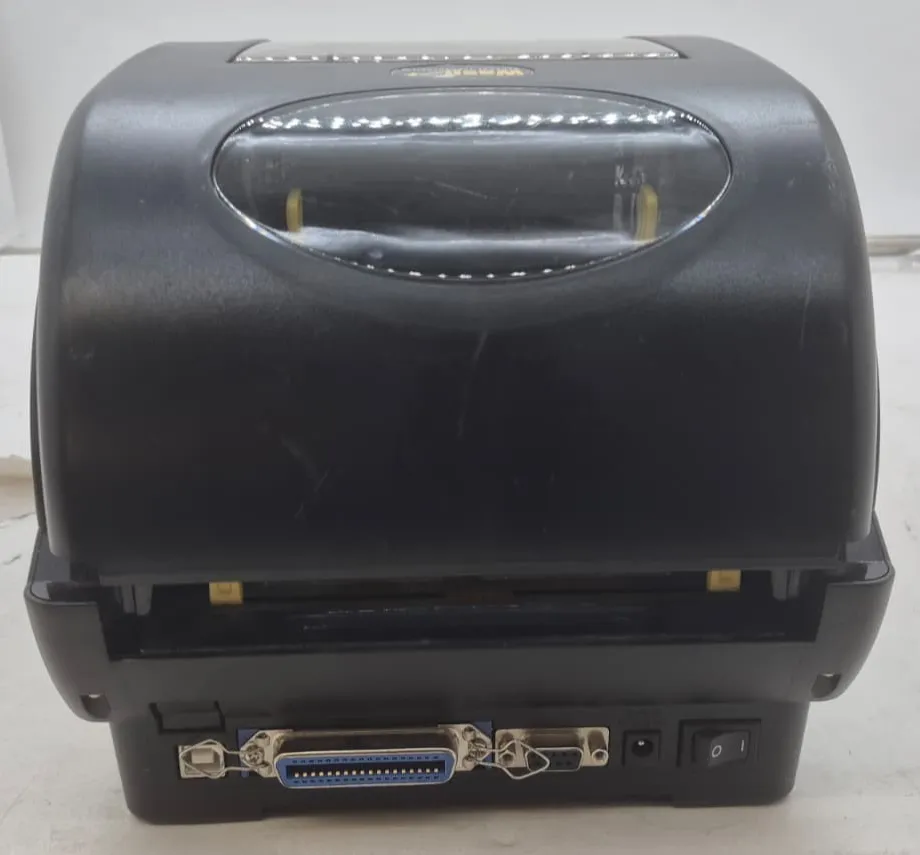

Connectivity USB 2.0, RS-232 serial port
Scanning Resolution 203x203 DPI
Output Type Black & White
Features Scanner
Input Type Monochrome
Supported Paper Size A8 (52 x 74 mm)
Type Printer
Maximum Resolution 203 x 203 DPI
Black Print Speed 4 ppm
Item Length 12.36in.
Item Height 7.40in.
Item Width 8.39in.
Color Black
Printer type Thermal transfer and direct thermal label printer
Print resolution 203 dpi (8 dots/mm)
Print speed Up to 4 inches per second (ips)
Maximum print width 4.09 inches (104 mm)

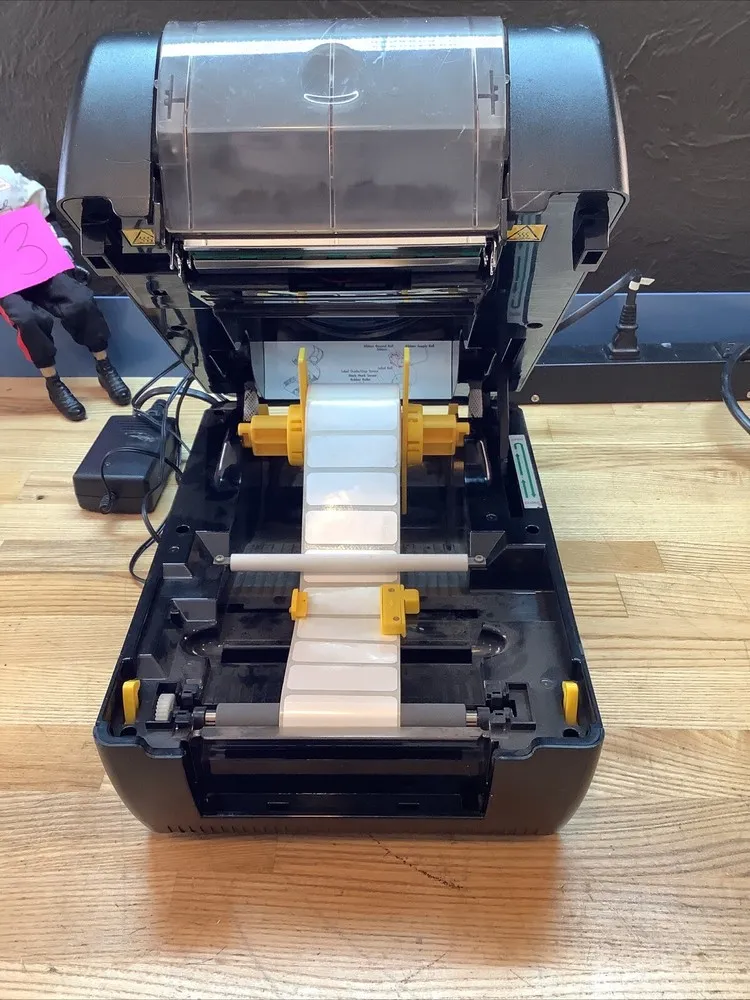

Media width range 2.36 to 4.33 inches (60 to 110 mm)
Processor 32-bit RISC CPU
Supported barcode symbologies Code 39, Code 128, Interleaved 2 of 5, UPC, EAN, QR Code, PDF417 and more
Fonts Multiple scalable fonts including OCR-A, OCR-B

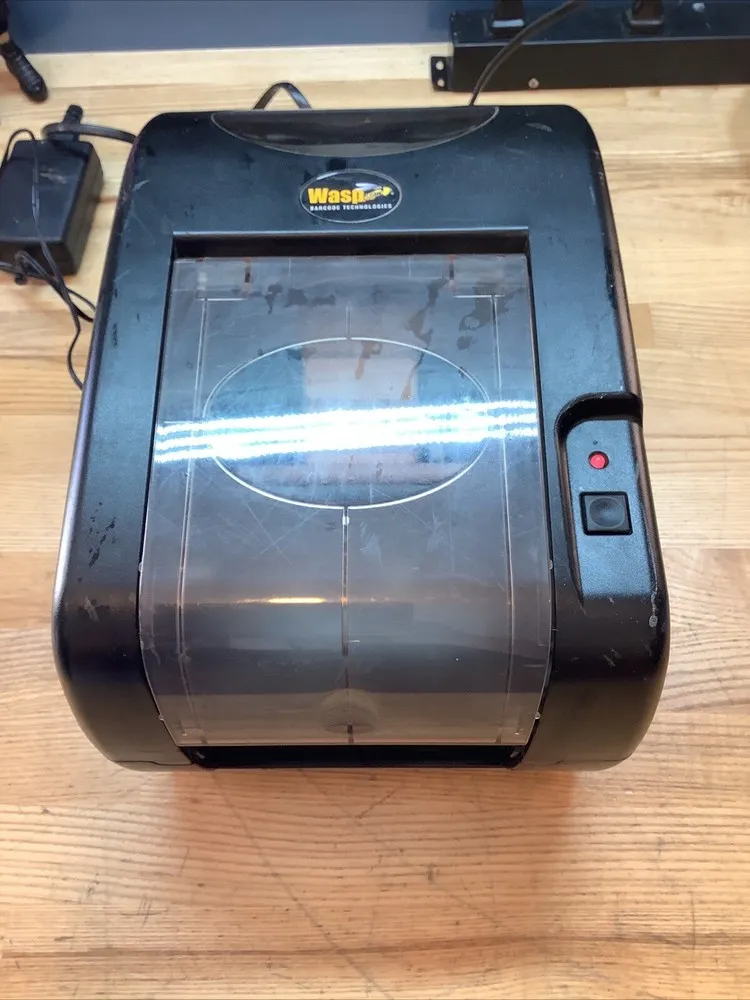

Display Basic control panel with LED indicators
Operating systems supported Windows XP, Vista, 7 (may require updated drivers for newer systems)
Power supply External power adapter 100-240V AC
Dimensions (WxDxH) 8.46 x 10.04 x 7.28 inches (215 x 255 x 185 mm)
Weight Approx. 5.7 kg (12.5 lbs)

Key Advantages

The Wasp WPL305E boasts rapid print speeds that increase operational efficiency in busy office and warehouse settings. Its dual thermal transfer and direct thermal printing capabilities offer flexibility in media types, enabling long-lasting labels or simple thermal prints as needed. High reliability and rugged build ensure consistent performance under heavy use. Multiple connectivity options ease integration with various host systems and work environments. The printer’s low maintenance design reduces downtime and ongoing operating costs. Additionally, the availability of detailed technical documentation facilitates easy troubleshooting and support.

Limitations

The print resolution of 203 dpi might not be sufficient for high-definition graphics or extremely fine barcode details required in some specialized applications. It lacks built-in wireless connectivity, which may limit flexible placement or remote printing capabilities without additional accessories. The color printing option is not supported, restricting use to monochrome labels only. Media handling options do not support very large roll sizes, which may necessitate frequent media changes in high-volume environments. The user interface, while functional, is relatively basic compared to newer models with touchscreens. Limited support for the latest operating systems could pose compatibility challenges without firmware updates.

FAQ

The WPL305E utilizes both thermal transfer and direct thermal printing technologies, allowing flexibility depending on label durability requirements.

It supports USB 2.0 and RS-232 serial connections for wired communication with host devices.

The printer supports a maximum print width of 4.09 inches (104 mm).

Yes, with its robust design and fast print speeds of up to 4 inches per second, it is suitable for moderate to high-volume applications.

No, the WPL305E only supports monochrome printing via thermal transfer or direct thermal methods.

By default, the WPL305E does not have built-in wireless connectivity and would require additional hardware to enable this functionality.

No, the Wasp WPL305E model has been discontinued and is typically available only through secondary markets or as refurbished units.
