Wasp WPL305

Quick information
Brand Wasp 2006
Model WPL305
Released Year 2006
Type Printers
Status Discontinued
Quick view

Overview

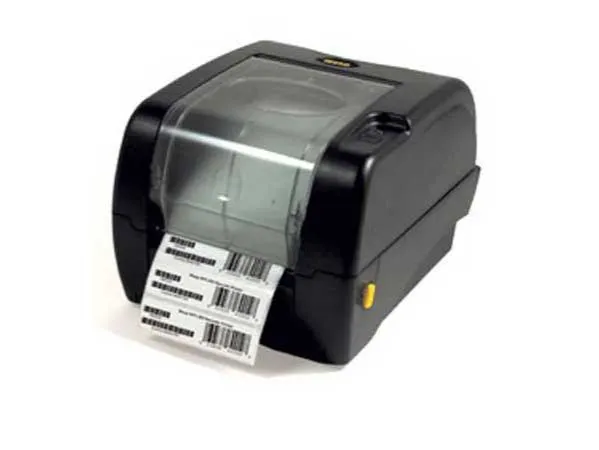

The Wasp WPL305 is a compact, professional-grade label printer designed for office and industrial applications. It features a mechanical resolution of 203 dpi, providing clear and precise label printing. The WPL305 supports thermal transfer and direct thermal printing methods, allowing versatile media compatibility. It has a max print width of 4.1 inches (105 mm) and a max print speed up to 4 inches per second, making it efficient for small to medium volume label production. Connectivity options typically include USB and serial ports, enabling integration with various computing environments. The device’s firmware supports common barcode symbologies and font types, suitable for shipping, asset tracking, and inventory management.

Specifications

UPC 0633808402006
Model WPL305
Technology Thermal

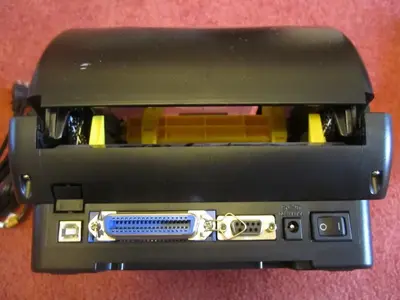

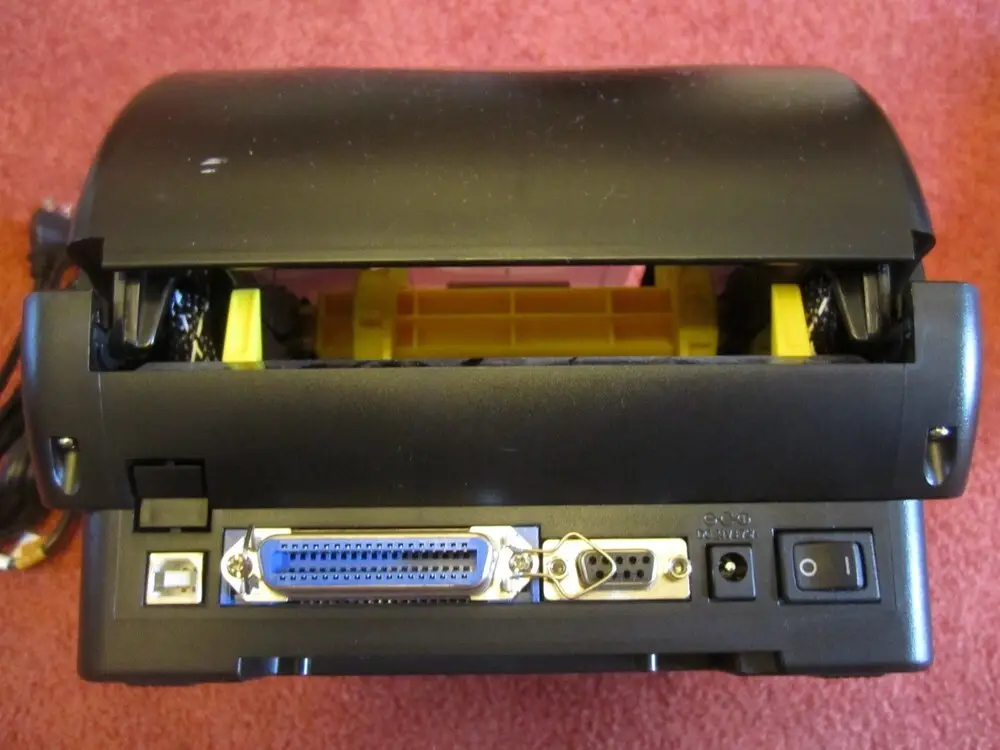

Connectivity Serial (RS-232), Parallel (IEEE 1284), USB 1.0/1.1
Output Type Black & White
Type ID Card Printer, Barcode Printer, Label Printer
Weight Approx. 2.4 kg
Depth 12.4in
Height 7.4in
Width 8.4in
Platform PC Products
Extend Printer Technology Direct Thermal / Thermal Transfer
Installed RAM 2MB
Form Factor Desktop, Point of Sale
Networking Type Network Adapter
Max Resolution (Bw) 203DPI
Max Media Size Roll (10.8cm)
Black Print Speed 7in/Sec
Media Capacity 1 Roll(s)
Print Technology Thermal Transfer / Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 4.1 inches (105 mm)
Maximum Print Speed 4 inches per second (102 mm/s)
Media Types Labels, Tags, Receipts
Media Width 1 inch to 4.4 inches (25 mm to 112 mm)
Media Thickness 0.0032" to 0.01" (0.08 mm to 0.25 mm)
Interface USB, Serial RS-232
Memory Standard 512 KB RAM, 1 MB Flash
Supported Barcode Types Code 39, Code 128, UPC, EAN, Interleaved 2 of 5
Fonts Internal fonts, scalable fonts supported

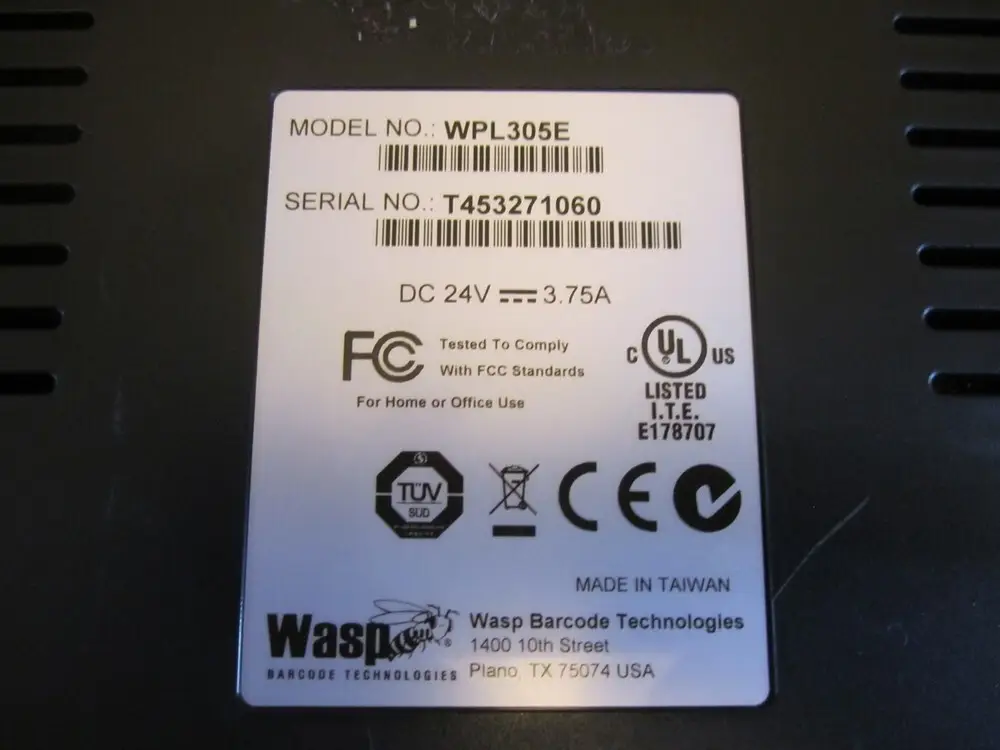

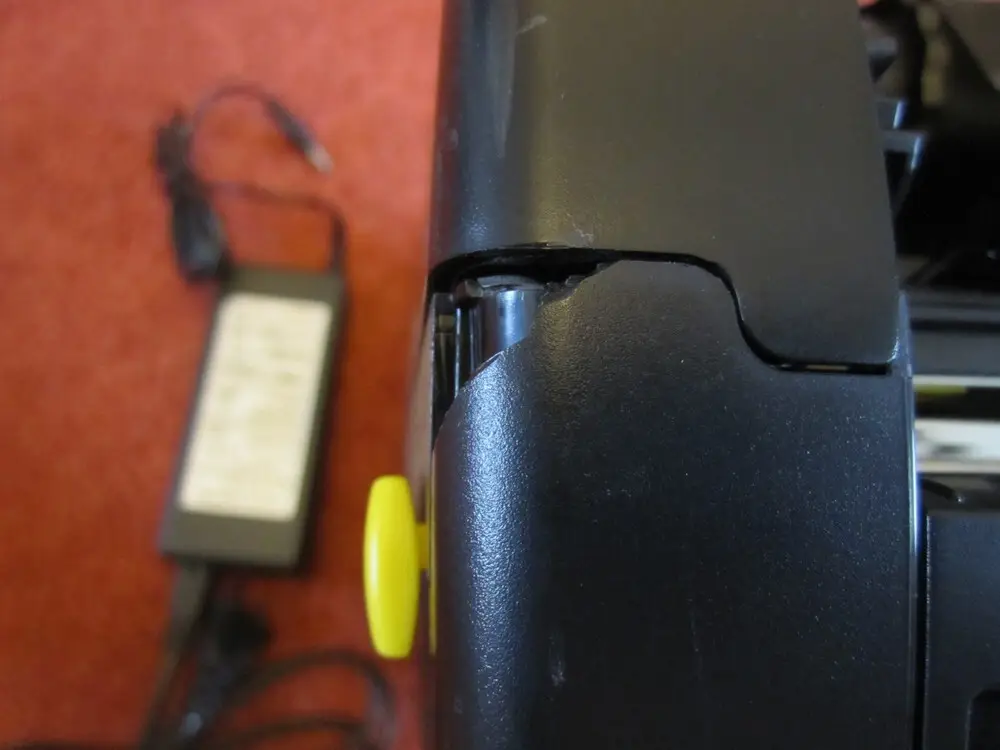

Power Supply External 24V power adapter
Dimensions (W x D x H) 220 mm x 190 mm x 170 mm

Key Advantages

Wasp WPL305 offers high printing accuracy with its 203 dpi resolution. It supports multiple media types including labels, tags, and receipts via thermal transfer or direct thermal modes. The printer is compact and user-friendly, suitable for office and light industrial environments. It provides reliable printing speed of up to 4 inches/second, improving productivity. The device's compatibility with popular barcode fonts and symbologies enhances its utility in logistics and inventory tasks. Additionally, it is cost-effective and relatively easy to maintain, reducing downtime and operational expenses.

Limitations

The WPL305 printer lacks some modern connectivity options such as wireless or Ethernet interfaces, limiting network flexibility. Its maximum print speed and resolution may not meet demands of high-volume or high-definition printing scenarios. The printer does not support color printing, restricting it to monochrome labels. The built-in memory is limited, which might restrict complex label designs or large label batches. It relies on older interface ports which may require adapters for modern computers. The printer’s firmware updates and technical support might be limited due to its age, posing challenges for long-term maintenance.
