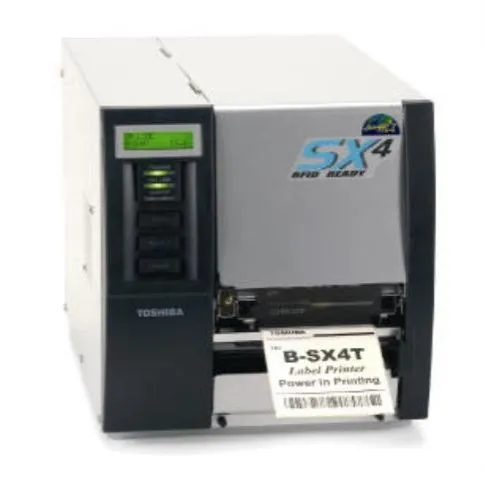

Toshiba B-SX4T
| Brand | Toshiba 2006 |
| Model | B-SX4T-GS20-QM-R |
| Released Year | 2006 |
| Type | Printers |
| Status | Discontinued |
Quick view
Overview
The Toshiba B-SX4T is an industrial-grade thermal transfer printer designed for high-speed and reliable label printing in demanding office and industrial environments.
It supports both direct thermal and thermal transfer printing methods, allowing versatile media compatibility ranging from paper labels to synthetics.
The model B-SX4T-GS20-QM-R specifically features a print width of up to 4 inches (104 mm) and supports print speeds up to 8 inches per second (ips), making it suitable for fast-paced production lines.
Equipped with a durable printhead and a robust frame, it ensures longevity and consistent print quality even in harsh factory conditions.
The interface options include USB and parallel connectivity for flexible integration into existing systems.
Its internal memory allows storage of fonts and graphics, which enhances quick label changes and operational efficiency.
Specifications
| MPN | B-SX4T-GS20-QM-R |
| Model | B-SX4T |
| Technology | Thermal |
| Connectivity | Serial (RS-232), Serial (RS-232C), Parallel (IEEE 1284), Lan, USB 1.0/1.1 |
| Output Type | Black & White |
| Type | Label Printer |
| Weight | 11.5 kg |
| Depth | 18.11in |
| Height | 12.13in |
| Width | 11.46in |
| Max. Memory | 16MB |
| Platform | PC Products |
| Extend Printer Technology | Direct Thermal / Thermal Transfer |
| Installed RAM | 8MB |
| Computer Operating System | Microsoft Windows XP Home, Microsoft Windows 2000, Microsoft Windows NT, Microsoft Windows 98, Microsoft Windows 95 |
| Form Factor | Desktop, Stationary |
| Networking Type | Network Adapter (Optional), Network Adapter |
| Media Type | Labels, Roll Paper |
| Panel | Monochrome LCD |
| Max Resolution (Bw) | 203x203DPI |
| Max Media Size | Roll (11.2cm) |
| Black Print Speed | 254mm/Sec |
| Media Capacity | 1 Roll(s) |
| Printing method | Thermal transfer and direct thermal |
| Print resolution | 203 dpi (8 dots/mm) |
| Maximum print speed | 8 inches per second (ips) |
| Maximum print width | 4.09 inches (104 mm) |
| Memory | 8 MB flash memory, 16 MB SDRAM |
| Interface | USB 2.0, Parallel port |
| Supported barcode symbologies | Code 39, Code 128, UPC, EAN, PDF417, QR Code, and others |
| Operating temperature | 5 to 40 °C (41 to 104 °F) |
| Dimensions (W x D x H) | 253 x 418 x 278 mm |
| Power supply | AC 100-240V, 50/60 Hz |
Images
Key Advantages
The B-SX4T offers robust construction suitable for industrial environments, minimizing downtime from hardware failures.
Its high print speed significantly boosts productivity in large volume labeling tasks.
Compatibility with multiple barcode symbologies enhances versatility across industries.
The printer supports various media types and sizes, providing flexible labeling options.
Easy-to-use controls and LCD display simplify operation and troubleshooting for end-users.
The integrated memory capacity allows for on-board storage of multiple label formats, optimizing print jobs and workflow.
Limitations
The printer lacks modern wireless connectivity options such as Wi-Fi or Bluetooth, limiting remote operation capabilities.
It may not support the latest RFID encoding technologies, reducing its use in advanced tracking systems.
Limited to USB and parallel ports, the connectivity options may require adapters for newer computer systems.
The device's user interface is dated compared to current touchscreen models, which could affect ease of use.
Replacement parts might be harder to find as the model is older and potentially discontinued.
Firmware updates and technical support may be limited due to the printer's age and legacy status.
FAQ
What types of media does the Toshiba B-SX4T support?
The B-SX4T supports a wide range of media including paper, synthetic labels, tags, and continuous rolls, compatible with both thermal transfer and direct thermal printing.
What is the maximum print speed of the B-SX4T?
It can print up to 8 inches per second, making it suitable for high-volume industrial applications.
Does the B-SX4T support wireless connectivity?
No, this model only supports USB and parallel port connections; it does not have built-in wireless capabilities.
Is the Toshiba B-SX4T still supported by Toshiba for repairs and updates?
The model is discontinued, so official support and firmware updates might be limited or unavailable.
Can the B-SX4T print barcodes and multi-language fonts?
Yes, it supports a variety of barcode standards and includes built-in font options with multi-language character set support.
What is the print resolution of the B-SX4T printer?
The printer offers a resolution of 203 dpi (8 dots/mm), sufficient for clear and precise barcode and text printing.
Are replacement parts and accessories available for the B-SX4T?
While the model is discontinued, some third-party suppliers may still provide compatible replacement parts and accessories.
