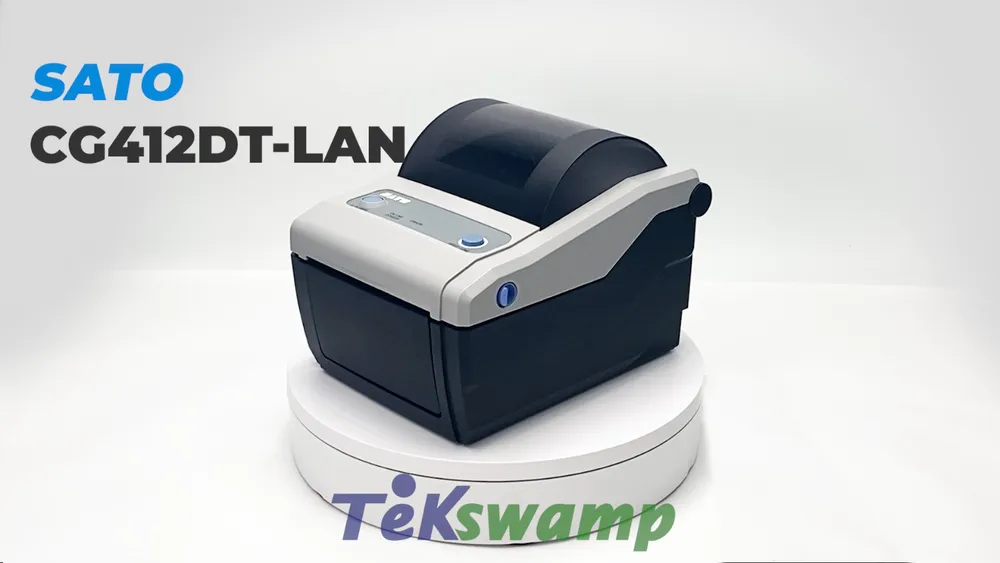

SATO CG412DT
Brand | SATO 2017 |
Model | Wwcg15041, cg412dt-lan, 305 dpi, 4x6 inch, barcode, ethernet, lan usb, shipping, windows, macos |
Released Year | 2017 |
Type | Printers |
Series | Cg |
Status | Active |
Quick view
Overview
The SATO CG412DT is a high-performance office electronics device designed primarily for barcode label printing. It offers a thermal direct printing method that supports a print resolution of 305 dpi, enabling high-quality, crisp barcode labels. With its maximum print size of 4x6 inches, it is ideal for shipping labels, inventory tags, and other labeling applications. The device is equipped with multiple connectivity options including Ethernet, LAN, and USB, allowing seamless integration with various network environments and operating systems such as Windows and macOS. Its embedded barcode technologies support various symbologies to meet different industrial standards and customer requirements. The printer firmware and software ecosystem provide flexibility in label design, management, and workflow optimization.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 128 MB RAM, 128 MB Flash |
MPN | WWCG15041, Sato CG412DT-LAN, 305 dpi, 4x6 Inch, Barcode, Ethernet, LAN USB, Shipping, Windows, MacOS |
Supported Paper Size | Max. Label Width: 4.21" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 300 x 300 DPI |
Model | CG412DT |
Connectivity | Ethernet, LAN, USB |
Features | Networkable, Portable |
Black Print Speed | 4 ips |
Product Line | SATO CG |
UPC | 071641645035 |
Release Year | 2017 |
Print Technology | Direct Thermal |
Maximum Print Resolution | 305 dpi |
Max Print Width | 4 inches |
Max Print Length | 6 inches |
Print Speed | Up to 6 inches per second |
Supported Operating Systems | Windows, macOS |
Barcode Symbologies | Code 128, Code 39, UPC, EAN, QR Code, Data Matrix |
Label Sensors | Gap, Black Mark, Continuous |
Dimensions (WxDxH) | 220mm x 370mm x 195mm |
Weight | Approx. 5.5 kg |
Power Supply | 100-240V AC, 50/60 Hz |
Certifications | CE, FCC, UL |
Software | SATO Label Design Software compatible |
Images
Key Advantages
The SATO CG412DT offers exceptional print clarity with its 305 dpi resolution, ensuring barcode accuracy and scan reliability. Its multi-interface support including Ethernet, LAN, and USB enhances compatibility and installation flexibility. The printer supports robust label sizes up to 4x6 inches, suitable for a wide range of shipping and inventory needs. The device is engineered for durability and consistent performance in busy office environments. It supports cross-platform compatibility with Windows and macOS, facilitating easy integration into diverse IT infrastructures. Additionally, SATO’s label design software and firmware improve productivity by simplifying customization and label print management.
Limitations
While the CG412DT provides excellent print quality, it is limited to direct thermal printing and does not support thermal transfer, which restricts label longevity when exposed to heat or sunlight. The device's size, although suitable for office use, might be less compact compared to some modern portable printers. It may require occasional manual calibration to maintain optimal print performance. Its proprietary software and firmware may have compatibility constraints with some third-party label design tools. Network setup complexity could present challenges for less experienced users. Lastly, as a device released several years ago, newer technologies such as wireless or Bluetooth connectivity are not supported.
FAQ
What printing technology does the SATO CG412DT use?
The SATO CG412DT utilizes direct thermal printing technology, which prints by applying heat to thermal paper.
What are the connectivity options available on the CG412DT?
This model supports Ethernet, LAN, and USB connectivity options to connect with various computer systems and networks.
Can the CG412DT printer be used with macOS?
Yes, the printer is compatible with macOS as well as Windows operating systems.
What is the maximum print resolution and label size supported?
It supports a print resolution of 305 dpi and can print labels up to 4x6 inches in size.
Is thermal transfer printing supported on the CG412DT?
No, the CG412DT supports only direct thermal printing and does not support thermal transfer.
What types of barcodes can this printer generate?
The CG412DT supports multiple barcode symbologies including common types such as Code 128, Code 39, UPC, EAN, and QR codes.
Is the CG412DT still available for purchase?
The device is not discontinued and is still available through authorized dealers and distributors.
