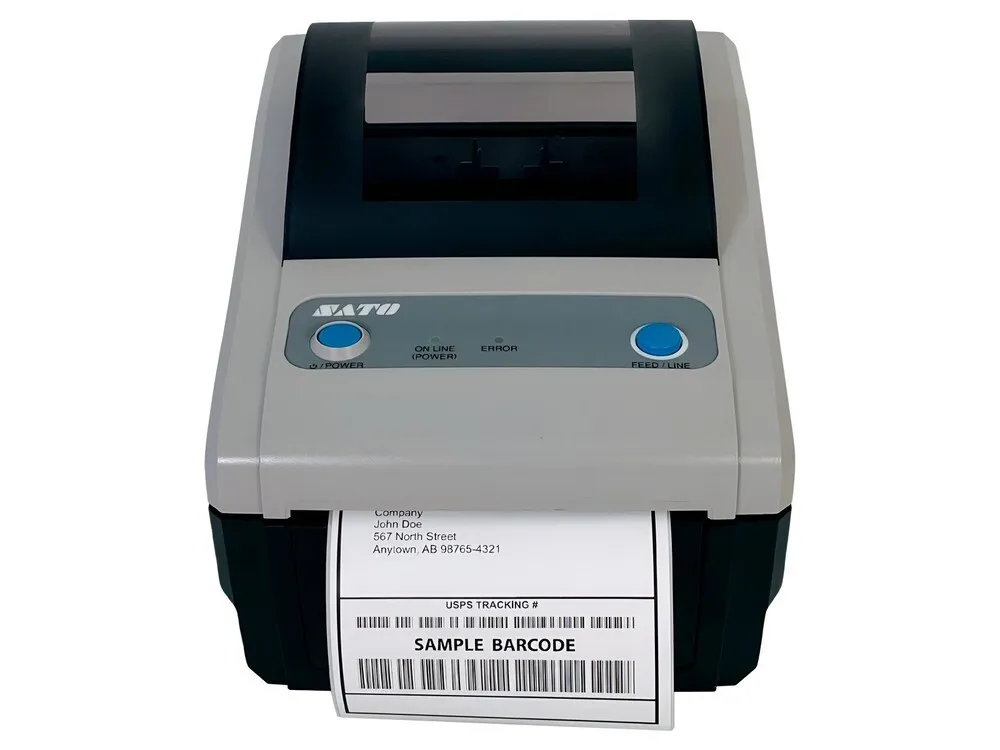

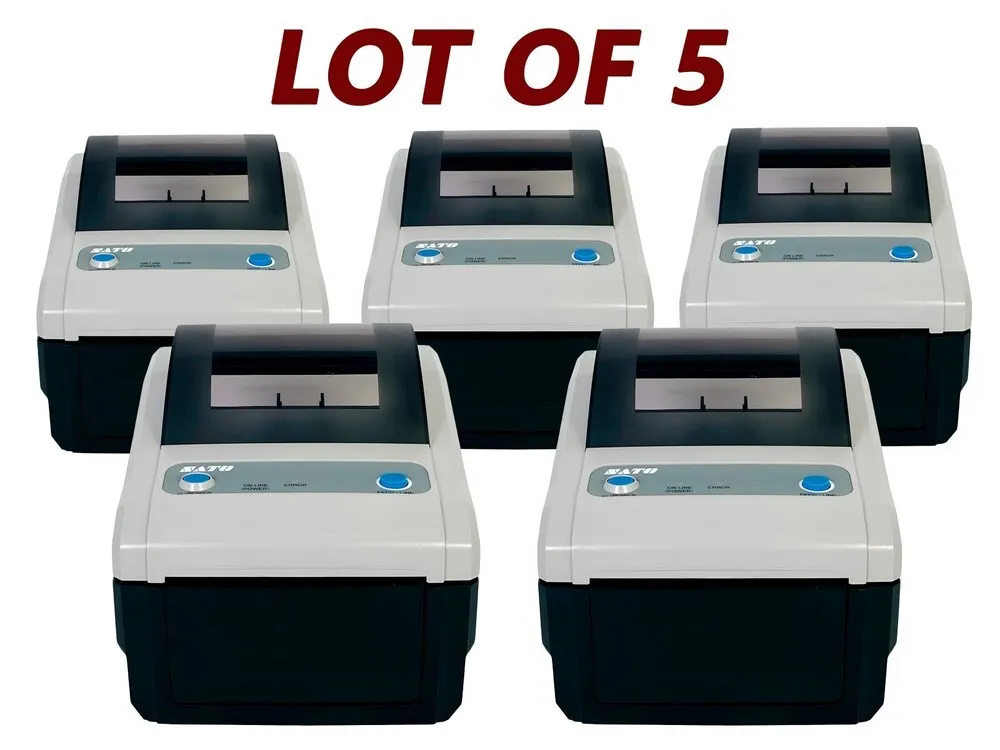

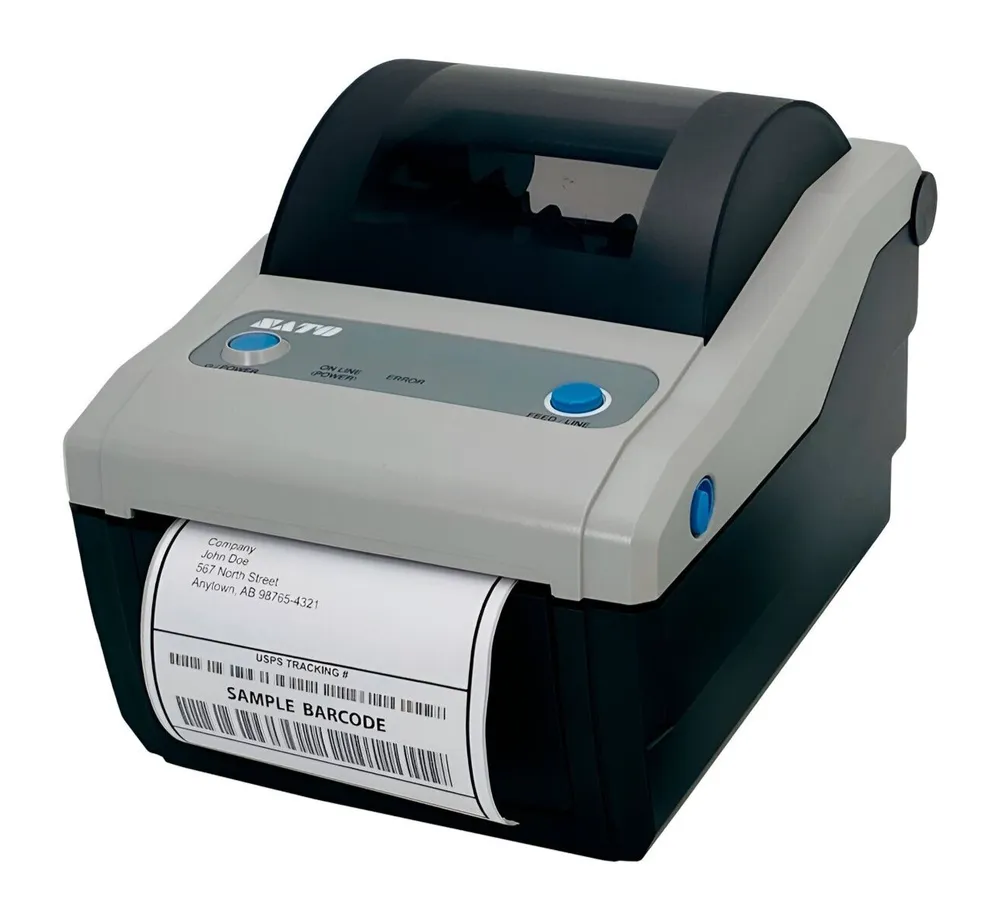

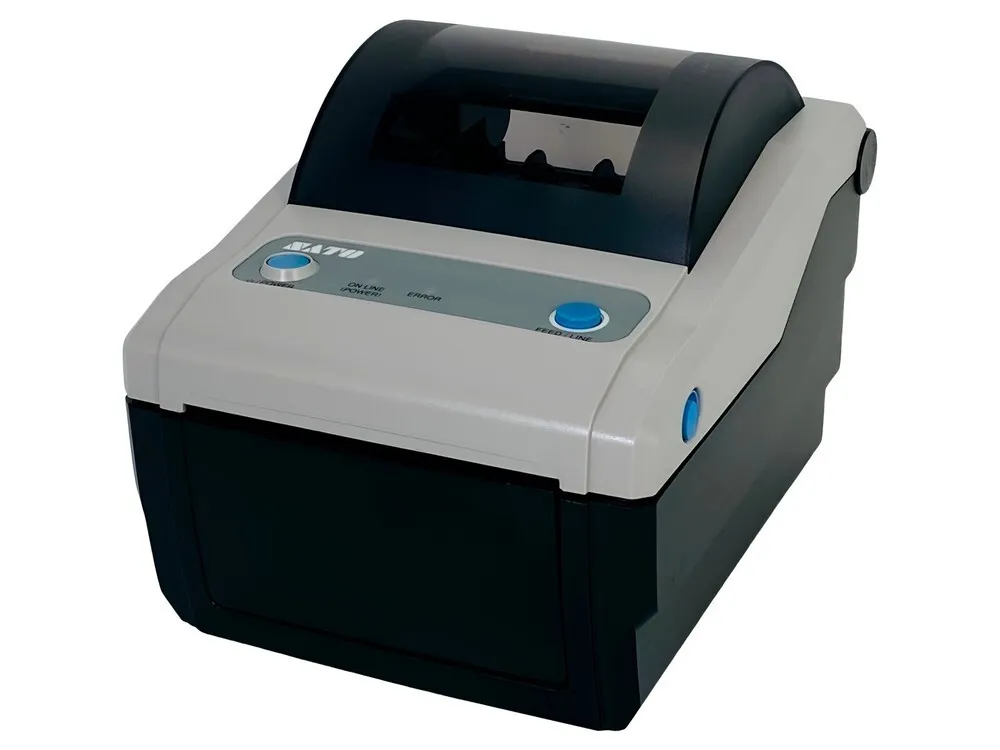

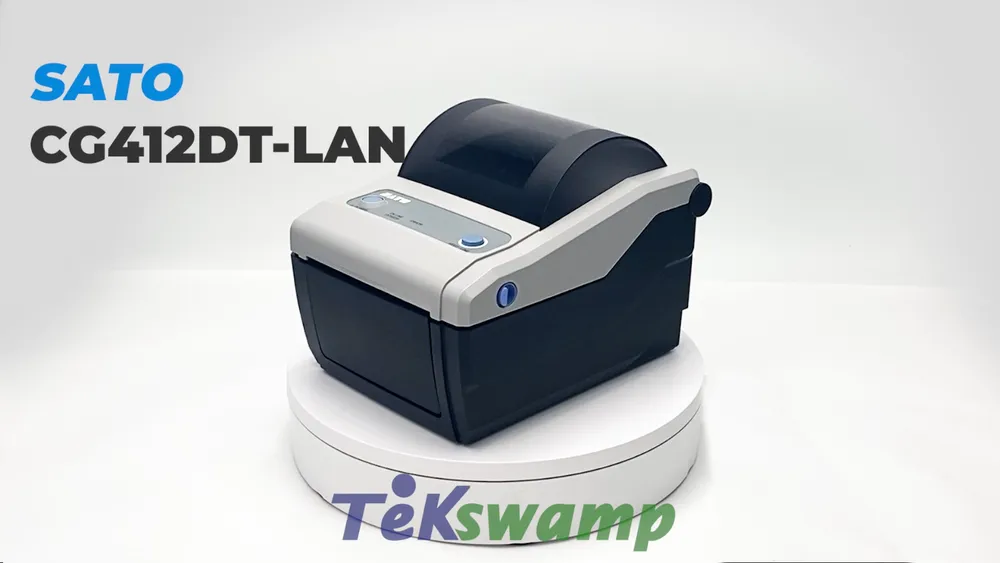

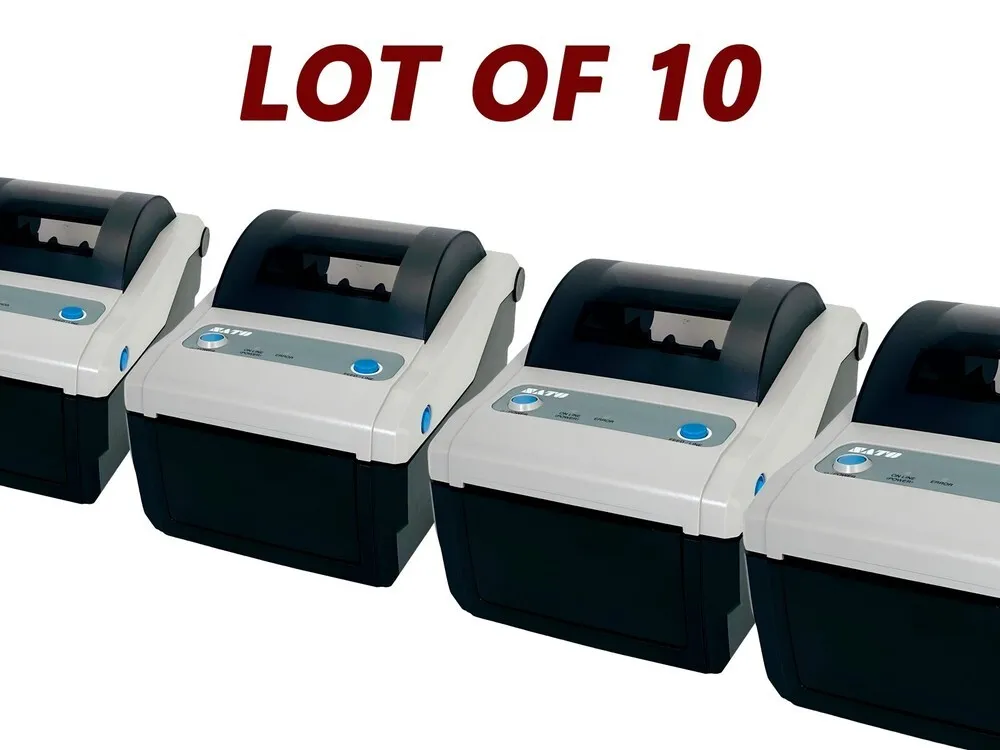

SATO CG412DT
Brand | SATO 2010 |
Model | Wwcg15041, 305 dpi, 4x6 inch, network, cg412dt-lan, ethernet |
Released Year | 2010 |
Type | Printers |
Series | Cg |
Status | Discontinued |
Quick view
Overview
The SATO CG412DT is a high-performance thermal transfer label printer designed for industrial and commercial office environments. It features a print resolution of 305 dots per inch (dpi), ensuring crisp and clear print quality for barcode labels and other graphics. Supporting media sizes up to 4x6 inches, this model is ideal for standard label printing applications. The printer incorporates a built-in Ethernet interface (CG412DT-LAN), allowing seamless integration into existing network infrastructures. The device supports multiple printing languages and protocols, enhancing compatibility with various software and systems. Its robust construction and user-friendly features make it a reliable choice for continuous label printing operations.
The printer utilizes thermal transfer technology which provides durable, smear-resistant printouts suitable for long-term use. It supports a print speed up to approximately 6 inches per second, balancing quality and efficiency. The device's firmware supports industry-standard languages such as SBPL, facilitating flexible communication with host systems. The ergonomic design includes simple media loading mechanisms and comprehensive status indicators for operational ease. Overall, the CG412DT is engineered for dependable networked label printing tasks in mid to high-volume environments.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 8 MB Flash, 8 MB SDRAM |
MPN | WWCG15041, 305 dpi, 4x6 Inch, Network, SATO CG412DT-LAN, Ethernet |
Supported Paper Size | Max. Label Width: 4.21" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 300 x 300 DPI |
Model | CG412DT |
Connectivity | Ethernet (CG412DT-LAN), USB 2.0 |
Features | Portable |
Black Print Speed | 4 ips |
Product Line | SATO CG |
UPC | 071641645035 |
Print Resolution | 305 dpi |
Print Technology | Thermal Transfer |
Maximum Label Width | 4 inches (102 mm) |
Maximum Label Length | 6 inches (152 mm) |
Print Speed | Up to 6 inches per second |
Media Types Supported | Labels, Tags, Continuous media |
Power Supply | External power adapter 100-240 VAC |
Dimensions | Approx. 230 mm x 287 mm x 185 mm (W x D x H) |
Weight | Approx. 4.2 kg |
Supported Printer Languages | SBPL, ESC/POS compatibility |
Operating Temperature | 5 to 40 °C |
Humidity | 20-85% non-condensing |
Driver Support | Windows, Linux |
Label Peel-Off | Optional peel-off module available |
Display | LCD status display |
Images
Key Advantages
The CG412DT offers high print resolution at 305 dpi, delivering professional-grade label quality. Its built-in Ethernet connectivity enables smooth network integration for centralized management. The printer supports multiple label sizes up to 4x6 inches, providing versatility for various labeling needs. Robust thermal transfer technology ensures longevity and resistance of printed labels. User-friendly media handling and clear status indicators reduce downtime and simplify operation. Additionally, compatibility with common printer languages enhances interoperability with different systems and applications.
Limitations
The CG412DT is primarily designed for 4x6 inch media sizes, limiting use with larger label formats. It may lack some advanced features found in newer models such as wireless connectivity or touchscreen interfaces. Print speed, while adequate, may be slower compared to higher-end industrial printers for very high volume needs. The printer's size and weight might be less ideal for mobile or space-constrained environments. Firmware updates and driver support could be less frequent due to the model's age. Some users may find the device's setup and configuration process somewhat complex without technical assistance.
FAQ
What is the maximum print resolution of the SATO CG412DT?
The maximum print resolution of the SATO CG412DT is 305 dpi, which provides sharp and clear label printing.
Does the CG412DT support Ethernet networking?
Yes, the CG412DT includes an Ethernet interface (CG412DT-LAN) allowing it to connect to networks for shared printing.
What is the largest label size this printer can handle?
It supports label media sizes up to 4 inches by 6 inches.
Is this printer discontinued?
Yes, the SATO CG412DT model has been discontinued and replaced by newer technologies.
What printing technology does the CG412DT use?
This printer uses thermal transfer printing technology for durable and long-lasting printed labels.
Can the CG412DT print barcodes and graphics?
Yes, with its 305 dpi resolution, it is capable of printing high-quality barcodes and detailed graphics.
Which printer languages are supported by the CG412DT?
The CG412DT supports standard printer languages such as SBPL (SATO Barcode Programming Language) for flexible integration.
