SATO CG208DT-LAN
Brand | SATO 2016 |
Model | WWTH21521, Standalone, Portable |
Released Year | 2016 |
Type | Printers |
Series | Cg |
Printing Technology | Direct Thermal |
Status | Active |
Quick view
Overview
The SATO CG208DT-LAN is a compact, standalone portable printer designed for versatile office and industrial applications. It utilizes Direct Thermal printing technology, eliminating the need for ink or toner cartridges and enabling lower maintenance. The device supports fast printing speeds up to 102mm per second, accommodating high-volume and on-demand label and receipt printing. Connectivity is enhanced with LAN interface support, allowing easy integration into existing network systems for real-time data transmission. Its lightweight and robust design make it suitable for mobile usage without compromising durability, supported by an intuitive LCD display for operational feedback. The printer supports standard media widths up to 58mm, optimizing for small form-factor printing requirements.
Technically, it operates with a 32-bit RISC CPU for accelerated data processing and supports various barcode symbologies and fonts suited for diverse labeling tasks. Its battery-powered option ensures portability, and the modular design supports multiple accessory attachments and system upgrades.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
MPN | WWTH21521, Standalone, Portable |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Supported Paper Size | Max. Label Width: 2.4" |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 203 x 203 DPI |
Model | CG208DT-LAN |
Connectivity | LAN (Ethernet 10/100 Base-T) |
Features | Portable |
Black Print Speed | 4 ips |
Product Line | SATO CG |
Device Type | Portable Office Printer |
Printing Technology | Direct Thermal |
Print Speed | Up to 102 mm/sec |
Max Print Width | 58 mm |
Resolution | 203 dpi (8 dots/mm) |
CPU | 32-bit RISC |
Memory | 8 MB Flash / 16 MB SDRAM |

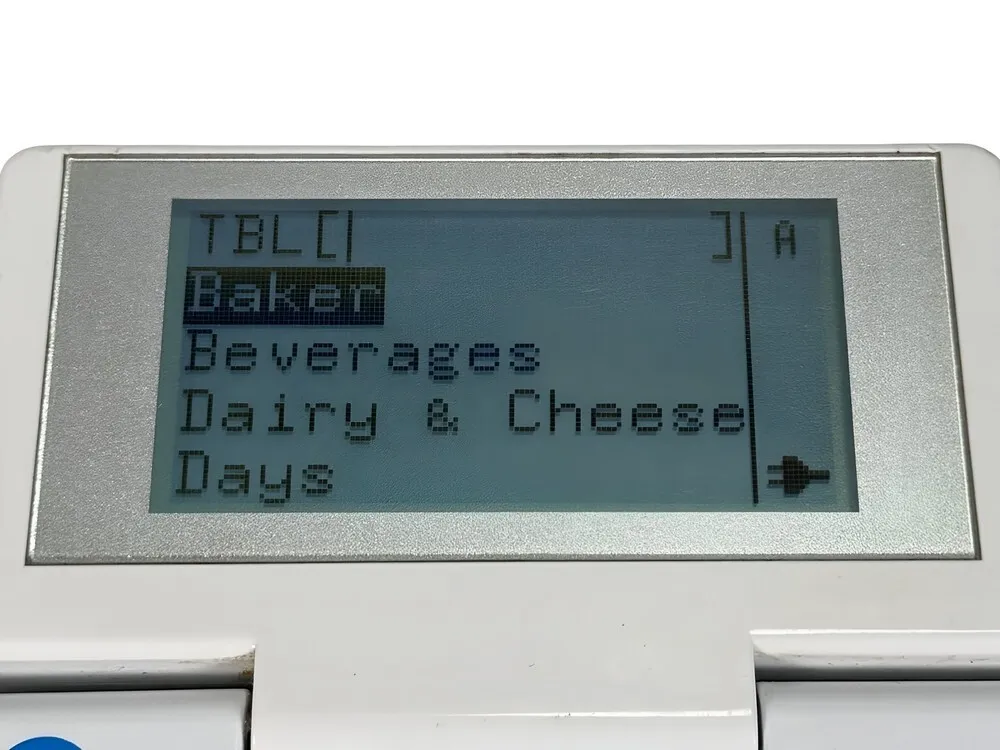

Display | LCD screen for status and configuration |
Power Source | Rechargeable Battery and DC Adapter |
Weight | Approximately 1.4 kg |
Dimensions | 170 mm (W) x 130 mm (D) x 70 mm (H) |
Supported Media Types | Thermal paper labels, receipts |
Barcode Symbologies | Code 39, Code 128, EAN, UPC, QR Code, Data Matrix |
Operating Temperature | 0°C to 40°C |
Storage Temperature | -20°C to 60°C |
Humidity | 10% to 90% non-condensing |

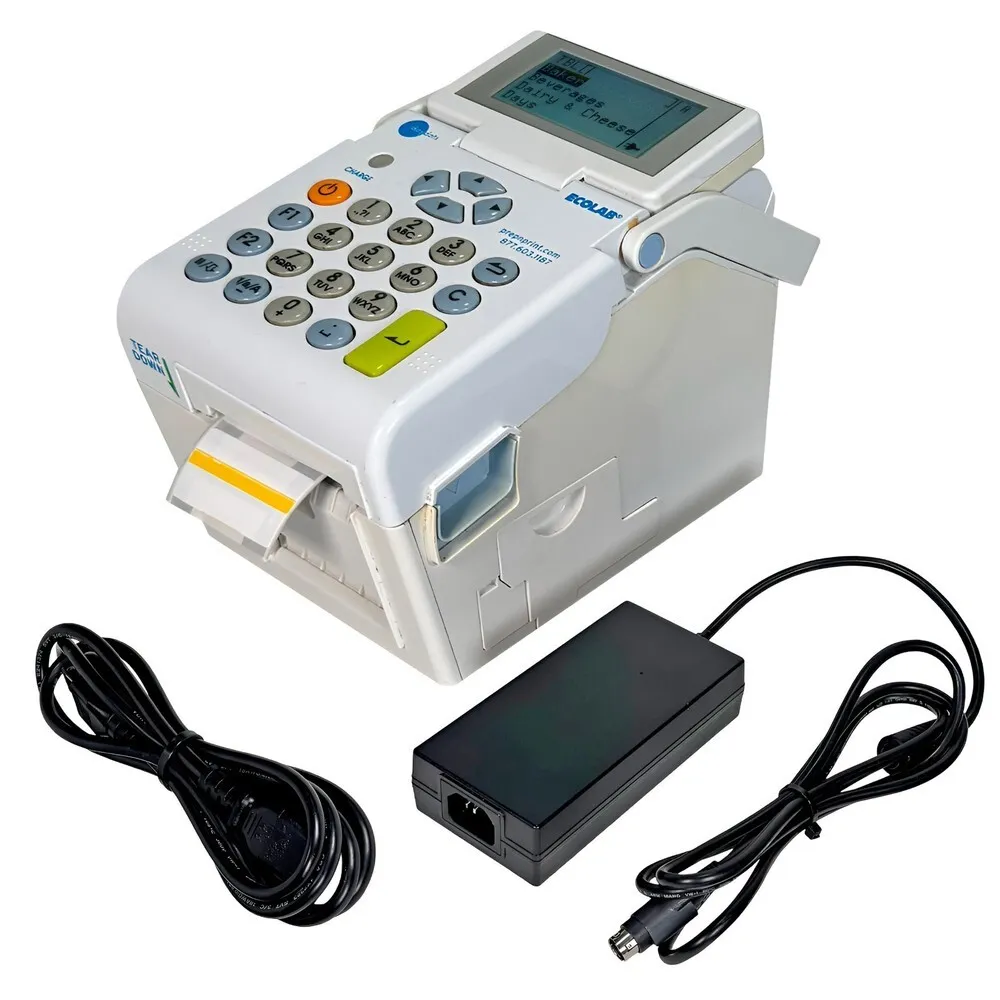

Accessories | Battery charger, AC adapter, carrying case |

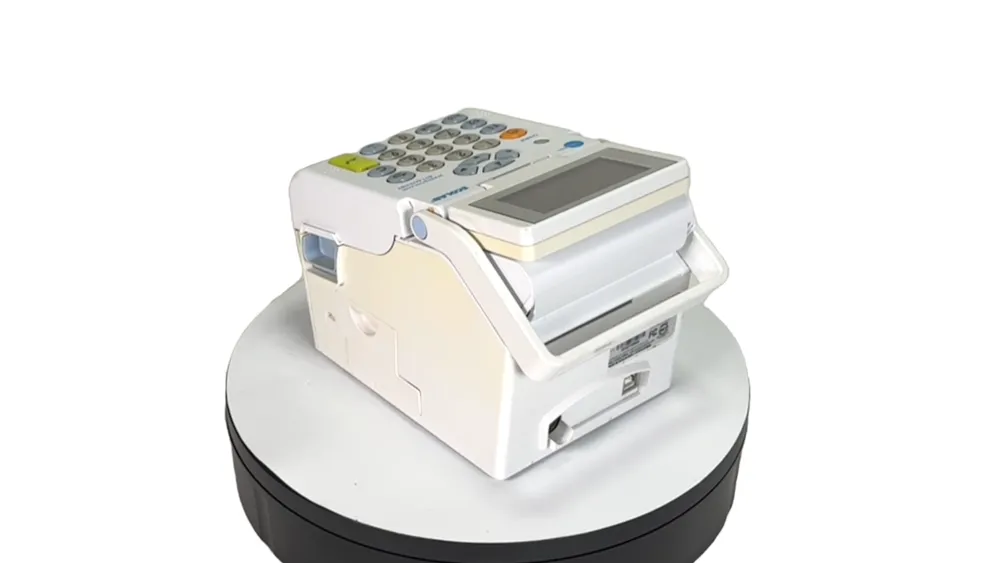

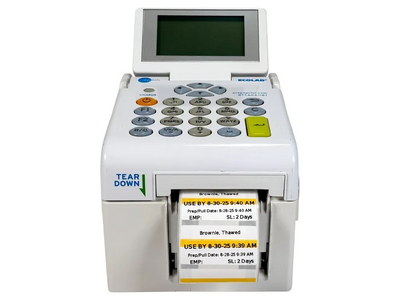

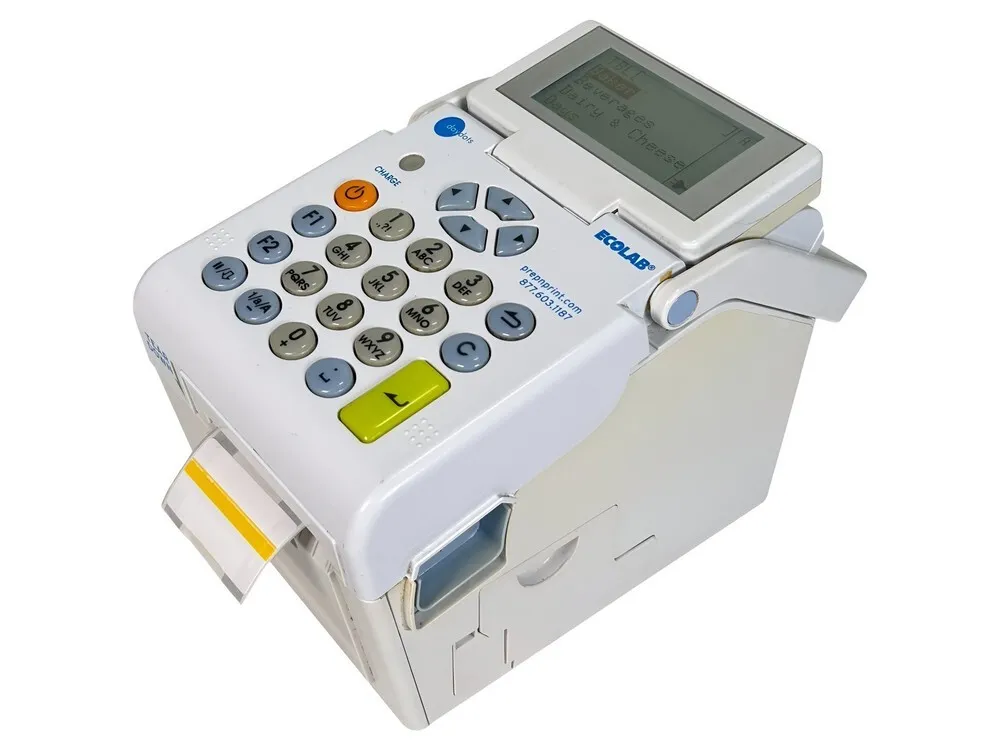

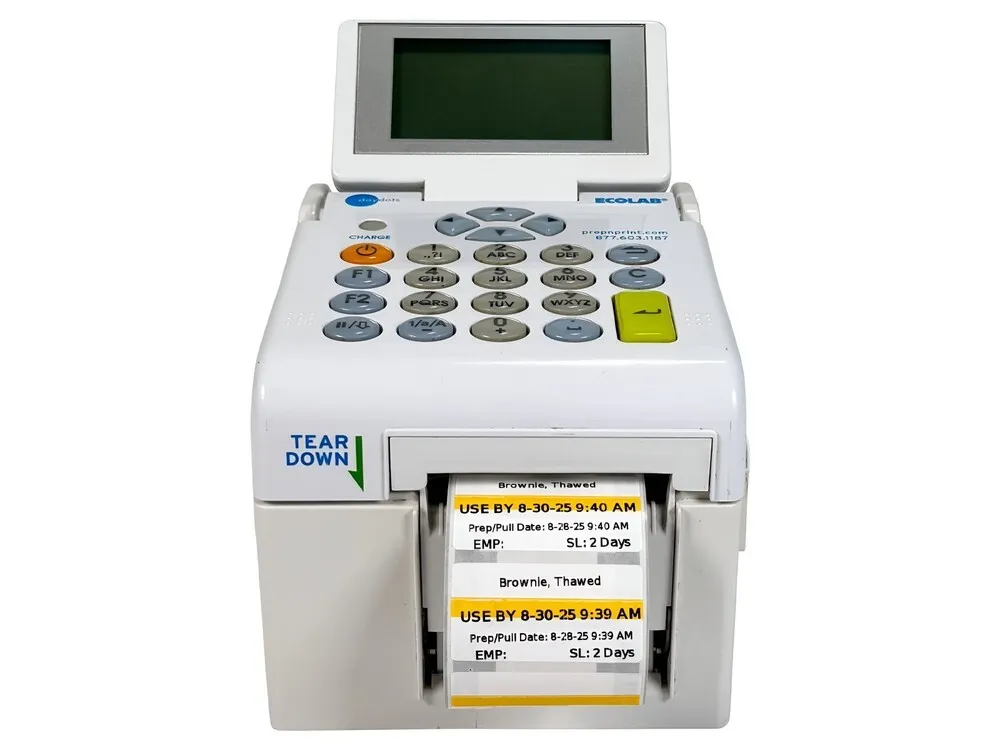

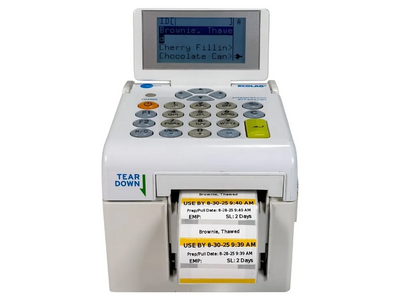

Images
Key Advantages
The CG208DT-LAN offers outstanding portability with an integrated battery, allowing printing on the go without external power. Its direct thermal technology reduces consumable costs and simplifies maintenance by avoiding ribbons or toner replacements. The built-in LAN connectivity enhances operational flexibility by enabling seamless network access and remote printer management. With fast print speeds, it increases efficiency in high-demand environments. The device’s robust construction ensures reliable performance in various working conditions, complemented by an easy-to-use interface featuring an LCD screen. Additionally, the printer supports diverse media types and widths, catering to numerous labeling and receipt printing needs.
Limitations
The CG208DT-LAN relies exclusively on direct thermal printing, which limits media longevity as thermal paper can fade over time compared to thermal transfer printing. Its print width is capped at 58mm, which might be restrictive for larger label applications. Battery life, while sufficient for portable use, may require frequent recharging in intensive operational scenarios. The device lacks wireless connectivity options like Wi-Fi or Bluetooth, potentially limiting some mobile integration use cases. The relatively modest memory capacity might constrain large or complex print jobs. Furthermore, the printer’s standalone configuration may require additional accessories or software for full integration into complex IT systems.
FAQ
What printing technology does the SATO CG208DT-LAN use?
The CG208DT-LAN uses direct thermal printing technology, which prints by applying heat to heat-sensitive media.
Can the CG208DT-LAN connect to a network?
Yes, the printer includes LAN connectivity allowing network integration for remote printing and management.
Is the SATO CG208DT-LAN battery powered?
Yes, it features an integrated rechargeable battery, making it suitable for portable and mobile printing tasks.
What is the maximum print speed of the CG208DT-LAN?
The printer can achieve print speeds up to 102 millimeters per second.
What is the maximum media width supported?
The device supports media widths up to 58 millimeters.
Does the printer support wireless connections such as Wi-Fi or Bluetooth?
No, the CG208DT-LAN does not provide Wi-Fi or Bluetooth connectivity options.
Is the SATO CG208DT-LAN still in production?
As of now, the CG208DT-LAN is not discontinued and remains available in the market.
