OKI Microline 320 image

OKI Microline 320

Quick information
Brand OKI 1996
Model ML320TURBOD
Released Year 1996
Type Printers
Printing Technology 9-pin dot matrix impact
Status Discontinued
Quick view

Overview

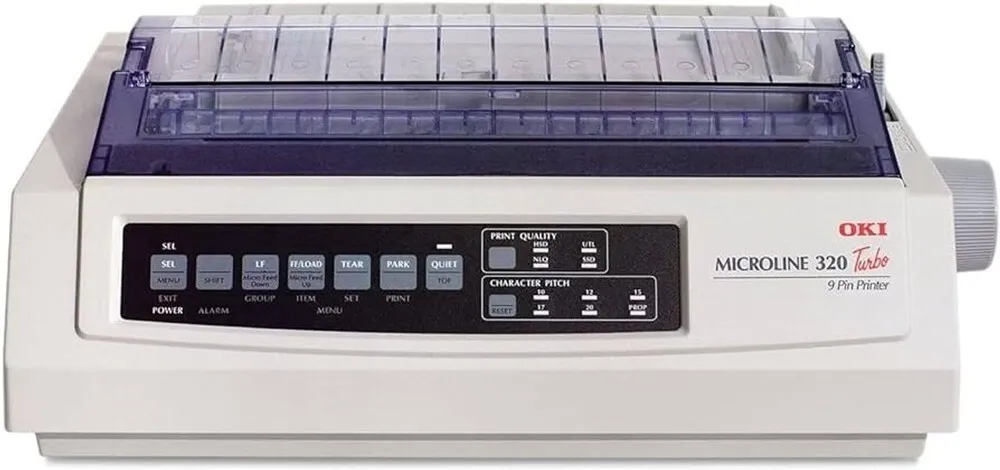

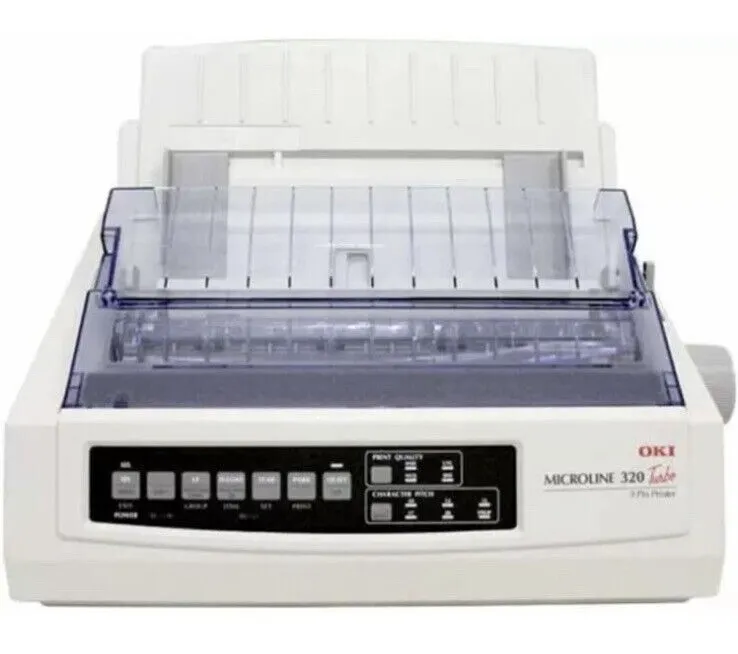

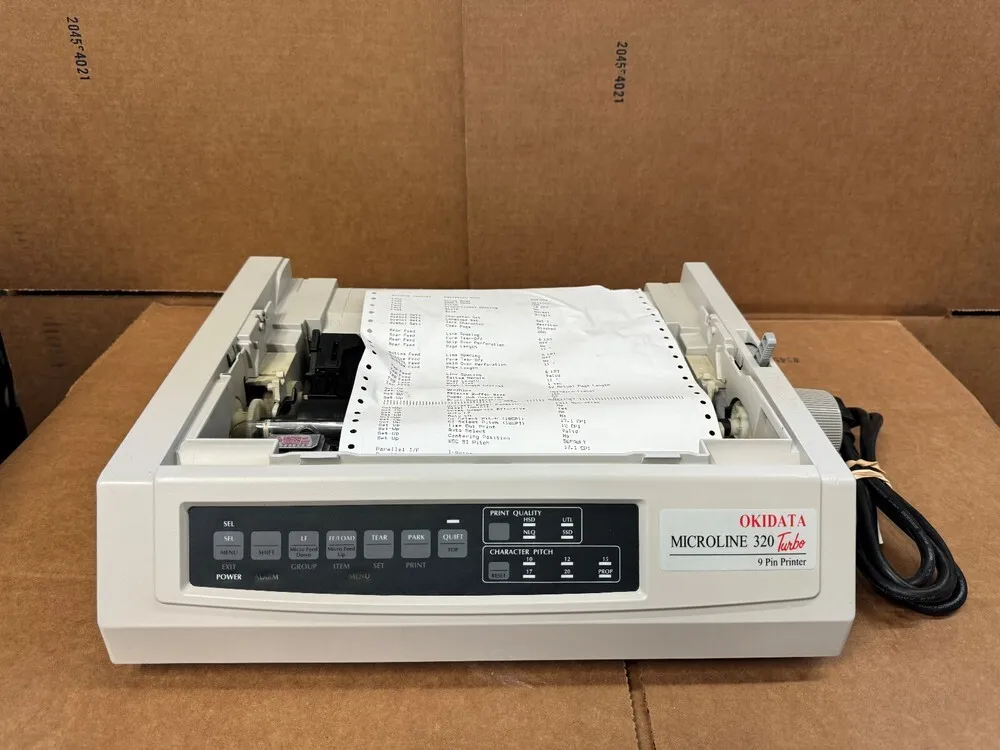

The OKI Microline 320 is a dot matrix impact printer designed for office use, specifically optimized for forms and multipart printing. It features a 9-pin print head delivering 240 cps speed and resolution up to 240 x 216 dpi. The printer supports continuous-form and single-sheet paper feeding, utilizing a tractor feed mechanism for reliable paper handling. Connectivity includes parallel and serial interface options for versatile integration with legacy systems. The built-in buffer memory allows efficient data processing, enhancing overall throughput. Its rugged design ensures durability for high volume printing environments.

Specifications

MPN ML320TURBOD
UPC 0051851440125, 005185144042
Model Microline 320
Technology Dot Matrix
Connectivity Parallel (IEEE 1284), USB 1.0/1.1
Output Type Black & White
Type Standard Printer
Extend Printer Technology Dot Matrix
Max Resolution (Bw) 240x216DPI
Black Print Speed 435chars/Sec
Printing Technology 9-pin dot matrix impact
Print Speed Approx. 240 characters per second
Print Resolution 240 x 216 dpi
Interfaces Parallel (IEEE 1284), Serial (RS-232C)
Paper Handling Continuous forms with tractor feed, single sheet capability
Character Sets ASCII, IBM, various international code pages
Memory Built-in buffer memory approx. 1 KB
Dimensions Approx. 435 x 276 x 193 mm
Weight Approx. 7.4 kg
Power Supply AC 110-120V or 220-240V auto switch
Noise Level Approximately 56 dB(A)
Operating Systems Supported DOS, Windows 3.x/95 via drivers (limited modern support)

Key Advantages

The Microline 320 offers excellent print durability due to its impact technology, suitable for multipart forms. It provides versatility with multiple interface options including parallel and serial ports. The printer supports a variety of paper types including continuous tractor-fed forms, making it highly flexible. Its competitive print speed of approximately 240 cps helps reduce print job times. The device's simple mechanism and fewer moving parts contribute to a low maintenance requirement and longer lifespan. Additionally, availability of compatible spare parts and accessories supports field servicing and longevity.

Limitations

Being an impact printer, the Microline 320 produces lower print resolution compared to modern inkjet or laser printers, limiting graphic quality. The noise level during operation is higher relative to quieter thermal or laser technologies. It mainly supports monochrome printing, restricting color document needs. Limited internal memory and printing speed may not meet the demands of high-volume, fast-paced modern office environments. The printer requires continuous tractor-fed papers, limiting the use of standard cut-sheet paper formats. Additionally, the technology is largely outdated, making driver compatibility with current operating systems challenging.
