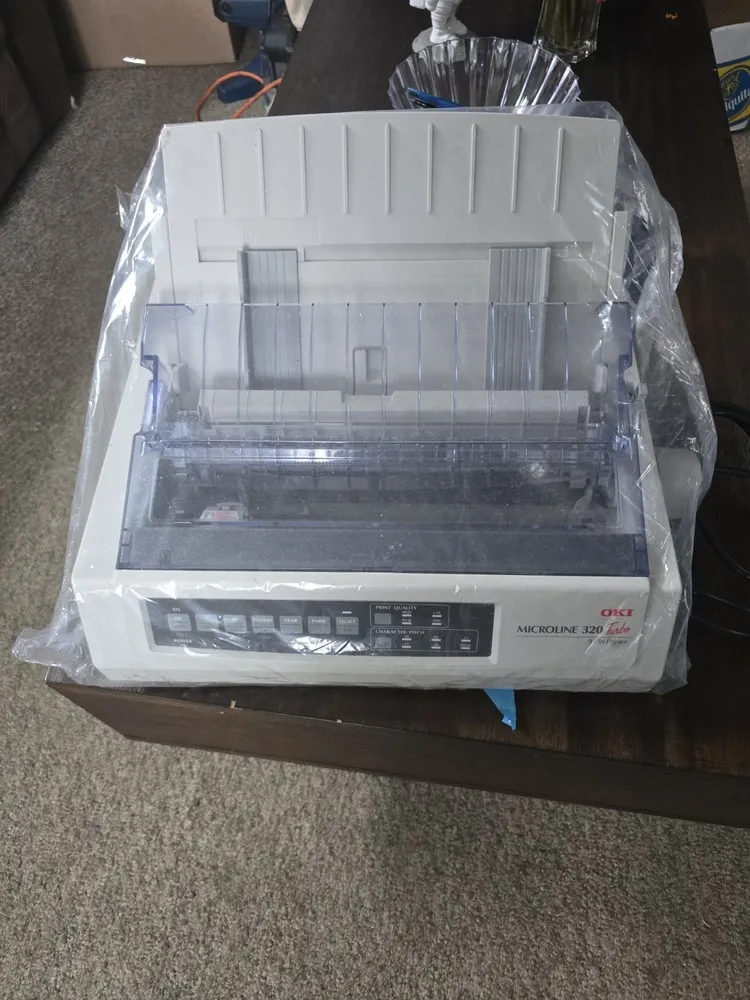

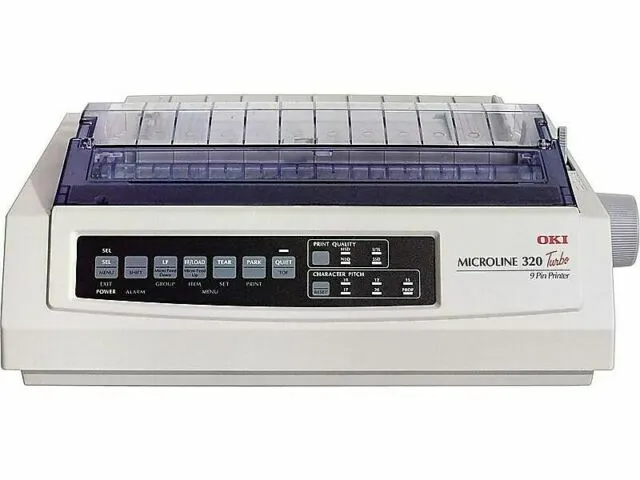

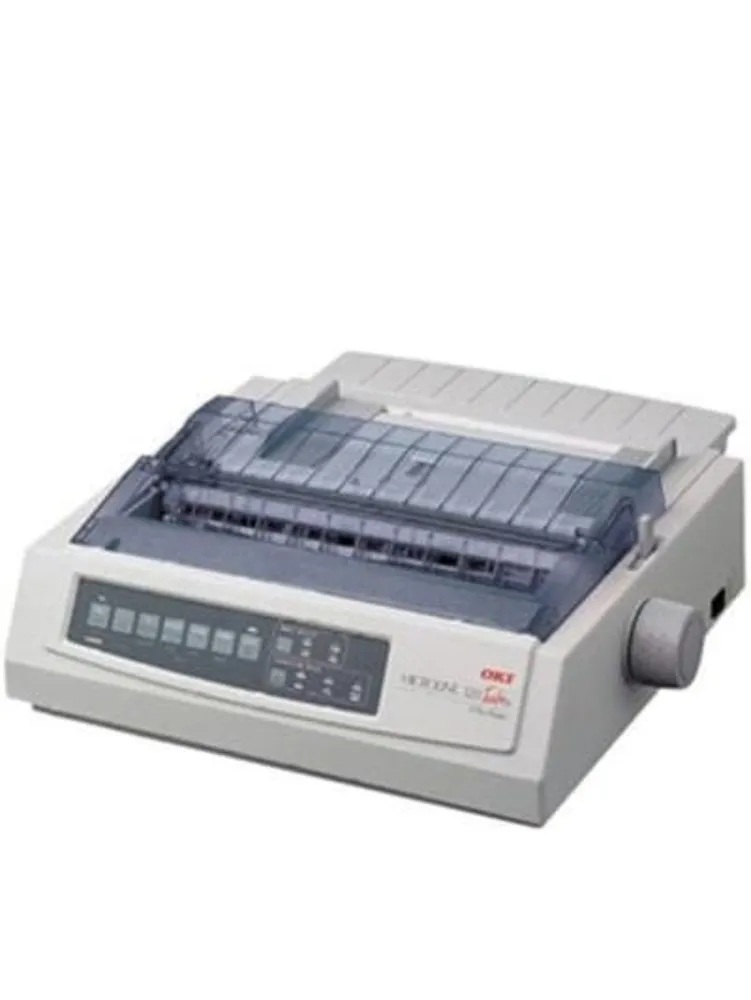

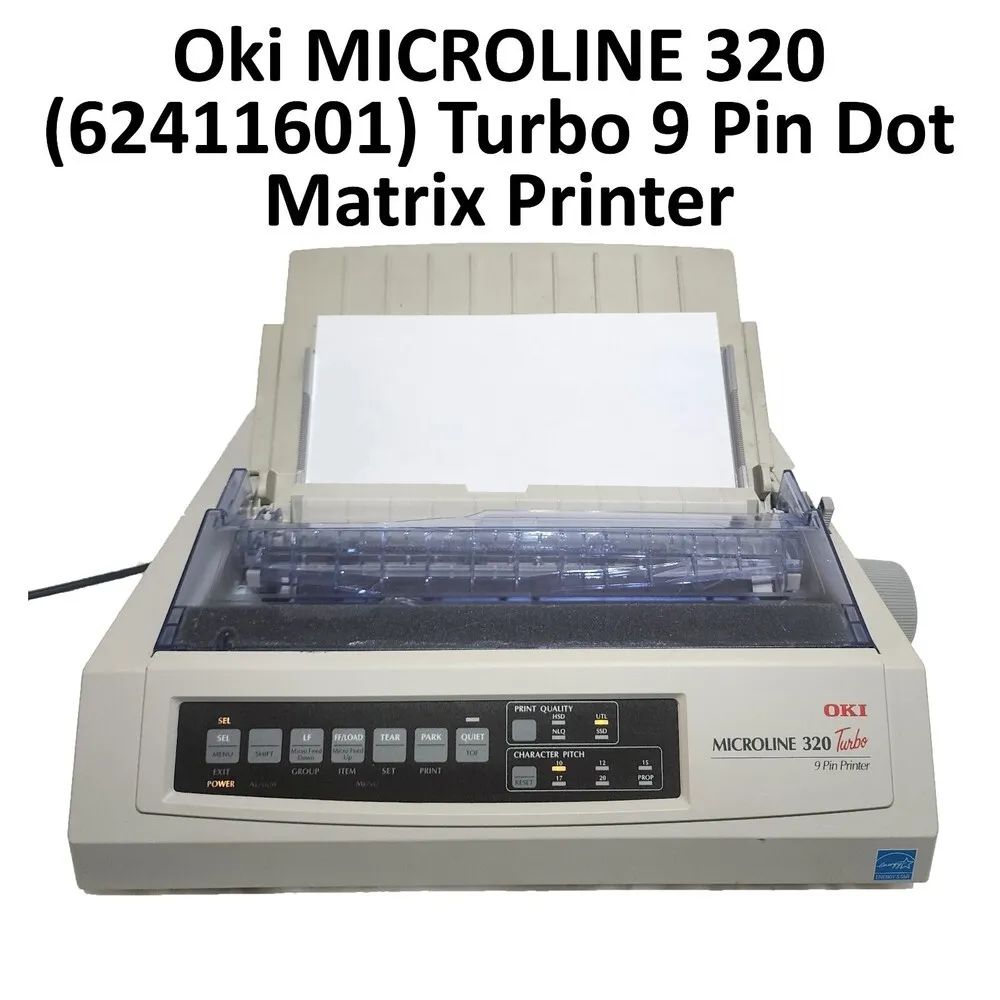

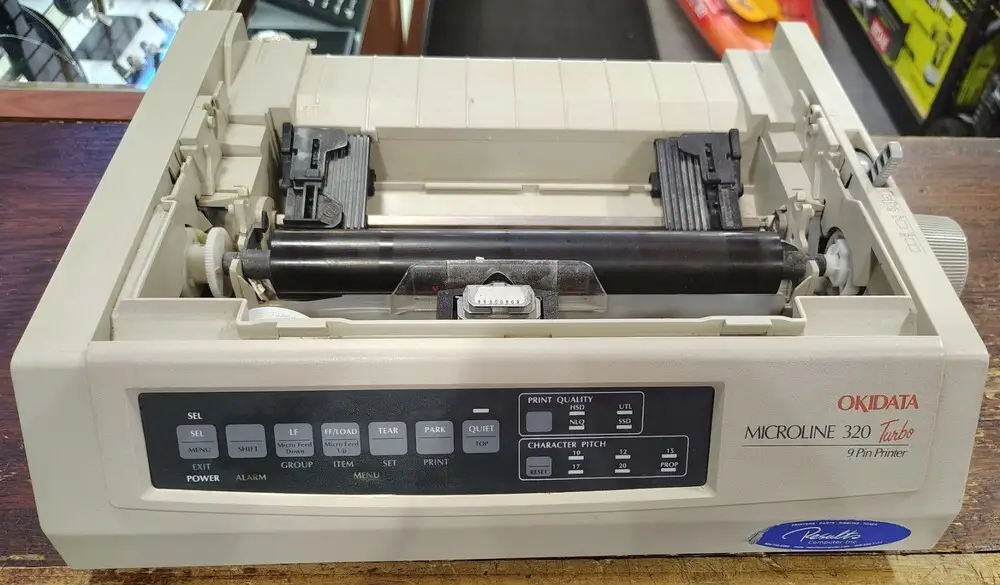

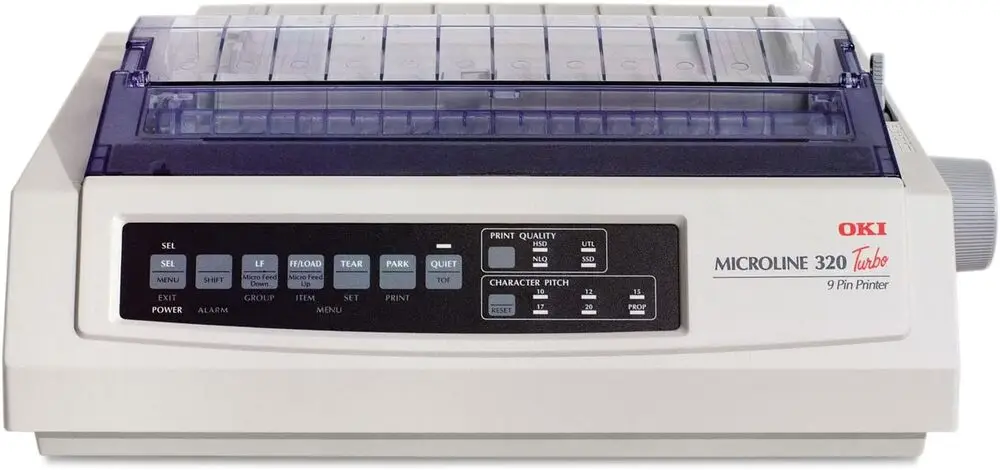

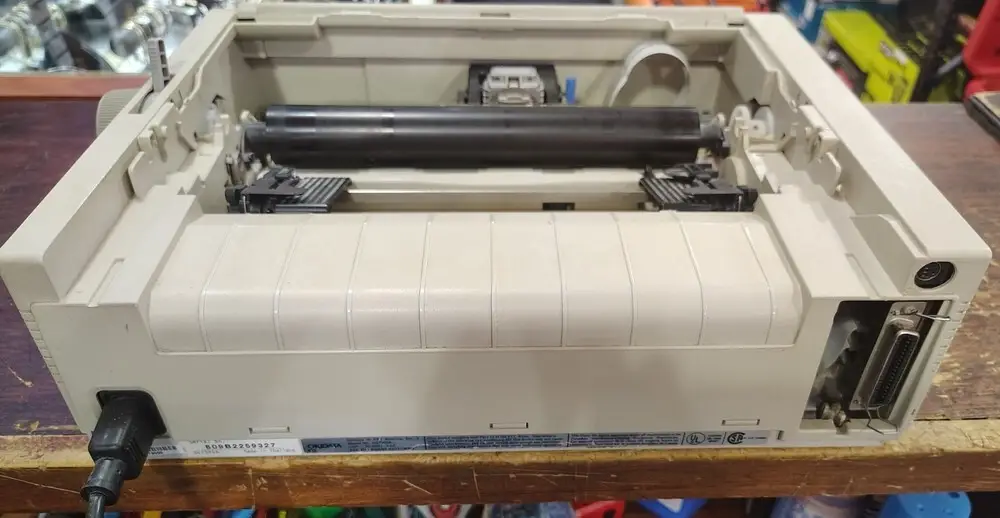

OKI 320 TURBO
Brand | OKI 1998 |
Model | 91907101 |
Released Year | 1998 |
Type | Printers |
Series | Microline |
Printing Technology | 9-pin impact dot matrix |
Status | Discontinued |
Quick view
Overview
The OKI Microline 320 Turbo is a robust 9-pin impact dot matrix printer designed primarily for office environments requiring reliable continuous-form printing. It delivers a high-speed printing performance with speeds up to 435 characters per second, optimized for business printing needs. Engineered with a serial interface alongside parallel and USB connectivity options, it ensures versatile compatibility with legacy and modern systems. The printer supports multiple form types including single-sheet and multi-part carbon copies, offering adaptability in various document handling scenarios. Featuring a rugged construction with a durable print head, the 320 Turbo is tailored for continuous and heavy-duty applications. Additionally, it incorporates emulation modes such as Epson ESC/P, enhancing its interoperability in mixed-device settings.
This model’s print mechanism harnesses wire impact printing technology, enabling clear, sharp outputs on various media types. Its tractor feed design supports wide paper widths and different thicknesses, crucial for forms and invoices. The device’s control panel and software driver suite facilitate straightforward operation and configuration, enabling efficient print job management in office workflows.
Specifications
Grayscale Depth | 8 Bit |
Maximum Resolution | 240 x 216 DPI |
Scanning Resolution | 200x200 DPI |
Country/Region of Manufacture | Thailand |
California Prop 65 Warning | Yes |
Supported Paper Size | A4 (210 x 297 mm), A5 (148 x 210 mm) |
UPC | 0051851440538 |
Input Type | Monochrome |
Output Type | Black & White |
MPN | 91907101 |
Item Length | 15.7in. |
Type | Dot Matrix |
Technology | Dot Matrix |
Item Height | 5.8in. |
Model | 320 TURBO |
Connectivity | Cable, Parallel (IEEE 1284), USB 1.0/1.1 |
Features | Copier |
Black Print Speed | 435 CPS |
Item Width | 13.6in. |
Product Line | OKI Microline |
GTIN | 0051851440538 |
Printing Technology | 9-pin impact dot matrix |
Print Speed | Up to 435 characters per second (cps) |
Print Resolution | 240 x 144 dpi (approximate impact quality) |
Interfaces | Serial (RS-232), Parallel (IEEE1284), USB |
Paper Handling | Continuous tractor-fed paper, multi-part forms up to 5 copies |
Emulation | Epson ESC/P compatible |
Operating Voltage | AC 100-120V or AC 220-240V (depends on region) |
Dimensions (WxDxH) | Approx. 12.6 x 6.2 x 4.7 inches (320 x 158 x 120 mm) |
Weight | Approx. 4.5 kg |
Noise Level | Approx. 58 dB(A) |
Memory | Approx. 128 KB buffer |
Duty Cycle | High - designed for continuous heavy use |
Driver Support | Windows (legacy), DOS, and limited UNIX support |
Images
Key Advantages
The OKI Microline 320 Turbo offers exceptional printing speeds for a 9-pin dot matrix printer, significantly reducing document processing times. Its compatibility with multiple legacy and modern interfaces enhances integration flexibility within diverse IT infrastructures. The ability to print multi-part forms up to 5 copies is instrumental for businesses requiring multiple document copies simultaneously. The printer's sturdy build quality ensures long operational life under continuous, heavy usage conditions. The support for Epson ESC/P emulation broadens the range of software compatibility without requiring reconfiguration. Lastly, the low operational noise level for an impact printer improves office environment comfort during extended use.
Limitations
Being an impact dot matrix printer, the OKI Microline 320 Turbo produces lower print resolution compared to modern laser and inkjet printers, limiting its suitability for high-quality graphics. The printing color capability is restricted to monochrome output, which is less ideal for color-dependent documents. Its reliance on continuous feed paper and tractor feeding mechanisms may not be convenient for standard cut-sheet office paper usage. The printer design and technology are somewhat outdated, potentially complicating driver support with newer operating systems. Limited onboard memory restricts the size and complexity of print jobs it can process efficiently. Lastly, the printer's physical size and weight reduce portability, making it better suited as a fixed workstation device.
FAQ
What type of printing technology does the OKI Microline 320 Turbo use?
The OKI Microline 320 Turbo uses 9-pin impact dot matrix printing technology, suitable for printing on multi-part forms and continuous paper.
Is the OKI Microline 320 Turbo still available for purchase?
No, the OKI Microline 320 Turbo has been discontinued and is generally only available through resellers or second-hand suppliers.
What interfaces does the OKI Microline 320 Turbo support?
It supports serial, parallel, and USB interfaces, allowing versatile connection options with various computer systems.
Can the OKI Microline 320 Turbo print color documents?
No, the printer produces monochrome output only, which is typical for impact dot matrix printers.
What kind of paper does the OKI Microline 320 Turbo use?
The printer uses continuous form paper with tractor feeding mechanism, suitable for multi-part carbonless paper and wide format documents.
Does the OKI Microline 320 Turbo support multiple copies printing?
Yes, it can print up to 5-part multi-copy forms in a single pass.
Is the OKI Microline 320 Turbo compatible with modern operating systems?
Driver support for modern operating systems may be limited; checking OKI's official website or legacy driver repositories is recommended.
