JetSet Label ZD410 image

JetSet Label ZD410

Quick information
Brand JetSet Label 2024
Model ZD410
Released Year 2024
Type Printers
Series ZD410
Item Weight 5.27 pounds
Maximum Color Print Resolution 203 x 203 DPI
Product Dimensions 8.6 x 4.5 x 6 inches
Status Active
Quick view

Overview

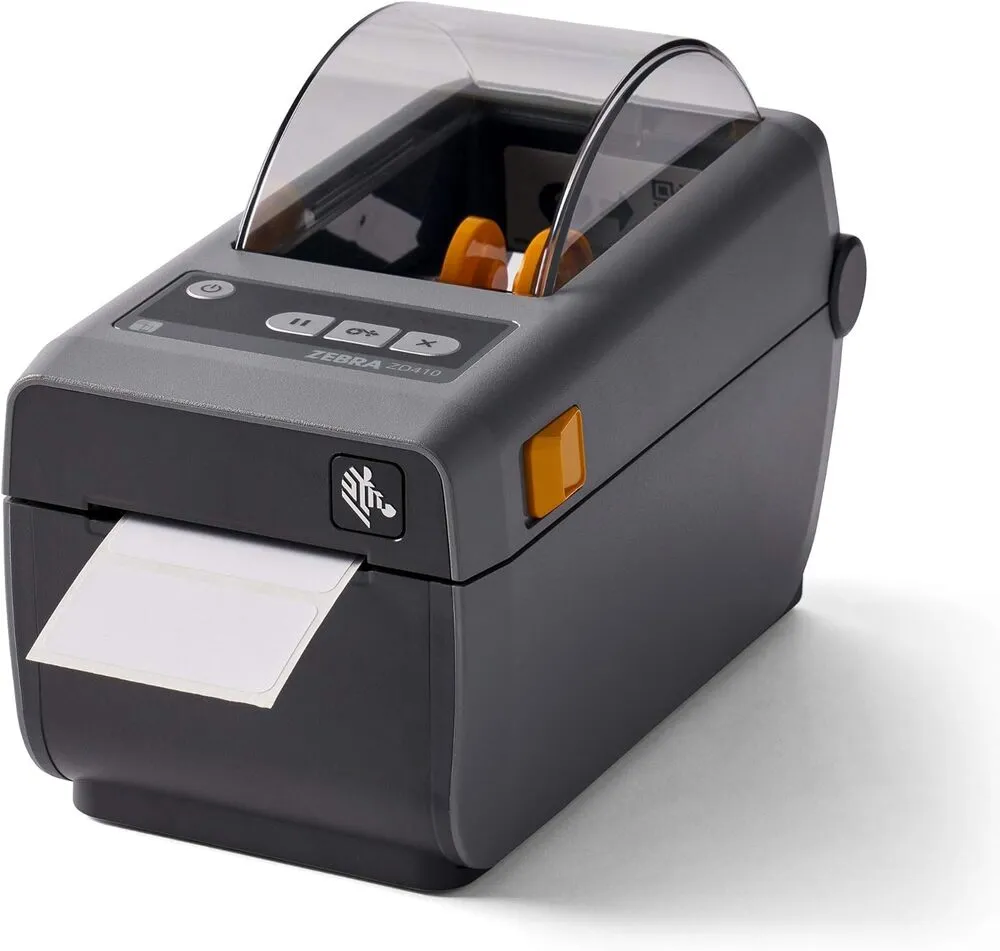

The JetSet Label ZD410 is a compact direct thermal and thermal transfer label printer optimized for office and retail environments requiring fast, high-quality label printing. It supports multiple media types including die-cut labels, continuous labels, tags, and receipts, with resolution options up to 300 dpi for crisp text and barcode output. Featuring a print speed up to 6 inches per second, it efficiently handles moderate label printing workloads. Connectivity includes USB, Serial, and optional Ethernet or Bluetooth interfaces, providing flexible integration into existing systems. The printer incorporates intelligent link autocalibration to simplify media setup and reduce downtime, supporting standard printer languages like ZPL and EPL for compatibility with various applications. Its compact footprint and durable design make it well-suited for countertop or desktop use in space-constrained work areas.

The ZD410 supports a maximum print width of 4.09 inches (104 mm) and maximum print length up to 39 inches, accommodating diverse labeling needs. Designed with user convenience in mind, media loading is streamlined with intuitive drop-in rolls and guides. The printer is powered by an ARM Cortex processor that ensures smooth operation even with complex label formats or graphics. It also supports RFID encoding options for tracking and inventory applications. Overall, the JetSet Label ZD410 is engineered to deliver reliability and versatility for small to medium volume label printing tasks.

Specifications

Max Input Sheet Capacity 100
Compatible Devices PC
Maximum Color Print Resolution 203 x 203 DPI
Sheet Size 2 inches
Maximum Black and White Print Resolution 203 dpi
Warranty Type limited warranty
Dual-sided printing No
Max copy resolution color 203 x 203 DPI
Max copy resolution black-white 203 dpi
Duplex Simplex
Hardware Interface Ethernet
Ink Color Black
Resolution 203 x 203 DPI
Additional Printer functions Print Only
Control Method Remote
Number of Drivers 2
Processor Count 1
Series Number 4
Total Ethernet Ports 1
Number of USB 2 Ports 1
Total USB Ports 1
UPC 850055479296
Printer Ink Type Direct Thermal
Global Trade Identification Number 00850055479296
Product Dimensions 8.6 x 4.5 x 6 inches
Item Weight 5.27 pounds
Item model number ZD410
Date First Available February 21, 2024
Manufacturer JetSet Label
Print Technology Direct Thermal and Thermal Transfer
Print Resolution 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) selectable
Maximum Print Width 4.09 inches (104 mm)
Maximum Print Length 39 inches (991 mm)
Print Speed Up to 6 inches per second (152 mm/s)
Processor 32-bit ARM Cortex
Connectivity USB 2.0, Serial RS-232; Optional Ethernet and Bluetooth
Media Types Supported Die-cut labels, continuous roll labels, tags, receipts
Media Width Range 0.59 inch to 2.36 inch (15 mm to 60 mm)
Media Roll Capacity Up to 2.6 inches (66 mm) diameter
Ribbon Type Ink-side-in or ink-side-out ribbons; 0.5 inch to 1.34 inch core
Dimensions 6.3 x 4.8 x 5.9 inches (160 x 122 x 150 mm)
Weight 3.8 lbs (1.7 kg)
Printer Languages ZPL, EPL
Operating Temperature 41°F to 104°F (5°C to 40°C)
Power Supply External 100-240V AC
Display Optional LCD screen with interface buttons

Key Advantages

The JetSet Label ZD410 is highly praised for its fast print speeds up to 6 ips, significantly reducing label production time. Its high resolution 300 dpi option enables detailed and sharp barcode and text printing suitable for compliance labeling. The printer design emphasizes ease of use with simple media loading and intuitive controls, minimizing operator errors and downtime. Flexible connectivity options allow users to integrate it smoothly with various devices and networks, including USB, Ethernet, and Bluetooth. The compact and robust build makes it ideal for environments with limited space while maintaining reliability. Support for multiple printer languages enhances compatibility with several software and legacy systems.

Limitations

The ZD410 has a relatively small media capacity, limiting roll size and requiring more frequent media replacements in high-volume settings. It is not designed for heavy industrial use, so durability in harsh environments can be limited compared to larger industrial printers. Some advanced features, such as full RFID encoding support, are only available as optional add-ons, increasing the total cost. Its print width maxes out at 4.09 inches, which may limit applications needing wider labels. Users may find its media sensor calibration less flexible with non-standard or specialty labels. The printer's monochrome printing restricts use to black-and-white labels, unsuitable for color coding needs.
