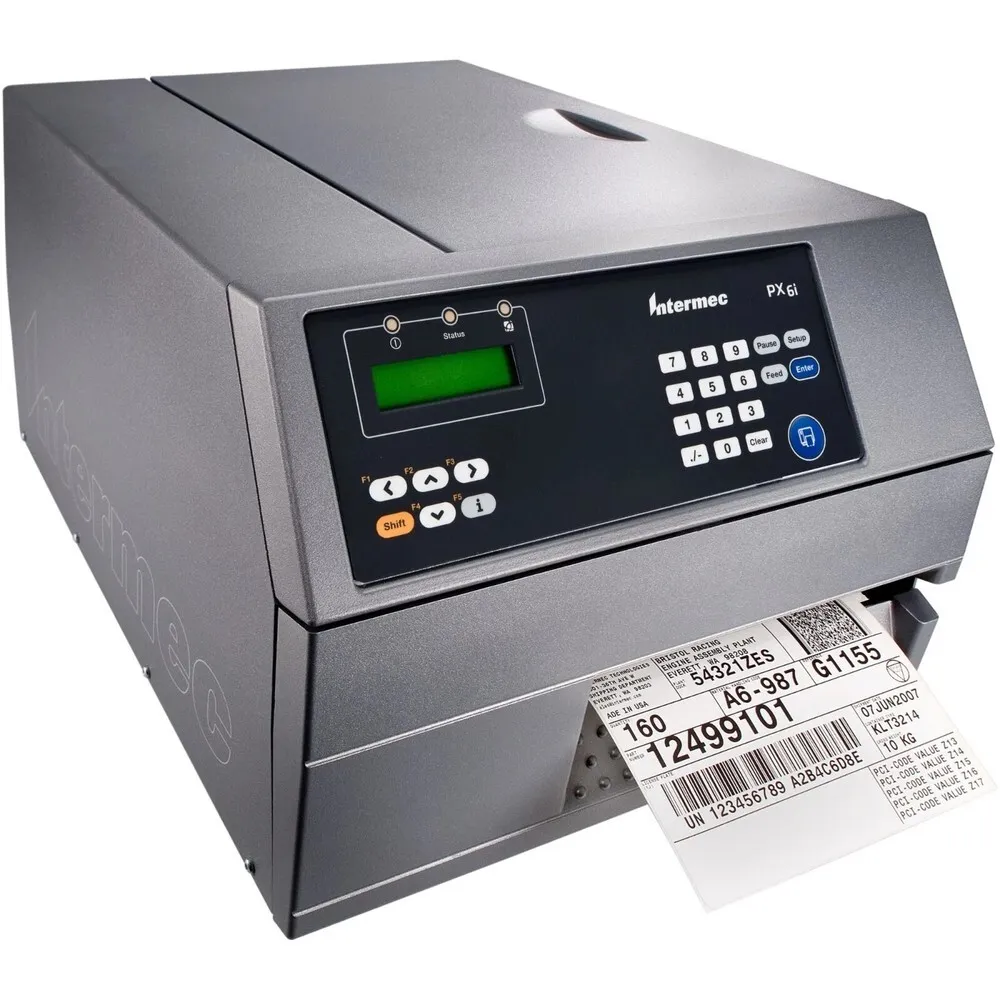

Intermec PX6i
| Brand | Intermec 2011 |
| Model | PX6C010000001120, PX6C010000000020, PX6E010000000120 |
| Released Year | 2011 |
| Type | Printers |
| Series | PX6i |
| Status | Active |
Quick view
Overview
The Intermec PX6i is an industrial-grade industrial printer designed for high-volume barcode and label printing applications. It features a thermal transfer and direct thermal printing engine delivering resolutions of up to 300 dpi for high quality output. The printer supports various connectivity options including Ethernet, USB, and serial ports, enabling flexible integration within complex network environments. Its design is optimized for durability and reliability in harsh industrial conditions, ensuring consistent performance over extended periods. The PX6i includes advanced firmware for efficient printer management and supports multiple label formats and fonts. It is equipped with a robust media handling system that accommodates a wide variety of label stocks and ribbons.
The PX6i is suited for manufacturing, logistics, and warehousing environments where large volumes of labels and tags must be reliably printed. It includes features such as RFID encoding support, various emulation modes, and enhanced memory management to cater to diverse industrial needs. Its modular design allows for easy maintenance and upgrades, extending the printer's operational life.
Specifications
| Print Technology | Thermal Transfer and Direct Thermal |
| Input Type | Monochrome |
| Output Type | Black & White |
| MPN | PX6C010000001120, PX6C010000000020, PX6E010000000120 |
| Type | Label Printer |
| Printer Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Model | PX6i |
| Connectivity | Ethernet 10/100 Mbps, USB 2.0, Serial RS-232 |
| Features | Networkable |
| Product Line | PX6i |
| UPC | Does not apply |
| Print Resolution | 203 dpi (8 dots/mm) and optional 300 dpi (12 dots/mm) |
| Print Speed | Up to 10 inches per second (203 dpi), up to 8 inches per second (300 dpi) |
| Max Print Width | 4.09 inches (104 mm) |
| Memory | 16 MB DRAM, 8 MB Flash |
| Label Roll Capacity | 8 inch (203 mm) outside diameter |

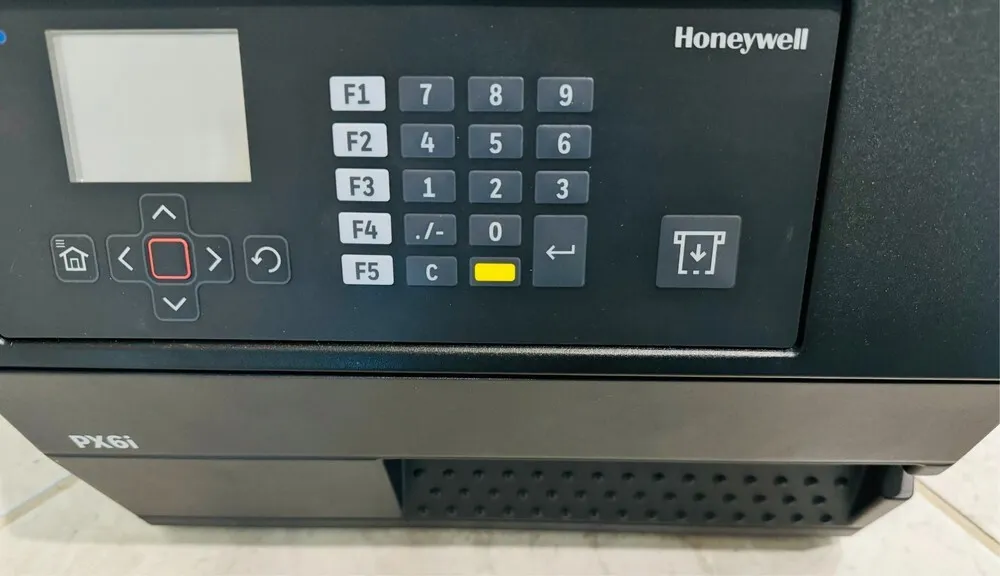

| Display | Backlit LCD with keypad |
| Supported Languages | IPL, ZSim, DSim, fingerprint-based languages |
| Dimensions (HxWxD) | 11.5 x 9.2 x 15.5 inches (292 x 234 x 394 mm) |
| Weight | Approximately 18 lbs (8.2 kg) |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) |
| Power | 100-240 VAC, 50-60 Hz, auto-sensing |
| Optional Features | RFID encoding, cutter module, peel & present, external rewinder |
Images
Key Advantages
The PX6i boasts robust industrial design built for high-volume, continuous printing operations. It offers versatile media compatibility, supporting an extensive range of label types and ribbon options. The printer supports multiple connectivity protocols and emulation modes, providing broad integration flexibility in existing infrastructures. High resolution printing ensures crisp barcode readability and professional label appearance. Its firmware includes powerful diagnostic and management utilities enhancing operational efficiency. The modular components simplify maintenance and reduce downtime, increasing productivity.
Limitations
The PX6i printer, while powerful, has a relatively higher initial investment compared to desktop printers, which may not be justified for low-volume users. Its large footprint may require allocated space within industrial environments. The complexity of setup and configuration may require specialized technical knowledge. Some older model variants may lack modern wireless connectivity such as Wi-Fi or Bluetooth. Consumable costs, such as ribbons and labels, add to operating expenses. Software compatibility might require firmware updates to support latest industrial label formats or standards.
FAQ
What printing technologies does the Intermec PX6i support?
The PX6i supports both thermal transfer and direct thermal printing technologies for versatile label and tag printing.
What resolution can the PX6i printer achieve?
It can achieve print resolutions up to 203 dpi and 300 dpi depending on the model configuration.
Does the PX6i have wireless connectivity?
Older PX6i models typically do not have built-in wireless connectivity such as Wi-Fi or Bluetooth, but Ethernet and USB connections are available.
What industries are best suited for the PX6i printer?
It is ideal for manufacturing, warehousing, logistics, and other industrial environments requiring high volume, continuous label printing.
Can the PX6i encode RFID tags?
Yes, certain PX6i variants support RFID encoding capabilities for asset tracking and inventory management.
Is the PX6i still supported by Intermec or Honeywell?
While the PX6i is not the newest model, it is generally supported, but newer models may offer more updated features.
What types of media can the PX6i handle?
It supports a wide variety of label stocks, tag materials, and ribbon types suitable for different industrial printing needs.
