Intermec PM4i
| Brand | Intermec 2005 |
| Model | Network LAN, PM4G011000300020, Ethernet, Barcode |
| Released Year | 2005 |
| Type | Printers |
| Series | Easycoder |
| Status | Discontinued |
Quick view
Overview
The Intermec EasyCoder PM4i is a rugged industrial barcode printer designed for high-volume printing applications. It integrates advanced print head technology supporting resolutions of 203 dpi or 300 dpi for high-quality barcode and label output. The device supports multiple connectivity options including Ethernet LAN, allowing seamless integration into enterprise network environments. Built for durability, the PM4i features a robust metal frame and offers flexible media handling for various label sizes and types. It utilizes a user-friendly LCD interface for printer configuration and monitoring. Advanced barcode symbologies, RFID encoding capabilities, and support for multiple printer languages enhance its technical flexibility.
The device is engineered with fast print speeds up to 10 inches per second and ample memory to store complex label formats. Its modular design allows for easy upgrades and maintenance, reducing downtime. Moreover, the PM4i includes industry-standard communications protocols ensuring compatibility with diverse host systems and software.
Specifications
| Print Technology | Thermal |
| Print Resolution | 203 dpi (8 dots/mm) or 300 dpi (12 dots/mm) |
| Print Speed | Up to 10 inches per second (203 dpi) |
| Max Print Width | 4.16 inches (106 mm) |
| Memory | 32 MB |
| Connectivity | 10/100Base-TX, Ethernet (RJ-45), Parallel (IEEE 1284), USB-B, Serial (RS-232 DB9) |
| Supported Barcodes | Code 39, Code 128, UPC/EAN, PDF417, QR Code, Data Matrix |
| Media Types | Labels, tags, continuous media, fan-fold and roll feed |
| Media Width | Up to 4.3 inches (110 mm) |
| Ribbon Types | Wax, wax/resin, resin ribbons; max ribbon length approx. 450m |
| Dimensions | Approx. 12.5" (W) x 14" (D) x 11.3" (H) |
| Weight | Approx. 18.5 lbs (8.4 kg) |
| Display | LCD with navigation buttons |
| Operating Systems | Windows, Windows CE, Linux support via drivers |
| Power Supply | External power supply 110-240V AC |
| Input Type | Monochrome |
| Output Type | Black & White |
| MPN | Network LAN, PM4G011000300020, Ethernet, Barcode |
| Max. Resolution | 203 dpi |
| Bundle Listing | Yes |
| Supported Paper Size | Max. Width: 4.5" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Printer Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 203 x 203 DPI |
| Supported Printing Sizes | Max. Width: 104 mm (4.09 in) |
| Model | PM4i |
| Features | Networkable |
| Black Print Speed | 8 ips |
| Country/Region of Manufacture | United States |
| Product Line | Intermec EasyCoder |

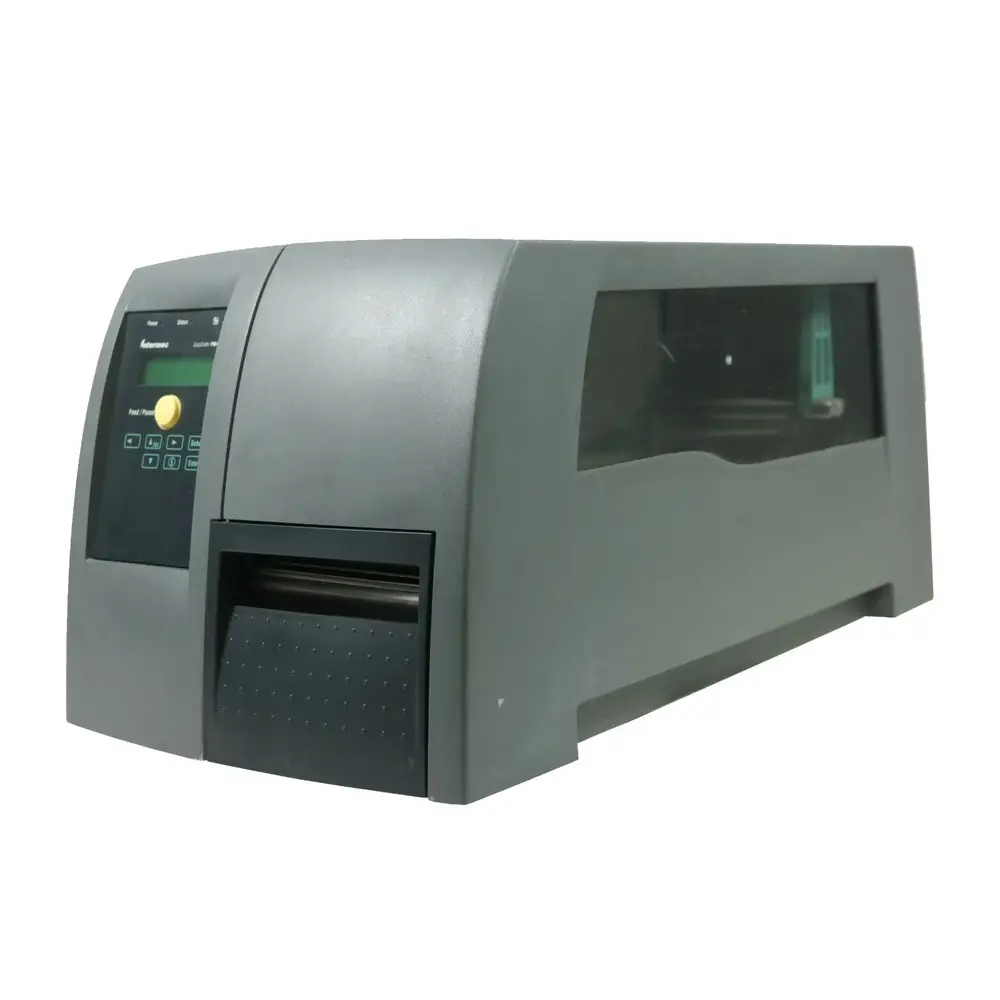

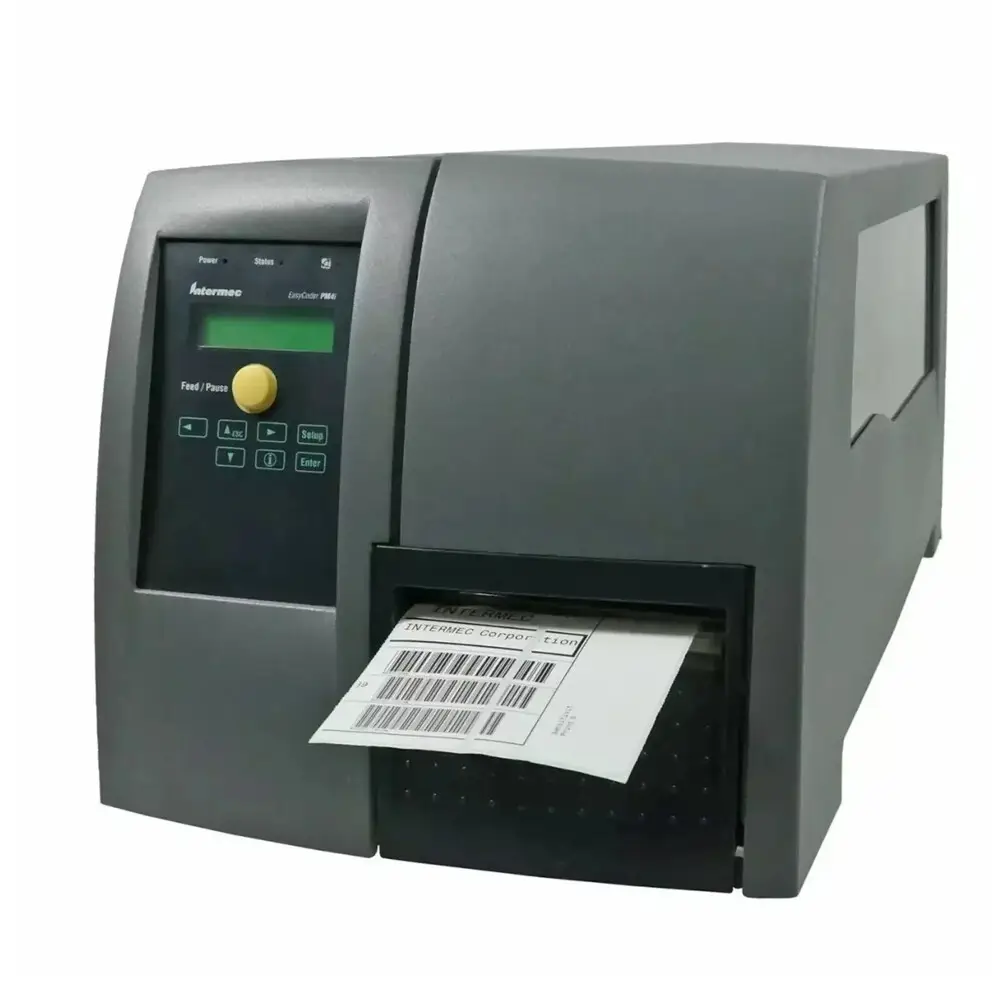

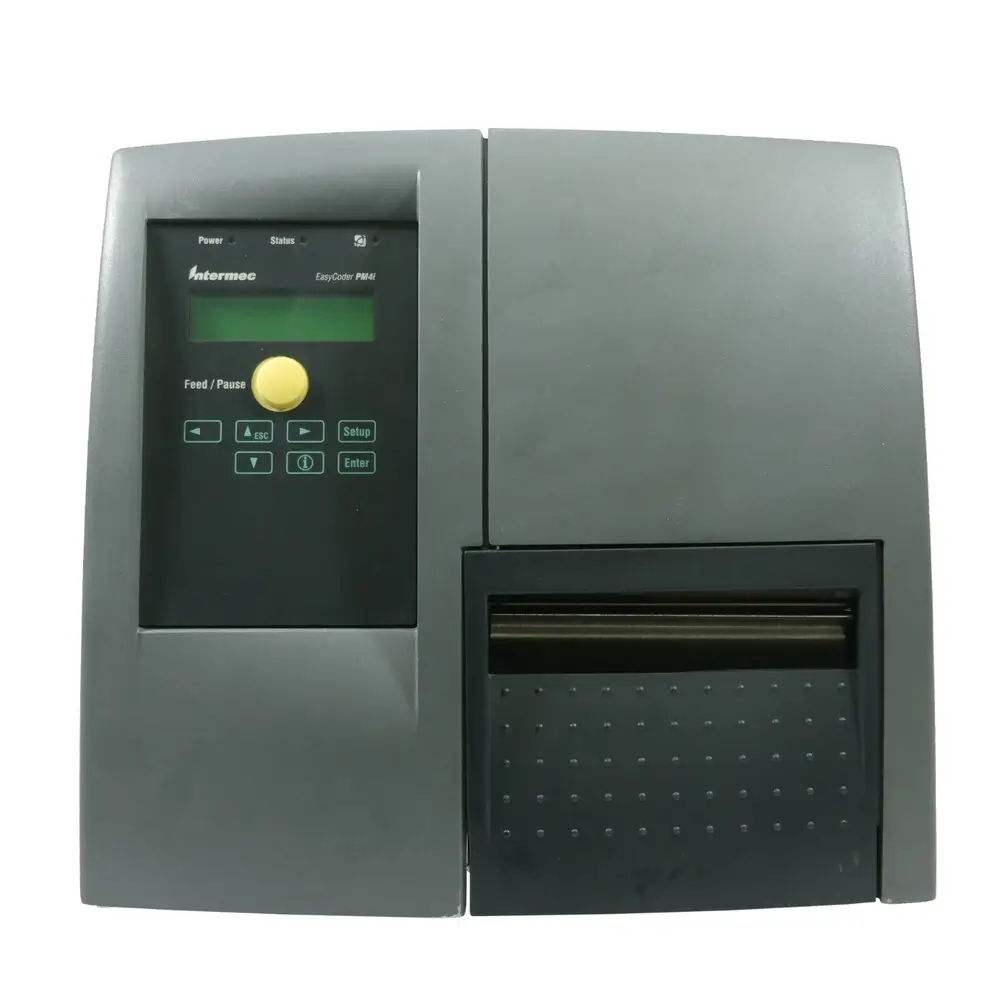

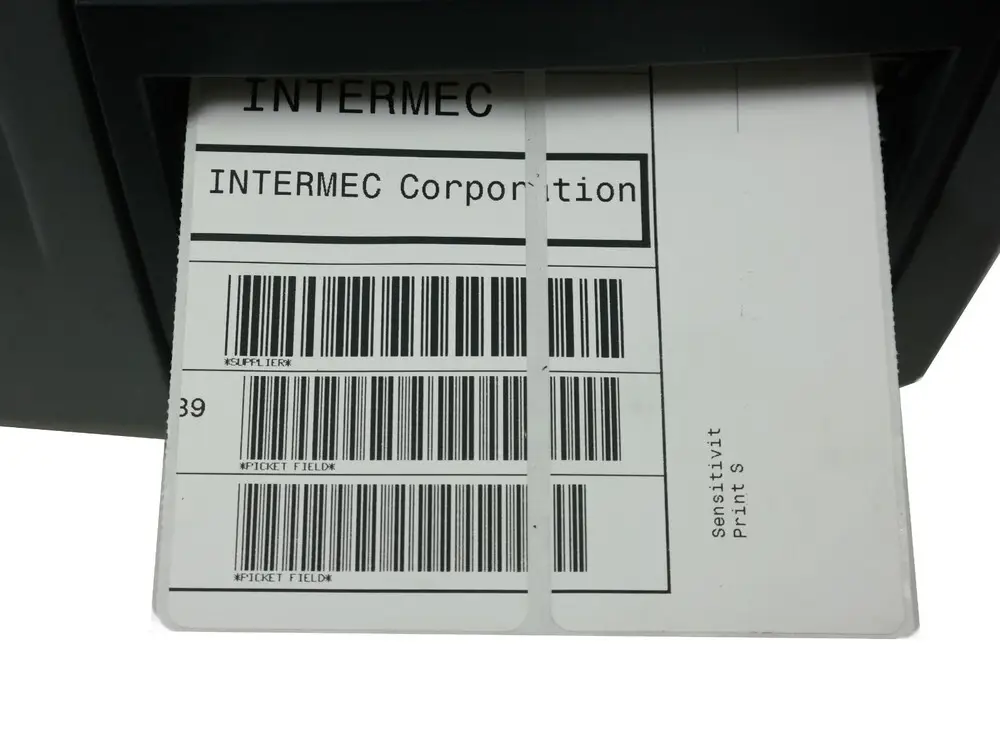

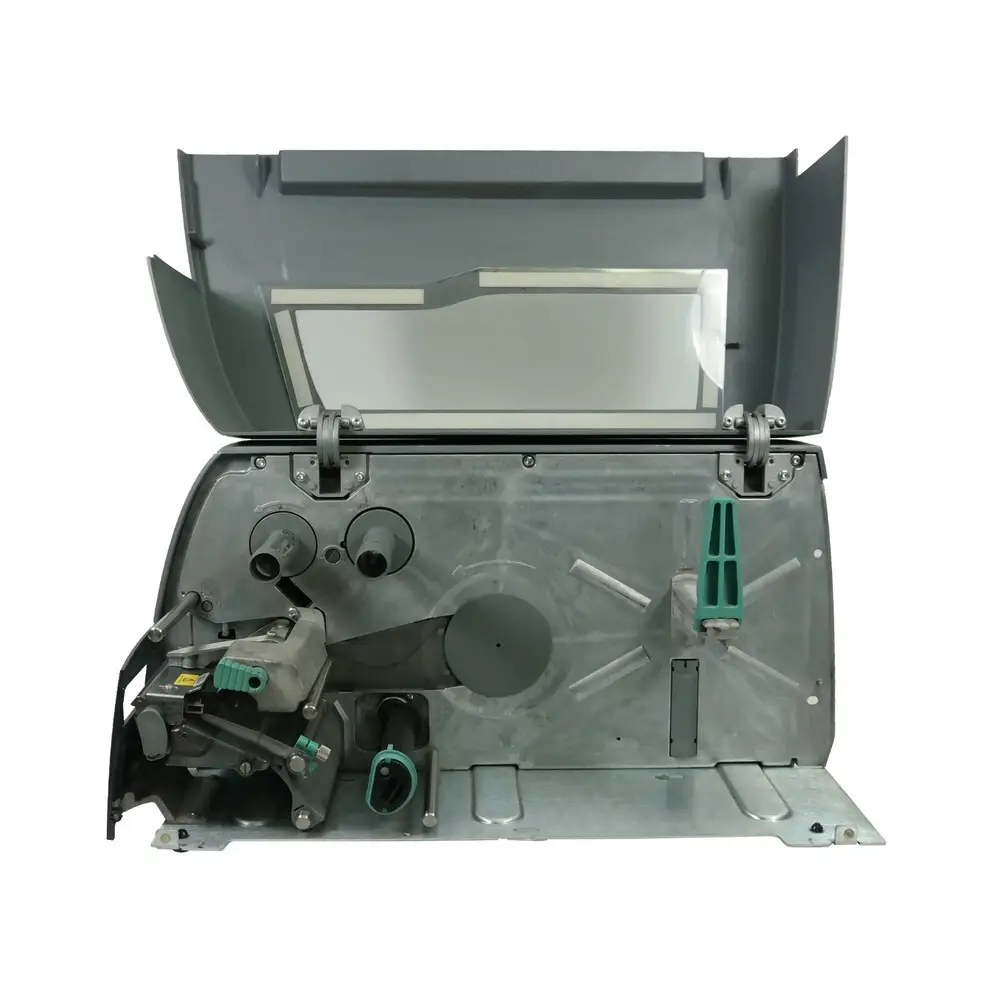

Images
Key Advantages
The PM4i offers superior print speed and print quality essential for industrial labeling demands. Its Ethernet connectivity provides reliable network printing with secure data transfer. The printer supports a wide range of barcode symbologies including 1D and 2D, enhancing its versatility. The robust metal construction ensures long service life in demanding environments. Easy media loading and an intuitive control panel improve operational efficiency. Furthermore, its modular architecture facilitates quick field upgrades, including RFID encoding modules.
Limitations
The PM4i's physical size and weight make it less suitable for small workspace environments. It may lack some modern connectivity options such as wireless Wi-Fi or Bluetooth. The LCD interface, while functional, is limited compared to touchscreen controls available on newer models. Media cost can be higher due to the printer's industrial grade consumable requirements. Setup and maintenance may require technical expertise, limiting use by casual operators. Additionally, firmware updates and driver support for newer operating systems can be limited, reflecting its age in the market.
FAQ
What connectivity options does the Intermec PM4i support?
The PM4i supports Ethernet LAN connectivity for network printing along with serial and USB interfaces depending on configuration.
What is the maximum print speed of the PM4i printer?
The printer can achieve print speeds up to 10 inches per second at 203 dpi resolution.
Does the PM4i support RFID encoding?
Yes, the PM4i supports optional RFID encoding modules compatible with various tag types and standards.
What types of barcodes can the PM4i print?
It can print a broad range of 1D and 2D barcode symbologies including Code 39, Code 128, QR Code, Data Matrix, and others.
Is the Intermec PM4i still supported by the manufacturer?
No, the PM4i has been discontinued and support is limited or available through third-party vendors.
What media sizes are compatible with the PM4i?
The printer supports various label widths typically up to 4.1 inches and can handle different types of label stock and ribbons.
Does the PM4i come with software for label design?
The PM4i is compatible with Intermec's Fingerprint and other label design software, although software availability may vary due to discontinuation.
