Intermec PM43c
Brand | Intermec 2014 |
Model | Network LAN, PM43CA115000020, Touchscreen, Ethernet |
Released Year | 2014 |
Type | Printers |
Series | Pm |
Status | Active |
Quick view
Overview
The Intermec PM43c is an industrial-grade thermal barcode and label printer designed for medium to high-volume printing environments. It operates with a 32-bit RISC processor enabling fast print speeds of up to 12 ips, supporting resolutions from 203 to 300 dpi, ensuring sharp barcode and label quality. Connectivity options include built-in Ethernet LAN with IPv4 support, RS-232 serial, USB 2.0, and optional wireless modules, facilitating easy integration into existing networks. The printer utilizes direct thermal and thermal transfer printing methods, supporting a wide variety of media types and sizes for flexible operation. Its industrial design includes a color touchscreen display for intuitive control, durable metal frame construction, and modular components for easy maintenance. It supports major printer languages such as IPL, ZPL, and DPL, enhancing compatibility with diverse systems.
Specifications
Input Type | Monochrome |
Output Type | Black & White |
Memory | 256 MB Flash, 128 MB SDRAM standard |
MPN | Network LAN, PM43CA115000020, Touchscreen, Ethernet |
Supported Paper Size | Maximum Label Width: 4.50" |
California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
Type | Label Printer |
Technology | Thermal |
Maximum Resolution | 230 x 230 DPI |
Model | PM43c |
Connectivity | Ethernet LAN (IPv4), RS-232 serial, USB 2.0, optional Wi-Fi |
Features | Networkable |
Black Print Speed | 12 ips |
Product Line | Intermec PM |
UPC | Does not apply |
Print Method | Direct Thermal and Thermal Transfer |
Print Resolution | 203 dpi (8 dots/mm), 300 dpi (12 dots/mm), 600 dpi (24 dots/mm) optional |
Print Speed | Up to 12 inches per second |
Processor | 32-bit RISC processor |
Display | 4.3 inch color touchscreen |
Media Types | Labels, tags, wristbands |
Media Width | 1.5 to 4.65 inches (38 to 118 mm) |
Maximum Print Width | 4.1 inches (104 mm) |
Dimensions (W x D x H) | 294 x 483 x 389 mm |
Weight | Approx. 16.5 kg |
Supported Printer Languages | IPL, ZPL, DPL, XML |
Power Supply | AC 100-240V, 50-60 Hz |
Operating Temperature | 5°C to 40°C (41°F to 104°F) |
Storage Temperature | -40°C to 60°C (-40°F to 140°F) |
Durability | Metal frame with industrial design for durability |
Label Roll Capacity | Up to 8 inch outer diameter |

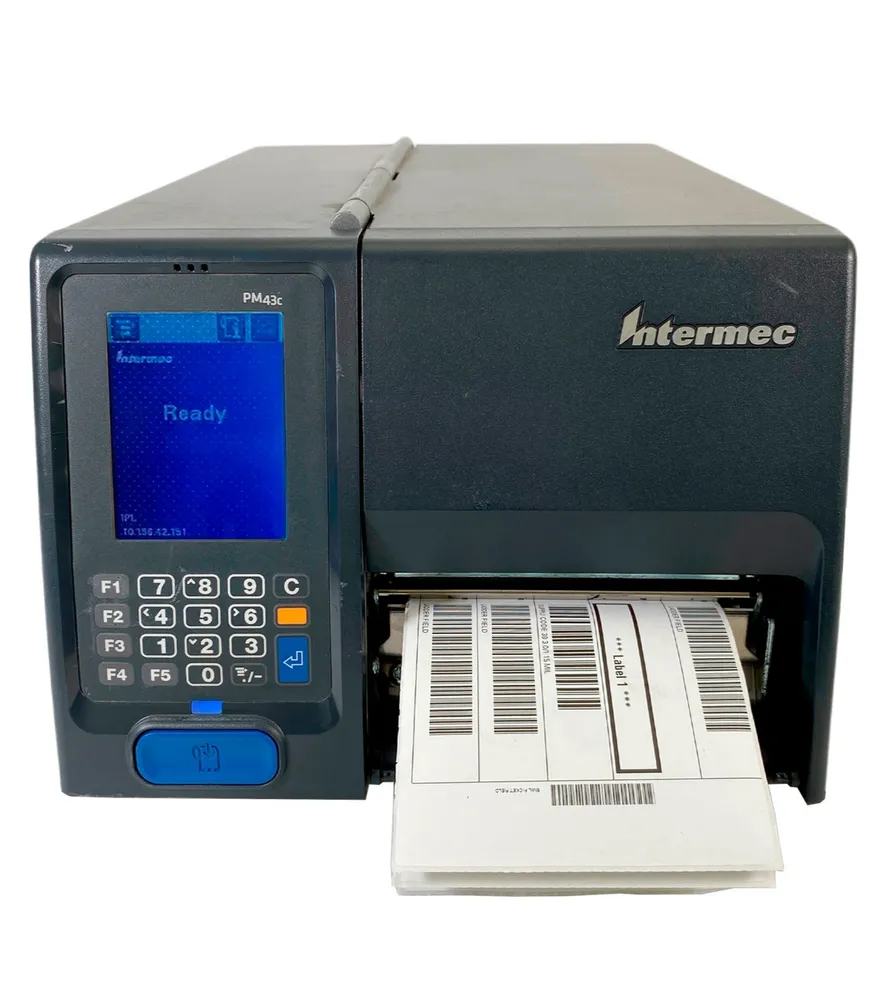

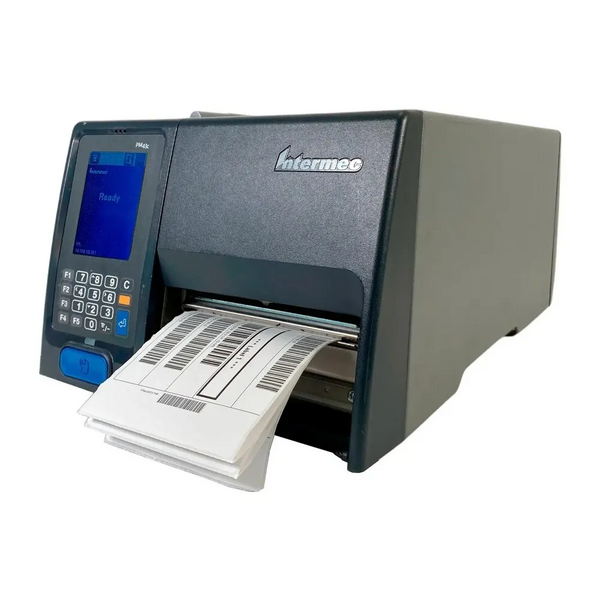

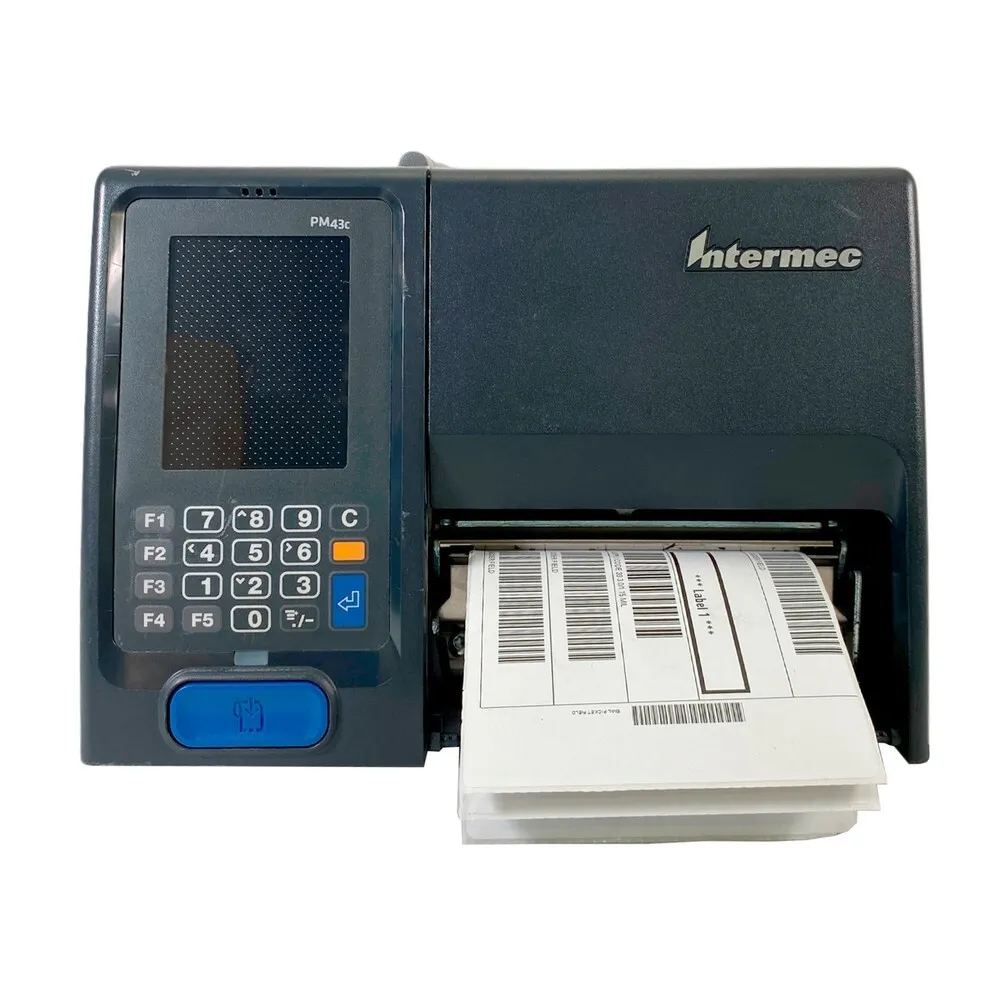

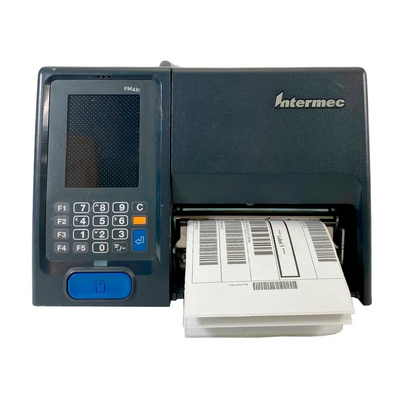

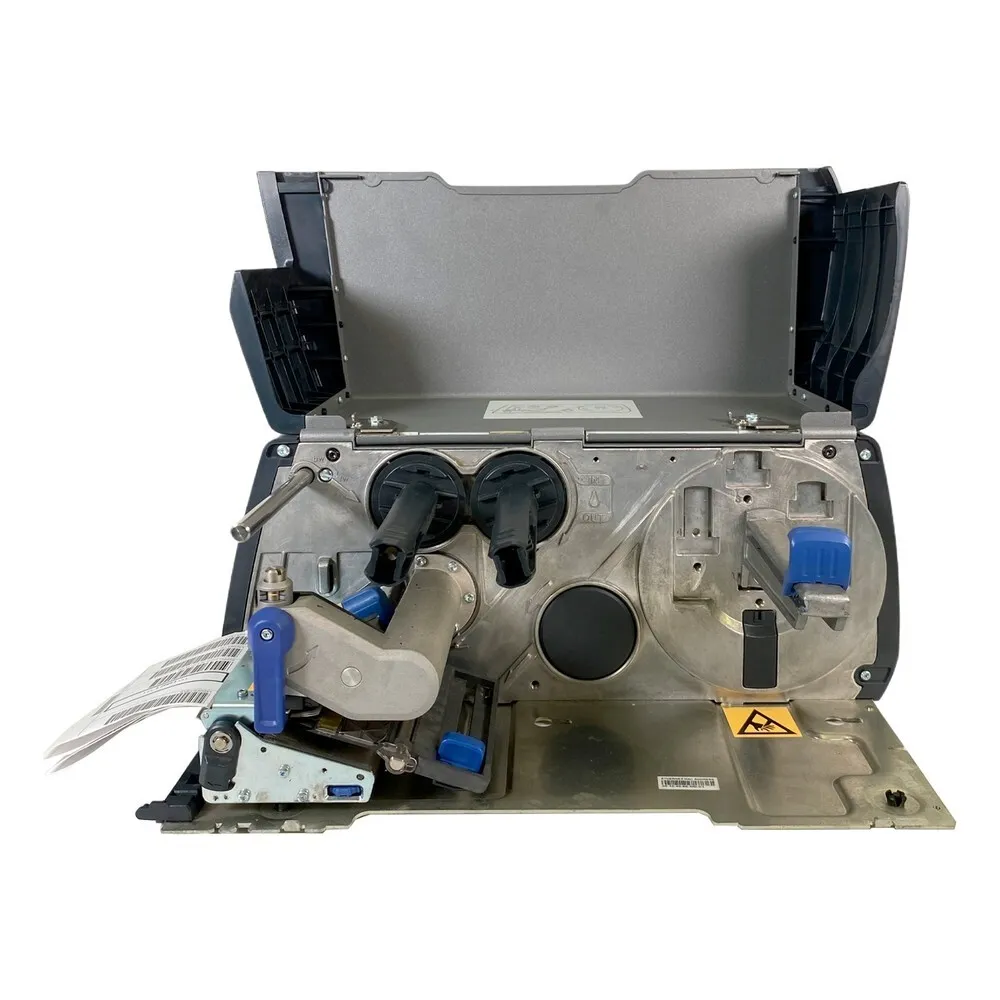

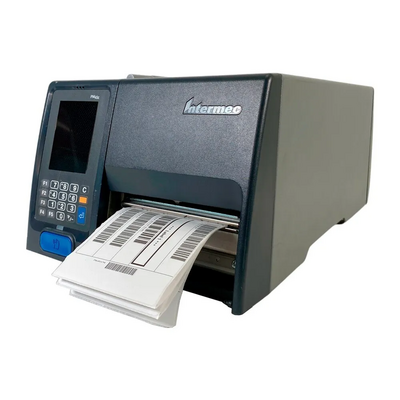

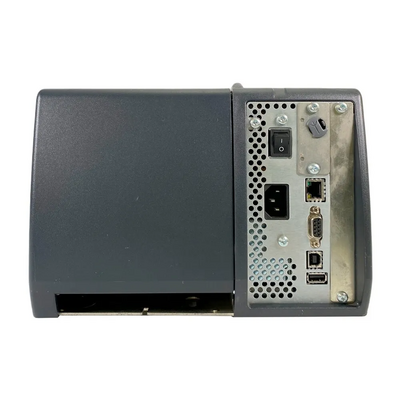

Images
Key Advantages
The PM43c offers high-speed printing with consistent output quality, reducing downtime in busy industrial settings. Its versatile connectivity options, including Network LAN and USB, make it adaptable for various workplace environments. The color touchscreen interface simplifies printer operation and configuration, improving user efficiency. The printer's durable construction and modular design enhance longevity and ease of service. It supports a broad range of media including labels, tags, and wristbands, increasing its application scope. Additionally, the PM43c is designed with advanced diagnostics and alert features, minimizing unplanned maintenance.
Limitations
Despite its robust design, the PM43c's larger footprint might be restrictive in compact office spaces. Initial setup and configuration can be complex for users without technical expertise. The printer primarily targets industrial use, making it potentially over-specified for low-volume printing needs. Firmware updates require careful management to avoid compatibility issues. Consumable sourcing for specific ribbon types can be limited in some regions, impacting operational continuity. Also, the printer lacks some modern wireless connectivity options such as Bluetooth by default.
FAQ
What types of media can the Intermec PM43c print on?
The PM43c supports direct thermal and thermal transfer media including labels, tags, and wristbands in various sizes.
Does the printer support wireless connectivity?
The base model includes Ethernet and standard interfaces; optional wireless modules may provide Wi-Fi connectivity, but Bluetooth is not standard.
What print resolutions are available on the PM43c?
This printer supports 203 dpi, 300 dpi, and 600 dpi resolutions providing high-quality barcode and label printing.
Is the touchscreen display easy to use?
Yes, the PM43c features a color touchscreen interface designed to simplify configuration and operation, suitable for operators in industrial environments.
What printer languages does the PM43c support?
The printer supports IPL, ZPL, DPL, and other widely-used industrial printer command languages for compatibility.
Can the PM43c be integrated into existing network environments?
Yes, with built-in Ethernet LAN and multiple interface options, it can be seamlessly integrated into most network systems.
Is the Intermec PM43c still in production?
No, the PM43c is not discontinued and is still supported and available in the market.
