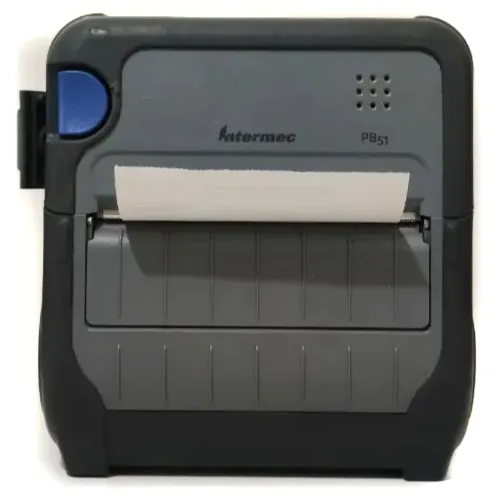

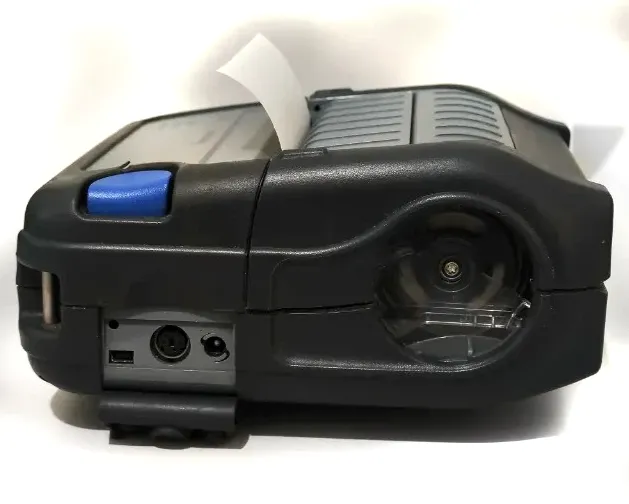

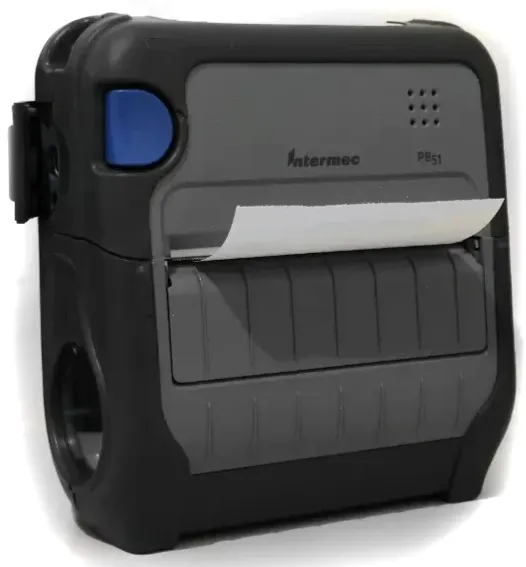

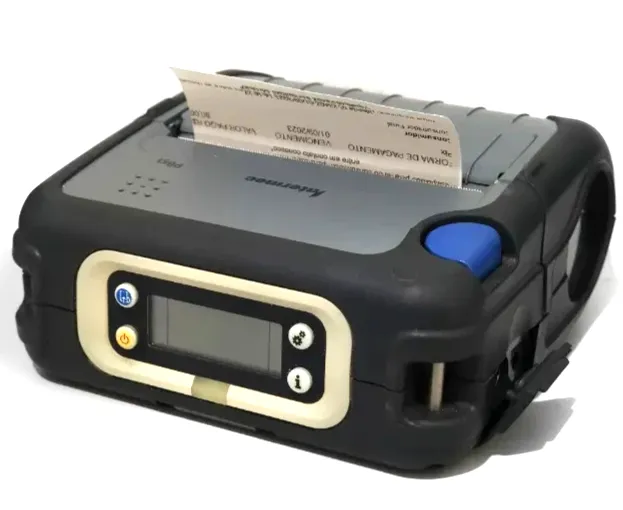

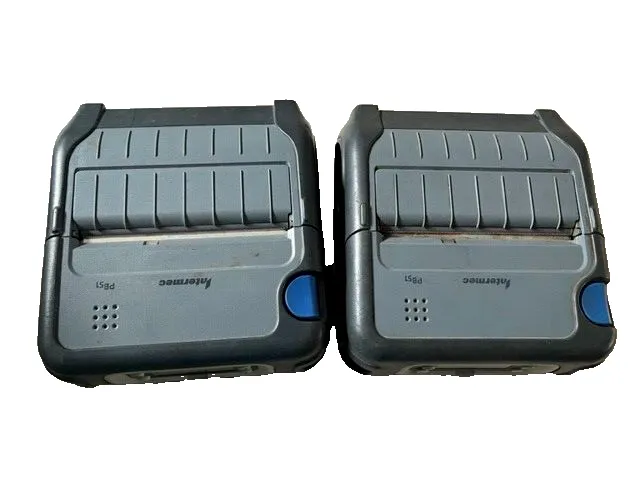

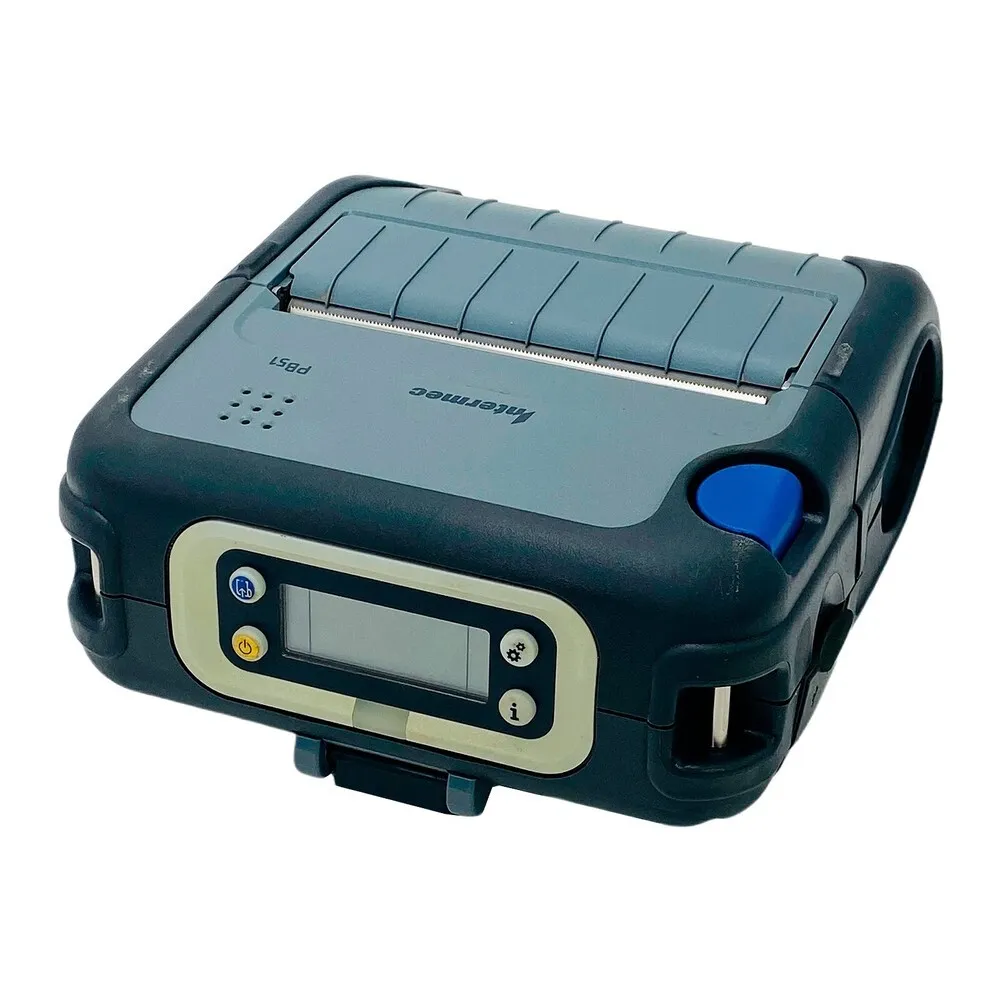

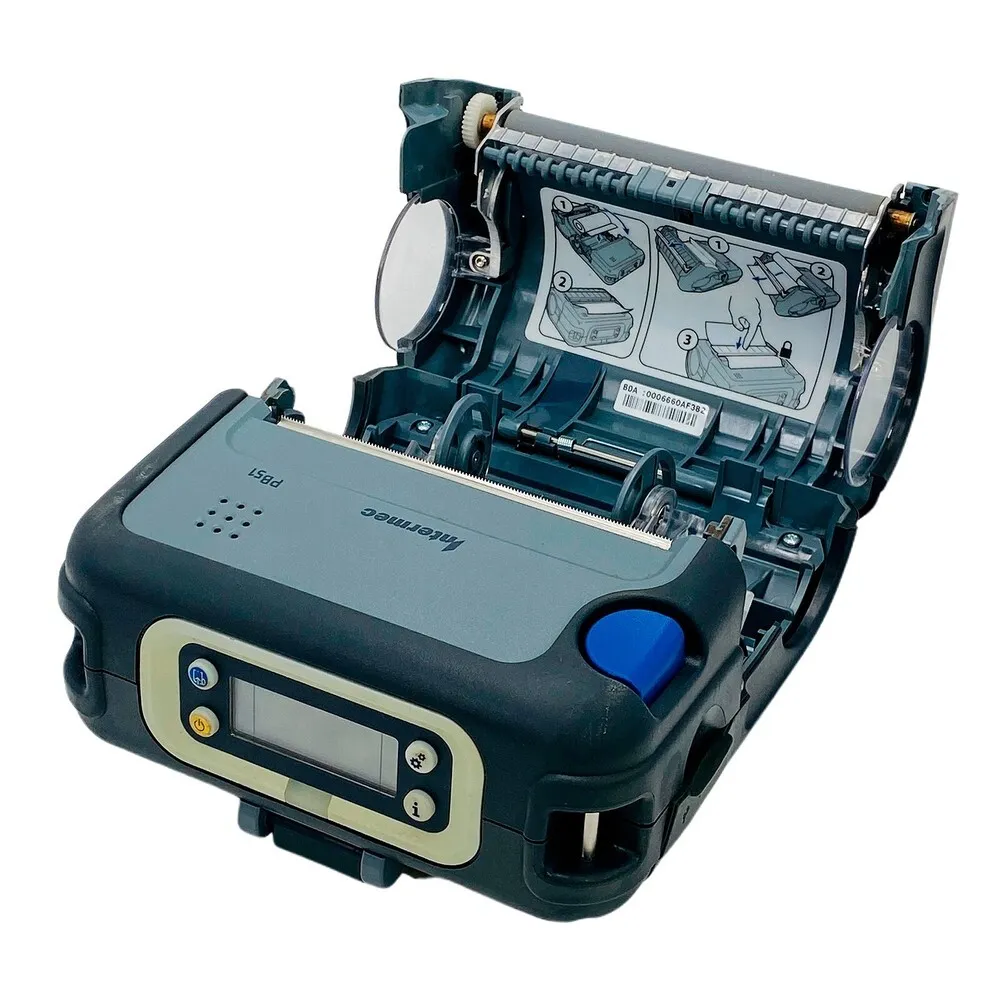

Intermec PB51 image

Intermec PB51

Quick information
Brand Intermec 2010
Model Rugged, PB51B32004100
Released Year 2010
Type Printers
Series PB
Status Discontinued
Quick view
Full specs Images

Overview

The Intermec PB51 printer is engineered to deliver durable, reliable printing solutions in rugged environments. It features a compact design optimized for mobile and industrial use, utilizing direct thermal and thermal transfer print technologies. The PB51 supports various media types and widths up to 4 inches, ensuring versatile labeling and receipt printing capabilities. Connectivity options include USB, serial, and optional Bluetooth or Wi-Fi modules for flexible data transfer. The device incorporates a robust housing that meets MIL-STD-810G standards and is IP54 rated for dust and water resistance, making it suitable for demanding warehouse and field applications. Additionally, the printer supports Intermec Fingerprint capabilities for advanced customization and control.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 16 MB
MPN Rugged, PB51B32004100
Supported Paper Size Max Label Width: 4.39"
Type Mobile Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model PB51
Connectivity USB 2.0, Serial RS-232, Optional Bluetooth and WLAN (802.11b/g)
Features Portable, Rugged
Black Print Speed 4 ips
Product Line PB
Print Technology Direct Thermal and Thermal Transfer
Print Resolution 203 dpi (8 dots/mm) standard, optional 300 dpi available
Print Speed Up to 4 inches per second
Maximum Print Width 4.1 inches (104 mm)
Media Types Labels, receipts, tags, continuous and die-cut media
Media Width 1 inch to 4.65 inches (25 mm to 118 mm)
Media Thickness 2.6 mil to 7.1 mil
Battery Rechargeable Lithium-ion battery, field replaceable
Dimensions 6.5 x 7.5 x 3.4 inches (L x W x H)
Weight 2.4 pounds (1.1 kg) with battery
Operating Temperature -10°C to 50°C (14°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Durability IP54-rated, MIL-STD-810G certified

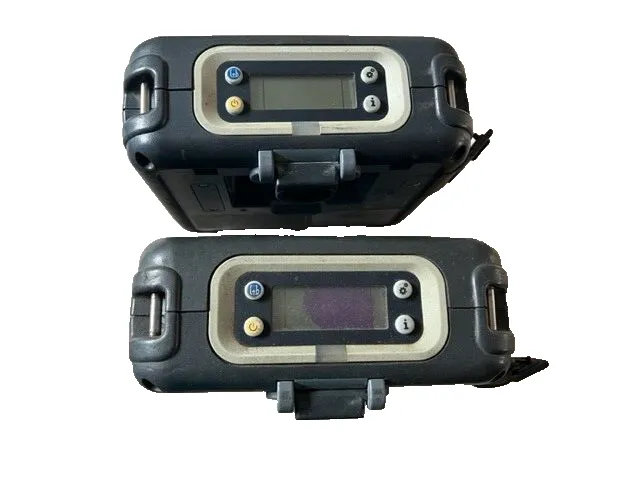

User Interface LED indicators, 3-button control panel
Supported Languages Intermec Fingerprint, ESC/P, IPL
Power Source Rechargeable battery pack or AC adapter

Key Advantages

The PB51 provides exceptional durability with its rugged design, ensuring consistent performance in harsh conditions. Its compact footprint allows easy portability for mobile workers. The printer offers multiple connectivity choices to adapt to various operational settings. High-resolution print options enable crisp, clear barcode and text outputs. Long-lasting battery management supports extended field operations without frequent recharges. It also integrates seamlessly with enterprise systems through advanced software and driver support.

Limitations

The PB51's printing speed is moderate compared to some newer mobile printers, potentially limiting throughput in high-demand scenarios. Its proprietary media might increase operational costs. The user interface is basic, lacking advanced touchscreen controls found in contemporary devices. Firmware updates require connection to specific Intermec tools, which might complicate remote maintenance. Battery life, while adequate, could necessitate carrying spare batteries for extended shifts. The printer’s weight is somewhat heftier than ultra-light mobile printers, which may affect portability for some users.

FAQ

The PB51 supports both direct thermal and thermal transfer printing technologies.

Yes, it is designed with a rugged housing that meets MIL-STD-810G standards and has an IP54 rating for dust and water resistance.

It offers USB, serial connections, and optional Bluetooth or Wi-Fi modules for wireless communication.

Yes, it supports high-resolution printing that ensures crisp barcodes and text for labeling.

No, the PB51 has been discontinued but is still supported with technical documentation and service.

The PB51 accommodates media widths up to 4 inches.

Yes, it supports Intermec Fingerprint language, allowing advanced customization and control of printing functions.
