Intermec EasyCoder PM4i
| Brand | Intermec 2004 |
| Model | PM4D010000000020 |
| Released Year | 2004 |
| Type | Printers |
| Series | Easycoder |
| Status | Discontinued |
Quick view
Overview
The Intermec EasyCoder PM4i is an industrial-grade printer designed for high-volume barcode label printing in manufacturing, logistics, and retail sectors.
It supports direct thermal and thermal transfer printing technologies, delivering print resolutions typically at 203 dpi for clear barcode and text output.
The printer is built with a heavy-duty steel frame, ensuring durability for continuous industrial use.
Connectivity options include serial, parallel, and Ethernet interfaces, facilitating versatile deployment in various network environments.
The PM4i accommodates large media rolls and ribbons, reducing downtime and increasing operational efficiency.
It includes easy-to-use control panels and supports multiple programming languages for integration flexibility.
Specifications
| MPN | PM4D010000000020 |
| UPC | 0610373367107, 0777787397998 |
| Model | EasyCoder PM4i |
| Technology | Thermal |
| Connectivity | Wireless, Serial (RS-232), Parallel (IEEE 1284), Ethernet (RJ-45), USB 2.0 |
| Output Type | Black & White |
| Type | Point of Sale Printer, Label Printer |
| Product Line | Intermec EasyCoder |
| Weight | Around 8.6 kg (19 lbs) |
| Depth | 21.38in |
| Height | 10.28in |
| Width | 11.73in |
| Platform | PC Products |
| Extend Printer Technology | Direct Thermal |
| Installed RAM | 8MB |
| Data Link Protocol | IEEE 802.11b, Ethernet |
| Color | Black |
| Memory Card Compatibility | CompactFlash Type I |
| Form Factor | Desktop, Stationary, Point of Sale |
| Networking Type | Wireless Network Adapter, 10/100basetx, Network Adapter, Print Server |
| Media Type | Labels, Perforated or Continuous Tag/Ticket Stock, Die-Cut |
| Panel | Monochrome LCD |
| Max Resolution (Bw) | 300x203DPI |
| Max Media Size | Roll 8in |
| Black Print Speed | 200mm/Sec |
| Media Capacity | 1 Roll(s) |
| Print Technology | Direct Thermal and Thermal Transfer |
| Print Resolution | 203 dpi |
| Print Speed | Up to 6 inches per second |
| Media Types Supported | Label, Tag, Receipt, Continuous |
| Maximum Print Width | 4.16 inches (105.7 mm) |
| Memory | 4 MB RAM, 4 MB Flash |
| Interfaces | RS-232 serial, Parallel, Internal Ethernet 10/100 Base-T |
| Dimensions | 254 mm x 406 mm x 356 mm (W x D x H) |
| Power Supply | 110-240 VAC, 50/60 Hz |
| Operating Temperature | 5°C to 40°C (41°F to 104°F) |
| Programming Languages | IPL, ZSim (Zebra), DSim (Datamax) Emulations |
| Accessories | Peeler, Cutter, Different Rollers and Printheads available |
| Display | LCD with backlight for menu navigation and status |
| Barcodes Supported | 1D and 2D symbologies |

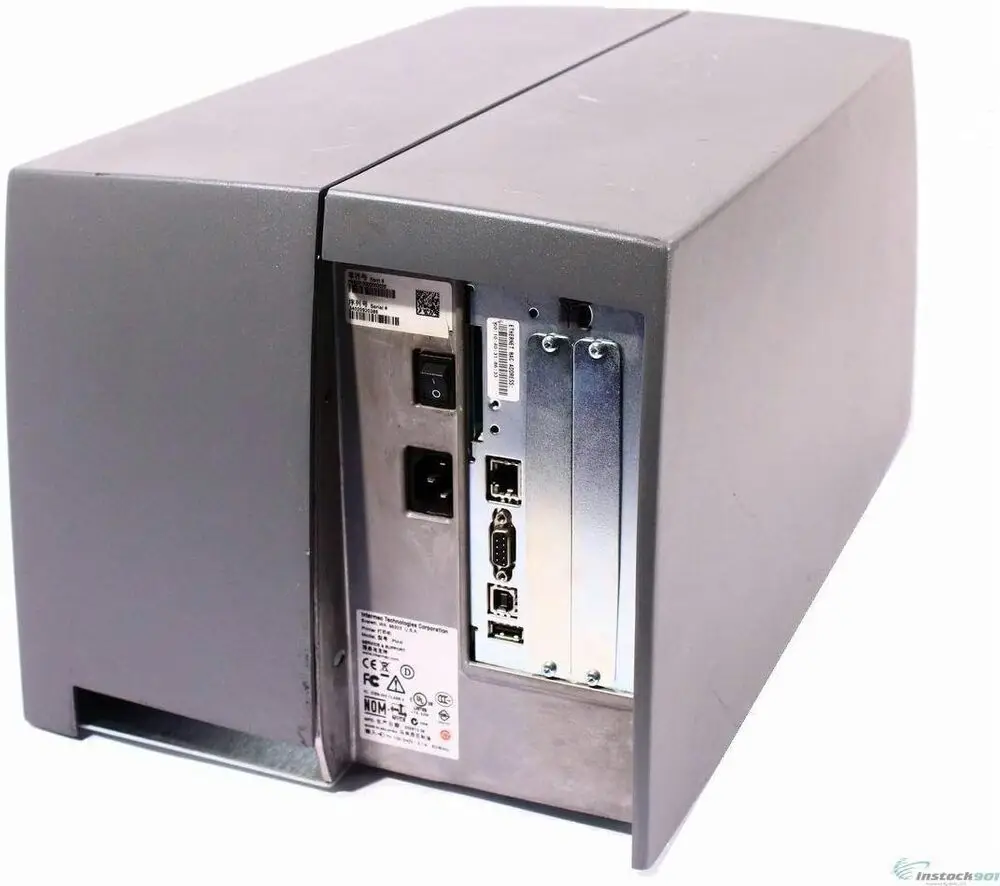

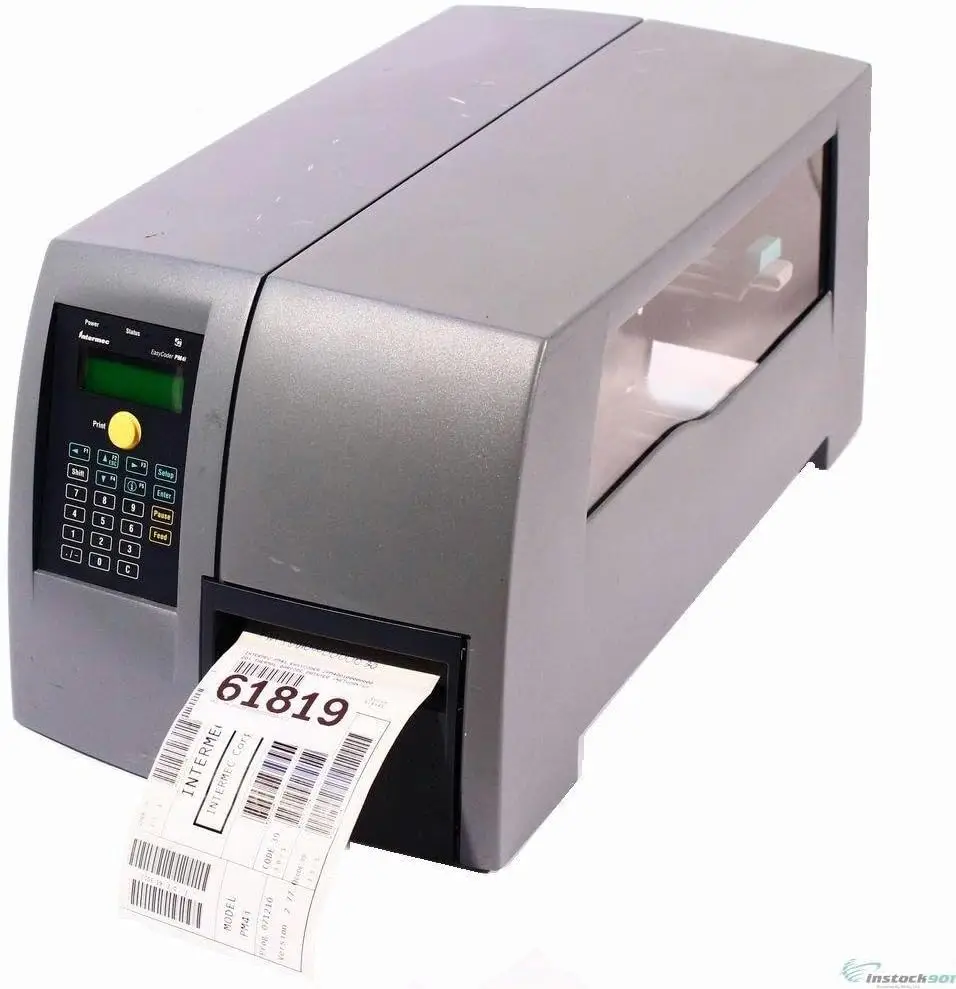

Images
Key Advantages
The EasyCoder PM4i offers robust build quality, ensuring longevity in demanding industrial environments.
It delivers high print speeds, improving throughput for large batch printing.
Supports multiple connectivity options enabling flexible integration into existing systems.
Compatible with a variety of media types and sizes, enhancing versatility.
Its modular design allows for easy maintenance and accessory upgrades.
User-friendly controls and clear display simplify operation and reduce training time.
Limitations
The print resolution is limited to 203 dpi, which might not meet requirements for very high-definition printing.
Lacks some of the advanced wireless connectivity options found in newer models.
The printer's size and weight make it less portable for flexible placement.
Driver and software support can be limited on modern operating systems.
Replacement parts might be harder to source due to its age and discontinued status.
Energy efficiency is lower compared to more recent printer technologies.
FAQ
What printing technologies does the EasyCoder PM4i support?
It supports both direct thermal and thermal transfer printing technologies.
What is the maximum print resolution of the EasyCoder PM4i?
The maximum print resolution is 203 dpi (dots per inch).
Which connectivity options are available on the EasyCoder PM4i?
The printer includes serial, parallel, and Ethernet connectivity interfaces.
Is the EasyCoder PM4i still in production?
No, the EasyCoder PM4i has been discontinued.
Can the EasyCoder PM4i be used with modern operating systems?
It may require legacy drivers; compatibility with the latest OS versions might be limited.
What are typical applications for the EasyCoder PM4i?
It is typically used for barcode label printing in industrial, manufacturing, and logistics environments.
How durable is the EasyCoder PM4i printer build?
It has a heavy-duty steel frame designed for reliable performance in harsh industrial settings.
