GoDEX EZ DT4 image

GoDEX EZ DT4

Quick information
Brand GoDEX 2014
Model EZ DT4
Released Year 2014
Type Printers
Series Dt
Status Discontinued
Quick view
Full specs Images

Overview

The GoDEX EZ DT4 is a compact desktop thermal transfer label printer designed for moderate volume printing. It uses direct thermal and thermal transfer printing technologies to produce durable, high-quality labels. The printer supports various barcode formats including 1D and 2D types, enhancing its versatility in labeling applications. With a print resolution of 203 dpi, it achieves clear and precise text and graphics output. It features USB and serial connectivity options, enabling easy integration with existing office setups. The device includes support for GoDEX programming language, making label design and customization efficient and flexible.

Specifications

Type Label Printer
Technology Thermal
Maximum Resolution 203 dpi
Output Type Black & White
Custom Bundle No
Model EZ DT4

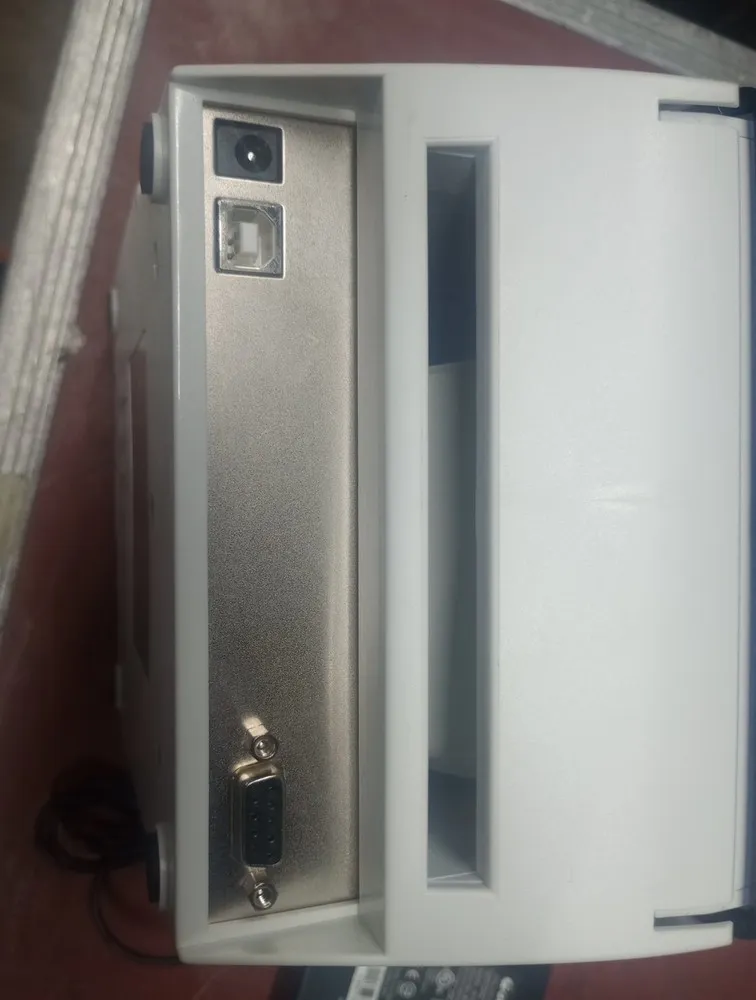

Connectivity USB 2.0, Serial RS232
Printing Speed 7 Inches Per Second
MPN DT4
Modified Item No
Product Line GoDex DT
UPC Does not apply
Print Method Thermal Transfer / Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Print Speed Up to 4 inches per second (102 mm/s)
Max Print Width 104 mm (4.1 inches)

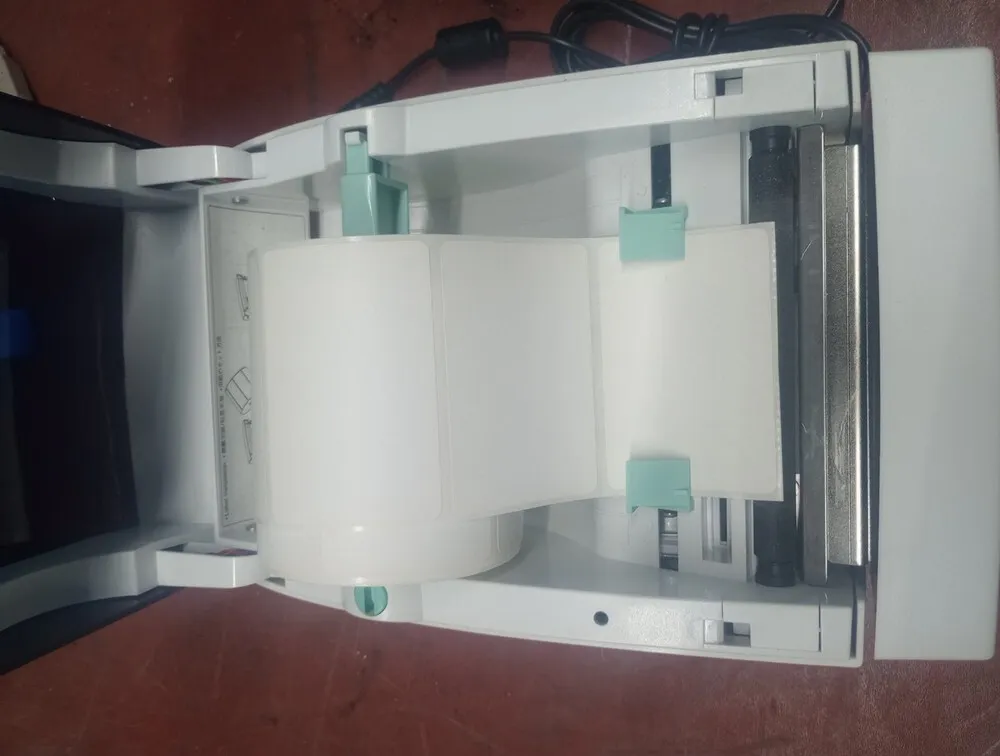

Media Type Roll-fed die-cut, continuous direct thermal, fan-fold labels, and tags
Memory 4 MB Flash / 8 MB SDRAM
Supported Barcodes 1D (Code 39, Code 128, EAN, UPC), 2D (QR Code, DataMatrix)
Dimensions (WxDxH) 210 x 285 x 185 mm
Weight Approx. 2.8 kg
Label Roll Max Diameter 127 mm (5 inches)
Operating System Compatibility Windows XP / 7 / 8 / 10

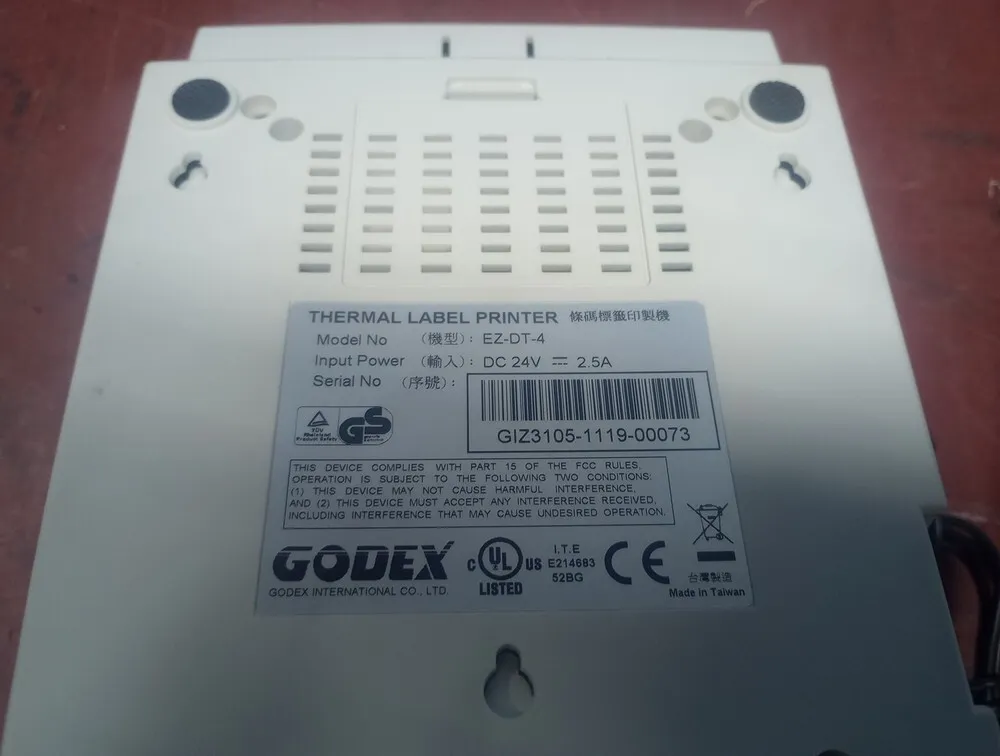

Power Supply External 24V, 2.5A power adapter

Key Advantages

The GoDEX EZ DT4 offers high reliability and consistent print quality for industrial and office use. It boasts a compact design that fits well in limited workspaces. The dual printing capability of direct thermal and thermal transfer enhances media compatibility and label longevity. Easy-to-use interface and connectivity options simplify setup and operation. Its capability to handle a variety of media widths and types increases application flexibility. Additionally, it supports multiple barcode types, supporting diverse labeling requirements.

Limitations

The EZ DT4 printer has a maximum print speed limited to approximately 4 inches per second, which might not be suitable for high-volume printing environments. Its print resolution of 203 dpi may not meet the needs for extremely fine graphic details required in some advanced labeling. Media roll capacity is moderate, necessitating frequent media changes in heavy-duty operations. The printer lacks wireless connectivity, which could limit remote usage or mobile printing options. Firmware and driver updates might not be frequent due to the model’s age. It also may lack compatibility with some newer label design software without additional drivers or plugins.

FAQ

The GoDEX EZ DT4 can print both direct thermal and thermal transfer labels, supporting a range of paper and synthetic media suitable for barcoding and identification.

It supports USB 2.0 and serial RS232 connectivity, allowing for flexible connection to various computer systems and POS devices.

The model is discontinued, but it can still be found through resellers or second-hand markets, though official support from GoDEX may be limited.

Yes, the EZ DT4 supports industry standard 1D and 2D barcode printing, including QR codes and Data Matrix barcodes.

The maximum print width is 104 mm (approximately 4.1 inches), suitable for most standard label sizes.

It uses GoDEX Basic Interpreter (GBI), a proprietary command language for label design and printer control.

Yes, the EZ DT4 supports both continuous and die-cut label rolls, making it versatile for various labeling applications.
