GoDEX DT2x
Brand | GoDEX 2019 |
Model | DT2x |
Released Year | 2019 |
Type | Printers |
Series | DT2X |
Item Weight | 2.35 pounds |
Product Dimensions | 8.58 x 6.77 x 3.94 inches |
Status | Discontinued |
Quick view
Overview

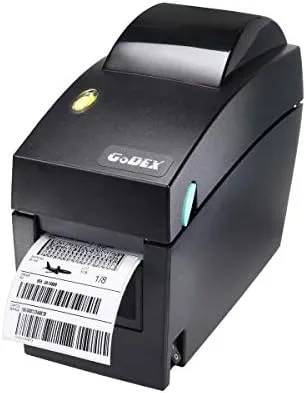

The GoDEX DT2x is a compact desktop thermal label printer designed for medium-volume label printing tasks. It supports direct thermal printing technology, eliminating the need for ink or toner while providing efficient and cost-effective printing.
The printer offers a maximum print resolution of 203 dpi, suitable for clear barcode and text printing applications. It supports flexible media handling with adjustable guides for various label widths and roll sizes.
With a print speed up to 5 inches per second, the DT2x balances quality and productivity for office and warehouse environments. It connects via USB or serial ports, ensuring compatibility with multiple systems.
The device includes an intuitive LCD interface for simple status monitoring and configuration, enhancing user efficiency. Its compact size makes it suitable for limited workspace environments without compromising performance.
Additionally, the GoDEX DT2x supports common barcode symbologies and font types, aligning with diverse labeling standards. It is equipped with sensor technology to detect label gaps or black marks, optimizing print positioning.
Designed for reliability and cost-effectiveness, the DT2x suits industries requiring barcode labeling such as shipping, inventory management, and retail operations.
Specifications
Hardware Interface | USB |
Ink Color | Black |
Resolution | 203 x 203 DPI |
Additional Printer functions | Print Only |
Control Method | App |
UPC | 743362408854 |
Memory Storage Capacity | 16 MB |
Product Dimensions | 8.58 x 6.77 x 3.94 inches |
Item Weight | 2.35 pounds |
Item model number | DT2x |
Is Discontinued By Manufacturer | No |
Date First Available | January 3, 2019 |
Manufacturer | Godex |
Printer Type | Direct Thermal Desktop Printer |
Maximum Print Resolution | 203 dpi (8 dots/mm) |
Maximum Print Speed | Up to 5 inches per second (127 mm/sec) |
Maximum Print Width | 56 mm (2.2 inches) |

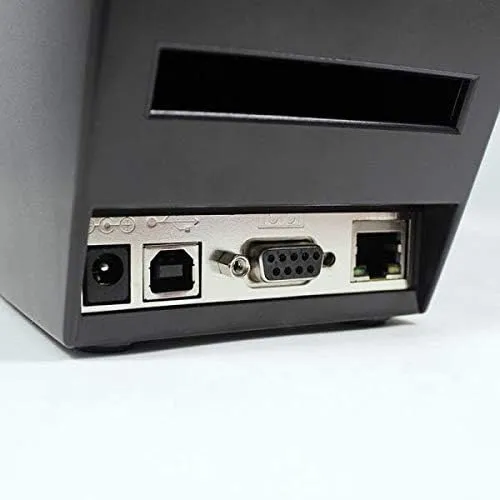

Interface | USB 2.0, RS-232 Serial |
Media Types Supported | Direct thermal labels and tags |
Label Roll Diameter | Up to 127 mm (5 inches) |
Media Width Range | 20 mm to 60 mm |
Memory | 8 MB SDRAM, 4 MB Flash |
Display | 2-line LCD |
Supported Barcodes | 1D barcodes including Code 39, Code 128, EAN, UPC, etc. |
Fonts | Internal scalable fonts and downloadable fonts |
Sensors | Gap sensor, black mark sensor, paper end sensor |
Power Supply | External 24V power adapter |
Dimensions (WxDxH) | 210 mm x 186 mm x 147 mm |
Weight | Approx. 1.5 kg |
Operating Systems Compatibility | Windows, Linux with appropriate drivers |
Images
Key Advantages
The GoDEX DT2x offers reliable direct thermal printing without the need for ink cartridges, reducing operating costs. Its compact desktop design saves valuable workspace in offices and warehouses.
Flexible media width support and roll capacity accommodate a variety of label sizes, making it versatile for different applications. The relatively fast print speed of up to 5 ips improves productivity for medium volume tasks.
The availability of USB and serial connectivity ensures compatibility with many existing systems and legacy devices. The built-in LCD provides immediate printer status and simple configuration.
Robust barcode and font support allow output of diverse label formats, supporting industry standard coding. The gap and black mark sensor ensures precise label alignment and reduces paper waste.
Overall, it combines affordability with sufficient printing quality for typical office and light industrial uses.
Limitations
The print resolution at 203 dpi limits the printing of fine detailed graphics or small fonts compared to higher resolution models. It lacks thermal transfer printing capability, restricting ribbon use and durability of labels.
The printer does not support modern wireless interfaces such as Wi-Fi or Bluetooth, which limits flexible placement options. The maximum print width and speed are constrained for very high volume or large format printing requirements.
The LCD interface is basic and not as advanced as touchscreens on newer printer models. The design does not emphasize ruggedness for harsh industrial environments.
Additionally, consumables and parts for GoDEX DT2x may have limited availability due to its older release date, which could impact maintenance over time.
FAQ
What printing technology does the GoDEX DT2x use?
The GoDEX DT2x uses direct thermal printing technology which prints by selectively heating thermal paper, removing the need for ink or toner.
What is the maximum print resolution of the DT2x printer?
The maximum print resolution for the DT2x is 203 dots per inch (dpi), ideal for standard barcode and label printing.
Does the printer support wireless connectivity?
No, the GoDEX DT2x supports USB and serial port connectivity but does not include wireless options like Wi-Fi or Bluetooth.
What types of media can the DT2x handle?
It supports various direct thermal labels with adjustable width guides, handling common roll sizes suitable for barcode labels.
Is the GoDEX DT2x still available for purchase?
The GoDEX DT2x has been discontinued and may no longer be available new, but can sometimes be found as refurbished or used units.
What is the maximum print speed of this printer?
The DT2x can print labels at speeds up to 5 inches per second.
Can the DT2x print barcodes?
Yes, the printer supports various barcode formats commonly used in labeling and inventory management.
