Fargo DTC4500e image

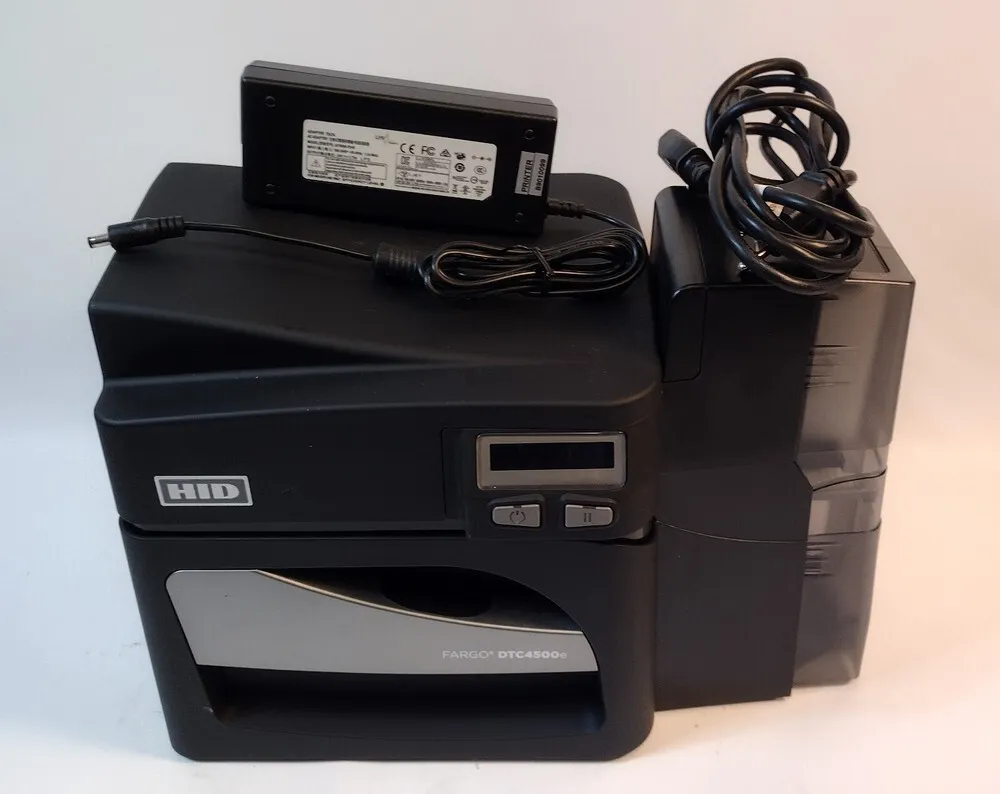

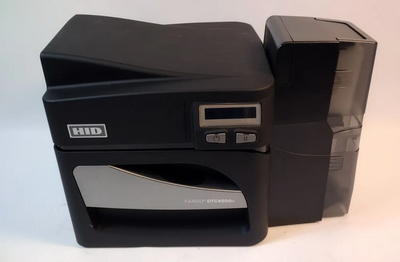

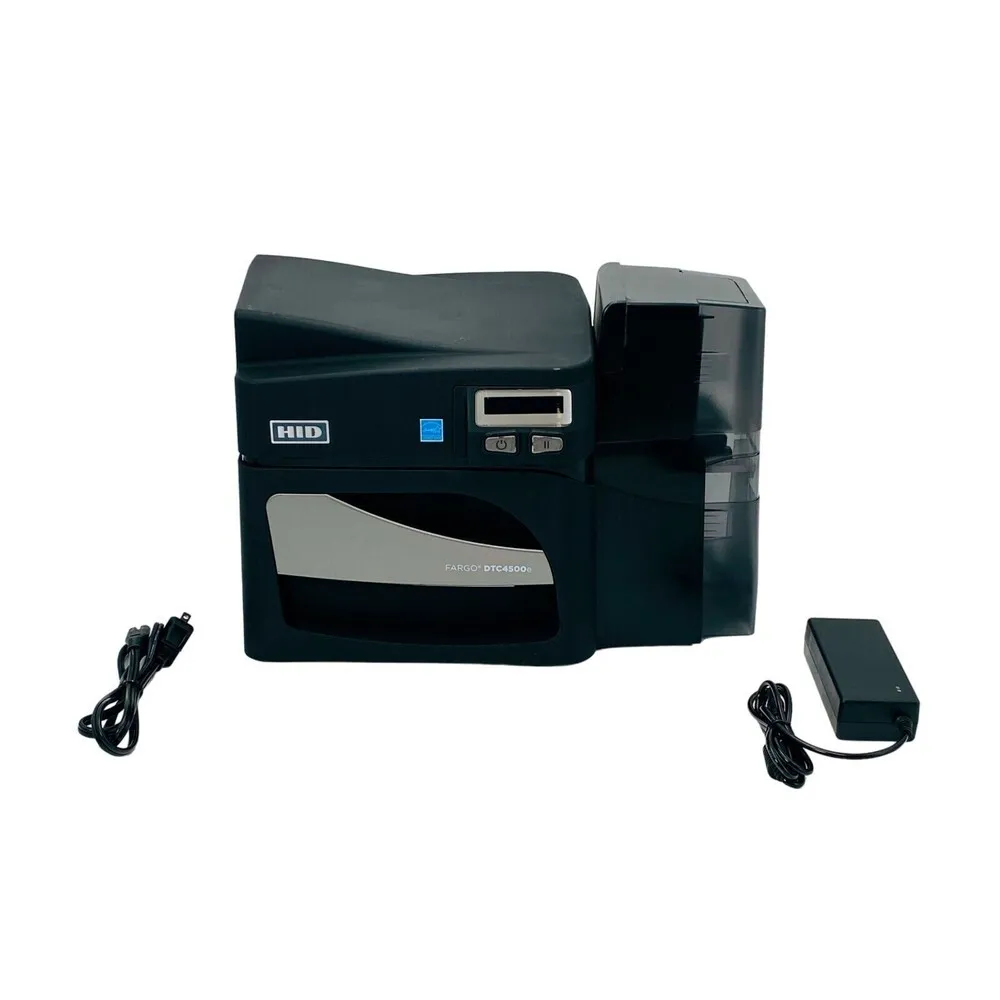

Fargo DTC4500e

Quick information
Brand Fargo 2011
Model L001462, X001800-3
Released Year 2011
Type Printers
Series Dtc
Status Discontinued
Quick view
Full specs Images

Overview

The Fargo DTC4500e is a high-performance direct-to-card printer designed for medium to large enterprise environments. It features a dual-sided printing capability with a fast print speed of up to 225 cards per hour in monochrome. This model supports edge-to-edge printing with a 300 dpi resolution, which ensures sharp and durable card images. The printer incorporates an efficient dye-sublimation technology combined with resin thermal transfer for vibrant color output and longevity. It includes on-board image memory and supports USB and Ethernet connectivity for versatile integration into various network setups. Additionally, the device is compatible with a variety of consumables including laminates and ribbons to enhance card security and lifespan.

Specifications

Output Type Color
Memory 32 MB RAM standard
MPN L001462, X001800-3
Supported Paper Size CR-80 Card, CR-79 Card
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type ID Card Printer
Technology Thermal
Maximum Resolution 300 x 300 DPI
Model DTC4500e
Connectivity USB 2.0 and Ethernet 10/100 Mbps
Black Print Speed 7 sec per card
Product Line Fargo DTC
Print Method Dye-sublimation/resin thermal transfer
Print Resolution 300 dpi (11.8 dots/mm)
Print Speed Up to 225 monochrome cards per hour
Card Handling Dual-sided printing with edge-to-edge capability
Card Thickness 0.030 inches (0.76 mm) to 0.040 inches (1.02 mm)
Input Hopper Capacity 100 cards (30 mil thickness)
Output Hopper Capacity 100 cards (30 mil thickness)
Lamination Optional lamination module available
Operating System Compatibility Windows 7, 8, 10, and later
Dimensions (WxDxH) 15.3 x 21.6 x 11.2 inches (389 x 548 x 284 mm)
Weight Approximately 29.5 lbs (13.4 kg)
Power Supply 100-240 Volts AC, 50/60 Hz
Supported Card Sizes CR-80 (85.60 mm x 53.98 mm)
Print Ribbon Types YMCKT, YMCKTK, Monochrome ribbons

Key Advantages

The Fargo DTC4500e offers rapid print speeds that significantly enhance productivity in high-volume ID card printing scenarios. Its dual-sided printing saves time and materials, eliminating the need to flip cards manually. The print quality is excellent with 300 dpi resolution, providing professional and crisp images. The robust build and reliable components ensure durability and reduce downtime in demanding use cases. Network connectivity via Ethernet allows multiple users to access the printer concurrently, adding convenience to busy office environments. Moreover, it supports optional lamination which increases card security and extends durability against wear and tampering.

Limitations

The Fargo DTC4500e requires regular maintenance to sustain optimal print quality, which can add to operating costs. It has a relatively high initial investment compared to basic card printers. The device's size and weight are larger, necessitating significant space in office setups. Limited compatibility exists with some third-party ribbons and laminates, which could restrict consumable choices. The laminated cards take longer to produce, which might slow down workflow in urgent printing tasks. User interface and software, although functional, lack some modern intuitive features found in newer models, requiring more operator training.

FAQ

The Fargo DTC4500e utilizes dye-sublimation and resin thermal transfer printing technologies to produce high-quality, durable card images.

Yes, the Fargo DTC4500e supports dual-sided (duplex) card printing, allowing for edge-to-edge printing on both sides of the card.

It can print up to 225 monochrome cards per hour, depending on print mode and complexity.

No, the Fargo DTC4500e has been discontinued, but support and consumables may still be available through licensed resellers.

It offers USB and Ethernet network connectivity options for flexible integration with different computer systems.

Yes, it supports optional lamination modules that enhance card durability and security.

The printer is compatible with standard CR-80 size cards (85.60 mm x 53.98 mm).
