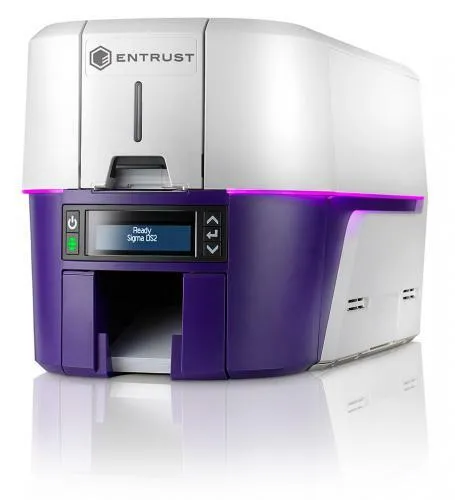

ENTRUST DATACARD DS2 Duplex
Brand | ENTRUST DATACARD 2010 |
Model | DS2 Duplex |
Released Year | 2010 |
Type | Printers |
Series | Entrust |
Printing Technology | Dye-Sublimation / Resin Thermal Transfer |
Status | Discontinued |
Quick view
Overview
The Entrust Datacard DS2 Duplex printer is a specialized office printing device designed primarily for duplex card printing in secure environments. It features advanced dual-sided printing capability, leveraging dye-sublimation printing technology for high-quality image output. The printer integrates with Entrust's security and encoding solutions, making it suitable for ID cards, badges, and financial cards. It supports various card types and thicknesses with precision feeding and alignment mechanisms. Connectivity options typically include USB and Ethernet interfaces for seamless integration into office networks. The DS2 Duplex printer also provides robust driver and software support to enhance print job management and security customization.
Specifications
Type | ID Card Printer |
Technology | Direct to Card Dye Sublimation / Resin |
Output Type | Color |
Model | DS2 Duplex |
Connectivity | WiFI, Ethernet (RJ-45), USB 2.0 |
MPN | 525301-005 |
Black Print Speed | 850 cards per hour |
Interface | Bidirectional USB 2.0 high speed; Ethernet 10 Base |
Product Line | Entrust |
UPC | Does not apply |
Printer Type | Duplex Dye-Sublimation Card Printer |
Printing Technology | Dye-Sublimation / Resin Thermal Transfer |
Print Resolution | 300 dpi (11.8 dots/mm) |
Print Speed | 15-25 cards per minute (single or dual-sided) |
Card Size Supported | CR-80 (ISO 7810) cards - 85.60 mm x 53.98 mm |
Card Thickness | 0.25 mm to 1.0 mm |
Connectivity Interfaces | USB 2.0, Ethernet 10/100 Base-T |
Input Hopper Capacity | Up to 100 cards |
Output Hopper Capacity | Up to 100 cards |
Encoding Options | Magnetic Stripe Encoder (HiCo/LoCo), Contact and Contactless Smart Card Encoder (optional) |
Operating Systems Supported | Windows 7, 8, 10, Server 2008/2012 |
Dimensions (L x W x H) | Approximately 370 mm x 230 mm x 220 mm |
Weight | Around 5.5 kg |
Power Supply | 100-240 V AC, 50/60 Hz |
Warranty | Typically 1 year limited warranty |
Images
Key Advantages
The Entrust Datacard DS2 Duplex offers reliable double-sided card printing, reducing manual handling and increasing productivity. It delivers high-resolution prints with vibrant colors and sharp text, ensuring professional card quality. Compact design allows it to fit conveniently in office spaces without occupying much footprint. The printer supports a wide range of card substrates, enhancing its versatility. Integration with Entrust's security features improves card personalization and fraud prevention. Additionally, it offers stable and consistent performance suitable for medium-volume card issuance environments.
Limitations
While the DS2 Duplex excels in duplex card printing, its throughput may be limited compared to larger industrial printers, making it less suitable for high-volume operations. The device requires specific ink ribbons and consumables which may be costly or less readily available over time. It lacks wireless connectivity, potentially limiting flexible network placement. Firmware and software updates are dependent on Entrust's support lifecycle, which could affect long-term compatibility. The printer is primarily designed for card printing and may not support standard paper document printing. Replacement parts and maintenance could be challenging due to the device's age and market availability.
FAQ
What type of cards can the DS2 Duplex printer handle?
The DS2 Duplex printer supports various card types including PVC, composite, and coated cards typically used for ID badges, access control, and financial cards.
Does the printer support wireless connectivity?
No, the DS2 Duplex printer does not support wireless connectivity, and connects via USB or Ethernet interfaces.
Is the DS2 Duplex compatible with Windows operating systems?
Yes, the printer includes drivers compatible with multiple Windows versions to facilitate seamless operation.
Can this printer encode magnetic stripes or smart chips?
The DS2 Duplex supports magnetic stripe encoding and can be optionally configured for smart card personalization through additional modules.
What is the typical print speed of the DS2 Duplex?
The typical print speed is approximately 15 to 25 cards per minute depending on print mode and encoding features used.
Are replacement ribbons and parts easily available?
Due to its discontinuation, replacement ribbons and parts may be limited and sourcing them could be more difficult or costly.
Is the DS2 Duplex suitable for high-volume card printing?
The DS2 Duplex is intended for medium volume card printing and may not be optimal for very high-volume production due to its throughput limitations.
