Datamax M-4210
Brand | Datamax 2010 |
Model | KJ2-00-48000Y07 |
Released Year | 2010 |
Type | Printers |
Status | Discontinued |
Quick view
Overview
The Datamax M-4210 is an industrial-grade thermal label printer designed for high-volume printing applications in office and industrial environments. It utilizes direct thermal and thermal transfer printing technology to provide durable, high-quality labels with print resolutions up to 203 dpi. The device supports print speeds up to 6 inches per second, optimizing productivity for bulk printing tasks. It features a rugged metal frame for enhanced durability and longevity in demanding settings. Connectivity options include parallel, serial, and USB interfaces, accommodating diverse system integration needs. The printer supports a broad range of label and media types, ensuring versatility in label applications.
Specifications
MPN | KJ2-00-48000Y07 |
UPC | 0807027583482 |
Model | M-4210 |
Technology | Thermal |

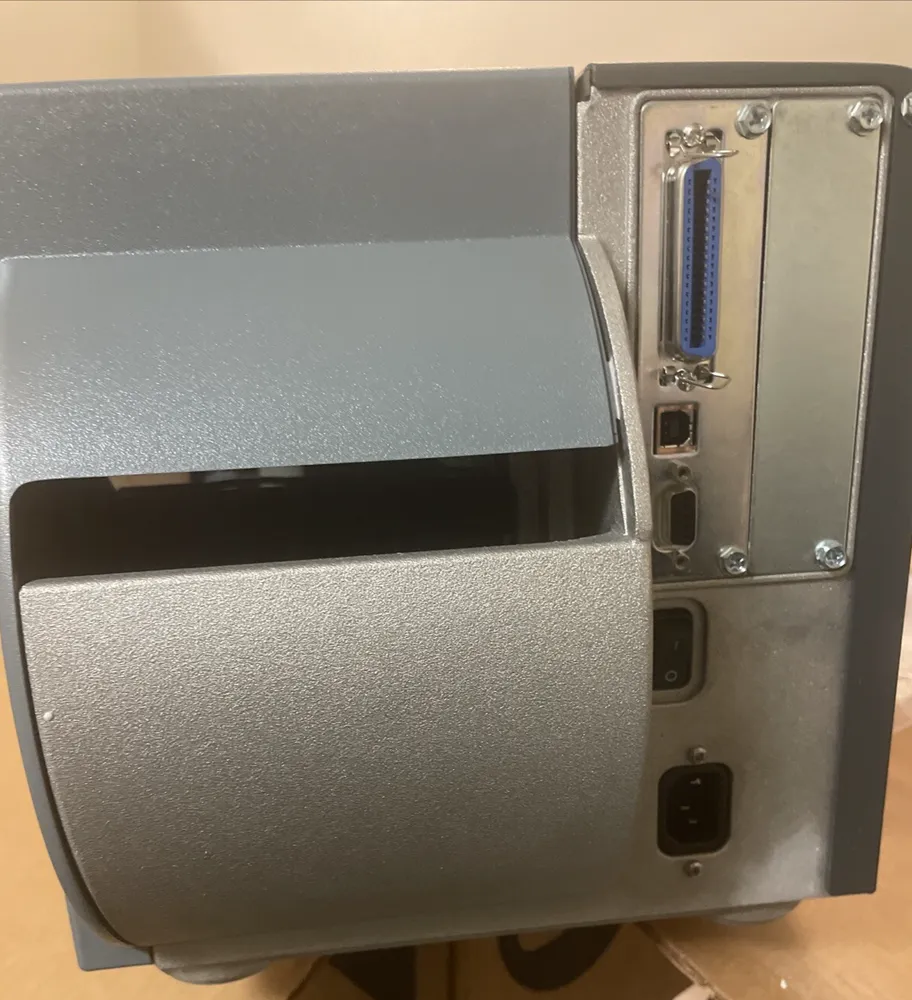

Connectivity | Parallel, Serial, USB |
Output Type | Black & White |
Type | Label Printer |
Platform | PC Products |
Extend Printer Technology | Direct Thermal |
Installed RAM | 16MB |
Data Link Protocol | Ethernet, Tcp/IP, Http, Ipx/Spx, Fast Ethernet |
Form Factor | Desktop, Stationary |
Networking Type | Wireless Network Adapter, 10/100basetx, Network Adapter |
Max Resolution (Bw) | 203DPI |
Black Print Speed | 10in/Sec |
Printer Type | Thermal Transfer and Direct Thermal |
Print Resolution | 203 dpi |
Print Speed | Up to 6 inches per second |
Media Type | Labels, tags, continuous forms |
Max Media Width | 4.16 inches (105.7 mm) |
Max Print Width | 4.09 inches (104 mm) |
Memory | 4 MB DRAM, 2 MB Flash |
Dimensions | 10.7 x 9.1 x 15.2 inches (272 x 231 x 386 mm) |
Weight | Approximately 13 lbs (5.9 kg) |
Operating System Compatibility | Windows, Linux, and other common OS with appropriate drivers |
Power Supply | 110-240 VAC, 50/60 Hz |
Discontinued | Yes |
Images
Key Advantages
The Datamax M-4210 offers a robust build quality making it suitable for prolonged industrial use. Its dual print modes of thermal transfer and direct thermal increase application flexibility. High print speed of up to 6 ips reduces downtime and improves operational efficiency. Broad connectivity options enable easy integration with existing office and industrial setups. The printer supports various media widths and types, providing adaptability in labeling tasks. User-friendly control panel simplifies printer operations and maintenance.
Limitations
The print resolution is limited to 203 dpi, which might not meet requirements for very high-resolution label prints. The printer design is relatively bulky and heavier compared to newer compact models, limiting space efficiency. It lacks wireless connectivity options such as WiFi or Bluetooth found in modern printers. Limited onboard memory restricts the complexity and size of print jobs it can handle without external support. Replacement parts and consumables might be harder to source due to the model’s age. User interface and display are basic, lacking advanced touchscreen or color display options.
FAQ
What type of printing technology does the Datamax M-4210 use?
The Datamax M-4210 uses both direct thermal and thermal transfer printing technologies.
What is the maximum print speed of the Datamax M-4210?
The printer supports a maximum print speed of 6 inches per second.
Does the Datamax M-4210 support wireless connectivity?
No, this model does not include wireless connectivity options such as WiFi or Bluetooth.
What print resolution does the Datamax M-4210 offer?
The printer provides a print resolution up to 203 dpi.
Is the Datamax M-4210 still being manufactured?
No, the Datamax M-4210 has been discontinued and is no longer in production.
What connectivity interfaces are available on the Datamax M-4210?
It includes parallel, serial, and USB interfaces for flexible connectivity.
Can the Datamax M-4210 handle different types of label media?
Yes, it supports a variety of label widths and media types for diverse labeling needs.
