Datamax I-4310e
| Brand | Datamax 2006 |
| Model | Industrial, DMX-I-4310e, I-Class, Parallel, Honeywell, Mark II, Ethernet, I13-00-08000L07, Network |
| Released Year | 2006 |
| Type | Printers |
| Series | I-Class |
| Status | Discontinued |
Quick view
Overview
The Datamax I-4310e is an industrial-grade thermal transfer and direct thermal printer designed for high-volume label printing applications. It features a robust metal frame suitable for demanding industrial environments, ensuring durability and long-term reliability. With print speeds up to 10 inches per second and a resolution of 203 dpi, the printer delivers clear and precise barcode and label printing. The device supports various media types and sizes, calibrated for consistent print quality across different materials. Connectivity options include parallel, Ethernet, and serial interfaces, providing versatile network and standalone printer configurations. Integrated with DMX-I-4310e firmware, the printer supports extensive print language compatibility for seamless integration into existing systems.
Specifications
| Printer Type | Industrial Thermal Transfer / Direct Thermal Printer |
| Resolution | 203 dpi (8 dots/mm) |
| Print Speed | Up to 10 inches per second (254 mm/s) |
| Print Width | 4.16 inches (105.7 mm) |
| Memory | 16 MB |
| Media Types Supported | Labels, Tags, Continuous, Black Mark, Fanfold |
| Media Width | 1 inch to 4.65 inches (25.4 mm to 118 mm) |
| Media Thickness | 0.0025 to 0.01 inches |
| Media Sensing | Gap, Mark, Continuous, Reflective |
| Interfaces | Parallel, Serial, Ethernet (10/100Base-T) |
| Processor | 32-bit RISC microprocessor |
| Fonts and Graphics | Multiple built-in fonts, supports scalable fonts and downloadable graphics |
| Dimensions (WxDxH) | Approximately 303 mm x 437 mm x 300 mm |
| Weight | Approximately 15 kg |
| Operating Temperature | 5°C to 40°C |
| Power Supply | 110/220 VAC auto-ranging |

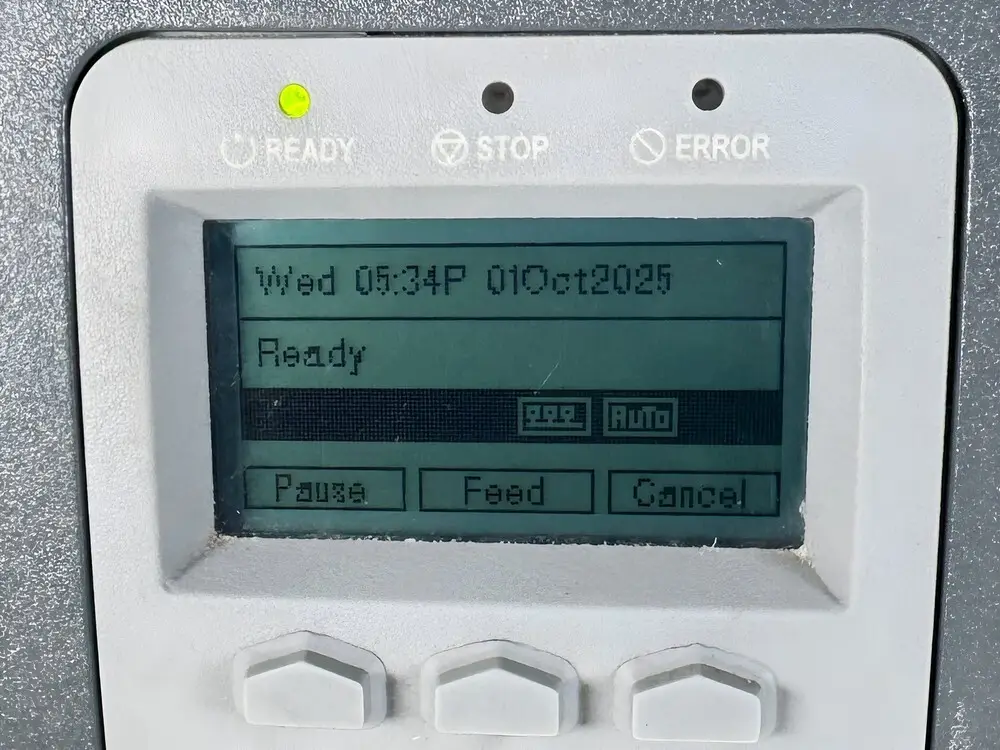

| Indicator Panel | LCD and LED status indicators |
| Emulations | Datamax DMX, I-Class, MTPL, ZPL compatible |
| Firmware | DMX-I-4310e |
| Accessories | External rewinders, cutters, and peelers (optional) |
| Input Type | Monochrome |
| Output Type | Black & White |
| Custom Bundle | No |
| MPN | Industrial, DMX-I-4310e, I-Class, Parallel, Honeywell, Mark II, Ethernet, I13-00-08000L07, Network |
| Supported Paper Size | Max Label Width: 4,65" |
| California Prop 65 Warning | This item does NOT contain any chemicals or materials specified in the California Prop 65 list. |
| Type | Label Printer |
| Technology | Thermal |
| Maximum Resolution | 300 x 300 DPI |
| Model | I-4310e |
| Connectivity | Ethernet (RJ-45), Parallel (IEEE 1284), USB 2.0, Serial (RS-232 DB25) |
| Features | Networkable, Industrial |
| Black Print Speed | 10 ips |
| Product Line | I-Class |
| UPC | 783555111376 |
Images
Key Advantages
The I-4310e boasts high-speed printing capability, significantly minimizing label production time. Its rugged steel construction ensures excellent durability in harsh industrial environments. The printer supports a wide range of media types and sizes, making it adaptable for various labeling needs. Multiple interface options facilitate easy integration into different network environments or standalone operations. The device's user-friendly control panel simplifies operation and routine maintenance. Additionally, the extensive print language support enhances compatibility with diverse software applications.
Limitations
Despite its strengths, the 203 dpi resolution may limit applications requiring very high-resolution prints. The printer's physical size and weight can demand considerable workspace and may not be suitable for compact office settings. Firmware updates may require manual interventions compared to more modern automated systems. The reliance on legacy interfaces such as parallel and serial ports might pose integration challenges with newer hardware. Limited color printing capabilities restrict its use predominantly to black-and-white labels. Finally, some advanced connectivity features found in newer models, such as Wi-Fi, are absent.
FAQ
What type of printing technology does the Datamax I-4310e use?
The Datamax I-4310e uses thermal transfer and direct thermal printing technology.
What is the maximum print speed of the I-4310e?
The printer can print at speeds up to 10 inches per second.
What connectivity options are available on the I-4310e?
It offers parallel, Ethernet, and serial interfaces for connectivity.
Is the I-4310e suitable for high-resolution printing needs?
The I-4310e provides 203 dpi resolution, which is adequate for many industrial labels but may not be suitable for very high-resolution printing requirements.
Can the I-4310e print in color?
No, the I-4310e is designed for black-and-white (monochrome) label printing only.
Is the Datamax I-4310e still in production?
No, the Datamax I-4310e is discontinued.
What kind of maintenance does the I-4310e require?
Regular maintenance includes cleaning printheads, rollers, and keeping the firmware updated for optimal performance.
