Datamax E-4205A image

Datamax E-4205A

Quick information
Brand Datamax 2006
Model EA2-W4-1J0A5A00, DMX, Network LAN, AC Adapter
Released Year 2006
Type Printers
Series E-Class
Status Discontinued
Quick view
Full specs Images FAQ

Overview

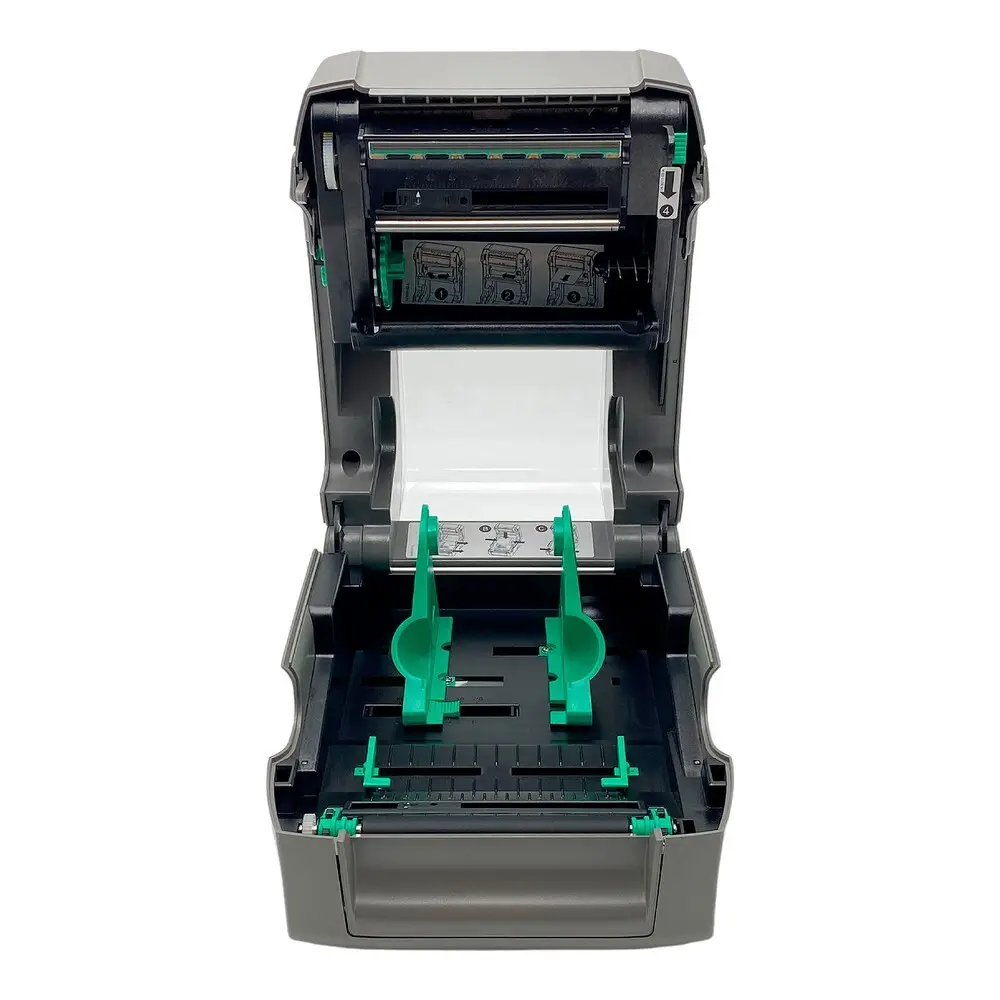

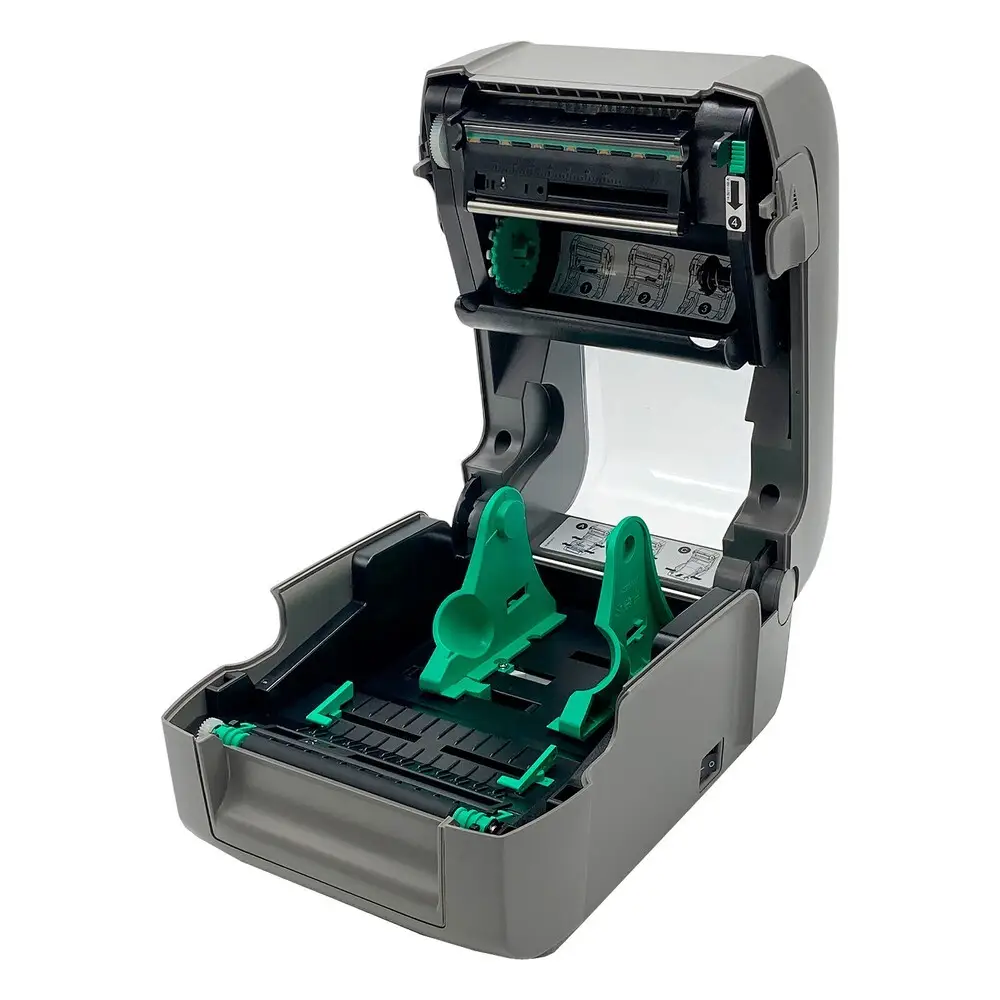

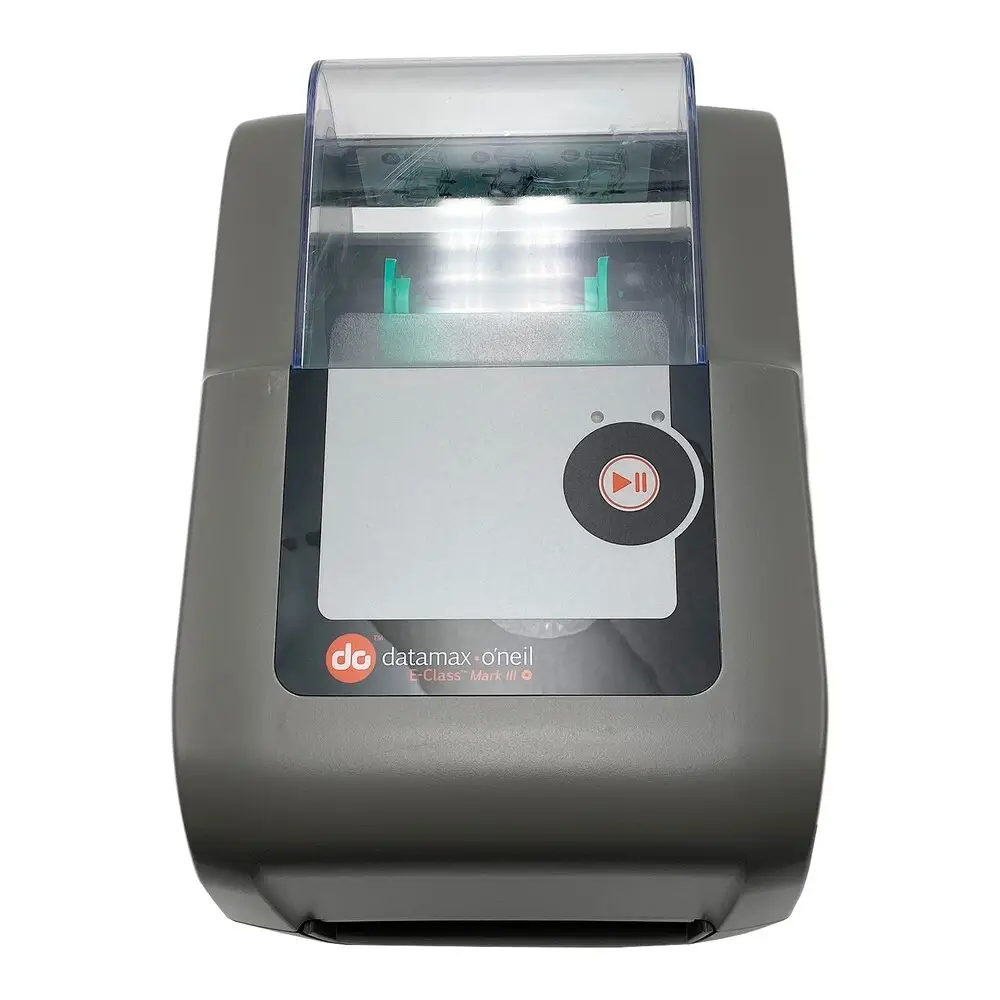

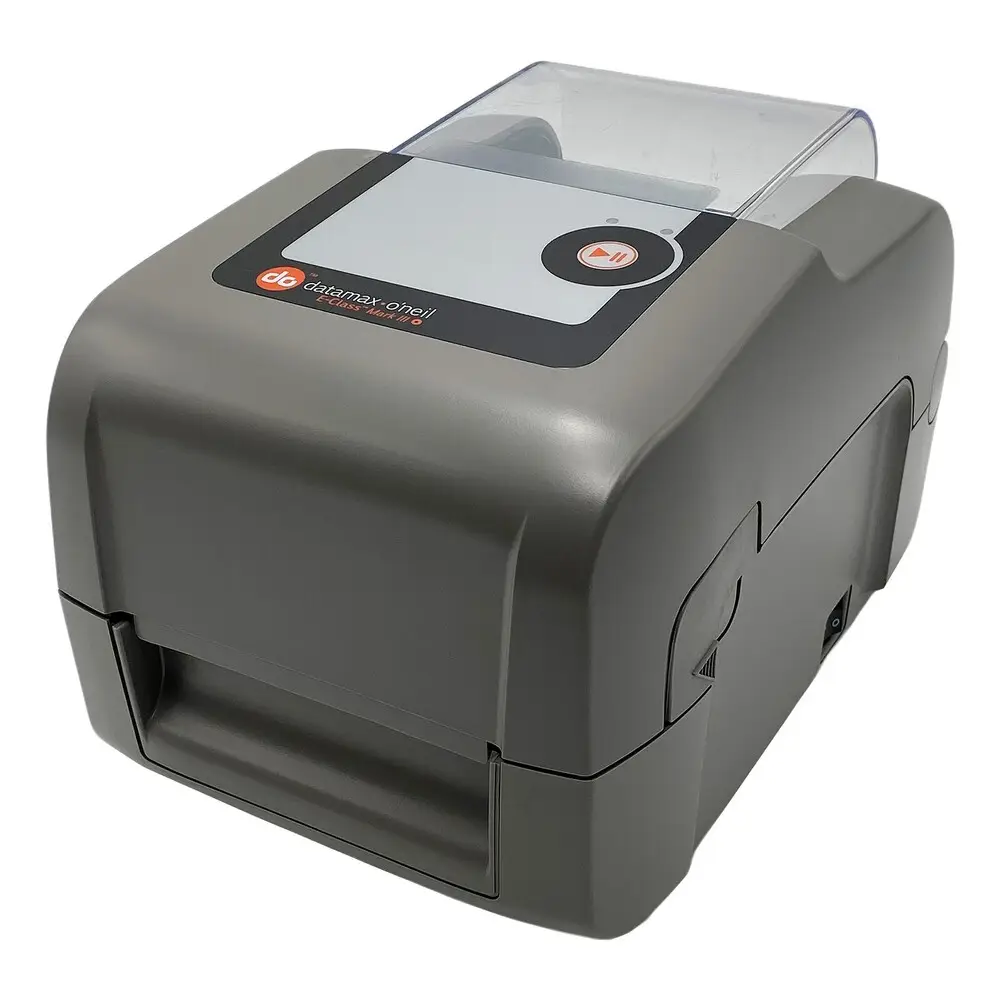

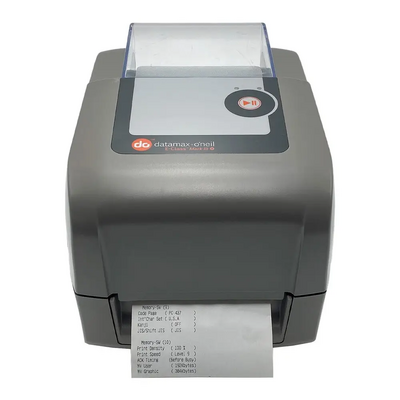

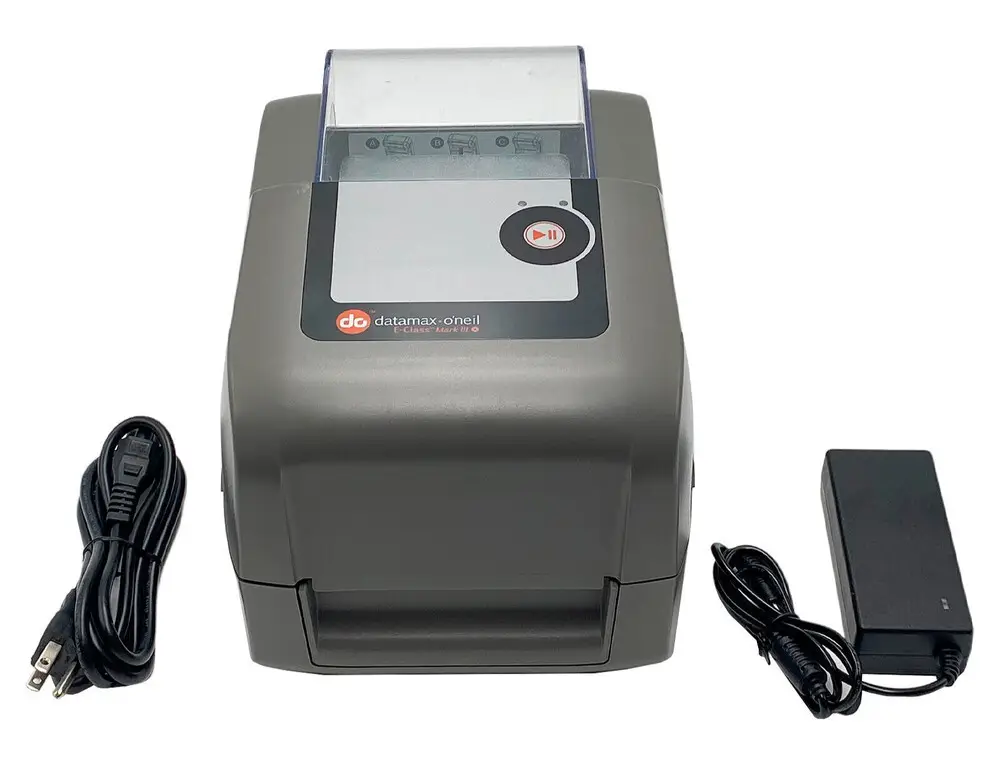

The Datamax E-Class E-4205A is a thermal transfer and direct thermal label printer designed for medium-duty industrial applications. It features a print width of up to 4.16 inches and a print speed reaching 6 inches per second, making it suitable for efficient label production. Connectivity options include DMX (Datamax Marking Language) for device communication and Network LAN support for integration into office networks. The device uses an AC adapter as its power source and supports standard label roll sizes with adjustable sensors. The printer is equipped with a robust internal processor and memory to handle complex label formats and barcode printing. Its design includes enhanced media handling capabilities, allowing for quick media loading and consistent print quality in various environments.

Specifications

Print Technology Thermal Transfer / Direct Thermal
Print Resolution 203 dpi (8 dots/mm)
Print Speed Up to 6 inches per second
Maximum Print Width 4.16 inches (105.7 mm)
Processor 32-bit RISC
Memory 32 MB
Connectivity Ethernet (RJ-45), Parallel (IEEE 1284), Serial (RS-232), USB 2.0
Power Supply AC Adapter, Input 100-240V, 50/60Hz
Media Types Labels, Tags, Receipt Paper
Media Width 1 to 5 inches
Media Thickness 0.0025 to 0.01 inch
Sensors Reflective and Transmissive
Dimensions 11.3 x 8.4 x 8.1 inches (287 x 214 x 206 mm)
Weight Approx. 6.5 kg
Input Type Monochrome
Output Type Black & White
Custom Bundle No
MPN EA2-W4-1J0A5A00, DMX, Network LAN, AC Adapter
Supported Paper Size Max Media Width: 4.4”
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Point of Sale Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model E-4205A
Features Networkable, Portable
Black Print Speed 5 ips
Product Line E-Class
UPC Does not apply

Key Advantages

High print resolution of 203 dpi ensures clear and precise barcode and text printing. Network LAN connectivity enables smooth integration into existing office and industrial networks. The printer supports DMX programming language, facilitating customization and compatibility with many applications. Compact and sturdy design minimizes space usage while providing durability. Its AC adapter power supply ensures stable and reliable operation. Easy media loading and sensor adjustments reduce downtime and increase productivity.

Limitations

The print speed of 6 inches per second may be slower compared to newer industrial printers in high-volume environments. The 203 dpi resolution, while sufficient for standard labels, might be inadequate for applications requiring very fine detail. Limited internal memory restricts handling of extremely complex label designs or large data buffers. The network capabilities may require additional configuration and may lack advanced security features found in modern printers. The device does not support wireless connections like Wi-Fi or Bluetooth. Availability of replacement parts and accessories might be an issue due to the model's age.
