Datamax DMX-I-4208 image

Datamax DMX-I-4208

Quick information
Brand Datamax 2011
Model R42-00-18000007, I-CLASS
Released Year 2011
Type Printers
Series Dmx
Status Discontinued
Quick view

Overview

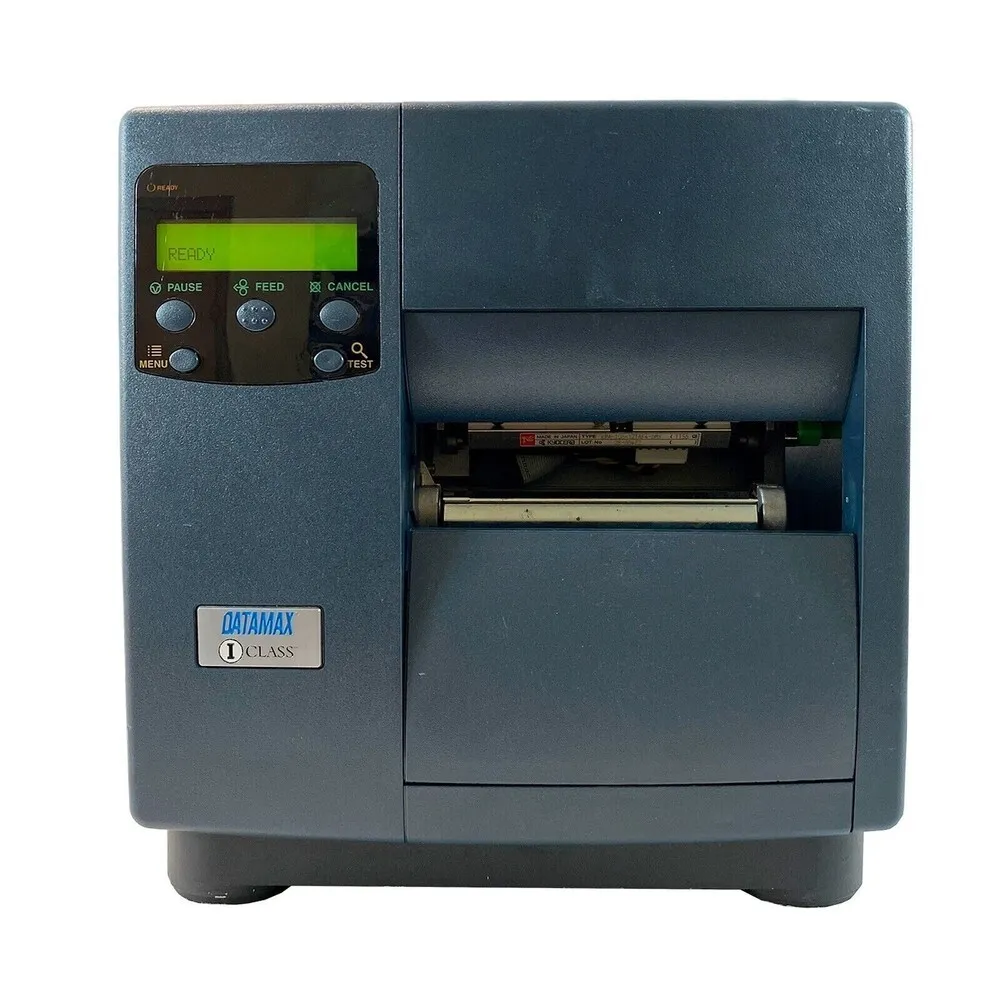

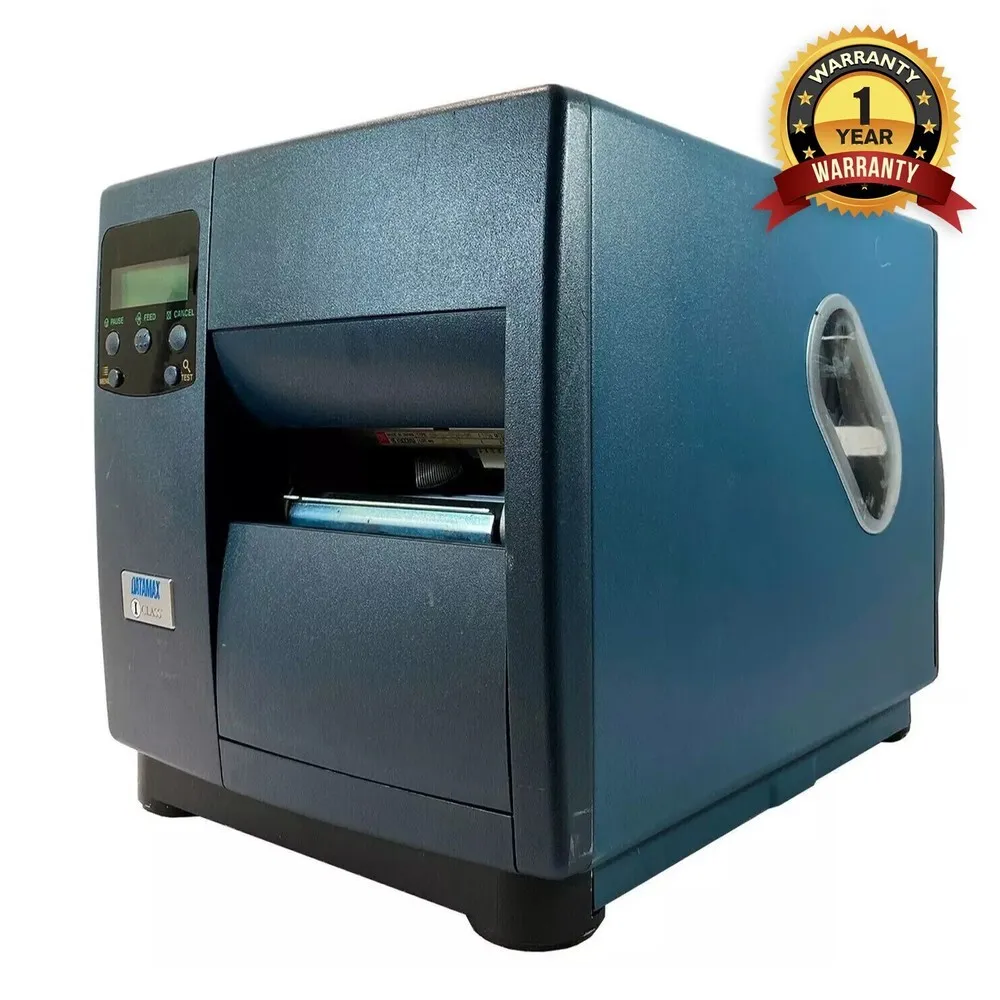

The Datamax DMX-I-4208 is an industrial-grade office printer designed primarily for high-volume barcode and label printing applications. It utilizes direct thermal and thermal transfer printing technologies, offering resolutions up to 203 dpi to ensure clear, durable outputs. Powered by a 32-bit RISC processor, it handles complex label formats and fast print speeds up to 8 inches per second. The device supports a wide variety of media types, widths up to 4.2 inches, and includes an adjustable print head for various label thicknesses. Connectivity options include serial, parallel, and USB ports, enabling easy integration into existing office environments. Firmware supports multiple emulations such as Datamax, I-Class, and EPL, enhancing compatibility with legacy labeling software.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 2 MB DRAM, 1 MB Flash
Custom Bundle No
MPN R42-00-18000007, I-CLASS
Modified Item No
Supported Paper Size Maximum Label Width: 4.65"
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model DMX-I-4208

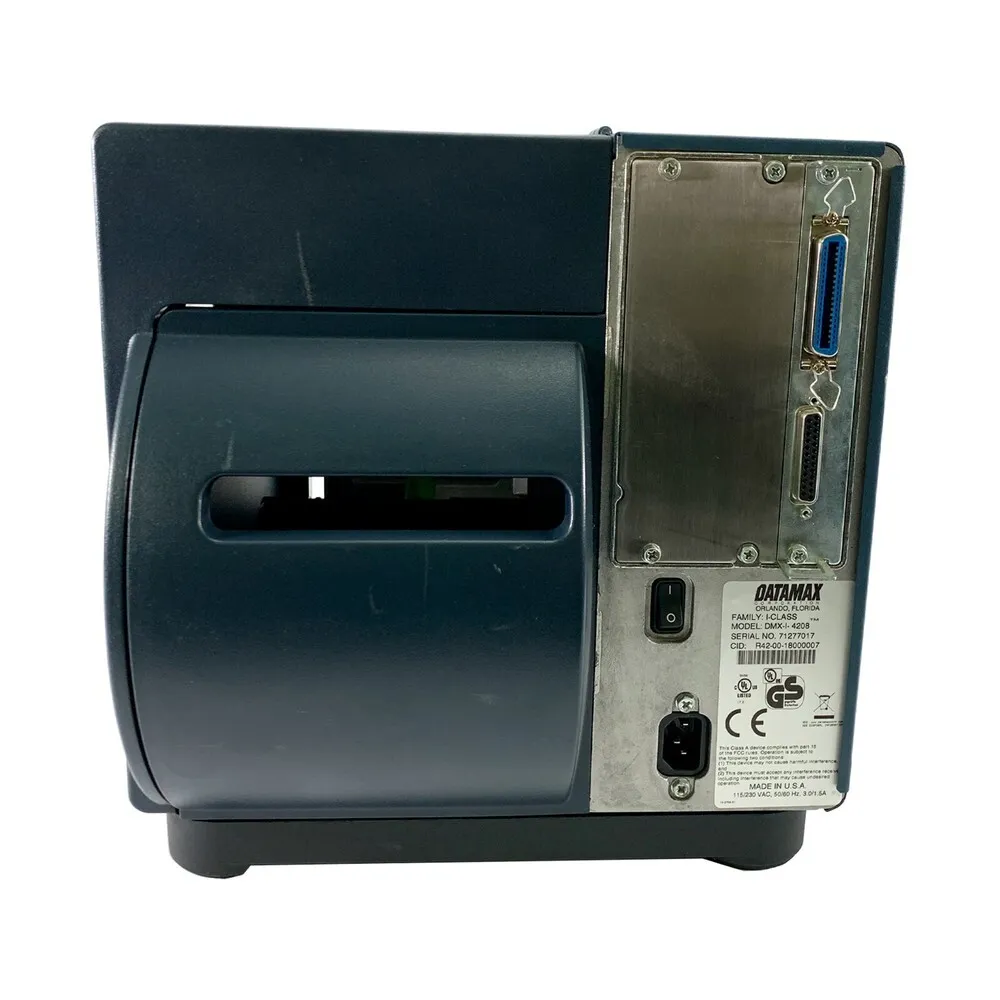

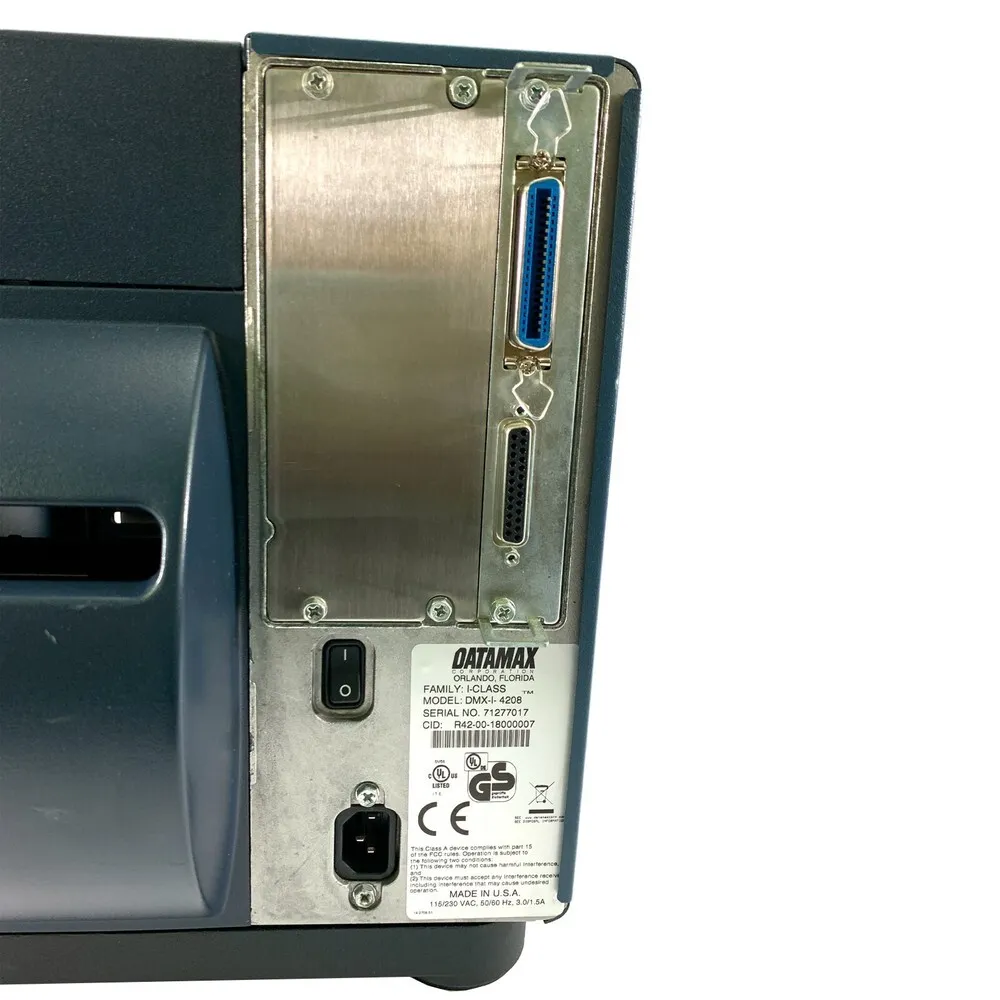

Connectivity Serial (RS-232), Parallel (IEEE 1284), USB 2.0
Features Thermal Transfer
Black Print Speed 8ips
Product Line Datamax DMX
Print Method Direct thermal and thermal transfer
Print Resolution 203 dpi (8 dots/mm)
Maximum Print Width 4.16 inches (105.8 mm)
Maximum Print Speed Up to 8 inches per second (203 mm/s)
Processor 32-bit RISC
Emulations Datamax, I-Class, EPL
Media Types Supported Labels, tags, continuous stock, fanfold
Media Width 0.75 to 4.65 inches (19.1 to 118 mm)
Media Thickness 0.0025 to 0.01 inches (0.0635 to 0.254 mm)
Ribbon Types Wax, wax/resin, resin
Ribbon Length Up to 984 feet (300 m)
Dimensions (WxDxH) 10.5 x 16.5 x 11 inches (266 x 419 x 279 mm)
Weight 22 lbs (10 kg)
Power Supply Input: 100-240 VAC, 50/60 Hz

Key Advantages

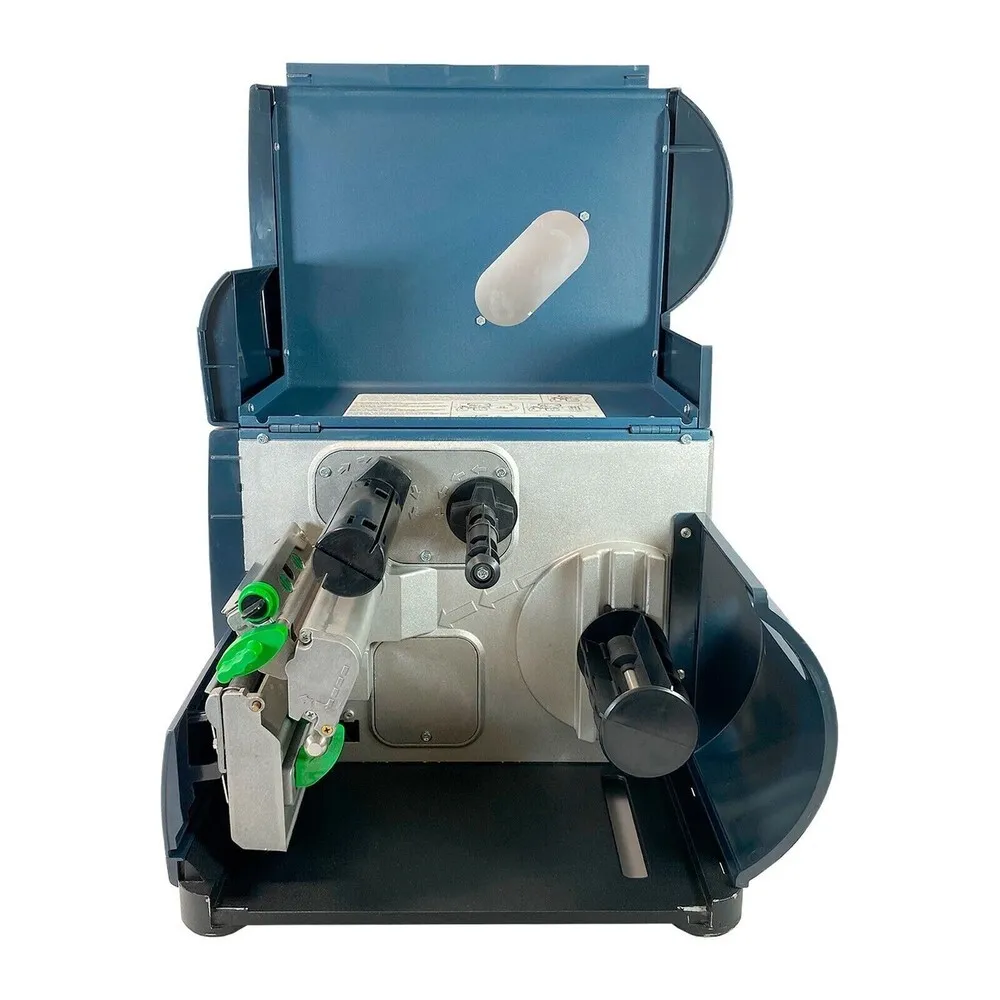

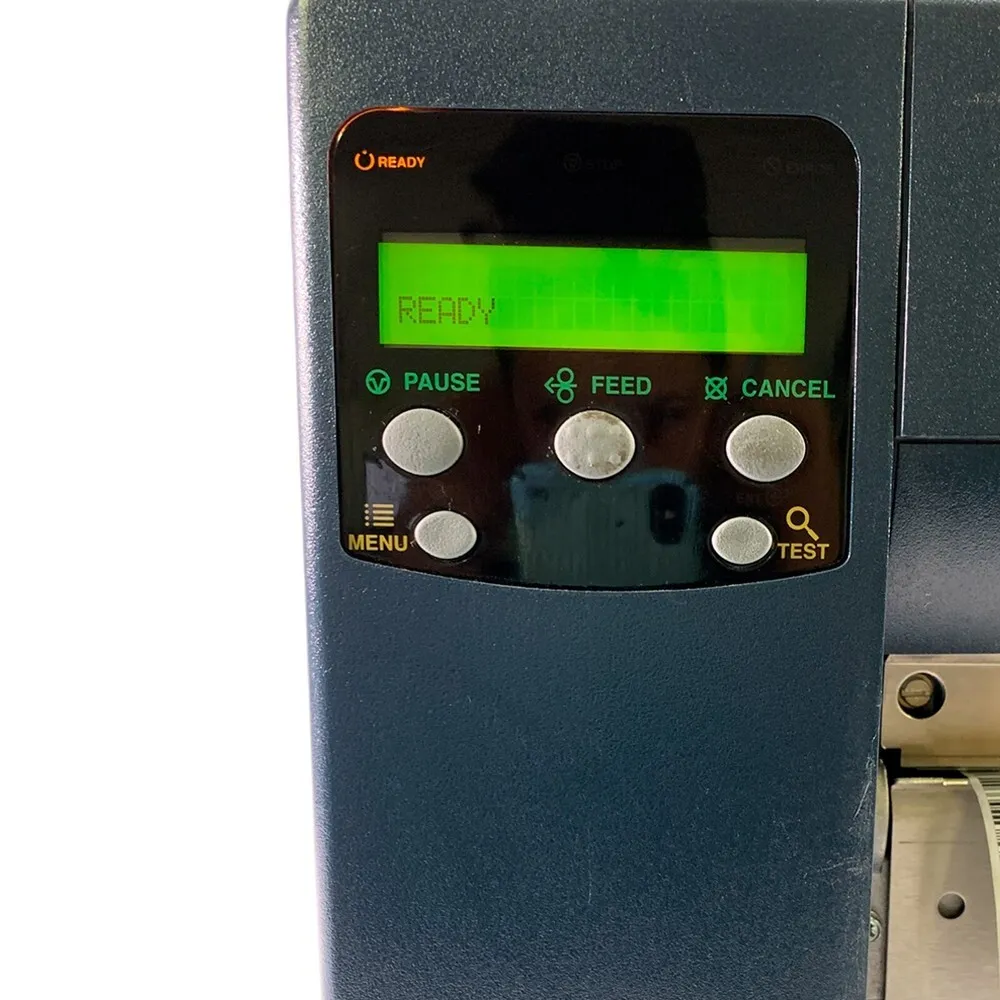

The DMX-I-4208 offers robust industrial-grade reliability for continuous office printing tasks. It features versatile connectivity including serial, parallel, and USB interfaces to fit diverse setups. Its fast printing speed supports increased productivity in busy office environments. The printer's compatibility with multiple emulation languages adds flexibility for users transitioning from older devices. A durable metal chassis enhances longevity and performance under heavy workloads. User-friendly controls and easy media loading streamline operations and reduce downtime.

Limitations

Despite its industrial capacity, the DMX-I-4208 is limited to a maximum print resolution of 203 dpi, which may not meet requirements for ultra-fine label details. It offers basic connectivity without modern wireless or network capabilities, potentially requiring additional adapters for network integration. The device's physical size and weight could be less convenient for small office spaces. Consumable costs related to ribbon and media might be higher compared to standard office printers. Firmware upgrades and technical support could be limited due to the older nature of the model. It lacks color printing options, limiting output to monochrome labels only.
