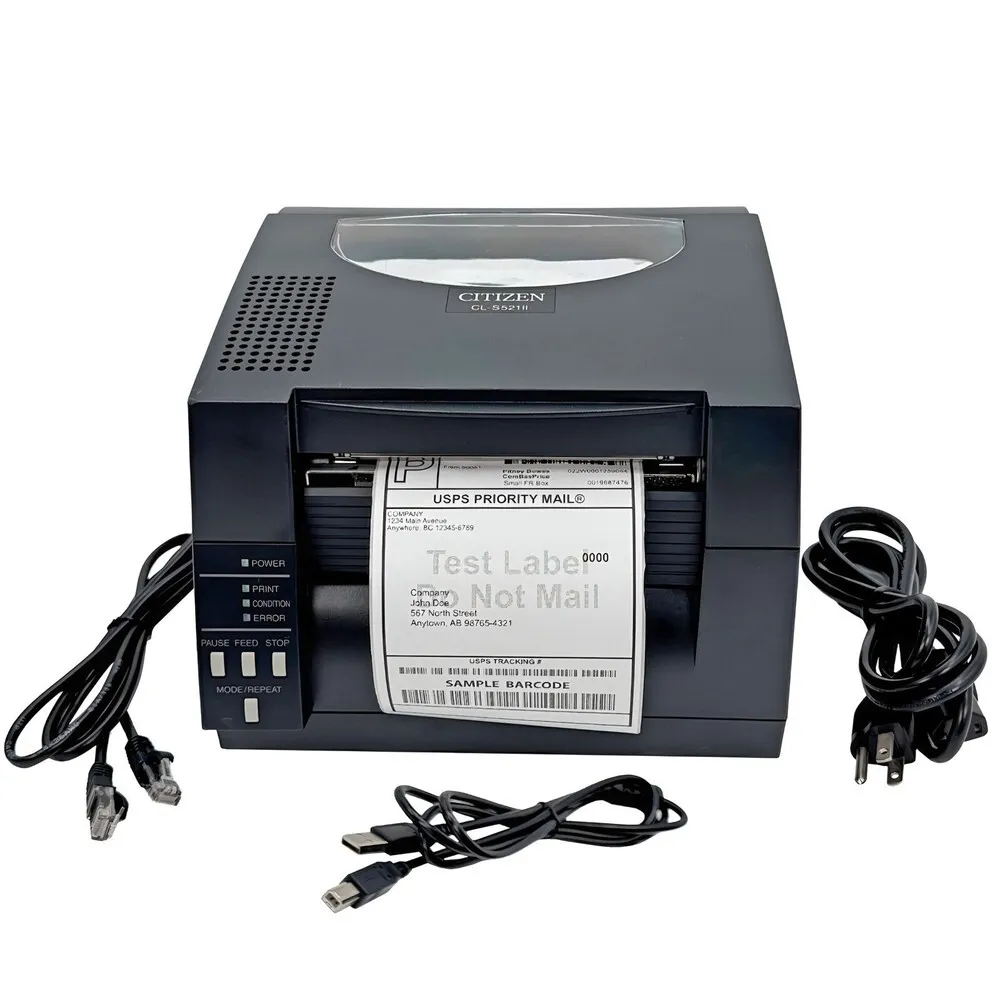

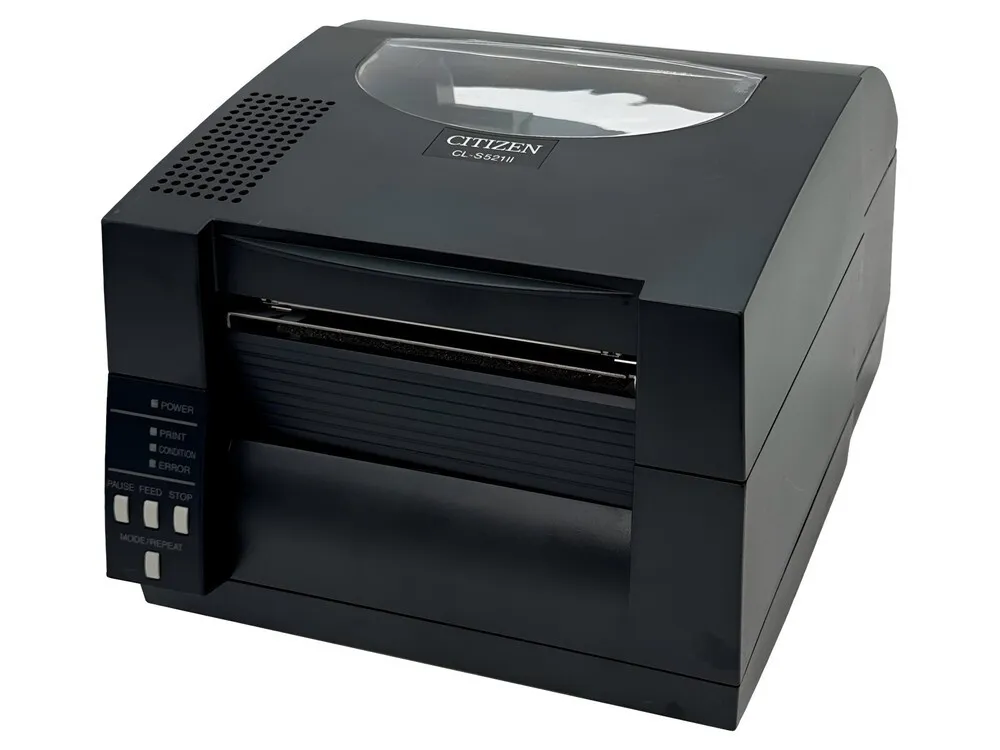

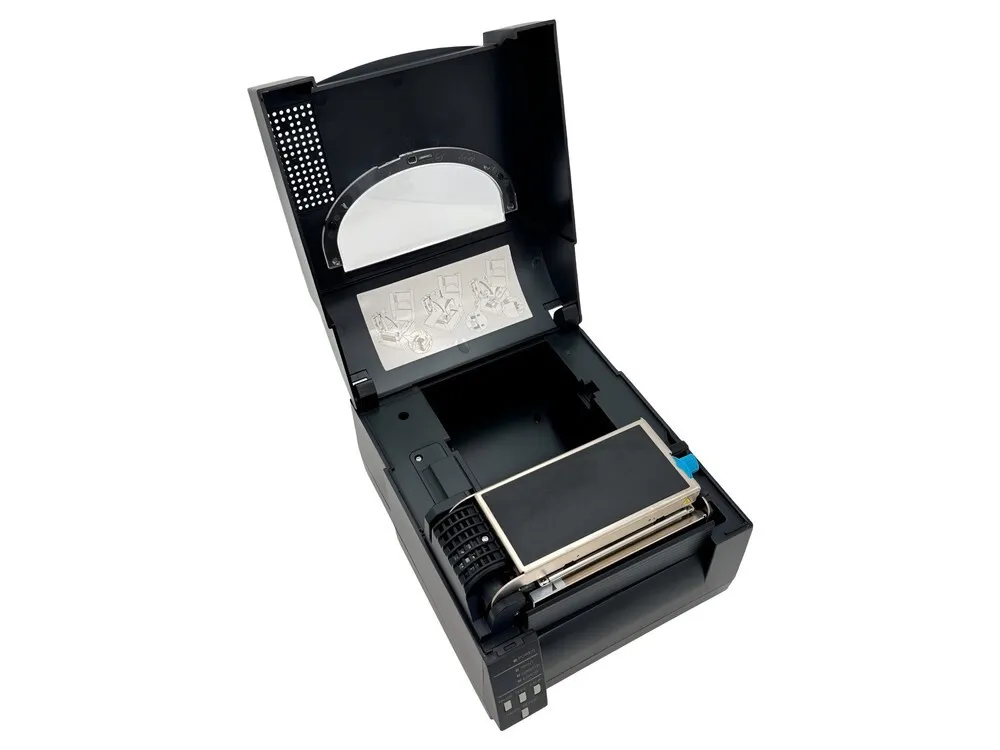

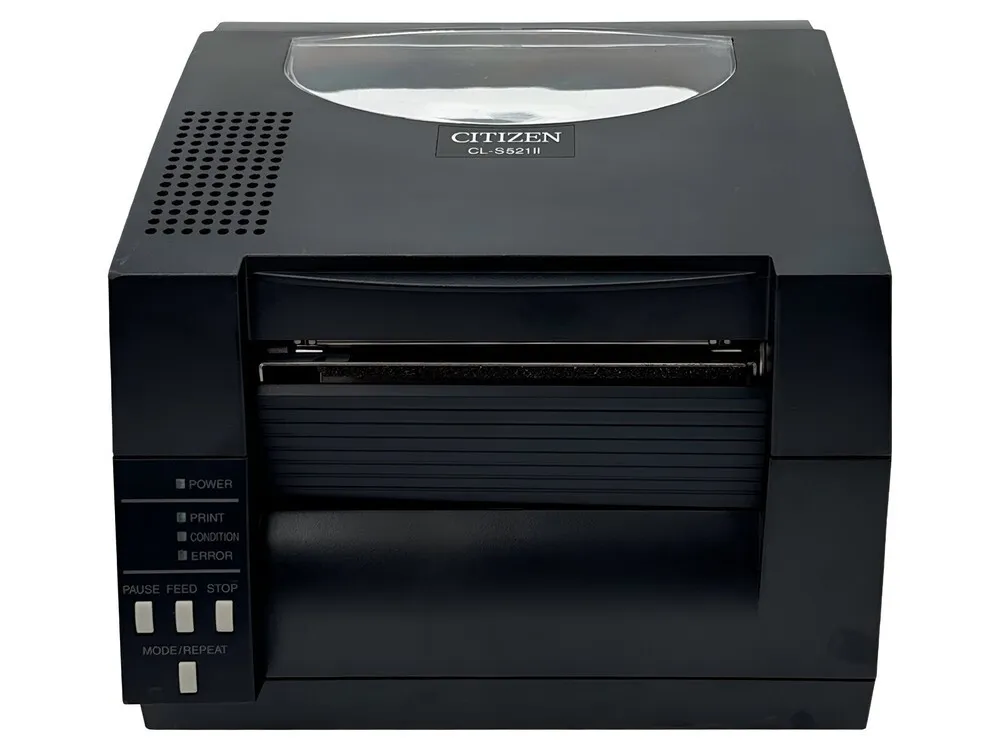

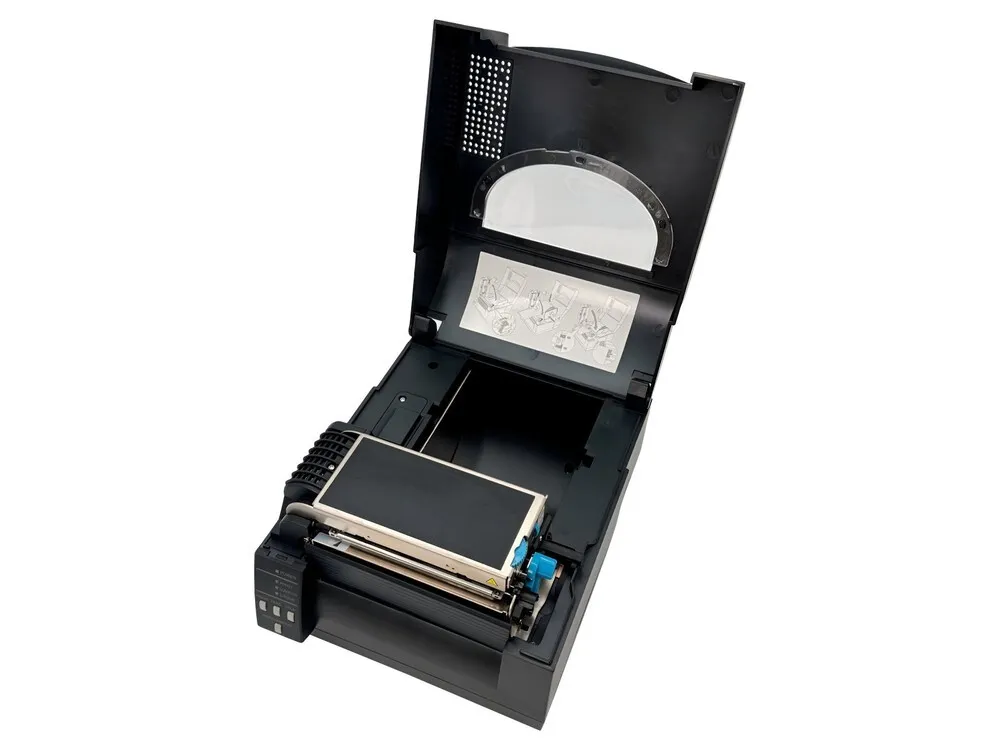

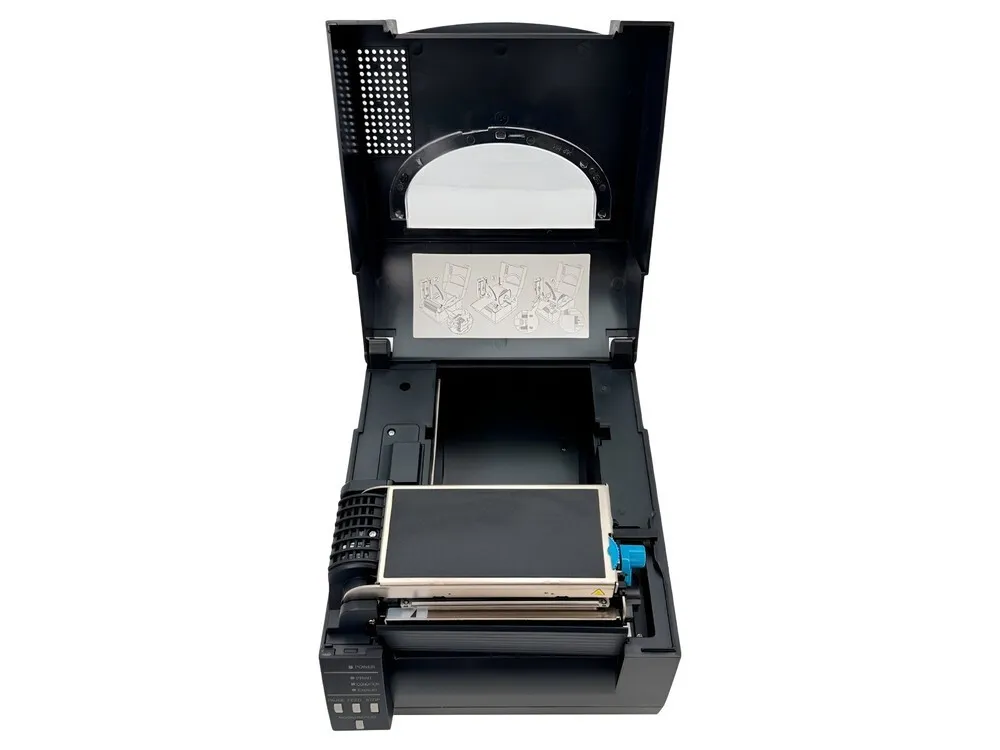

Citizen CL-S521II image

Citizen CL-S521II

Quick information
Brand Citizen 2008
Model Network LAN, JM52-M01, CL-S521II-EPUBK, CL-S521IINNUBK, Ethernet
Released Year 2008
Type Printers
Series Cl
Status Discontinued
Quick view
Full specs Images

Overview

The Citizen CL-S521II is a high-performance thermal transfer and direct thermal desktop printer designed for various office and industrial labeling needs. It offers printing resolutions of 203 dpi (8 dots/mm) for crisp and clear output. The printer supports a print speed of up to 6 inches per second, ensuring efficient and rapid label production. Connectivity options are versatile, including USB, serial, parallel ports, and in some models network capabilities through LAN or Ethernet modules. It features a compact design with an intuitive LCD display for easy setup and status monitoring. The CL-S521II is compatible with various label materials and ribbons, enhancing its flexibility across multiple applications.

Specifications

Input Type Monochrome
Output Type Black & White
Memory 8 MB SDRAM, 4 MB Flash ROM
Custom Bundle No
MPN Network LAN, JM52-M01, CL-S521II-EPUBK, CL-S521IINNUBK, Ethernet
California Prop 65 Warning This item does NOT contain any chemicals or materials specified in the California Prop 65 list.
Supported Paper Size Max Media Width: 4.6"
Type Label Printer
Technology Thermal
Maximum Resolution 203 x 203 DPI
Model CL-S521II
Connectivity Ethernet (RJ-45), Serial (RS-232), USB 2.0
Features Networkable
Black Print Speed 6 ips
Product Line Citizen CL
UPC 5704174206361
Printing method Thermal transfer and direct thermal
Print resolution 203 dpi (8 dots/mm)
Max print speed 152 mm/sec (6 ips)
Media width 12.5 mm to 110 mm (0.5 to 4.3 inches)
Interfaces USB 2.0, Serial RS-232C, Parallel, Optional Ethernet/LAN
Dimensions (WxDxH) 190 x 282 x 177 mm
Weight 3.8 kg
Display LCD screen with status indicators
Power supply AC 100-240V, 50/60 Hz
Battery Optional internal rechargeable battery for mobile usage
Software compatibility Supports Windows drivers and command languages (ESC/P, SBPL)
Operating temperature 5°C to 40°C
Humidity 25% to 85% non-condensing
Accessories Barcode ribbons, labels, media holders, network interface modules

Key Advantages

The CL-S521II boasts fast printing speeds up to 152 mm/s (6 ips) suitable for workload-intensive environments. Its multiple interface options including USB, serial, parallel, and network (Ethernet/LAN) provide excellent connectivity flexibility. The printer supports a wide range of media and ribbon types, catering to different labeling demands. Its rugged metal casing offers durability for continuous daily use. The built-in LCD display and user-friendly controls simplify operation and maintenance. Additionally, the energy-saving power management reduces electricity consumption without compromising performance.

Limitations

While the printer excels in many aspects, it is limited to a maximum print resolution of 203 dpi, which may not be sufficient for very fine or high-detail label printing. The media width is capped around 4.3 inches (110 mm), restricting usage to smaller label sizes. It may not support modern wireless connectivity such as Wi-Fi or Bluetooth by default. The device may require additional modules or upgrades to enable network functions. As a thermal printer, it requires compatible thermal ribbons and labels, which might limit consumable options. Software and driver support for the CL-S521II might be limited on the latest operating systems.

FAQ

The CL-S521II supports thermal transfer and direct thermal printing methods.

It includes USB, serial, parallel interfaces, and certain models offer Ethernet/LAN network connectivity.

The printer can print at speeds up to 6 inches per second (152 mm/s).

It offers a print resolution of 203 dpi, suitable for most standard label printing but not for very detailed or fine graphics.

The CL-S521II has been discontinued, so official support may be limited.

It supports media widths up to approximately 4.3 inches (110 mm).

Yes, it features an LCD display with user-friendly controls for easy operation.
