Brother MFC-8480DN
Brand | Brother 2006 |
Model | MFC8480DN |
Released Year | 2006 |
Type | Printers |
Series | Mfc |
Status | Discontinued |
Quick view
Overview
The Brother MFC-8480DN is a multifunction office printer integrating print, copy, scan, and fax capabilities into a single device. It features a monochrome laser print engine with a maximum print resolution of 1200 x 1200 dpi, delivering sharp and clear documents. This model includes a 33.6 Kbps fax modem supporting various fax protocols such as ECM and broadcasting. It supports Ethernet networking with built-in 10/100 Base-TX connectivity for shared office environments. The scanner offers a flatbed color scanning with an optical resolution of up to 600 x 2400 dpi. The device operates on a 300 MHz processor, coupled with 64 MB RAM (expandable), ensuring efficient multitasking and data processing.
The printer supports multiple operating systems including Windows, Mac OS, and Linux through various drivers such as PCL6 and BR-Script3 emulation. Paper handling comprises a 250-sheet standard input tray plus a 50-sheet multipurpose tray, and a 150-sheet output bin. Duplex printing capability is built-in, reducing paper consumption and improving workflow efficiency. The MFC-8480DN also supports USB 2.0 and parallel port connections for versatile connectivity options. This device is designed to meet small to medium office printing and document handling demands efficiently.
Specifications
MPN | MFC8480DN |
UPC | 0012502622727 |
Model | MFC-8480DN |
Technology | Laser |
Connectivity | Ethernet 10/100 Base-TX, USB 2.0, Parallel Port |
Output Type | Black & White |
Type | All-In-One Printer |
Product Line | Brother MFC |
Weight | approx. 11.8 kg |
Height | 18.7in |
Width | 20.91in |
Max. Memory | 576MB |
Platform | PC Products |
Zoom Range, Reduction | 25%, |
Extend Printer Technology | Laser |
Duplex Printout | Optional |
Installed RAM | 64MB |
Data Link Protocol | Ethernet |
Color | Black |
Direct Printing Capabilities | Print Photos Without a PC |
Black Copying Speed Up to | 32pPM |
Scanner Shape | Flatbed Scanner |
Computer Operating System | Microsoft Windows Server 2003x64 Edition, Apple Mac OS X 10.3.9, Microsoft Windows Server 2008 |
Memory Card Compatibility | CompactFlash Type I |
Modem Type | Fax |
Fax Features Supported | Automatic Redial, Fax Forward to E-Mail |
Form Factor | Stationary |
Networking Type | Network Adapter |
Media Type | Bond Paper, Transparencies, Plain Paper, Recycled Paper |
Scanner Resolution | 600 x 2400 dpi optical |
Max Resolution (Bw) | 1200x1200DPI |
Panel | Monochrome LCD |
Monthly Duty Volume | 30000 Pages |
Max Media Size | Legal (216x356 Mm, 8.5x14in) |
Black Print Speed | 32ppm |
Media Capacity | 250 Pages |
Print Technology | Monochrome Laser |
Print Resolution | 1200 x 1200 dpi |
Print Speed | Up to 20 pages per minute |
Processor | 300 MHz |
Memory | 64 MB RAM, expandable |
Fax Modem Speed | 33.6 Kbps |
Fax Protocols | ECM, Broadcasting, Memory Transmission |
Paper Capacity | 250-sheet input tray, 50-sheet MP tray, 150-sheet output bin |
Duplex Printing | Automatic |
Operating Systems | Windows, Mac OS, Linux |

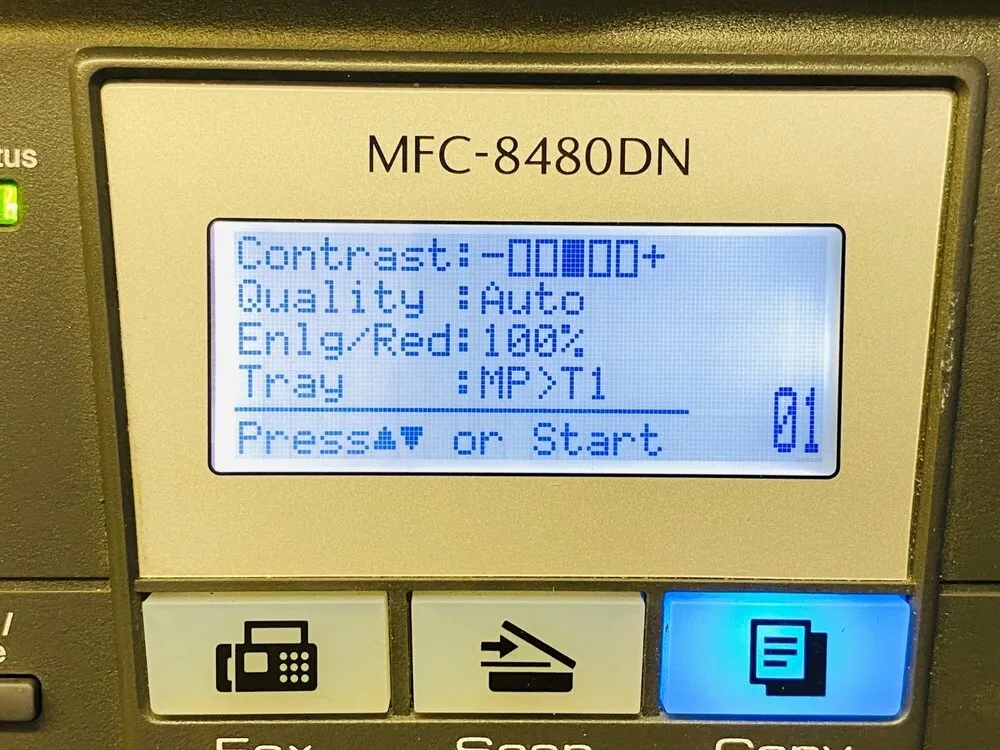

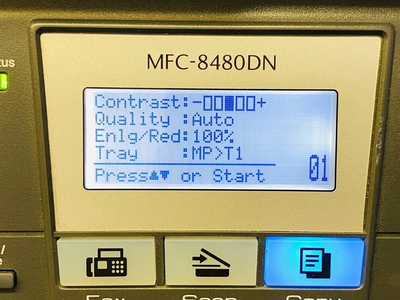

Display | 2-line LCD |
Dimensions (WxDxH) | 403 x 383 x 255 mm |
Images
Key Advantages
The Brother MFC-8480DN offers reliable monochrome laser printing with high-resolution output for professional documents. Its multifunction capability consolidates printing, scanning, copying, and faxing, reducing the need for multiple devices. The inclusion of duplex printing saves paper and cuts operational costs. Network connectivity via Ethernet allows multiple users to share the device conveniently in an office environment. Memory expansion options enhance the printer's performance, especially when handling complex print jobs. Additionally, compatibility with major operating systems ensures broad usability and ease of integration.
Limitations
The printer supports monochrome printing only, lacking color print capabilities, which may limit its use for certain business needs. Its fax modem speed is capped at 33.6 Kbps, which is slower compared to newer models with advanced fax technologies. The standard memory of 64 MB may be insufficient for very large or complex printing tasks unless expanded. The scanner's optical resolution maxes at 600 x 2400 dpi, which may not satisfy users requiring very high-resolution color scans. The device design and user interface are somewhat dated, reflecting technology standards from the mid-2000s. Its print speed is moderate, with a typical output of around 20 pages per minute, which might be slow for high-volume printing environments.
FAQ
What are the main functions of the Brother MFC-8480DN?
The Brother MFC-8480DN supports printing, copying, scanning, and faxing functions in a single unit.
Does the MFC-8480DN support color printing?
No, the Brother MFC-8480DN is a monochrome laser printer and does not support color printing.
What connectivity options are available on the MFC-8480DN?
It includes Ethernet 10/100 Base-TX, USB 2.0, and parallel port connections.
Can the printer handle automatic duplex printing?
Yes, the MFC-8480DN features automatic duplex printing to help save paper.
Is the memory expandable on this model?
Yes, it comes with 64 MB RAM standard, which can be expanded for better performance.
What types of fax protocols does it support?
The device supports ECM (Error Correction Mode), broadcasting, and other standard fax protocols.
Which operating systems are compatible with the Brother MFC-8480DN?
It supports Windows, Mac OS, and Linux operating systems with appropriate drivers.
